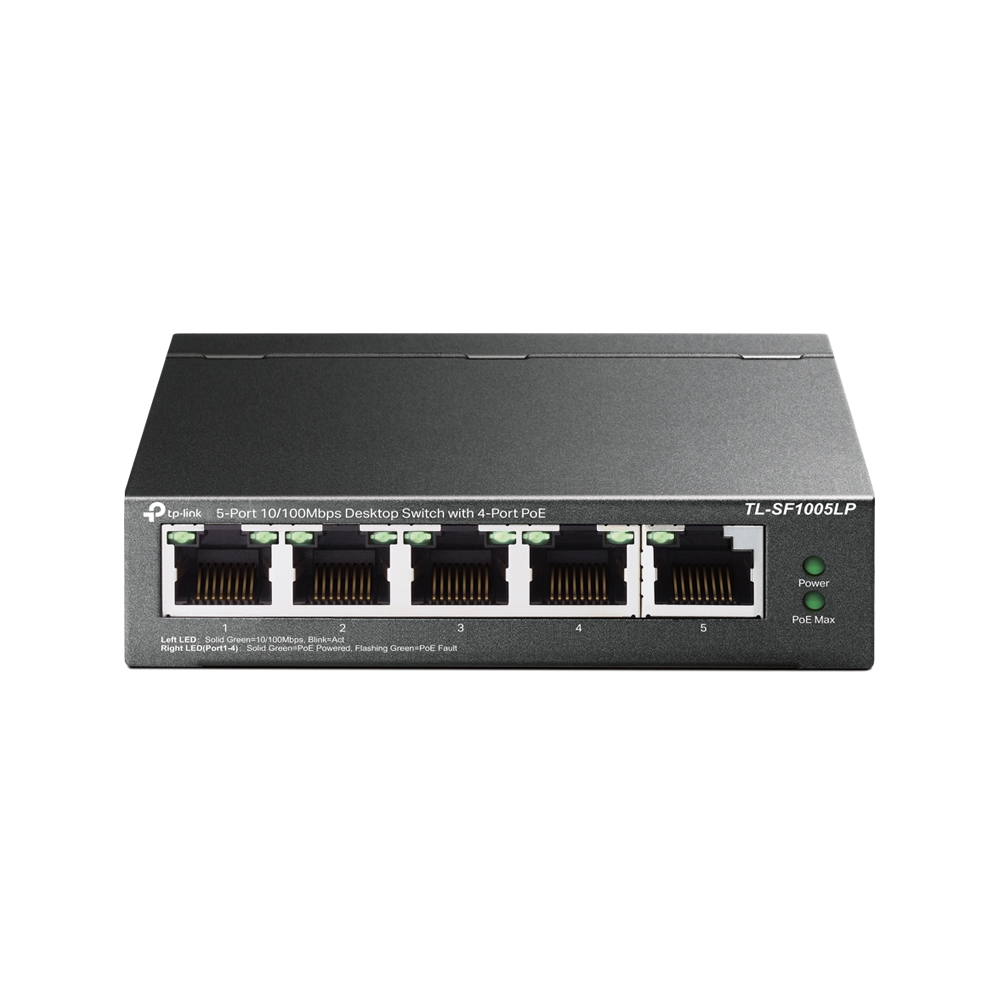

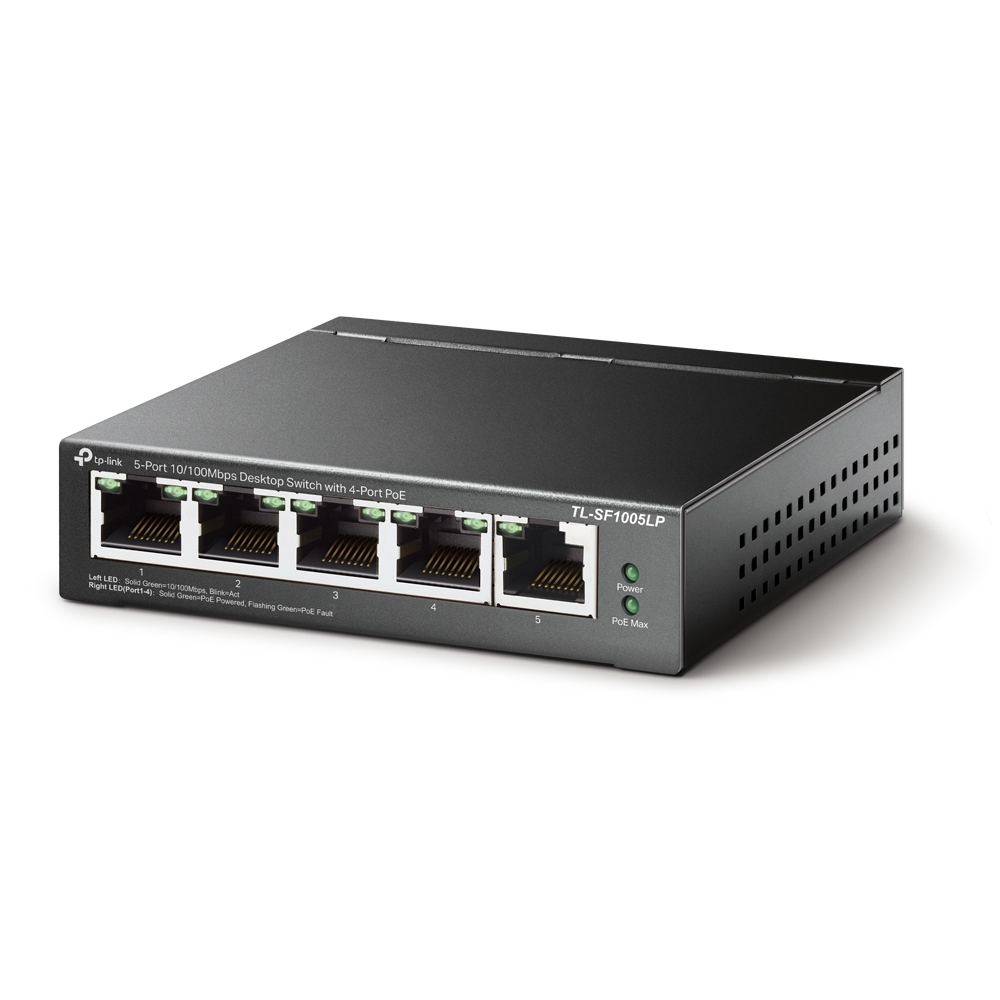

TP-Link 5-Port 10/100Mbps Switch with PoE

TP-Link TL-SF1005LP | 5-Port Fast Ethernet PoE Switch

The TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is a compact, unmanaged switch designed for small offices, retail spaces, and home networks that need to power IP cameras, VoIP phones, or access points without extra power injectors. With four IEEE 802.3af-compliant PoE ports and a 41 W total budget, it delivers plug-and-play connectivity and reliable power delivery for up to four PoE devices.

Quick specs comparison

Reliable PoE power for IP cameras and VoIP

Each PoE port can deliver up to 15.4 W, enough to run most IP cameras, wireless access points, and IP phones. The intelligent power management automatically cuts power from lower-priority ports if the total draw exceeds 41 W, protecting the switch and ensuring critical devices stay powered. This makes it ideal for small surveillance setups or office VoIP deployments where uptime matters.

Extend mode for long-distance PoE

In extend mode, the switch can transmit PoE power and data up to 250 m—perfect for covering large retail floors, warehouses, or outdoor areas with a single cable run. Note that port speed drops to 10 Mbps in this mode, and actual distance depends on cable quality and connected device power draw.

Prioritised traffic for video monitoring

Ports 1–2 support priority mode, which reserves bandwidth for latency-sensitive traffic such as video feeds from IP cameras. This helps prevent jitter or packet loss in critical monitoring areas like reception desks or server rooms.

Compact, silent, and durable

The all-metal chassis is fanless, so it runs silently and resists dust—ideal for noise-sensitive environments. Its desktop form factor (100 x 98 x 25 mm) fits neatly on a shelf or under a desk without requiring rack mounting.

Box contents

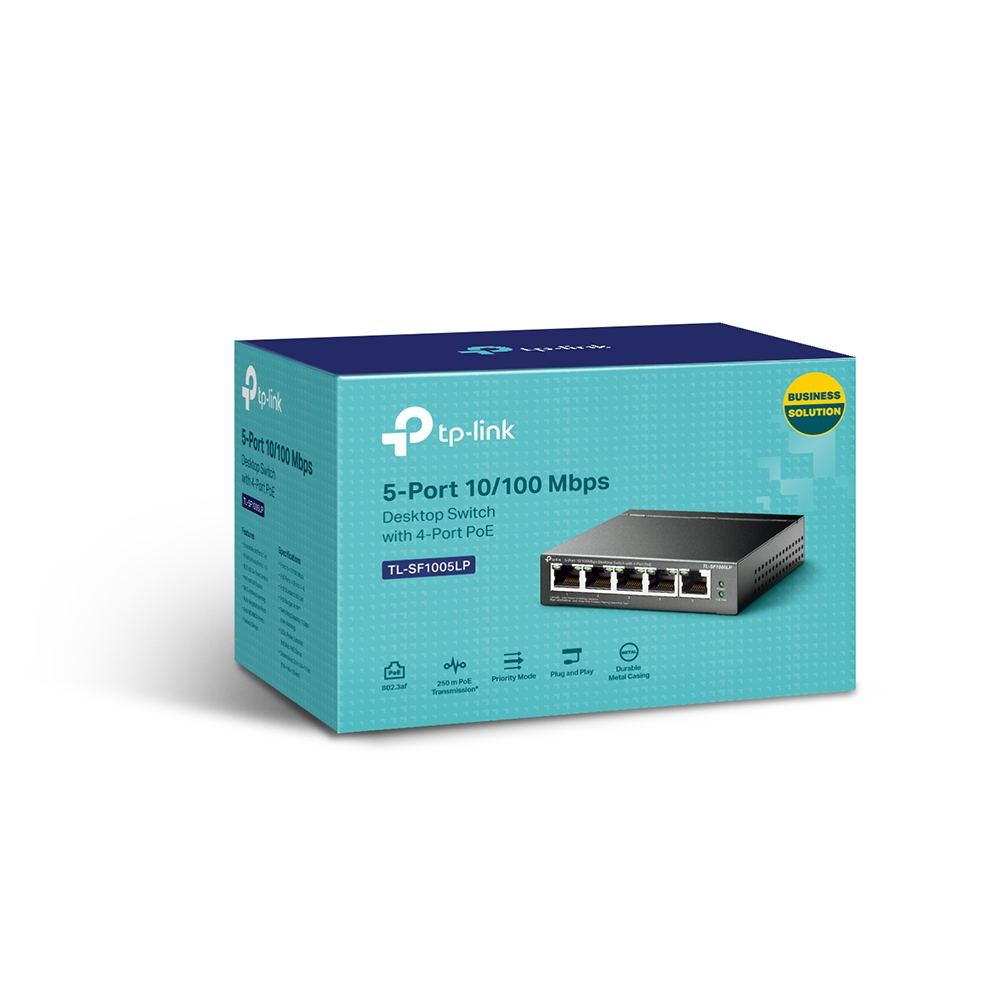

• TP-Link TL-SF1005LP switch
• Power adapter (DC input)
• User guide

Check before you buy

• Confirm your PoE devices do not exceed 15.4 W per port or 41 W total.
• Verify your network layout suits Fast Ethernet (100 Mbps) speeds.
• Check that your installation environment stays within 0–40 °C operating temperature.
• Ensure you have standard RJ-45 Ethernet cabling (Cat3–Cat5e supported).

Frequently Asked Questions

Q: Can I use all five ports for data?

A: Yes, but only four ports provide PoE power; the fifth is a standard Fast Ethernet port for non-PoE devices.

Q: Does this switch support gigabit speeds?

A: No, all ports are limited to 10/100 Mbps Fast Ethernet.

Q: Is the switch managed or unmanaged?

A: It is unmanaged—no configuration is required; it works out of the box.

Q: Can I mount it in a rack?

A: No, it is designed for desktop use only; rack mounting is not supported.

Q: What is the total PoE power budget?

A: The switch provides up to 41 W shared across all four PoE ports.

The Consultant’s verdict & warranty

The TP-Link TL-SF1005LP is a cost-effective, no-fuss solution for powering and connecting up to four PoE devices in small-scale deployments. Its extend mode and priority traffic features make it especially suited to IP camera and VoIP setups where both distance and quality matter. Covered by the standard Manufacturer Warranty.
