TP-Link TL-SF1006P PoE Network Switch

TP-Link TL-SF1006P | 6-Port Unmanaged PoE+ Switch

The TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black is a compact, fanless solution designed for small-scale deployments requiring reliable PoE+ power delivery. With 4 PoE+ ports delivering up to 67W total budget, it’s ideal for powering IP cameras, access points, and VoIP phones without additional adapters.

Key Specifications

Power and Performance for Small Networks

This unmanaged switch delivers consistent performance with a 1.2Gbps switching capacity and 2000 MAC address table. The IEEE 802.3af/at compliance ensures compatibility with a wide range of PoE devices, while the 67W power budget supports multiple high-draw devices simultaneously. Auto-negotiation and auto-MDI/MDI-X eliminate configuration hassles, making it truly plug-and-play.

Extended Range for IP Surveillance

When using the extend mode, PoE transmission reaches up to 250m, perfect for deploying IP cameras across large areas like warehouses or outdoor perimeters. Note that speed drops to 10Mbps in extend mode, which is sufficient for most surveillance streams. This feature eliminates the need for additional PoE injectors or power outlets in remote locations.

Intelligent Power Management

The switch includes priority-based power allocation, ensuring critical devices remain powered when the total draw approaches 67W. Low-priority ports are automatically cut off to protect high-priority connections. Built-in surge protection safeguards both PoE and non-PoE equipment from electrical damage, while the metal casing provides durability in demanding environments.

Box Contents

• TP-Link TL-SF1006P switch
• Power adapter
• User guide

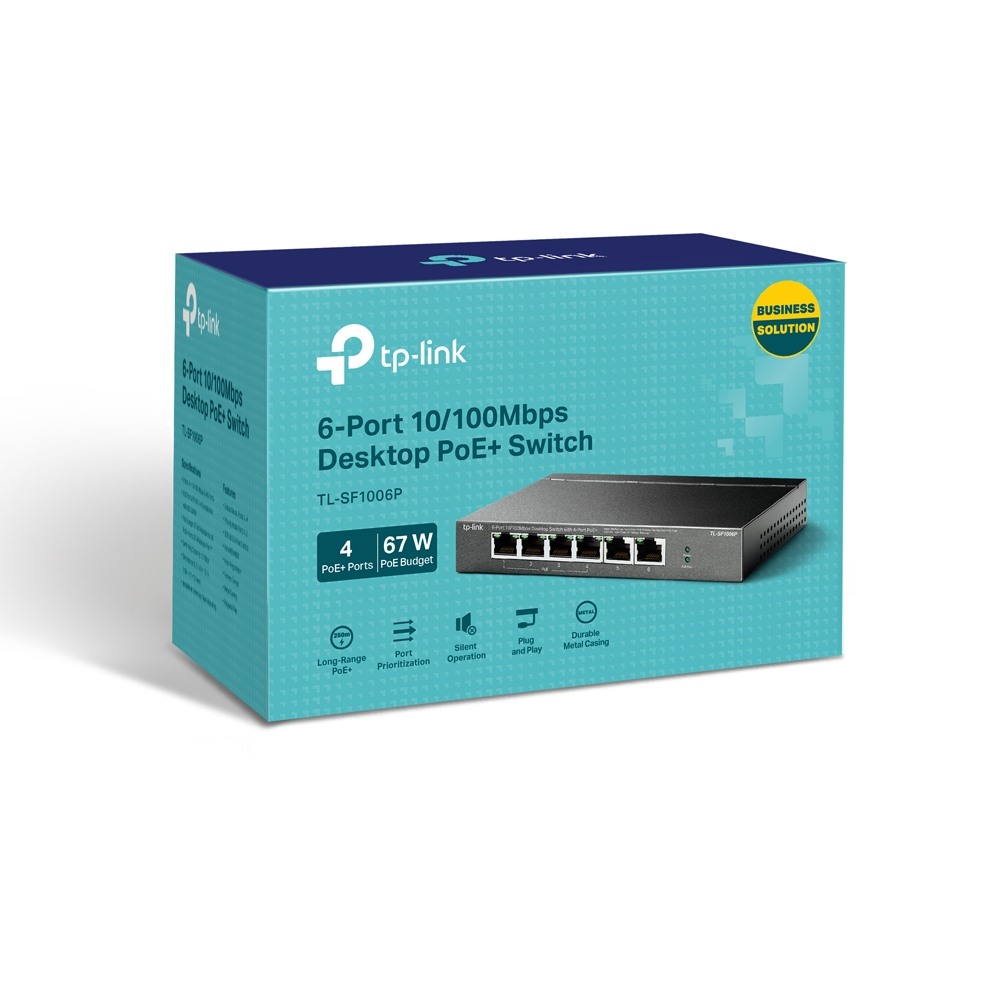

• Package box (131 x 196 x 121mm)

Check before you buy

• Confirm your PoE devices don’t exceed 67W total power budget
• Verify your UK power outlets match the 220V AC requirement
• Check that extend mode’s 10Mbps speed limitation suits your surveillance needs
• Ensure your network devices support Fast Ethernet (10/100Mbps)

Frequently Asked Questions

Q: Can this switch power multiple IP cameras simultaneously?

A: Yes, with 67W total budget and IEEE 802.3af/at compliance, it can power multiple cameras depending on their individual power requirements.

Q: Does extend mode affect all ports or only PoE ports?

A: Extend mode affects all ports, reducing speed to 10Mbps when activated for longer distance transmission.

Q: Is this switch suitable for outdoor use?

A: No, the operating temperature range (0-40°C) and lack of weatherproofing make it unsuitable for outdoor deployment.

Q: Can I mount this in a standard 19″ rack?

A: No, this desktop switch doesn’t support rack mounting. It’s designed for surface placement.

Q: What happens if power consumption exceeds 67W?

A: The intelligent power management system will cut power to lower priority ports to protect high-priority connections.

The Consultant’s verdict & warranty

The TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black offers excellent value for small businesses and home users needing simple PoE deployment. Its metal construction, fanless design, and intelligent power management make it a reliable choice for IP surveillance and VoIP applications. Covered by the standard Manufacturer Warranty.
