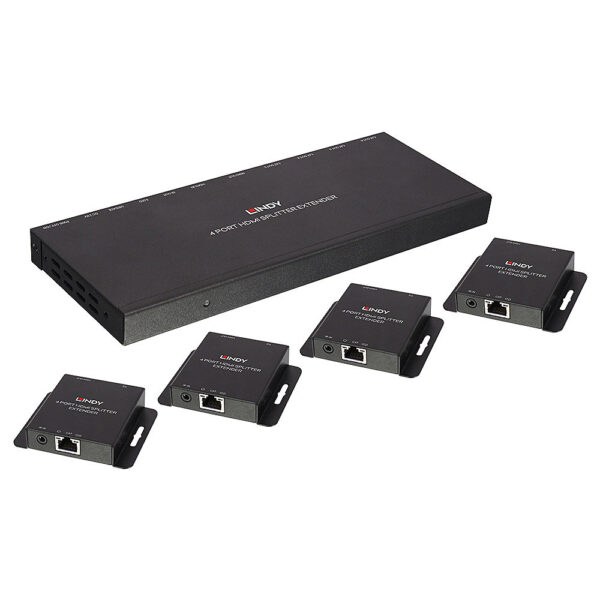

Lindy HDMI 4K30 Splitter Extender

Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out

The Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out is a professional AV solution designed for extending and distributing HDMI signals across large spaces. This plug-and-play system supports resolutions up to 4K30, including 1080p 3D, making it ideal for digital signage, education, retail, and healthcare applications.

Slim Specs Table

Extend HDMI Signals Up to 70m with 4K30 Support

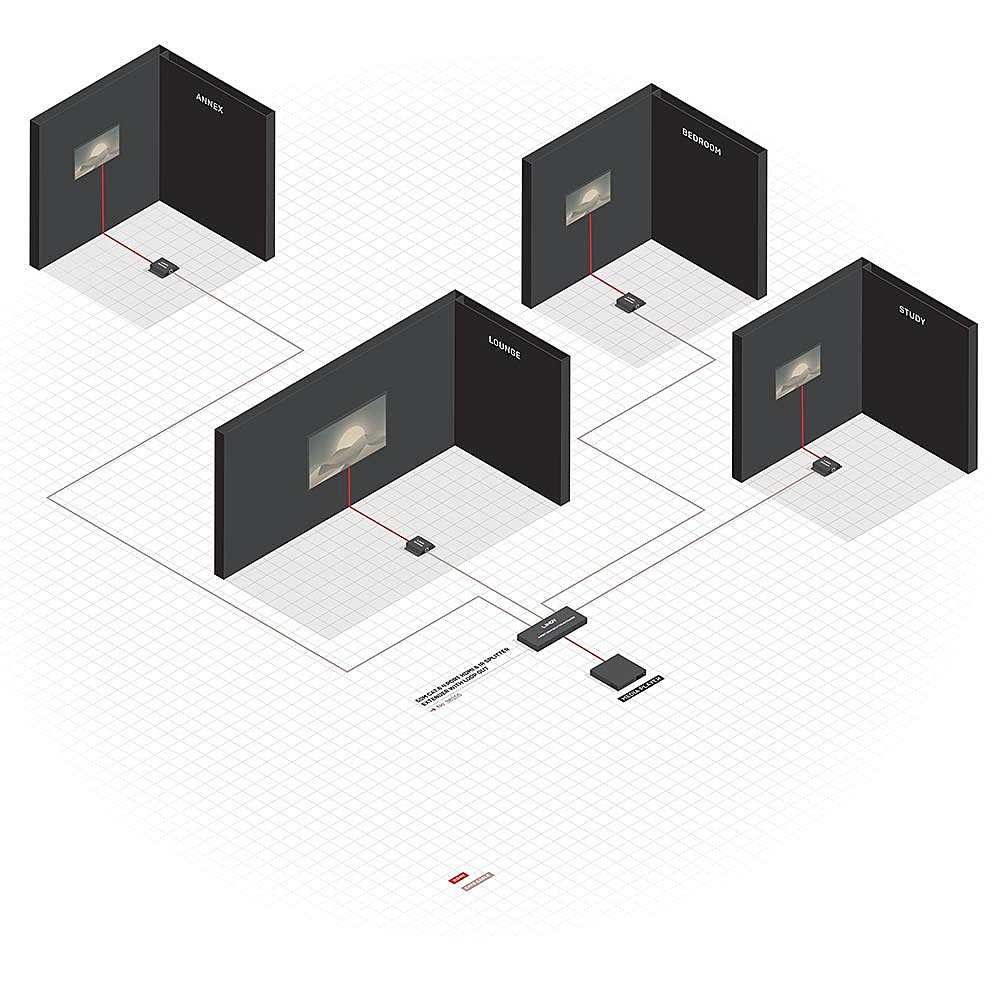

This HDMI splitter extender delivers crystal-clear 4K30 video up to 70 metres using standard Cat.6 cable, eliminating the need for expensive HDMI cables over long distances. The system supports 1080p 3D content and distributes the signal to four separate displays simultaneously. Whether you’re setting up digital signage in a retail environment or creating a multi-screen presentation in a conference room, this extender provides reliable performance without signal degradation.

Power Over Cable Technology Simplifies Installation

Power over Cable (PoC) functionality means the entire system runs from a single power supply connected to the transmitter unit. This eliminates the need for multiple power adapters at receiver locations, making it perfect for retrofit installations where running additional power cables would be difficult or costly. The screw-type DC jack provides a secure connection that won’t accidentally disconnect during installation or use.

Integrated HDMI Loop-Through for Local Monitoring

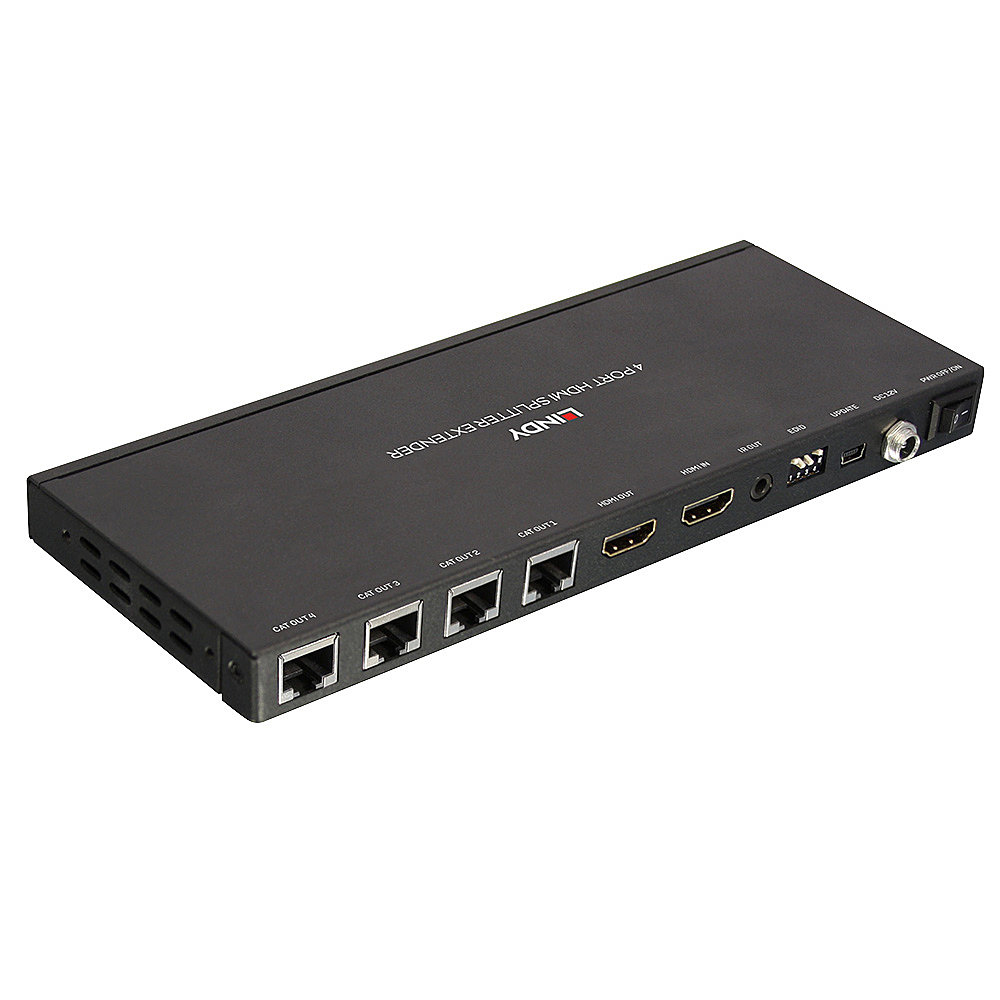

The transmitter features an HDMI loop-through output that enables simultaneous local viewing on a connected display. This allows you to monitor content being sent to remote displays or create an additional viewing zone without affecting the main distribution. The loop-through port also supports EDID cloning and provides 9 EDID presets for seamless compatibility with various display devices and source equipment.

Slim Design with Easy Installation

With integrated mounting brackets and a compact profile, this splitter extender fits easily behind modern flat-screen displays in limited spaces. The slim design (transmitter: 11.8 x 25 x 3.2 cm, receiver: 4.9 x 8.1 x 2.5 cm) makes it ideal for discreet installations where space is at a premium. The system includes IR receiver and emitter cables for extending infrared control signals between 20-60kHz, perfect for controlling source devices from remote locations.

Box Contents

• Transmitter unit with HDMI loop-through

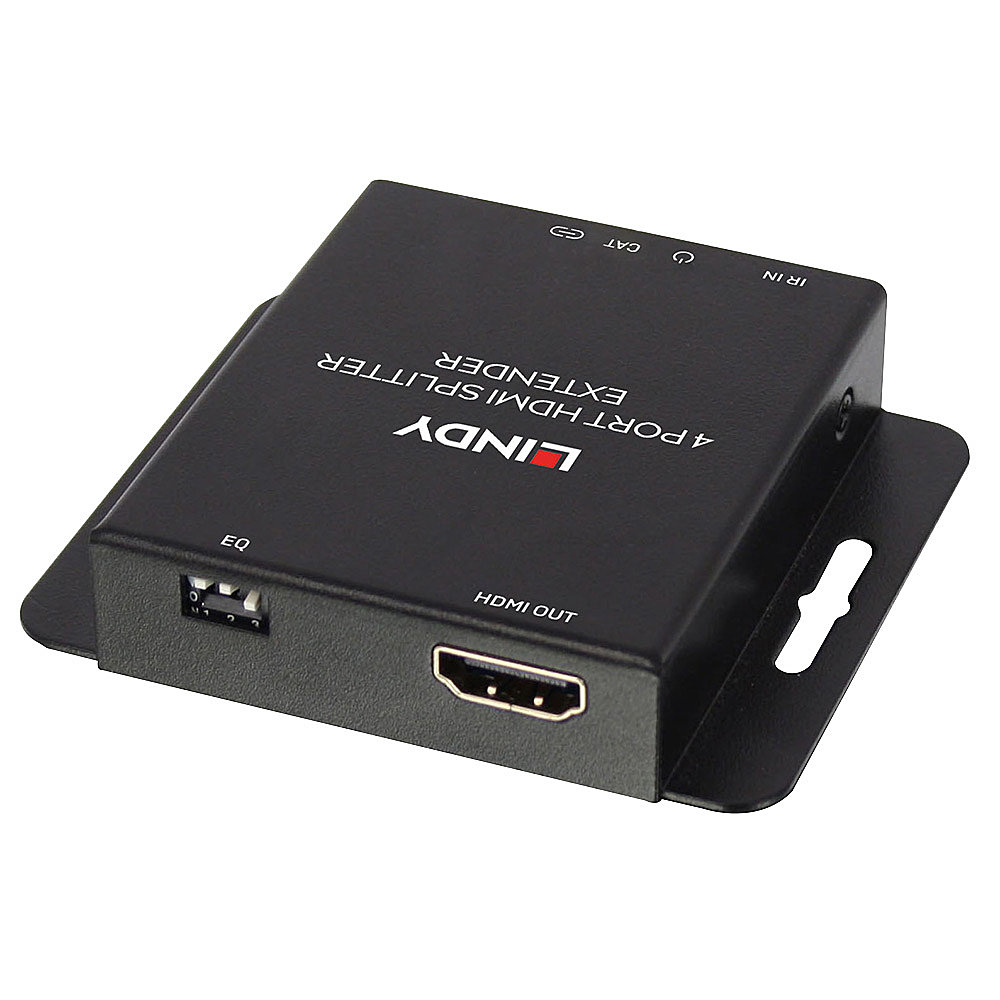

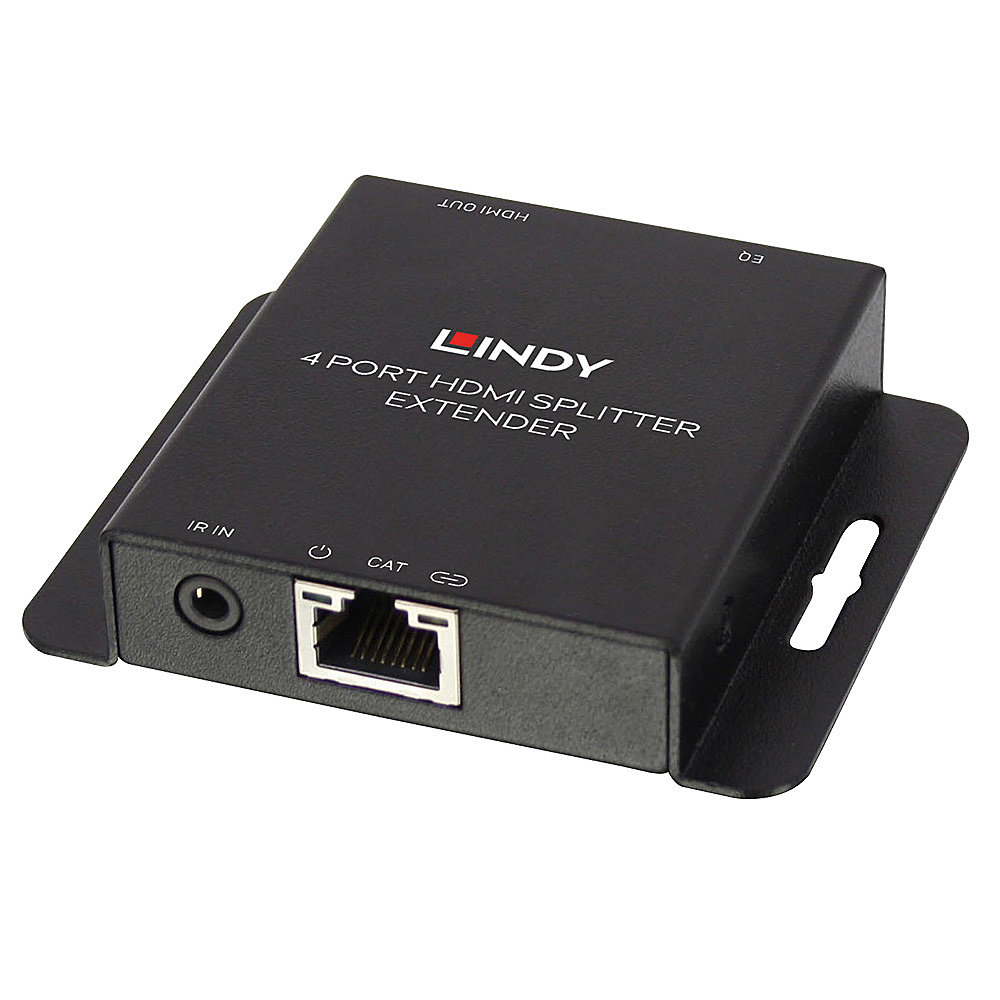

• 4x HDMI receiver units
• IR receiver and emitter cables
• Power supply with screw-type DC connector
• Mounting brackets
• User manual

Check before you buy

• Confirm your source device has HDMI output capability
• Verify you have Cat.6 solid core cable available (not included)
• Check that your displays support the required HDMI resolutions
• Ensure you have adequate space for installation behind displays

Frequently Asked Questions

Q: What type of cable is required for this extender?

A: This system requires Cat.6 UUTP solid core cable, which is not included in the package.

Q: Can I extend IR signals along with the HDMI video?

A: Yes, the system includes IR receiver and emitter cables that support frequencies between 20-60kHz.

Q: How many displays can I connect to a single source?

A: You can connect up to 4 displays directly, or cascade up to 3 transmitters for a total of 12 displays.

Q: Does this system support 4K resolution?

A: Yes, it supports resolutions up to 4K30, including 1080p 3D content.

Q: What is Power over Cable (PoC) and how does it work?

A: PoC allows the entire system to be powered from a single power supply connected to the transmitter, eliminating the need for separate power adapters at each receiver.

The Consultant’s verdict & warranty

The Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out offers exceptional value for professional AV installations requiring long-distance HDMI distribution. Its combination of 4K support, PoC technology, and IR extension makes it versatile for various commercial and educational settings. The system’s ability to cascade multiple units for larger installations adds scalability that many competitors lack. Covered by the standard Manufacturer Warranty.
