ARCTIC F12 120mm Case Fan
£12.99 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 5-pack of 120 mm case fans
- Fluid Dynamic Bearing for quiet operation
- Maximum 1350 RPM with 0.3 sone noise level
- 53 CFM airflow at 90.1 m³/h
- 3-pin connector with 0.4 m cable
- 0-40 °C operating temperature range
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

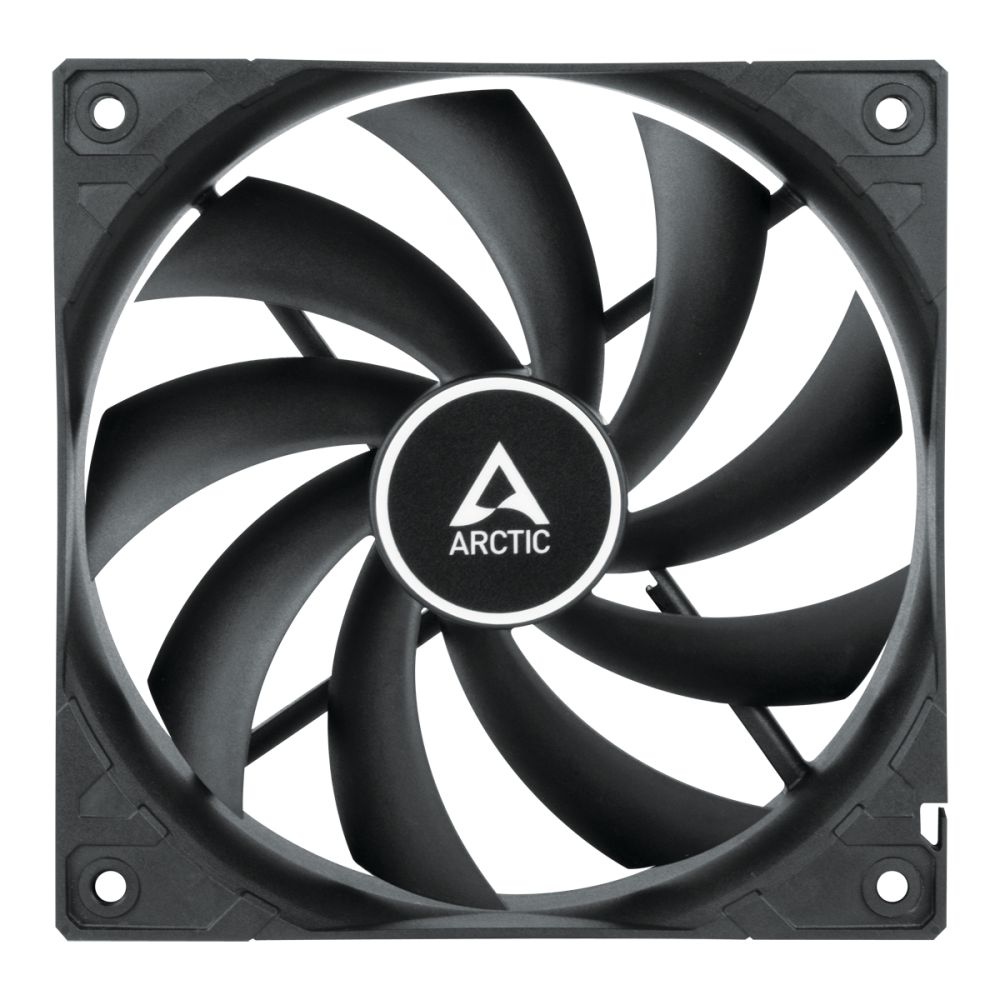

ARCTIC F12 | High-Performance 120 mm Case Fan Pack
The ARCTIC F12 – 120 mm Standard Case Fan delivers quiet, efficient cooling for PC builders seeking reliable airflow without excessive noise. This five-pack offers excellent value for users upgrading or expanding their system’s cooling capacity.
Key Specifications
| Metric | Spec |
|---|---|
| Fan Size | 120 mm |
| Maximum Speed | 1350 RPM |
| Noise Level | 0.3 sone |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Airflow | 90.1 m³/h (53 CFM) |
| Voltage | 12V DC |
| Quantity | 5 fans per pack |
Ultra-Quiet Performance with FDB Technology
The ARCTIC F12 features Fluid Dynamic Bearing technology that significantly reduces friction and noise compared to traditional sleeve or ball bearings. This bearing design extends fan lifespan while maintaining whisper-quiet operation at just 0.3 sone. The patented low-noise impeller design maximises airflow volume, allowing the fan to deliver optimal cooling performance even at lower rotational speeds.
Efficient Cooling for Multiple Configurations
With a maximum airflow rating of 90.1 m³/h and a speed range from 0 to 1350 RPM, these fans provide versatile cooling options. The 120 mm size fits standard case mounting points, making them suitable for front intake, rear exhaust, or side panel mounting positions. The three-pin connector ensures broad compatibility with most motherboard fan headers and fan controllers.

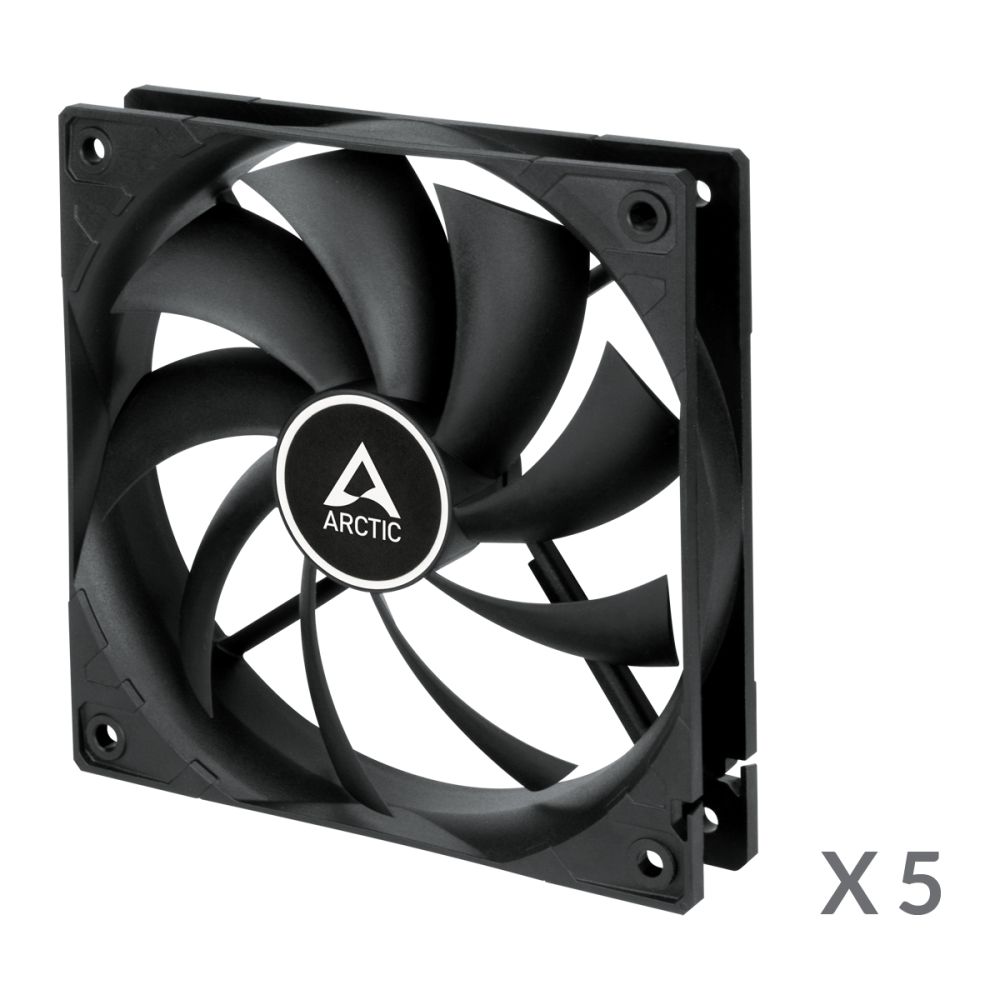

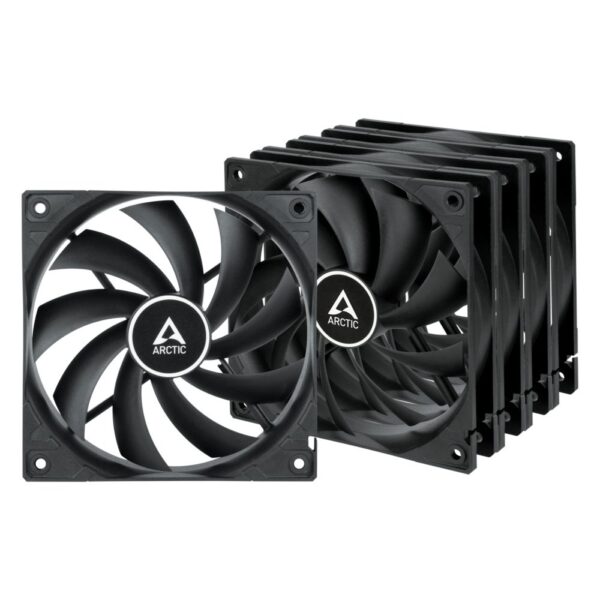

Complete Five-Pack Solution

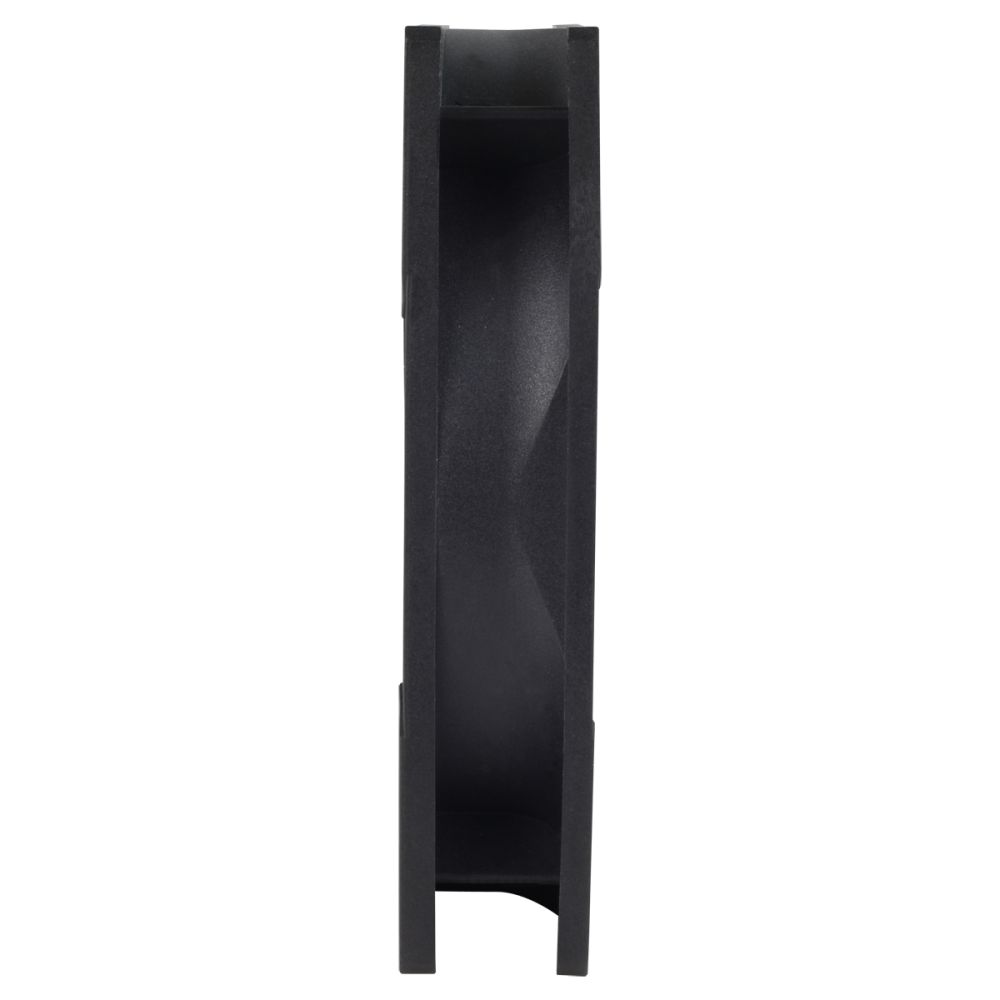

This package contains five identical ARCTIC F12 fans, providing comprehensive cooling coverage for mid-tower or larger cases. Each fan includes a 0.4 m cable for convenient connection to power sources. The black colour scheme matches most PC build aesthetics, while the compact 25 mm thickness allows installation in tight spaces without clearance issues.

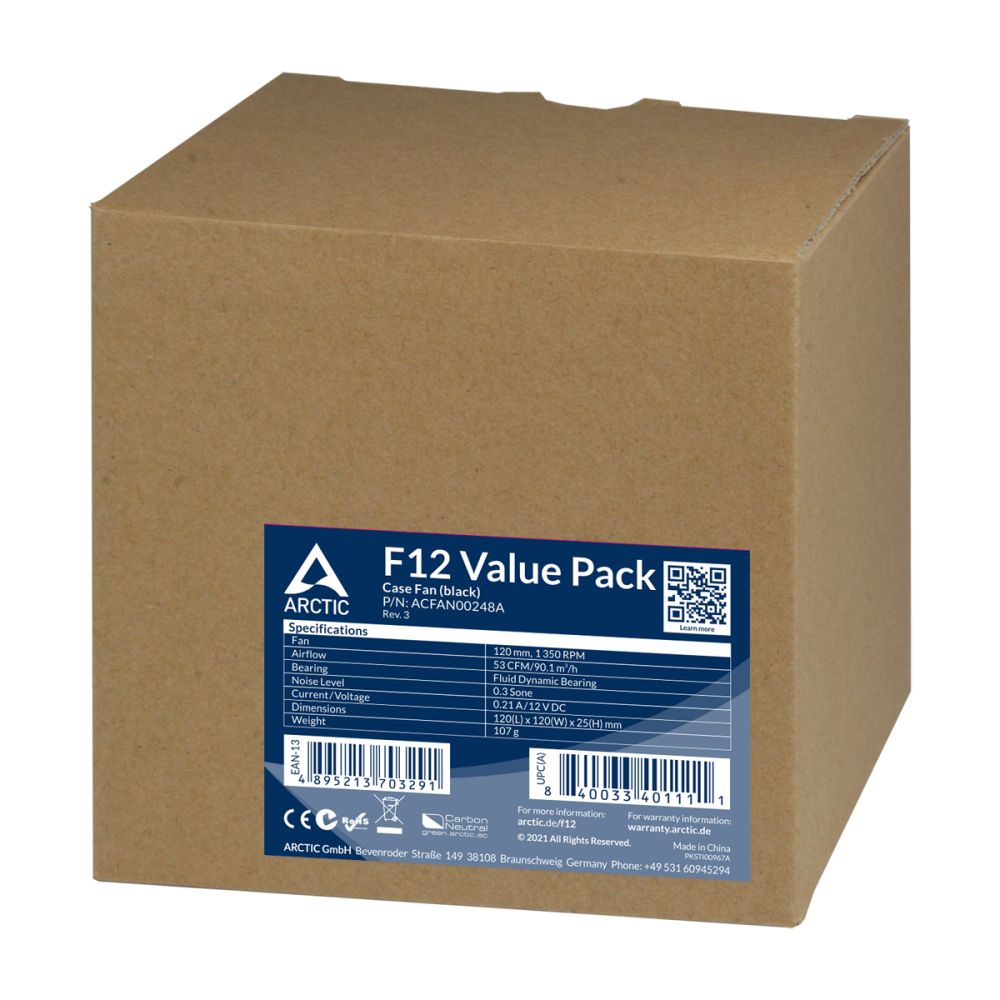

Box contents
- 5 x ARCTIC F12 120 mm case fans
- Standard mounting hardware (screws not specified)
Check before you buy
- Confirm your case has available 120 mm mounting points
- Verify your fan controller or motherboard supports 3-pin connectors
- Check clearance for 25 mm fan thickness in your intended mounting location
- Ensure your power supply can handle five additional fans (0.12A each)
Frequently Asked Questions
Q: Are these fans PWM controlled?
A: No, these fans use a standard 3-pin connector without PWM control. Speed is controlled via voltage regulation.
Q: What is the starting voltage for these fans?
A: The starting voltage is 2.7V, allowing for very low-speed operation when minimal cooling is needed.
Q: Can these fans be used for radiator cooling?
A: Yes, the 120 mm size makes them suitable for most standard radiators, though static pressure specifications are not provided.
Q: How do I connect multiple fans together?
A: These fans connect individually to fan headers. For daisy-chaining, you’ll need a fan hub or splitter cable (not included).
Q: What is the expected lifespan of these fans?
A: While exact MTBF is not specified, the FDB bearing technology typically provides longer lifespan than standard bearing types.
The Consultant’s verdict & warranty
The ARCTIC F12 – 120 mm Standard Case Fan five-pack offers excellent value for PC builders needing reliable, quiet cooling. The Fluid Dynamic Bearing ensures longevity and reduced noise, while the patented impeller design delivers efficient airflow at reasonable speeds. These fans work well for users building or upgrading systems where quiet operation matters. Covered by the standard Manufacturer Warranty.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 3-pin |
| Rotational speed (min) | 0 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 53 cfm |
| Minimum air pressure | 1 mmH2O |
| Airflow | 90.1 m³/h |
| Number of fans | 5 fan(s) |
| Quantity per pack | 5 pc(s) |
| Design | |
| Fan connector | 3-pin |
| Number of fans | 5 fan(s) |
| Product colour | Black |
| Cable length | 0.4 m |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 53 cfm |
| Minimum air pressure | 1 mmH2O |
| Airflow | 90.1 m³/h |
| Number of fans | 5 fan(s) |
| Cable length | 0.4 m |
| Fan connector | 3-pin |
| Ports & interfaces | |
| Fan connector | 3-pin |
| Power | |
| Starting voltage | 2.7 V |
| Voltage | 12 V |
| Rated current | 0.12 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 137 mm |
| Package width | 123 mm |
| Package height | 127 mm |
| Width | 120 mm |
| Package weight | 642 g |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 107 g |
| Cable length | 0.4 m |
| Packaging data | |
| Package depth | 137 mm |
| Package width | 123 mm |
| Package height | 127 mm |
| Package weight | 642 g |
| Package type | Box |
| Packaging content | |
| Package type | Box |
| Other features | |
| Country of origin | Hong Kong |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Identifiers | |
| Distributor SKUs | 235652, CLACFAN00248A |
| Additional EANs | 0840033401111 |
