Asrock B650M PG Lightning AM5 micro ATX

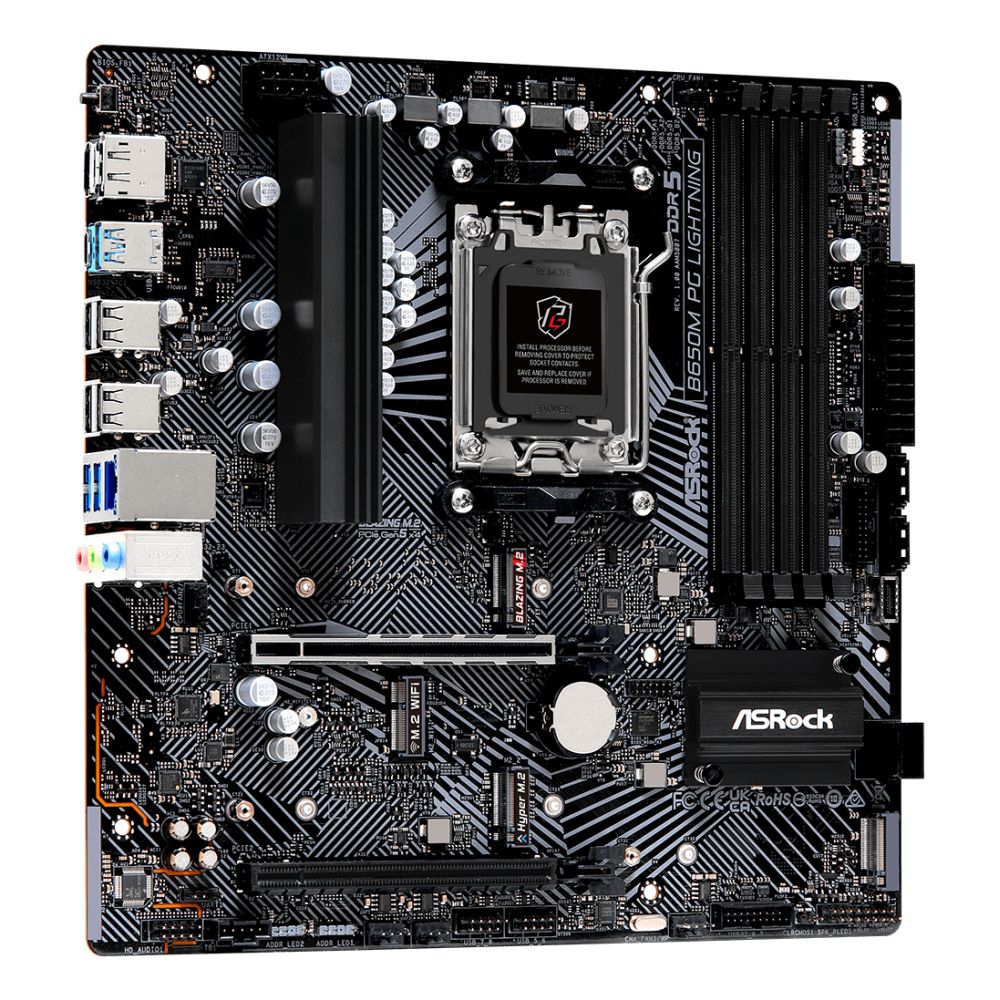

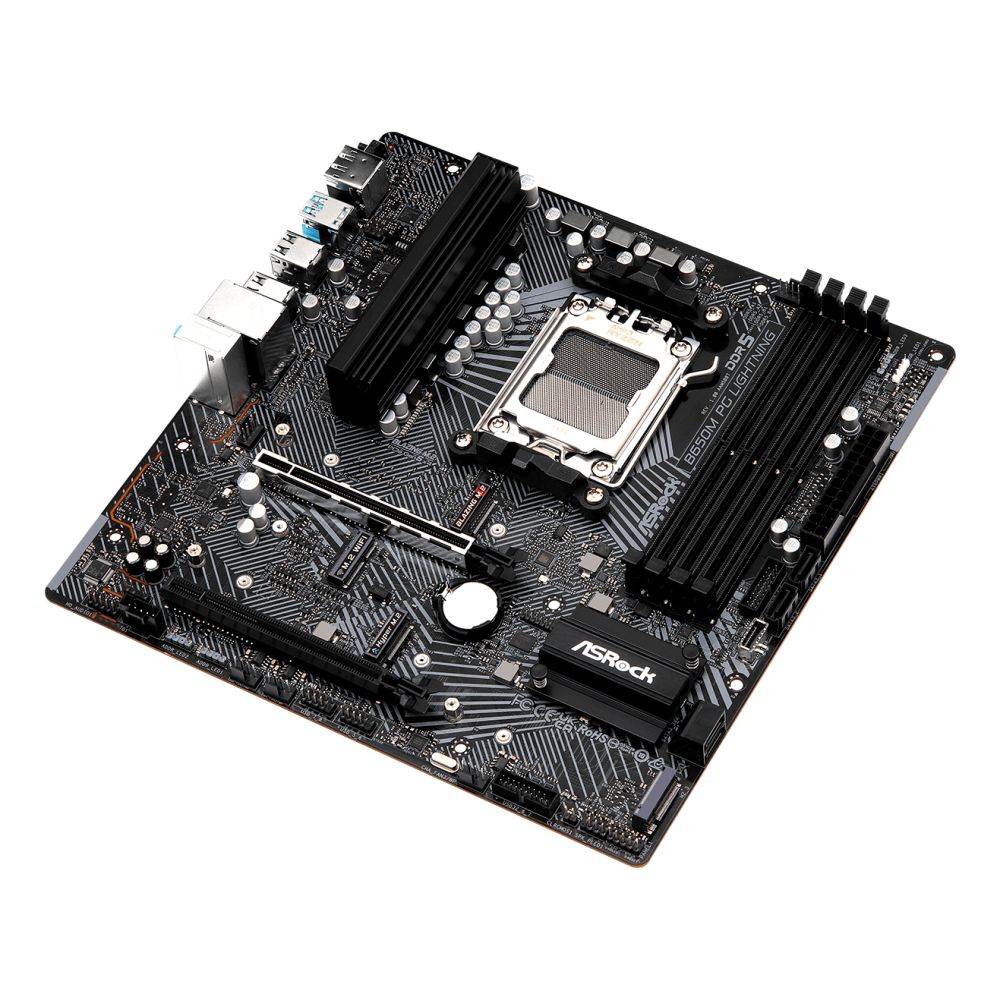

ASRock B650M PG Lightning | AMD B650 Micro ATX Motherboard

The ASRock B650M PG Lightning AMD B650 Socket AM5 micro ATX motherboard delivers exceptional performance for AMD Ryzen 7000 Series processors with advanced power delivery and cutting-edge connectivity options.

Key Specifications

Optimized VRM Design for Stable Performance

The Dr. MOS integrated power stage solution intelligently delivers higher current to each phase, providing superior thermal performance and stability. The 6+2+1 power phase design features sturdy components that ensure smooth power delivery to your CPU, offering enhanced performance for gamers and content creators alike.

Extreme Overclocking Capabilities

DDR5 EXPO & XMP SupportBuilt with a 6-layer PCB design, this motherboard supports DDR5 memory overclocking up to 7200MHz and beyond. Enthusiasts can easily enable pre-tested profiles for affordable, satisfying performance boosts without complex BIOS adjustments.

Blazing OC Tuner TechnologyThe innovative Blazing OC Tuner automatically switches between manual overclocking mode and Precision Boost Overdrive based on CPU current thresholds. This intelligent system combines all-core overclocking with single-core automatic boost to maximize CPU performance without manual BIOS configuration.

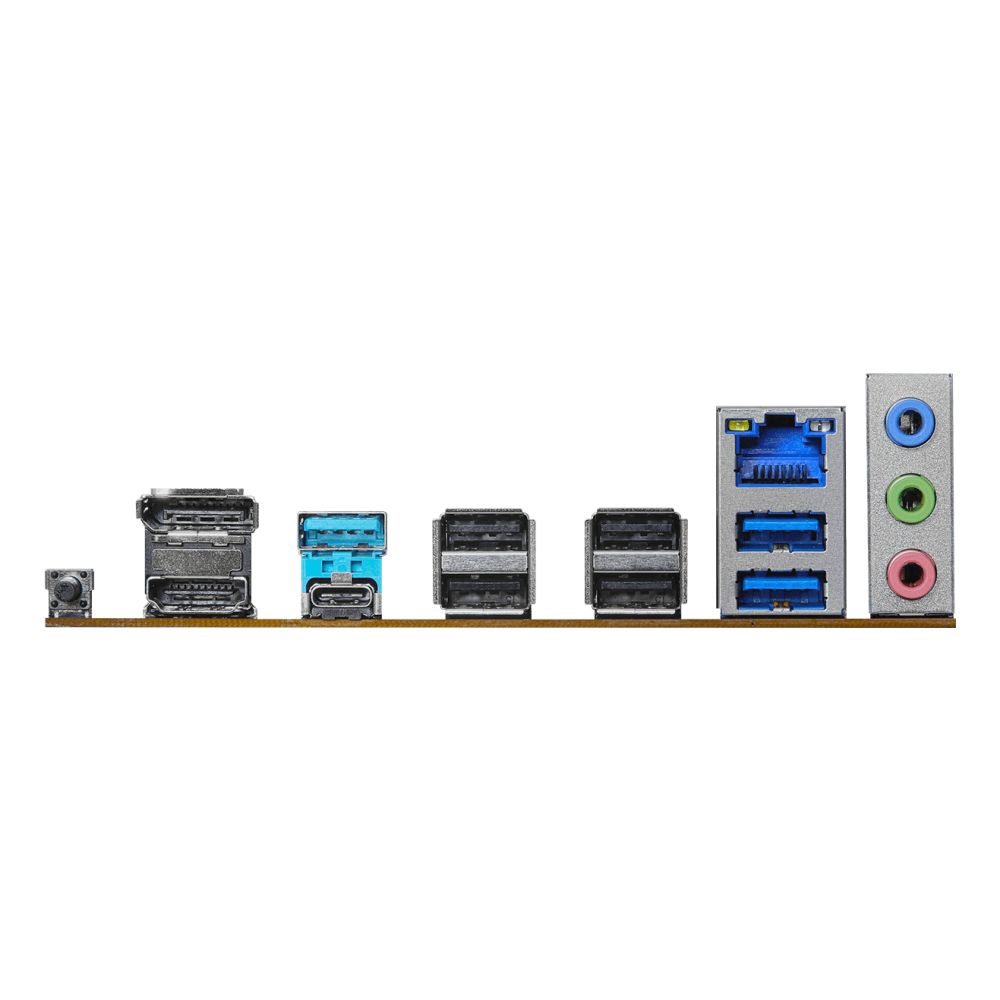

Advanced Connectivity Options

PCIe Gen5 Blazing M.2The Blazing M.2 slot supports the latest PCI Express 5.0 standard, delivering twice the bandwidth of previous generations with a breathtaking 128Gb/s transfer speed. This future-proofs your system for ultrafast SSDs and next-generation storage devices.

Phantom Gaming 2.5Gb LANExperience maximum networking performance with the intelligent Phantom Gaming 2.5Gb/s LAN platform. Boost networking performance up to 2.5X compared to standard gigabit Ethernet, automatically detecting and accelerating game traffic for smoother, stutter-free gaming experiences.

Enhanced Audio Experience

Nahimic Audio TechnologyWhether using headphones, headsets, speakers, or HDMI output, Nahimic Audio delivers the most engaging listening experience with vibrant, rich sound. The powerful algorithms provide noise-free communication with features like static noise suppression, echo cancellation, and voice stabilizer for crystal-clear conversations.

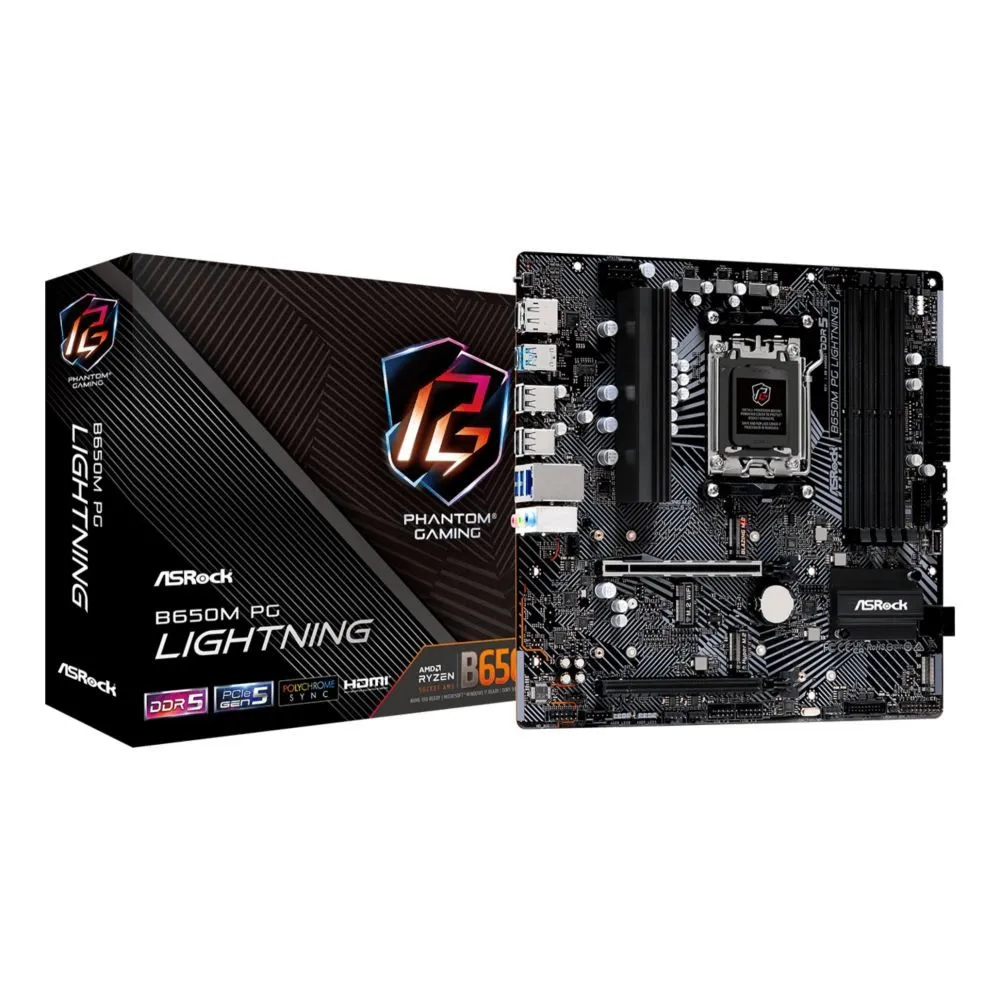

Box Contents

• ASRock B650M PG Lightning motherboard
• SATA cables
• Screws
• User manual
• I/O shield

Check before you buy

• Confirm your AMD Ryzen 7000 Series processor is Socket AM5 compatible
• Verify your case supports micro ATX form factor (244mm x 244mm)
• Ensure your DDR5 memory modules support AMD EXPO™ or Intel XMP profiles
• Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors

Frequently Asked Questions

Q: Does this motherboard support WiFi?

A: No, this motherboard does not include built-in WiFi. However, it features an M.2 (Key E) slot for optional WiFi card installation.

Q: What is the maximum memory capacity supported?

A: The motherboard supports up to 192GB of DDR5 memory across four DIMM slots.

Q: Can I use PCIe 4.0 graphics cards with this board?

A: Yes, the reinforced steel PCIe x16 slot supports both PCIe 4.0 and PCIe 5.0 graphics cards.

Q: What operating systems are supported?

A: The motherboard supports Windows 10 x64 and Windows 11 x64 operating systems.

Q: Does it support RAID configurations?

A: Yes, it supports RAID 0, 1, and 10 configurations for enhanced storage performance and redundancy.

The Consultant’s Verdict & Warranty

The ASRock B650M PG Lightning AMD B650 Socket AM5 micro ATX motherboard represents excellent value for gamers and PC builders seeking AMD Ryzen 7000 Series performance in a compact micro ATX form factor. With its robust VRM design, DDR5 support up to 7200MHz, and comprehensive connectivity options including PCIe 5.0 and 2.5Gb LAN, this board delivers premium features at an accessible price point. Covered by the standard Manufacturer Warranty.
