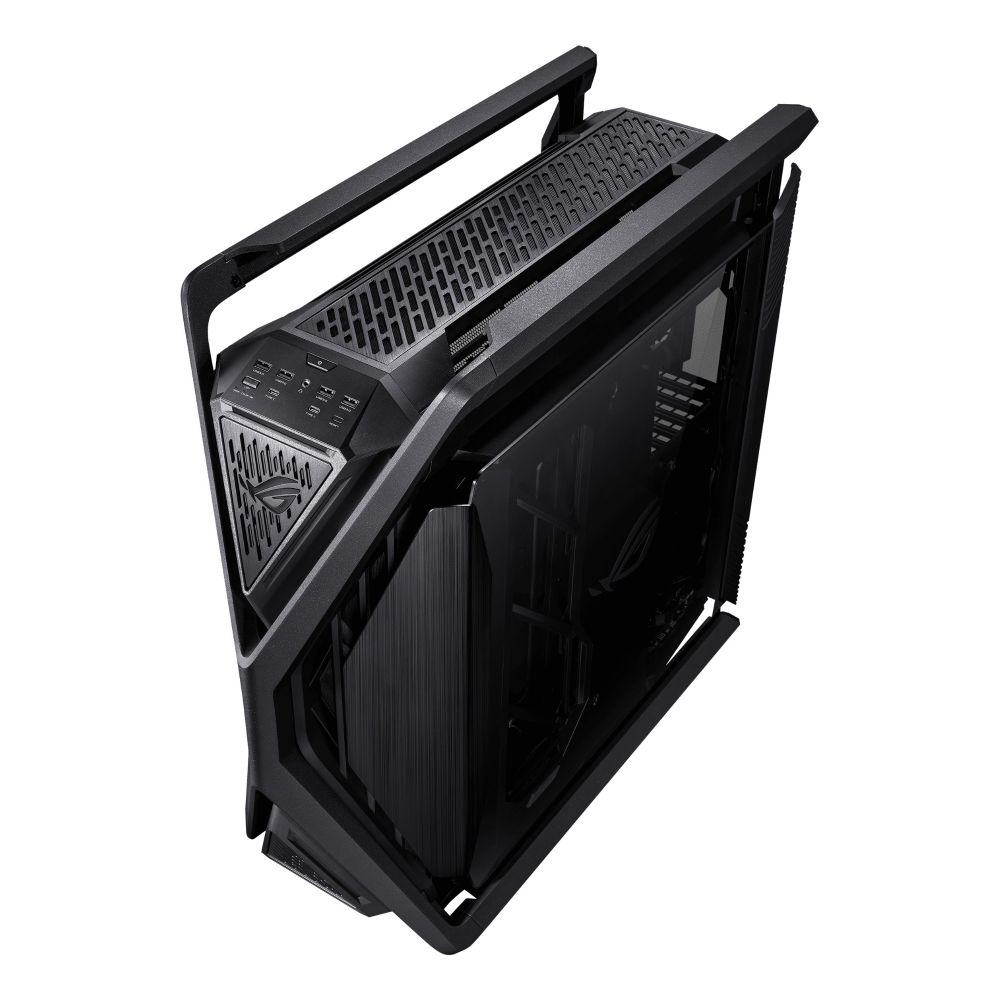

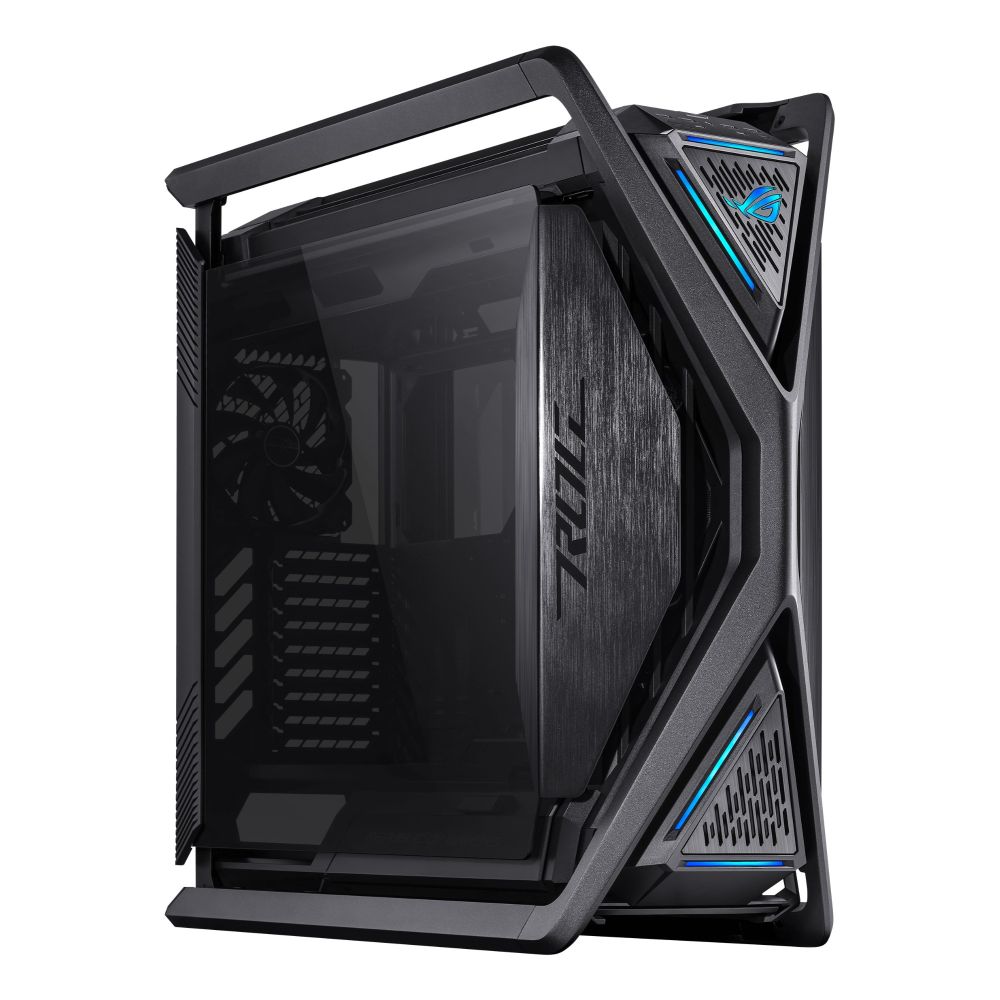

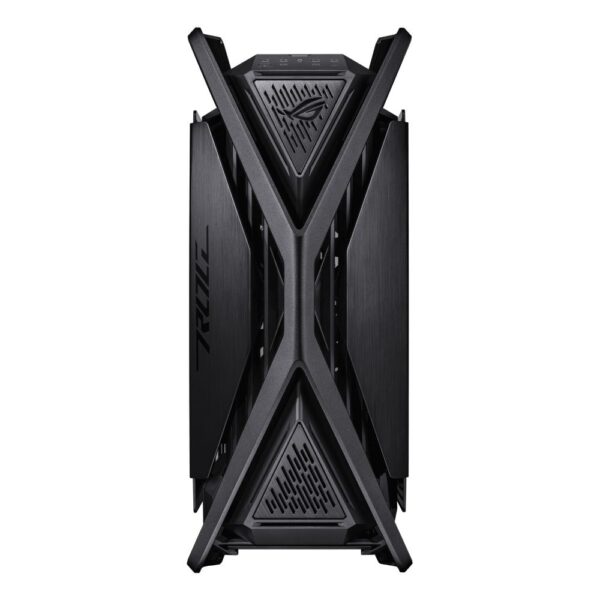

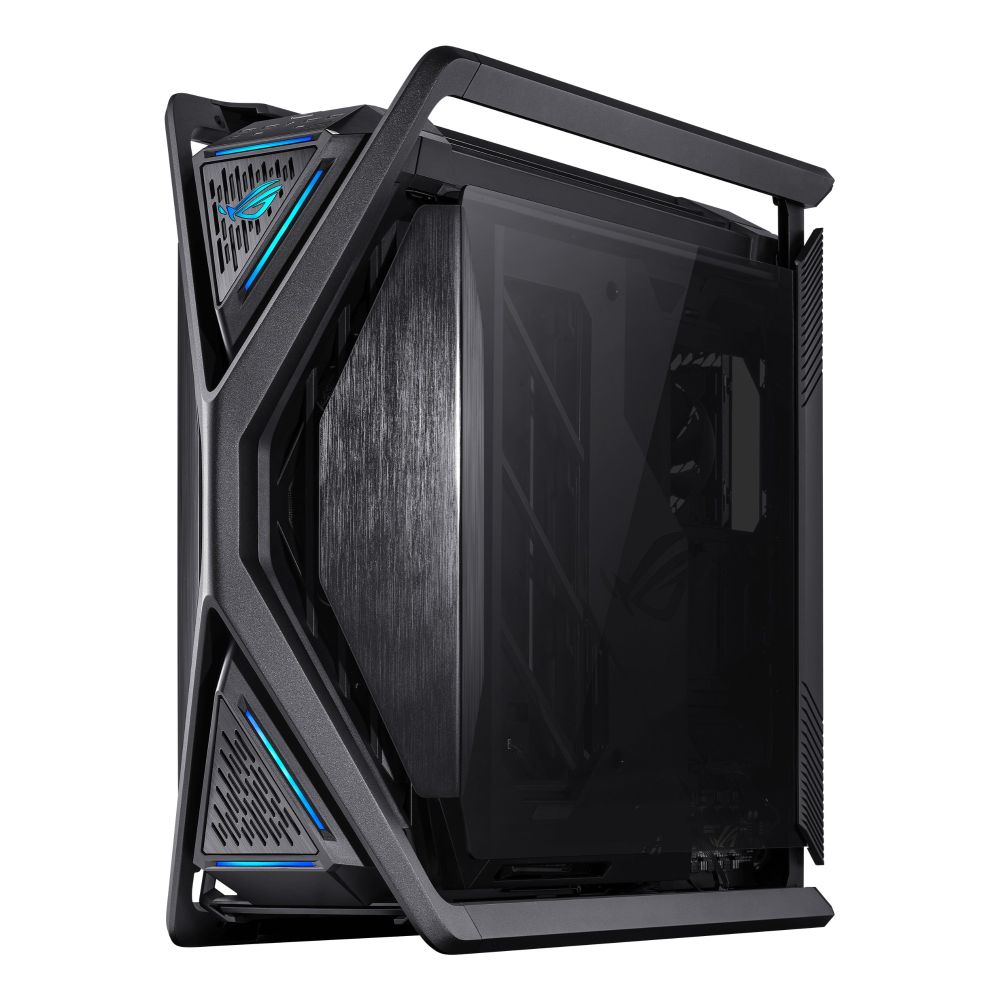

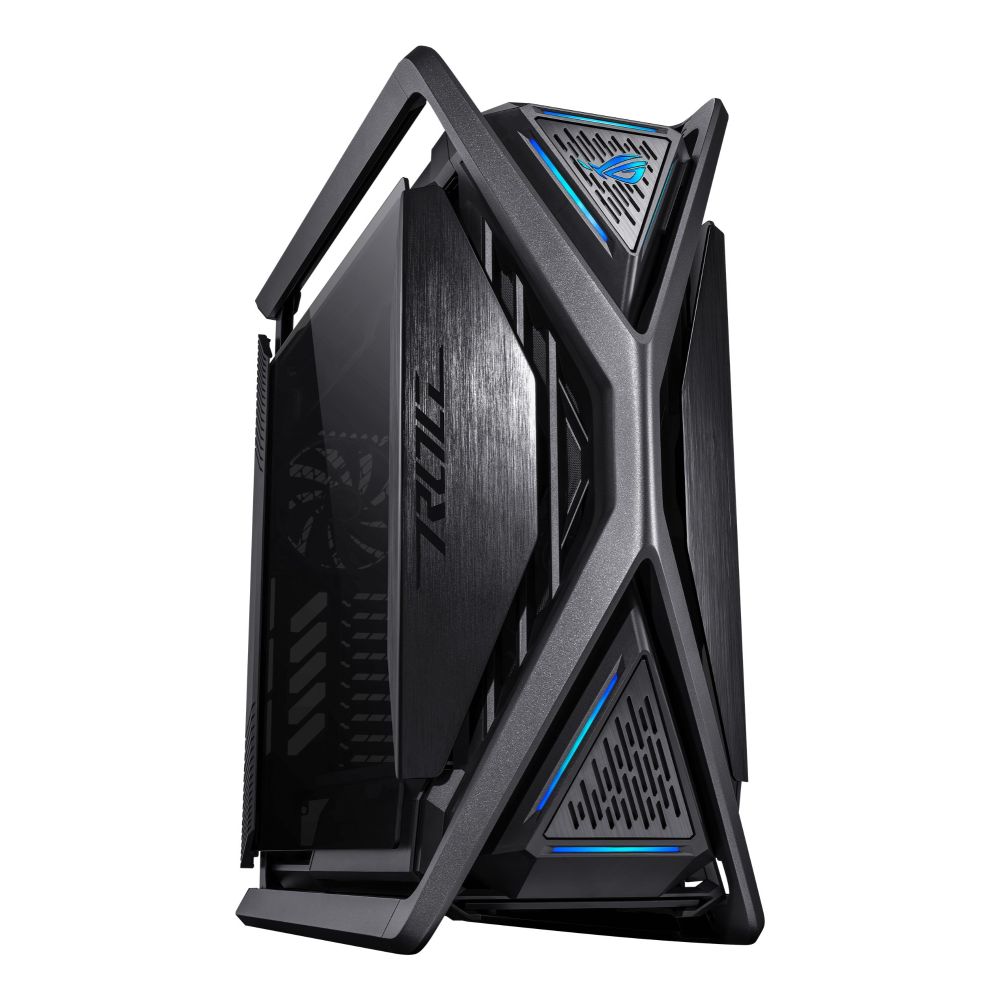

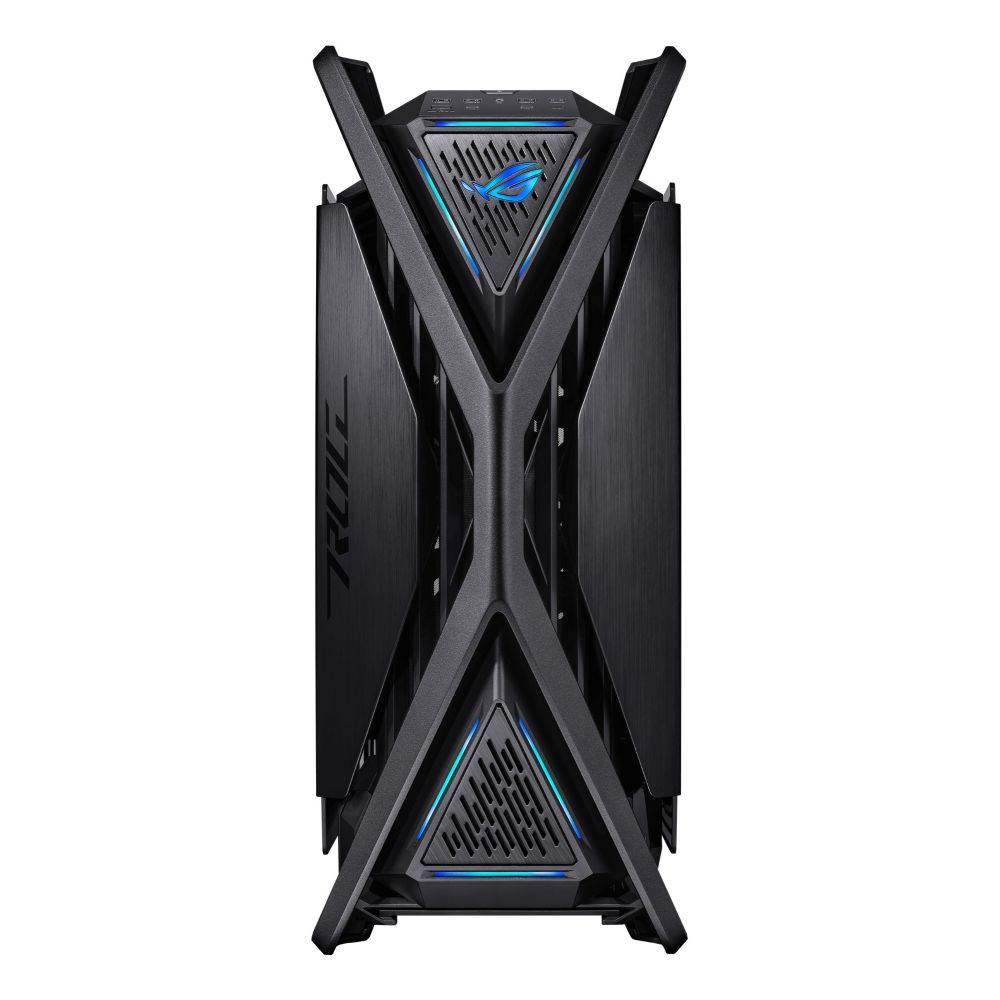

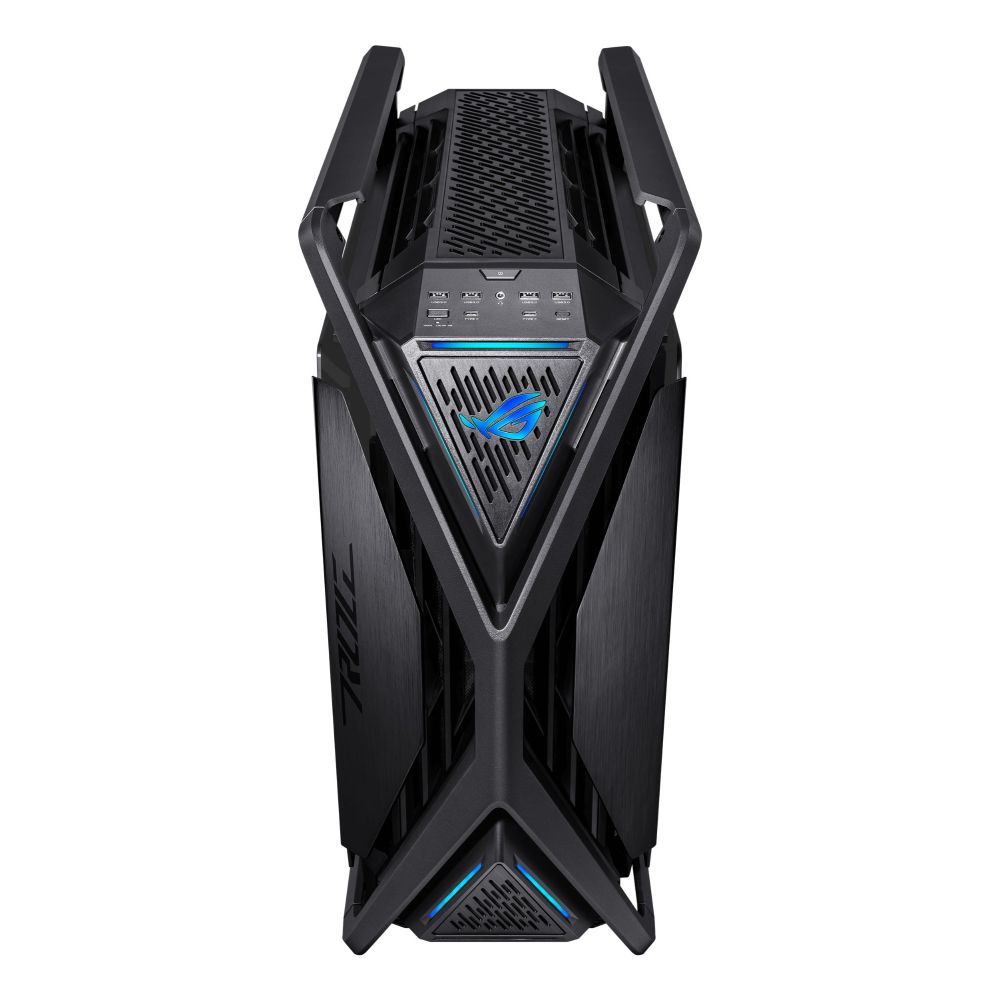

ASUS ROG HYPERION GR701 BTF CASE
£452.32 inc VAT
7 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- ROG Hyperion GR701 BTF Edition E-ATX tower case with hidden connectors design
- Supports dual 420 mm radiators for advanced cooling performance
- Includes four 140 mm ARGB fans and integrated fan hub
- Features built-in 2-way aluminum graphics card holder for cards up to 460 mm
- Offers dual front USB-C ports with up to 60W fast charging capability
- Constructed with die-cast aluminum alloy frame and tempered glass panels
- Provides extensive storage with 2x 3.5″ bays, 5x 2.5″ bays, and 7 total drive support
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS ROG Hyperion GR701 BTF Edition | Gaming Tower Chassis
The ASUS ROG Hyperion GR701 BTF Edition Tower Black, Transparent is a premium E-ATX gaming case built for builders who demand both extreme performance and a clean, cable-free aesthetic. With support for dual 420 mm radiators, massive graphics cards, and an innovative BTF (Build Your Own) design, this chassis delivers top-tier cooling and a striking ROG appearance.
Key Specifications
| Metric | Spec |
|---|---|
| Form Factor | Tower |
| Motherboard Support | ATX, EATX, micro ATX, Mini-ITX |
| Maximum GPU Length | 46 cm |
| Maximum CPU Cooler Height | 19 cm |
| Drive Bays | 2 x 3.5″ + 5 x 2.5″ |
| Front Fans | 3 x 140 mm ARGB (included) |
| Top Radiator Support | 420 mm |
| Front Radiator Support | 420 mm |
| Rear Radiator Support | 120/140 mm |
| Weight | 21.3 kg |
Advanced BTF Design for Clean Builds
The GR701 BTF Edition features ASUS’s innovative Build Your Own technology, which hides all connectors when paired with compatible BTF motherboards and graphics cards. This system uses a high-power slot capable of delivering up to 600W to BTF graphics cards, eliminating visible cables for an exceptionally clean build. The die-cast aluminum alloy frame provides structural rigidity while doubling as carry handles for easy transport.
Extreme Cooling Performance
Built for high-airflow configurations, this chassis supports dual 420 mm radiators on both the top and front panels. The three included 140 mm ARGB PWM fans connect to an integrated Aura Sync fan hub, allowing for synchronized lighting effects and precise fan speed control. A front-side air intake ensures optimal ventilation for both your system components and graphics cards, maintaining ideal temperatures even under heavy loads.
Versatile Storage and Expansion
With seven total drive bays (2 x 3.5″ + 5 x 2.5″) and support for multiple radiator sizes, the GR701 offers exceptional flexibility. An innovative vertical installation area between the motherboard tray and front panel can accommodate additional fans, SSDs, or even a 360 mm radiator. The chassis provides ample space for graphics cards up to 460 mm long and 130 mm thick, supporting both horizontal and vertical mounting orientations.
Premium Features and Convenience

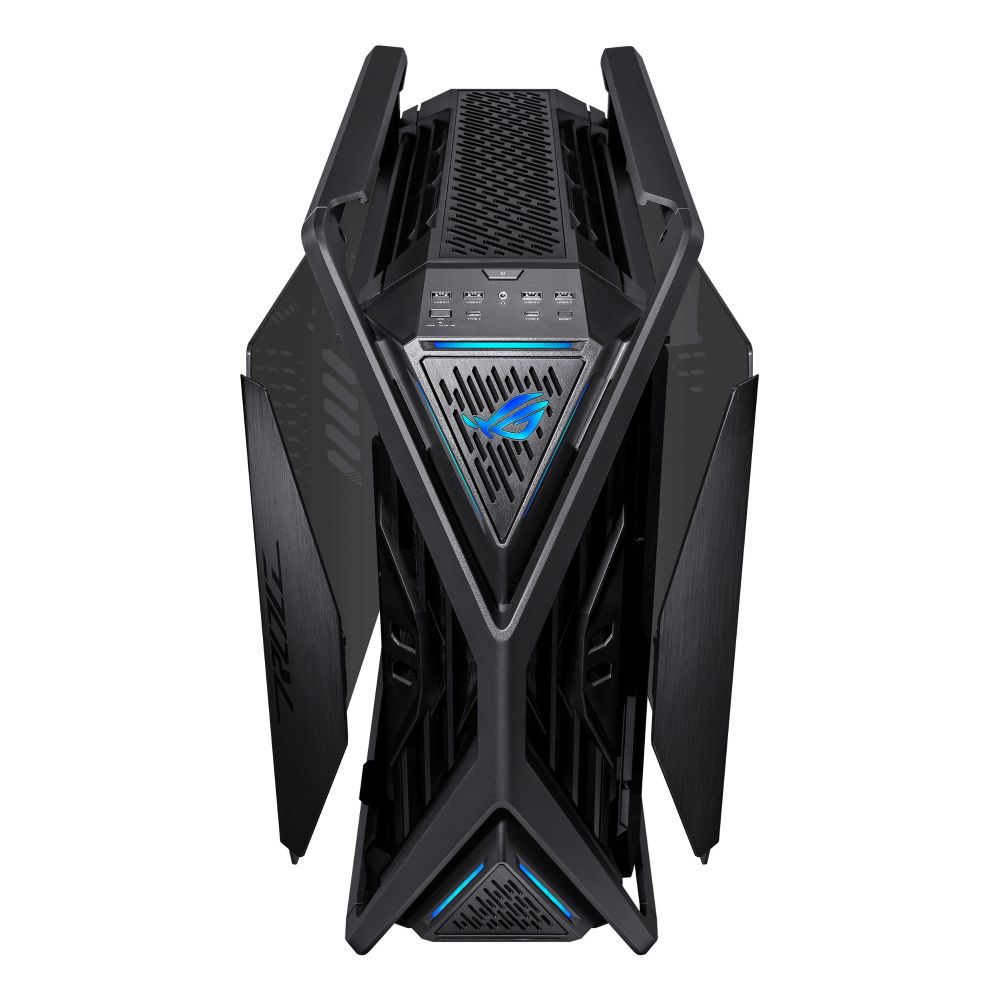

The GR701 includes a built-in ARGB fan hub with support for eight ARGB components and six PWM fans. A refined aluminum graphics card holder prevents GPU sag and works in both vertical and horizontal orientations. Tool-free hinged side panels made of tinted tempered glass provide easy access to your build, while an integrated hidden drawer stores frequently used hardware like screws and PCIe brackets.
Box Contents
- ASUS ROG Hyperion GR701 BTF Edition chassis
- 3 x 140 mm ARGB PWM front fans
- 1 x 140 mm rear fan
- ARGB fan hub with Aura Sync
- Integrated graphics card holder
- Tempered glass side panels
- Cable management accessories
- Mounting hardware and screws
Check before you buy
- Confirm your BTF-compatible motherboard and graphics card for the full hidden-connector experience
- Verify your graphics card dimensions fit within the 460 mm x 130 mm maximum space
- Check radiator compatibility with your cooling components (supports up to 420 mm)
- Ensure your power supply unit fits the maximum 24 cm length
Frequently Asked Questions
Q: What is BTF technology and how does it work?
A: BTF (Build Your Own) technology hides all connectors when using compatible ASUS motherboards and graphics cards, creating a clean, cable-free appearance through a high-power slot delivering up to 600W.
Q: How many fans can I install in this case?
A: The chassis comes with 4 fans pre-installed and supports up to 7 total fans across front (3 max), top (3 max), and rear (1) positions.
Q: Can I mount a 360 mm radiator in the front?
A: Yes, the front supports radiators from 120 mm up to 420 mm, including 360 mm options for liquid cooling setups.
Q: Is the graphics card holder removable?
A: The integrated aluminum graphics card holder is designed to be permanent but works with the optional ROG Herculx card holder for additional support.

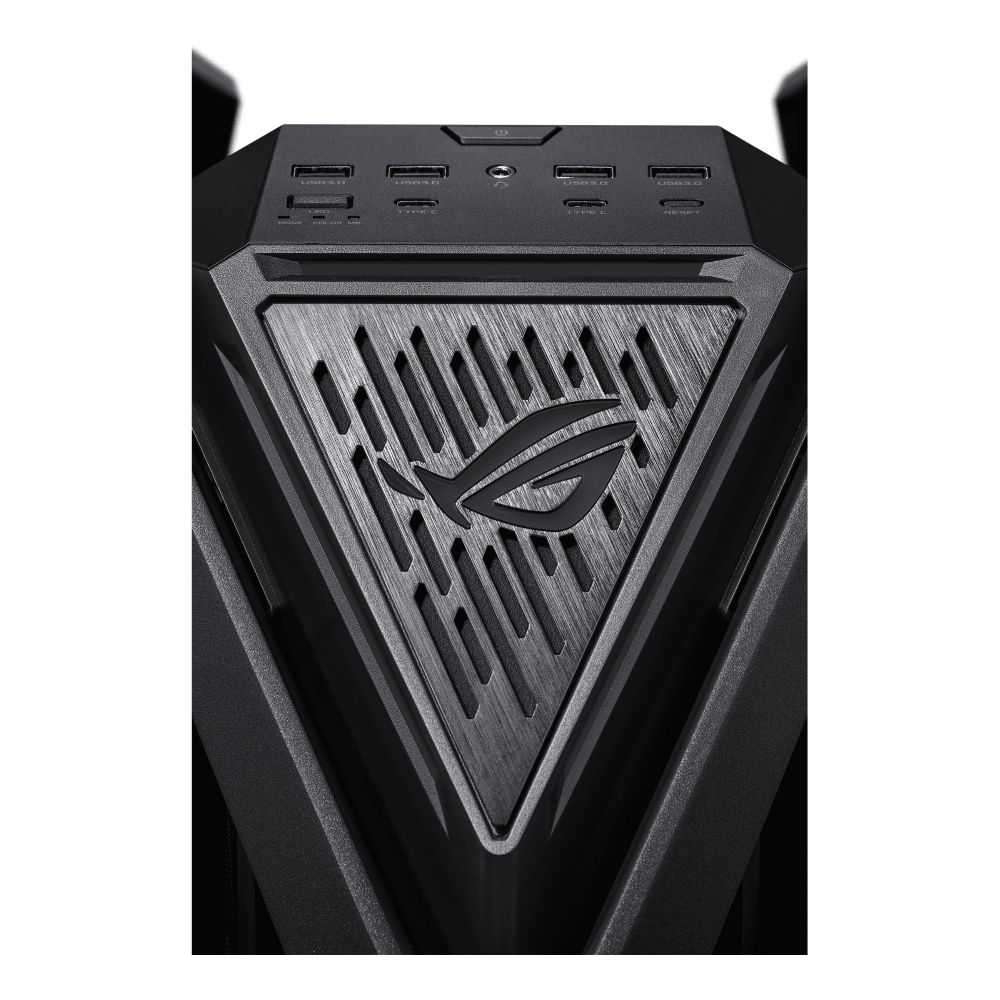

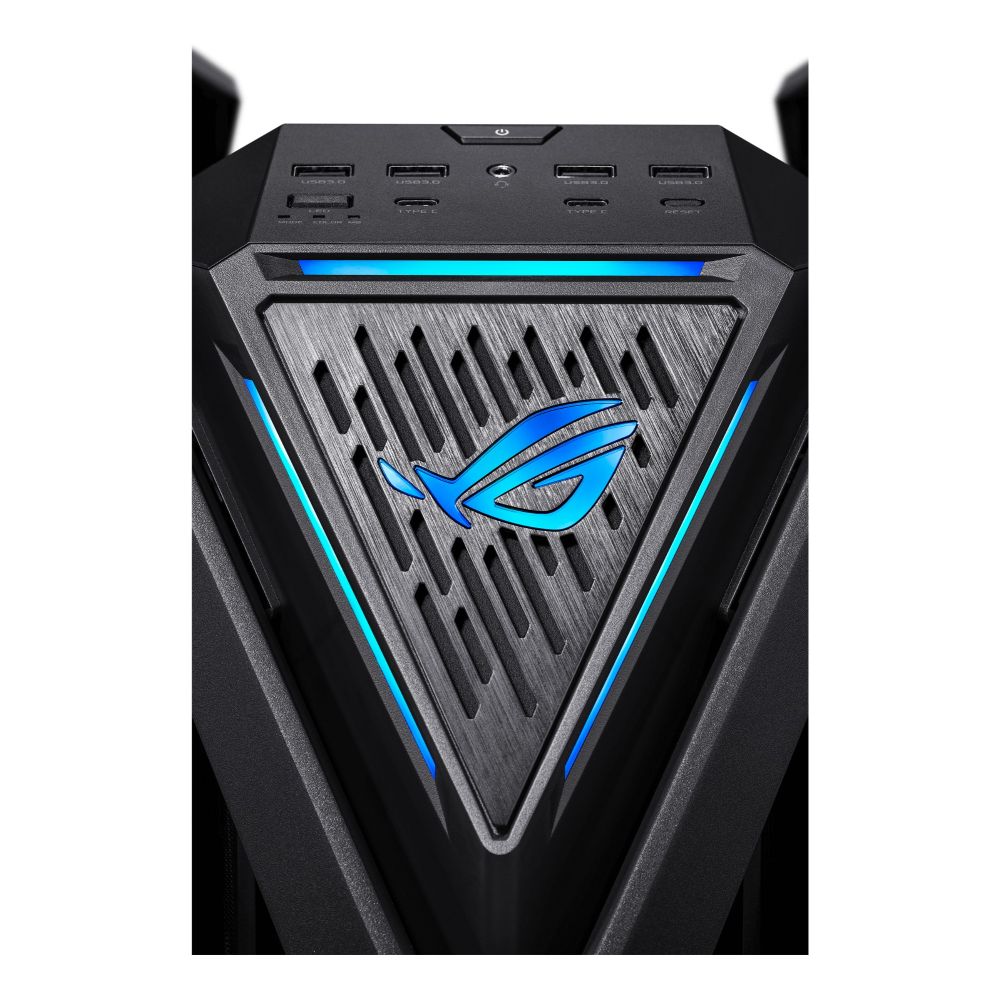

Q: What type of USB ports are available on the front panel?
A: The front features two USB Type-C ports offering up to 20 Gbps data transfer and 60W fast charging with compatible motherboards.
The Consultant’s verdict & warranty
The ASUS ROG Hyperion GR701 BTF Edition is ideal for serious PC builders who want a premium, feature-rich chassis with exceptional cooling capacity and a clean, professional aesthetic. Its BTF compatibility, massive radiator support, and integrated lighting control make it perfect for high-performance gaming or content creation systems. Covered by the standard Manufacturer Warranty.
| Technical details | |
|---|---|
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes | 2.5,3.5" |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| Number of HDDs supported | 7 |
| Product colour | Black, Transparent |
| Number of expansion slots | 9 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 24 cm |
| Type | PC |
| Form factor | Tower |
| Indication | |
| LED indicators | Yes |
| Illumination colour | Multi |
| Illumination | Yes |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Design | |
| Anti-dust filter | Yes |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Illumination colour | Multi |
| Illumination | Yes |
| Cable management | Yes |
| Product colour | Black, Transparent |
| Number of expansion slots | 9 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 24 cm |
| Type | PC |
| Form factor | Tower |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| RGB control button | Yes |
| Power supply | |
| Power supply included | No |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio input | Yes |
| Audio output | Yes |
| USB Type-C ports quantity | 2 |
| Cooling | |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140,240,280,360,420 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140,240,280,360,420 mm |
| Fan speed control | Yes |
| Storage | |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 7 |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 268 mm |
| Depth | 639 mm |
| Height | 659 mm |
| Weight | 21.3 kg |
| Packaging data | |
| Package width | 350 mm |
| Package height | 715 mm |
| Package depth | 720 mm |
| Package weight | 25.7 kg |
| Identifiers | |
| Distributor SKUs | W128900002, 522283, STD10222848, CL90DC00F0-B39020 |
