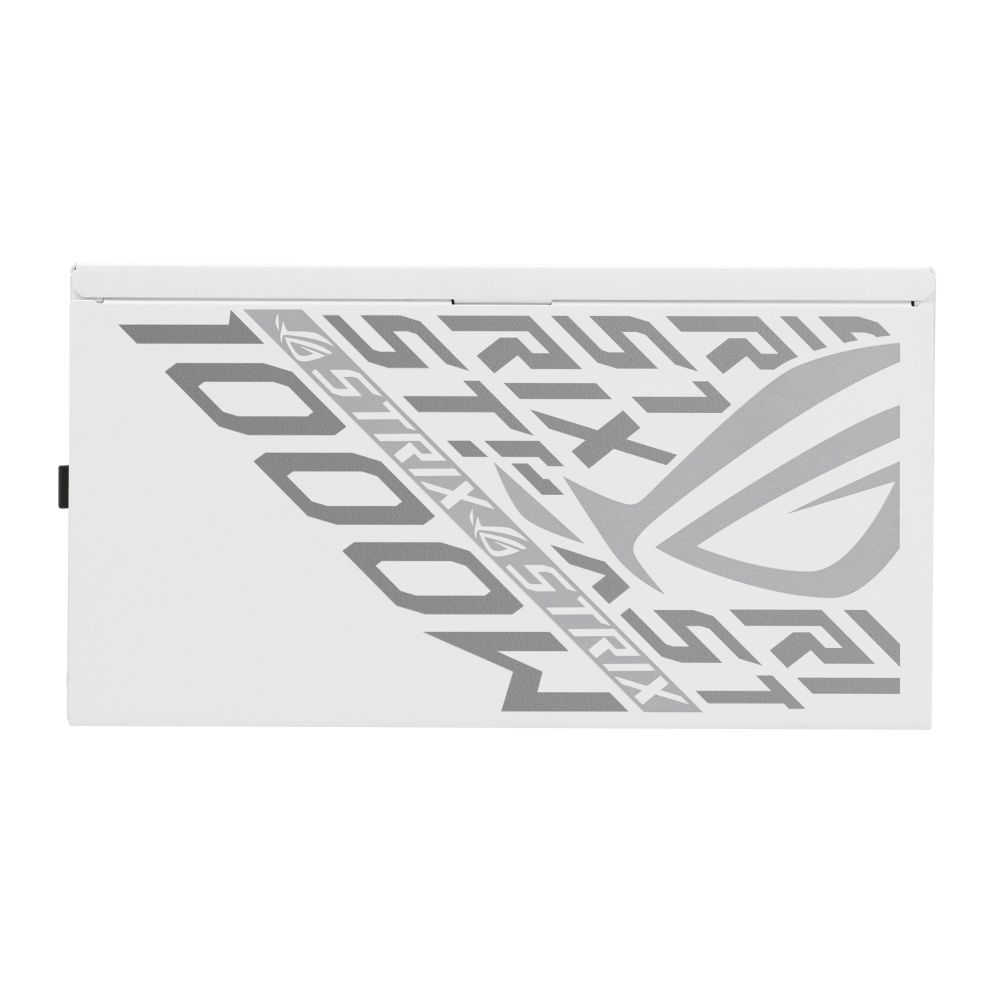

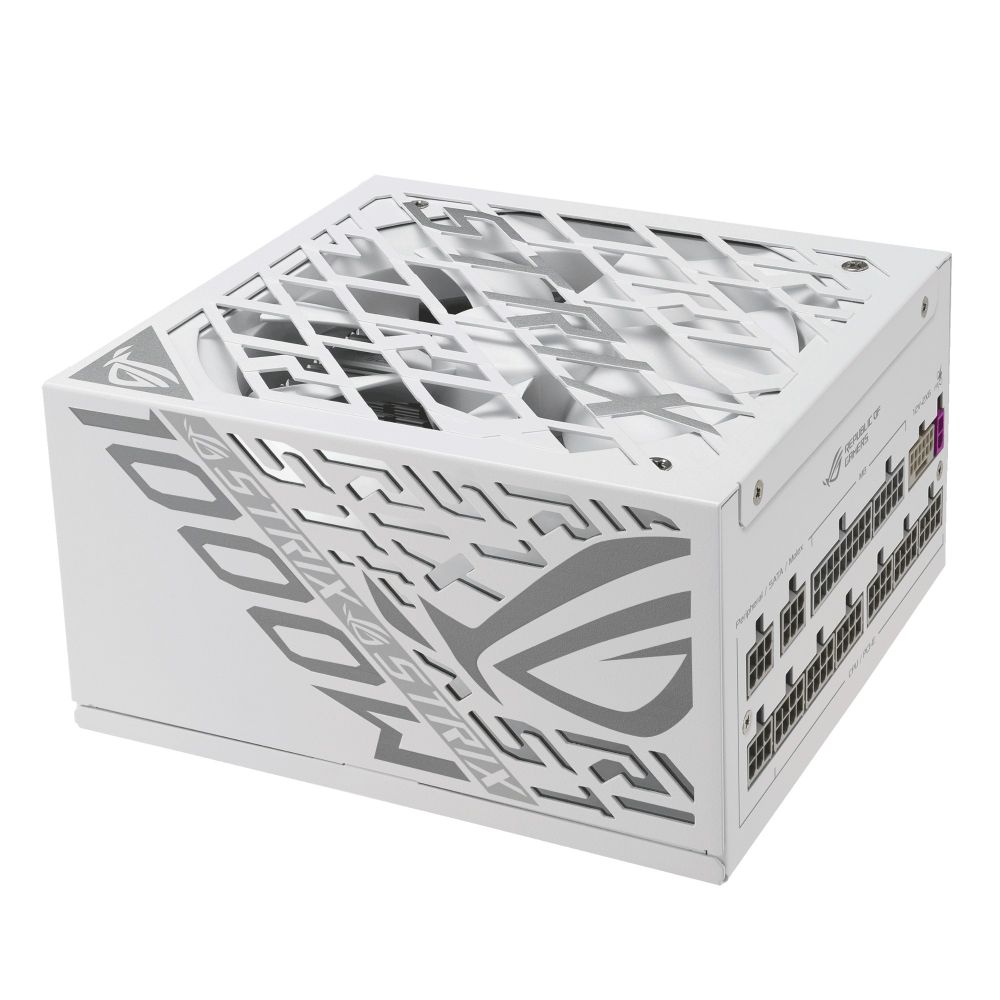

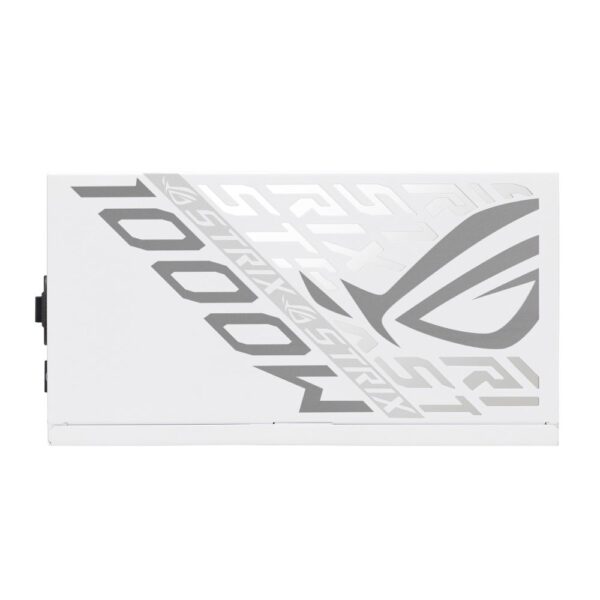

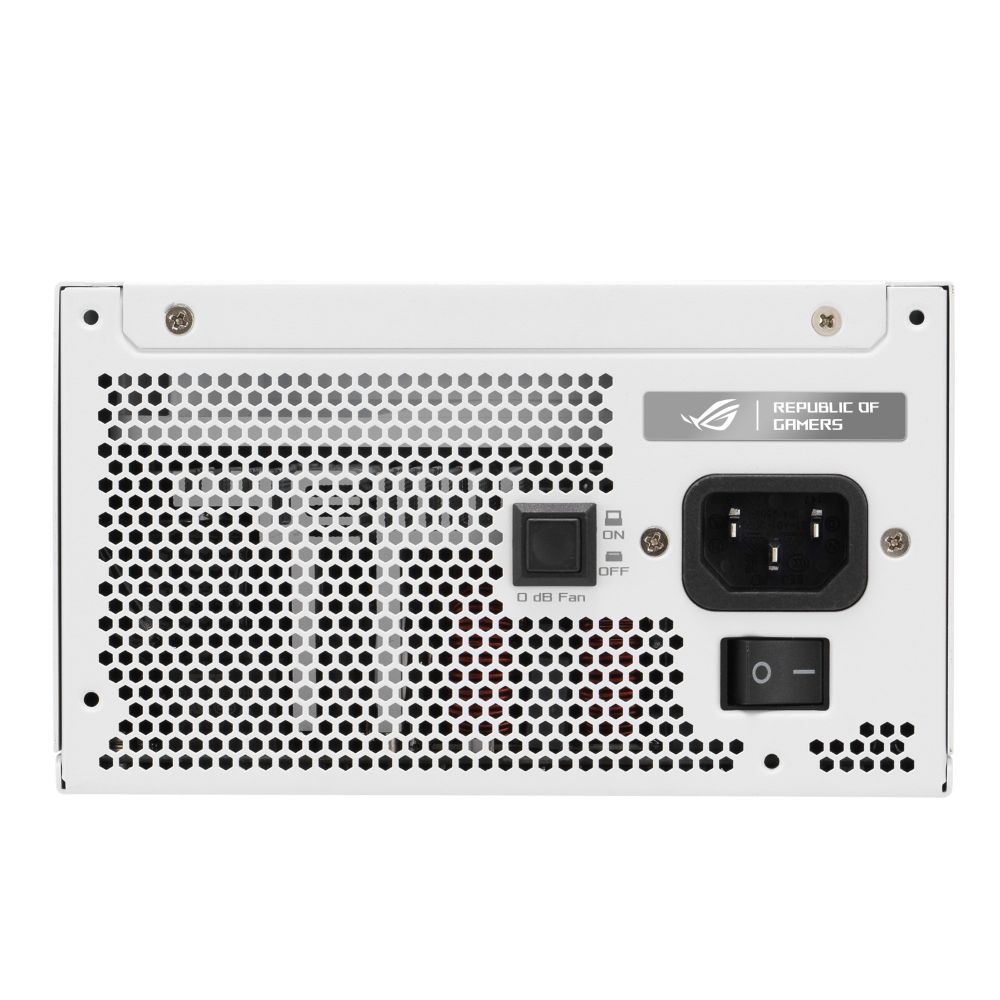

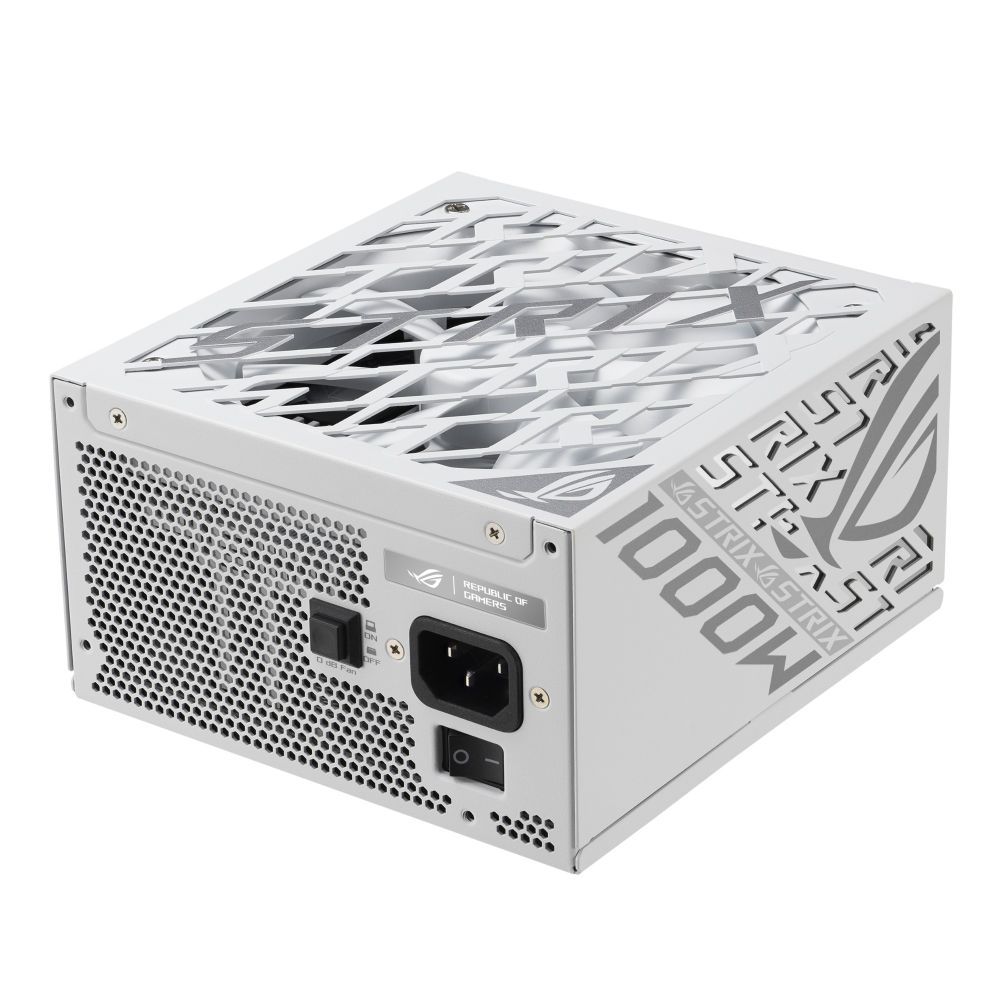

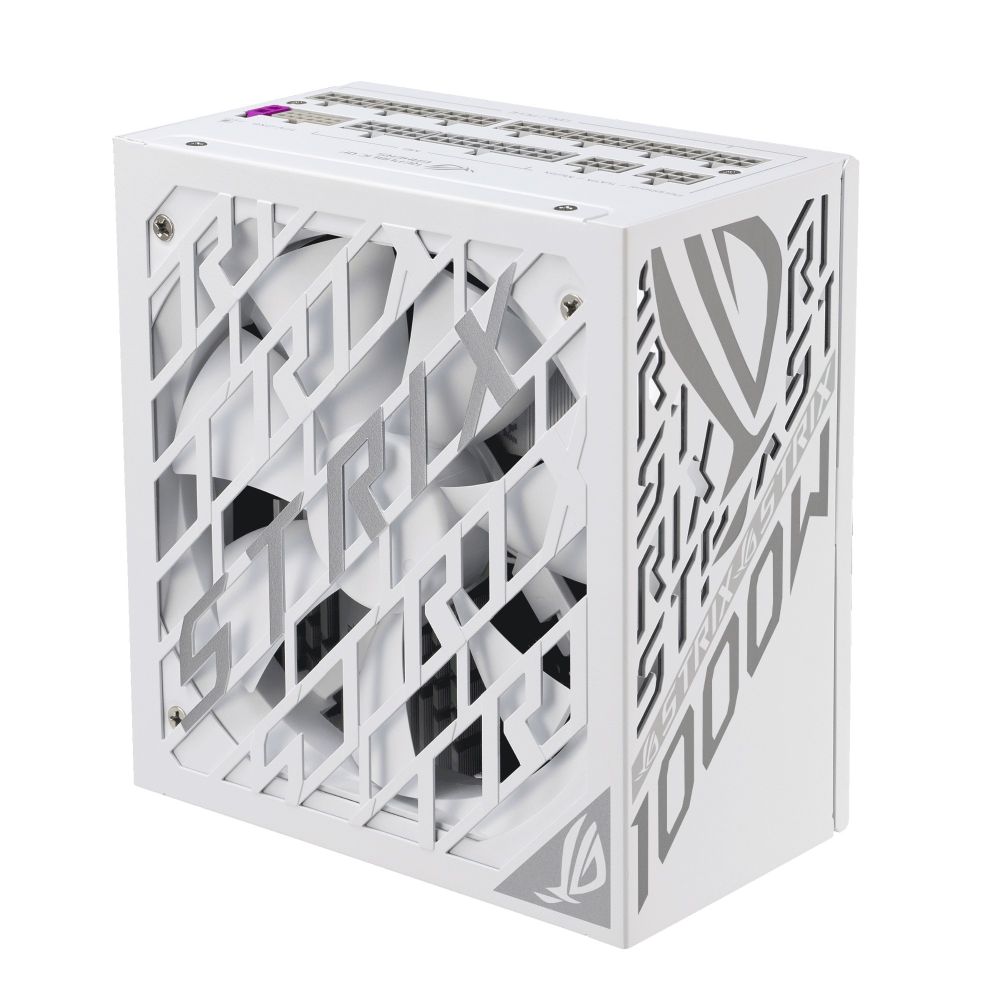

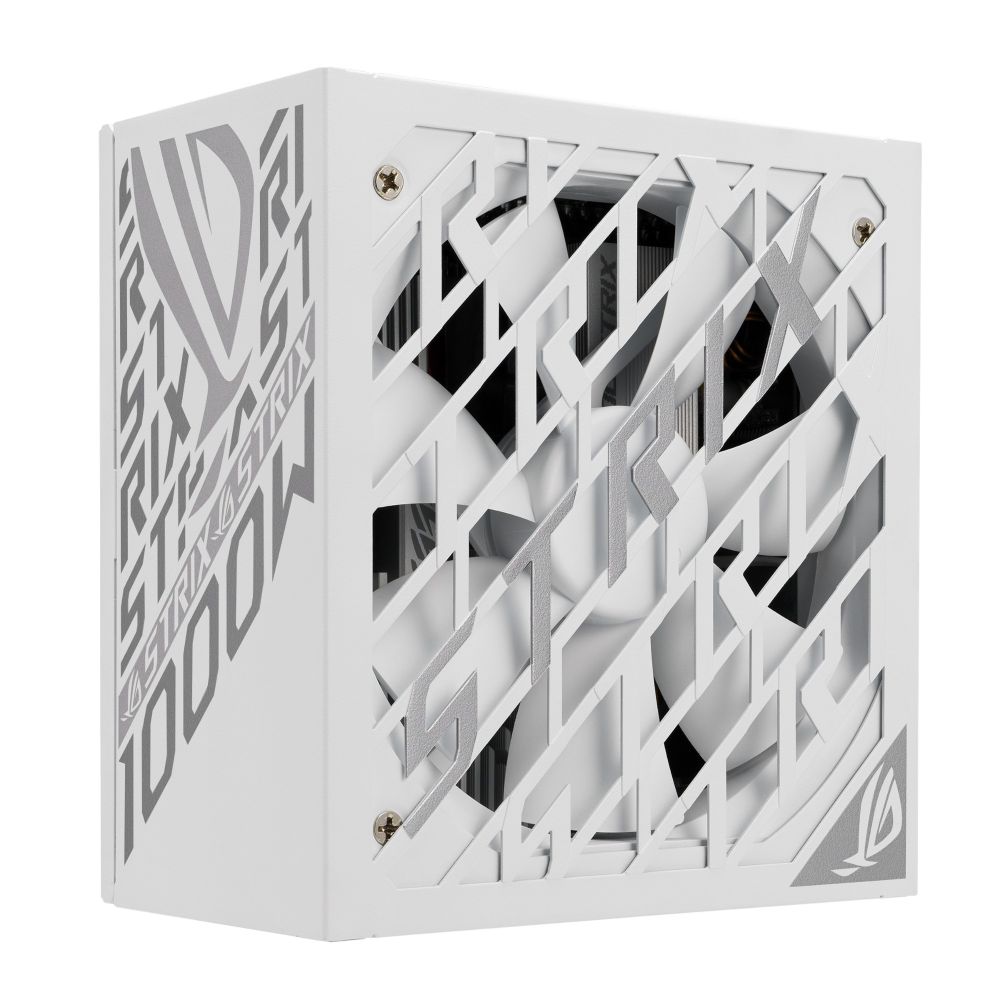

ASUS ROG STRIX 1000W PLATINUM PSU
£198.48 inc VAT
18 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 1000 W ATX 3.1 power supply with 80 PLUS Platinum efficiency

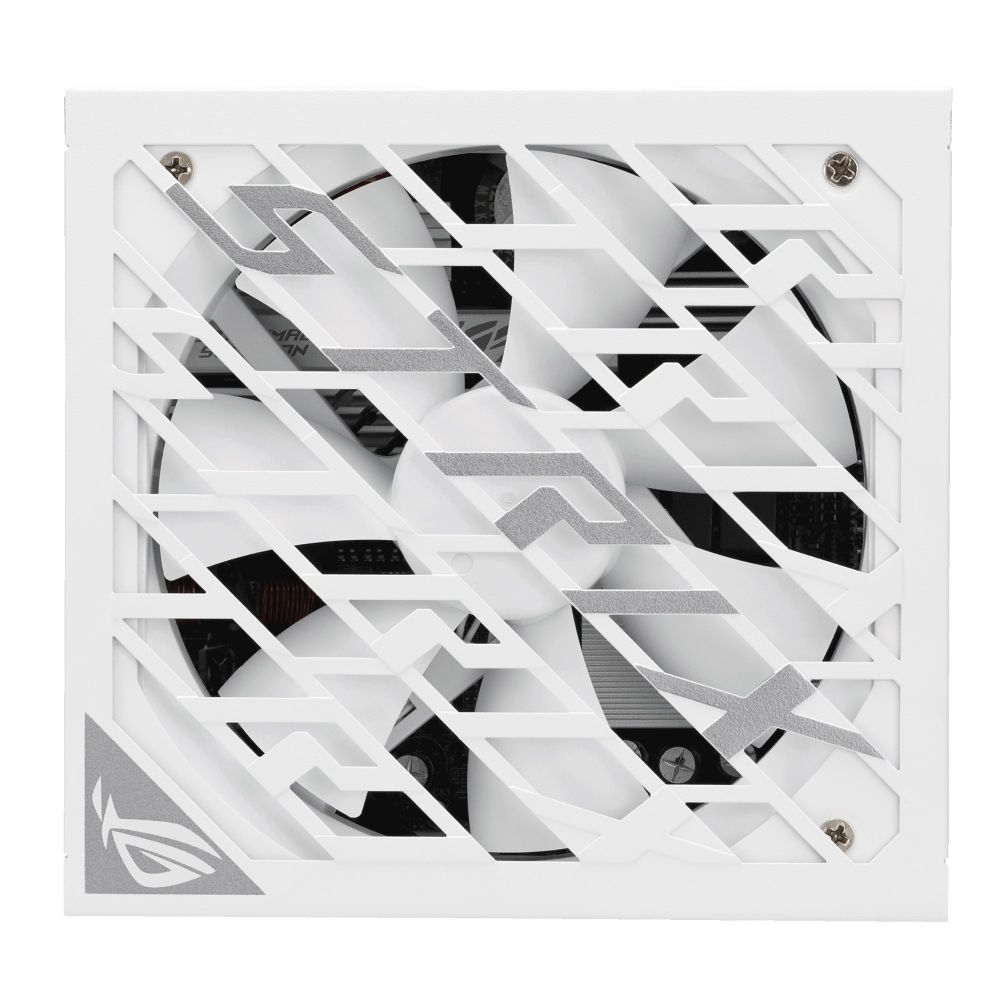

- Single top-mounted semi-passive cooling fan

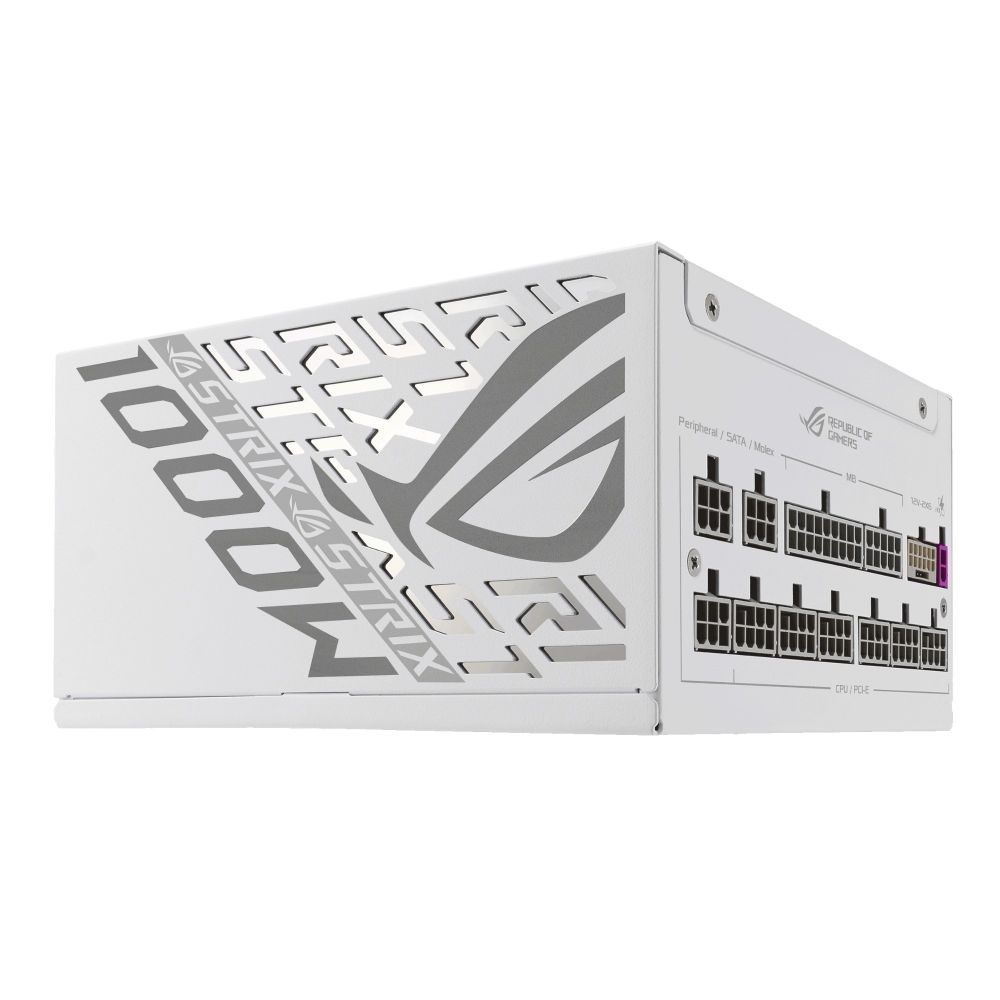

- White finish with fully modular cabling design
- Native 12V-2×6 connector for latest GPU hardware
- Active PFC with 100-240 V AC input range
- Comprehensive protection features: overheating, over current, over power, over voltage, short circuit, under power
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Antec CSK DC 750W White PSU, 80+ Bronze, Fully Wired, Antec’s 5-year warranty
In stock
ASUS ROG Strix 1000W Platinum White Edition | High-Performance PSU
The ASUS ROG -STRIX-1000P-GAMING-WHITE power supply unit 1000 W 20+4 pin ATX ATX delivers elite-grade power delivery for demanding gaming rigs and creative workstations. Engineered with next-gen GaN MOSFET technology, this 80 PLUS Platinum certified PSU ensures superior efficiency and rock-solid stability under heavy loads. Its fully modular design, ATX 3.1 compliance, and native 12V-2×6 connector make it ready for the latest high-end graphics cards and components.
Key Specifications
| Metric | Spec. |
|---|---|
| Total Power Output | 1000 W |
| Efficiency Rating | 80 PLUS Platinum |
| ATX Version | 3.1 |
| PFC Type | Active |
| MTBF | 120,000 hours |
| Form Factor | ATX |
Next-Gen GaN MOSFET for Superior Efficiency
The ROG Strix 1000W Platinum White Edition features advanced GaN (Gallium Nitride) MOSFET technology, which delivers significantly higher power efficiency compared to traditional silicon-based designs. This translates to lower heat generation, reduced energy waste, and potentially lower electricity bills over time. The 80 PLUS Platinum certification confirms this PSU operates at up to 92% efficiency under typical loads, making it an excellent choice for 24/7 operation or environmentally conscious builds.
GPU-First Voltage Sensing with Intelligent Stabilizer
Gaming and creative workloads place extreme demands on graphics cards, requiring clean, stable power delivery. The patented “GPU
| Cooling | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Semi-passive |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Product colour | White |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Semi-passive |
| Power | |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Overheating, Over current, Over power, Over voltage, Short circuit, Under power |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 400,120 mm |
| Peripheral (Molex) power cable length | 400,150 mm |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 100 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |

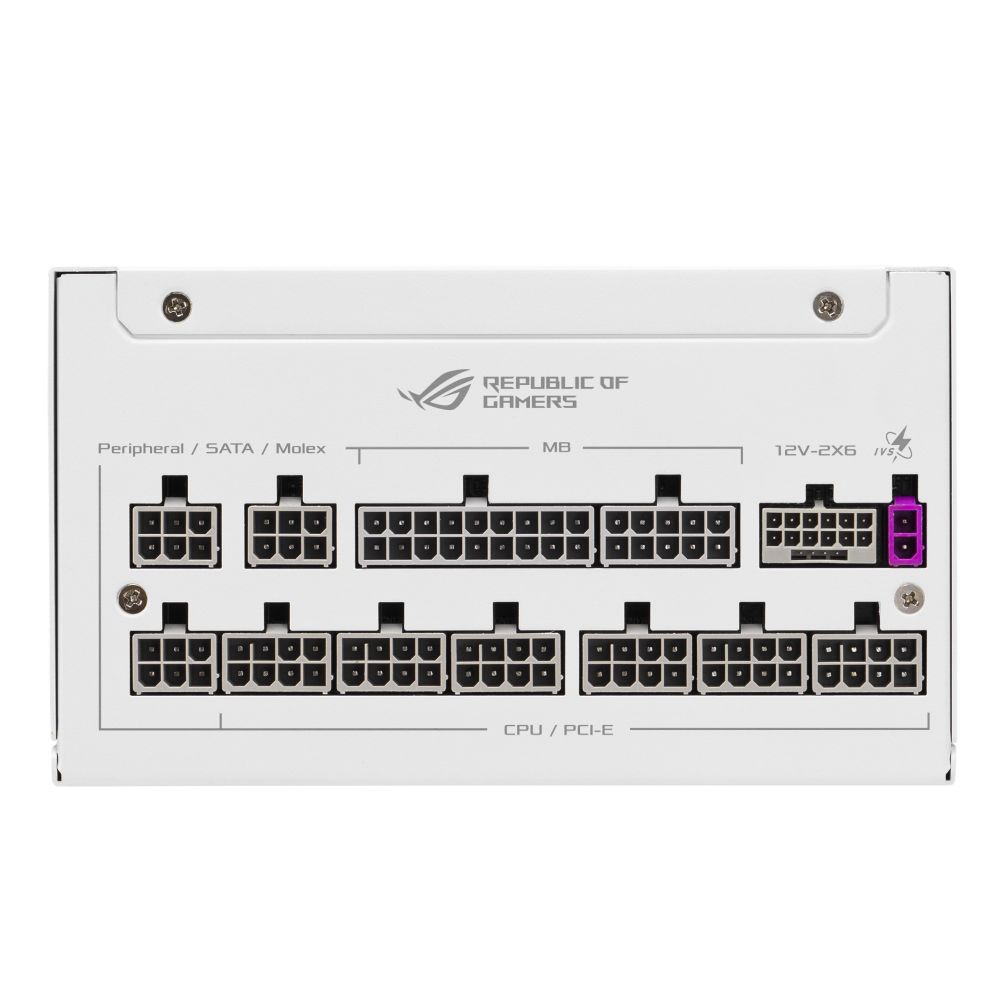

| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 120000 h |
| Packaging content | |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.81 kg |
| Packaging data | |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Package depth | 200 mm |
| Package width | 320 mm |
| Package height | 108 mm |
| Package type | Box |
| Package weight | 2.91 kg |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
| Identifiers | |
| Distributor SKUs | W129160151, 556112, STD10230079, CL90YE00W4-B0NA00 |
