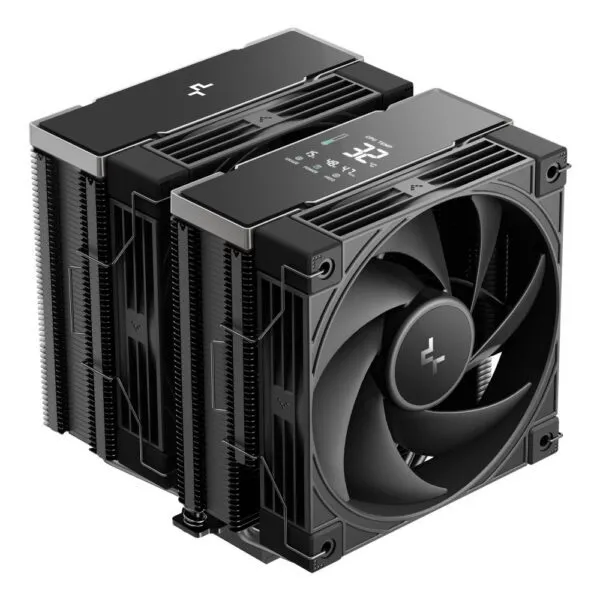

DeepCool AK620 Digital CPU Cooler Black
£75.33 inc VAT
61 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Digital CPU cooler with magnetic status display and ARGB LED strips
- Six copper heat pipes with pure copper coldplate for maximum heat dissipation
- Two PWM fans with fluid dynamic bearings for quiet operation at 28 dB max
- Supports Intel LGA 1150/1151/1155/1200/1700/2011/2011-v3/2066 and AMD AM4/AM5 sockets
- Real-time CPU temperature and usage display via USB 2.0 connection
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

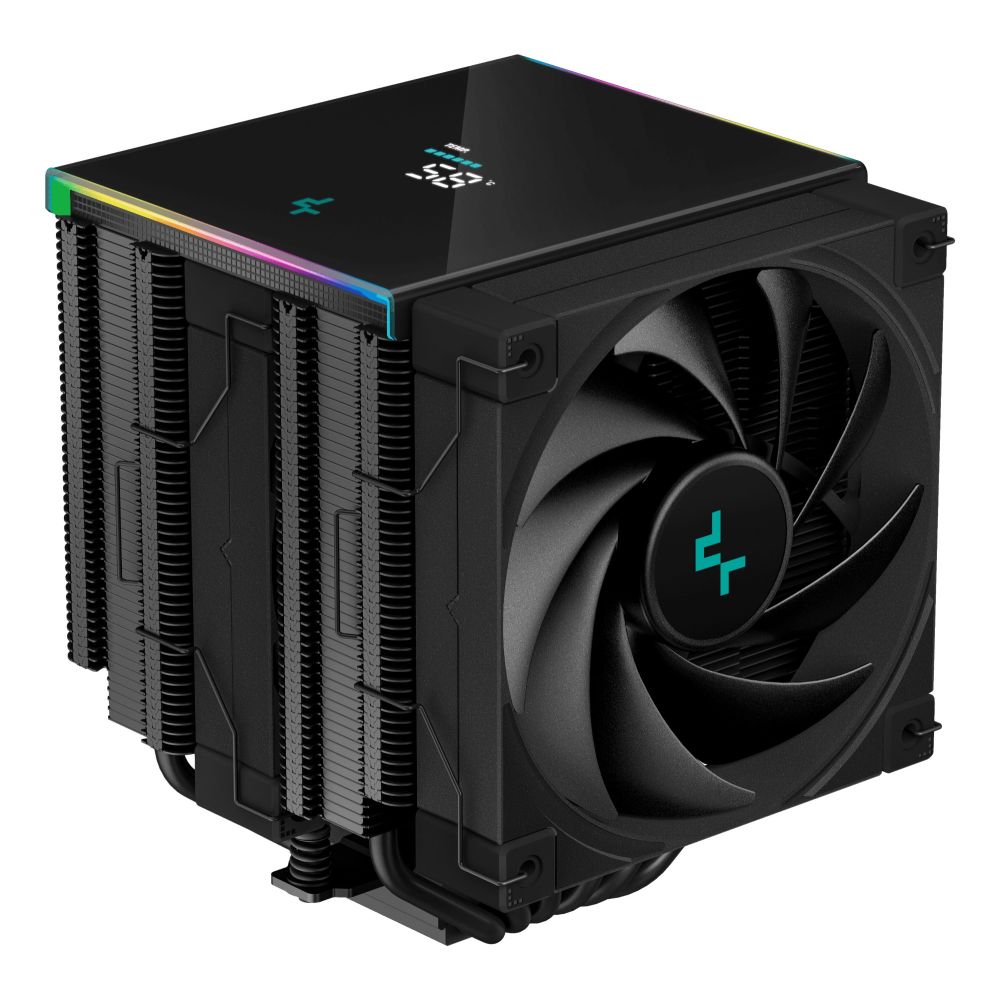

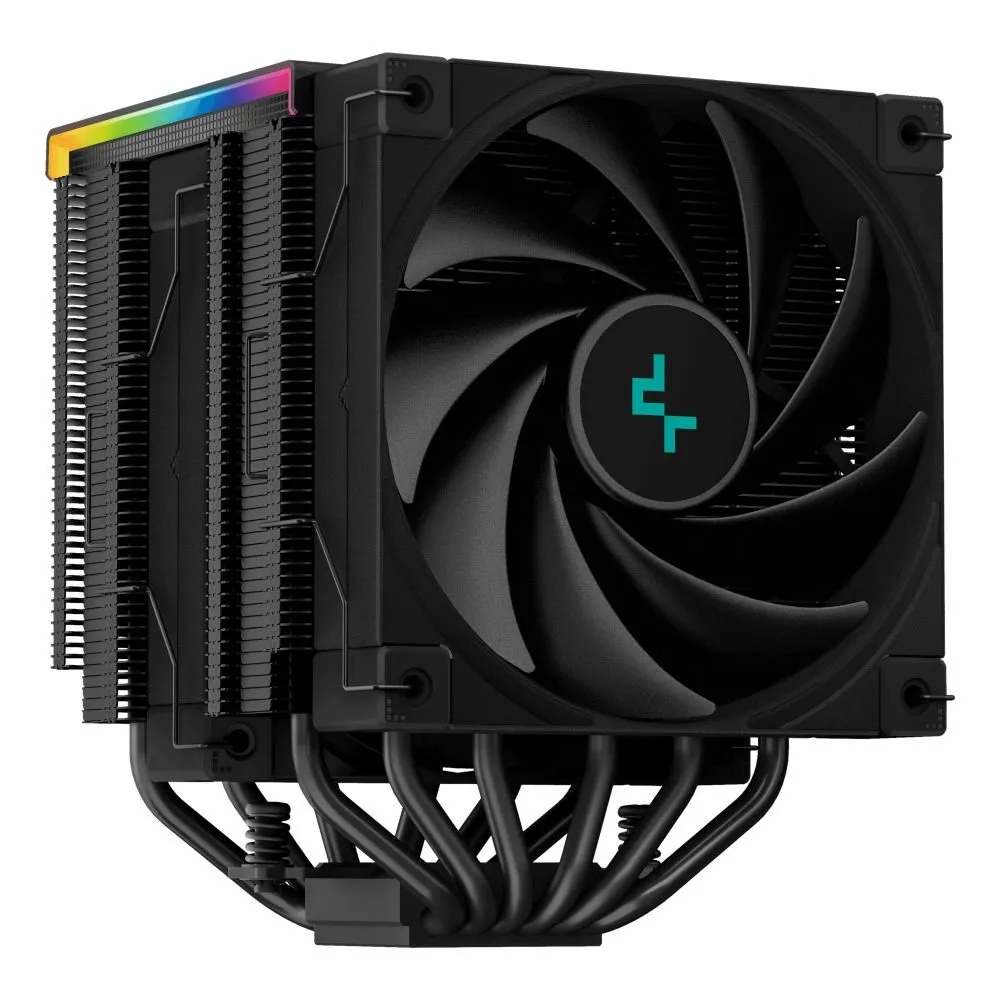

DeepCool AK620 DIGITAL | Digital CPU Cooler with Real-Time Display
The DeepCool AK620 DIGITAL Processor Air cooler 12 cm Black 1 pc(s) delivers high-performance cooling with a modern digital twist. Featuring a real-time CPU status display and ARGB lighting, it’s designed for enthusiasts who want both performance and visual feedback. This cooler is compatible with a wide range of Intel and AMD sockets, making it a versatile choice for gaming rigs and workstations.
Key Specifications
| Metric | Spec |
|---|---|
| Fan Diameter | 120 mm |
| Heat Pipes | 6 x 6 mm copper |
| Maximum Airflow | 68.99 CFM |
| Supported Sockets | LGA 1700, LGA 1200, LGA 1150, LGA 2066, AM4, AM5 |
| Noise Level (max) | 28 dB |

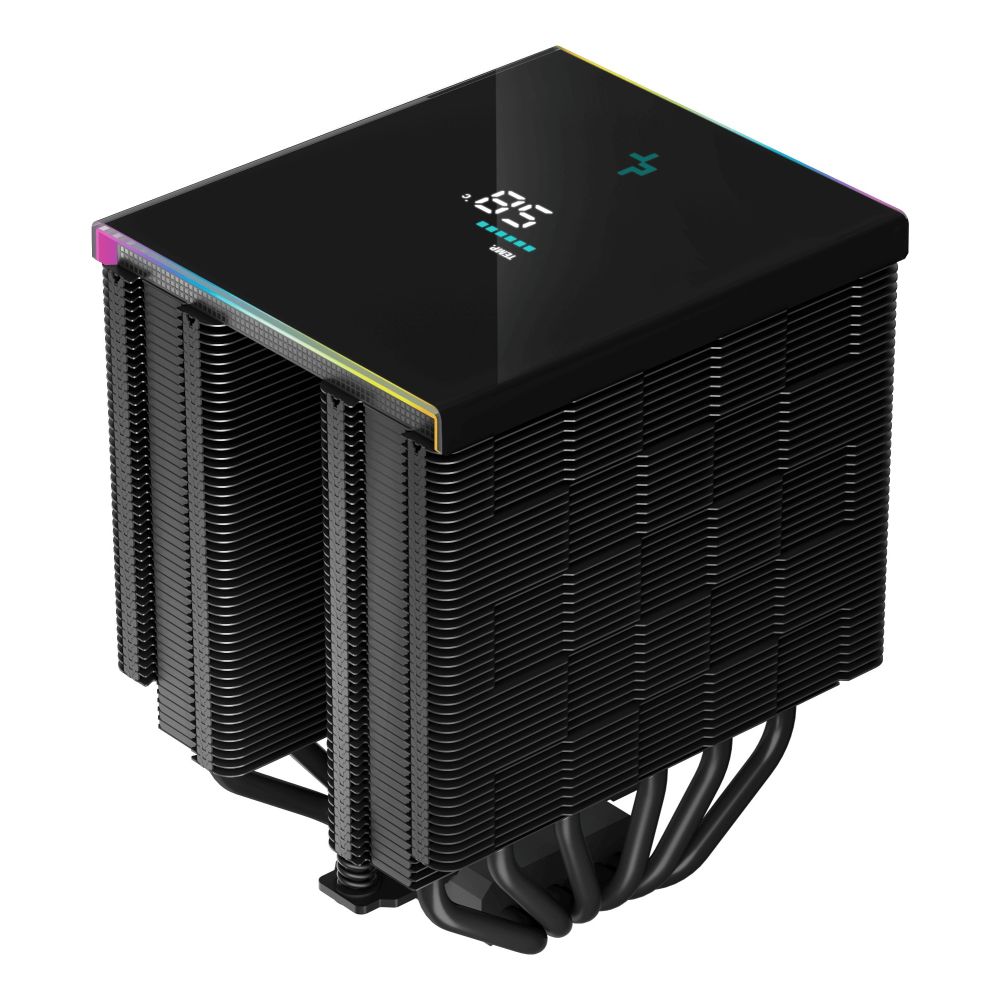

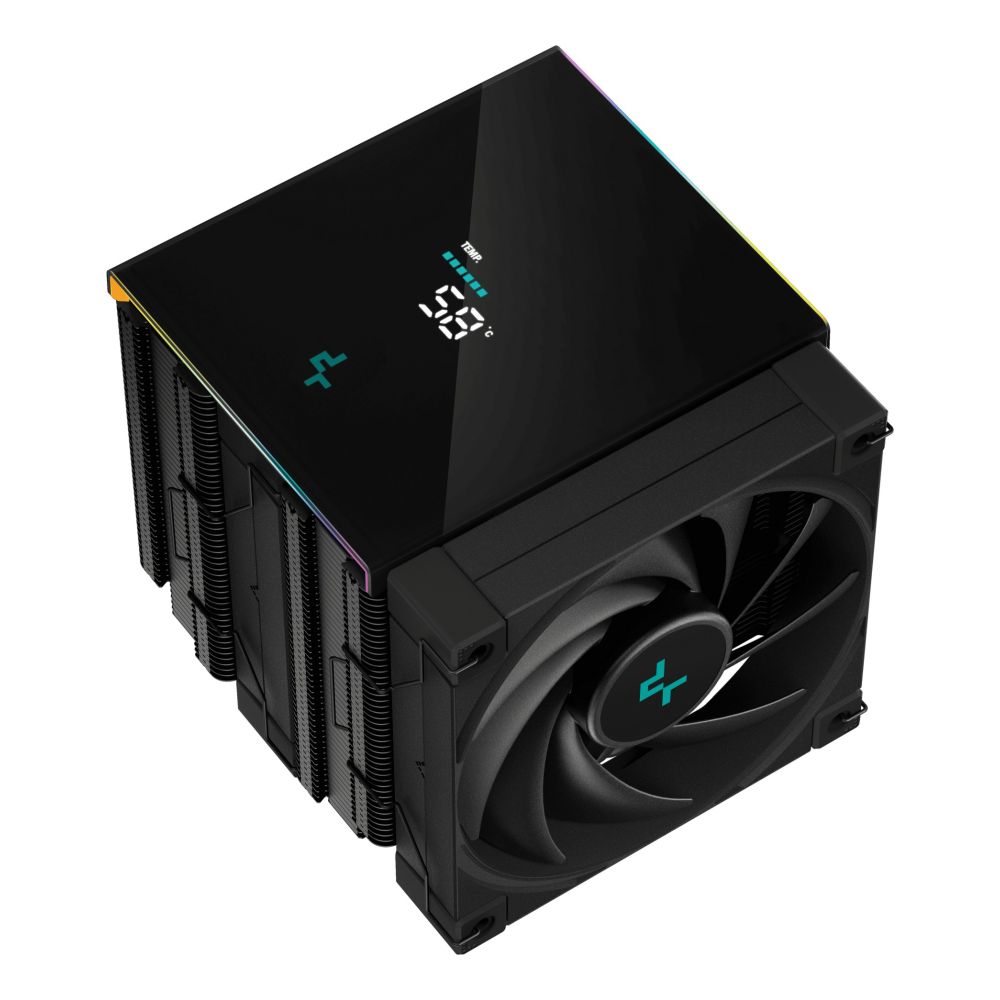

Real-Time Digital Display for Instant System Monitoring
The AK620 DIGITAL features a built-in LCD screen that shows live CPU temperature and usage data. This allows you to monitor system performance at a glance without opening monitoring software. A high-temperature warning alerts you if your CPU is running too hot, helping prevent thermal throttling during intensive workloads.

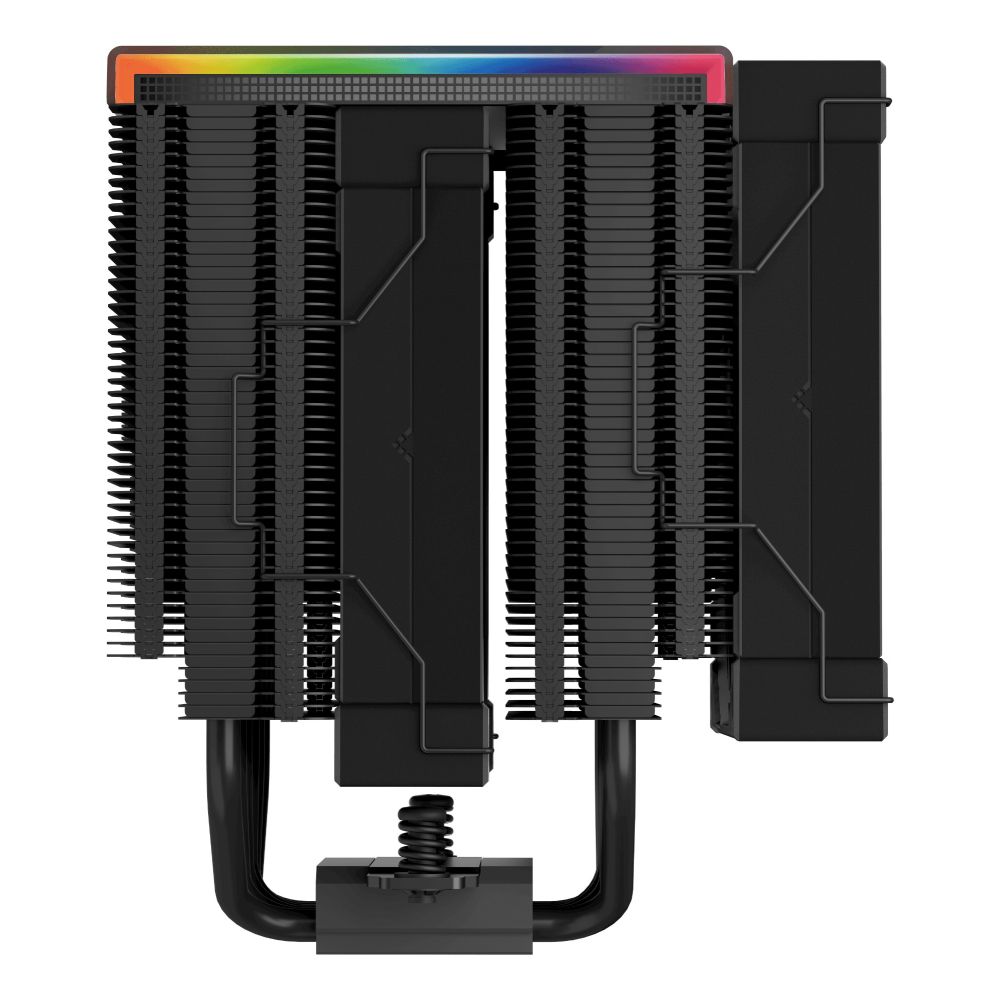

Six Heat Pipes for Maximum Heat Dissipation
Six advanced copper heat pipes with 6 mm diameter efficiently transfer heat away from your processor. Combined with a dense dual-tower aluminium heatsink, this design provides substantial cooling capacity for demanding applications and high-frequency overclocking. The copper coldplate ensures optimal contact with your CPU for consistent thermal transfer.

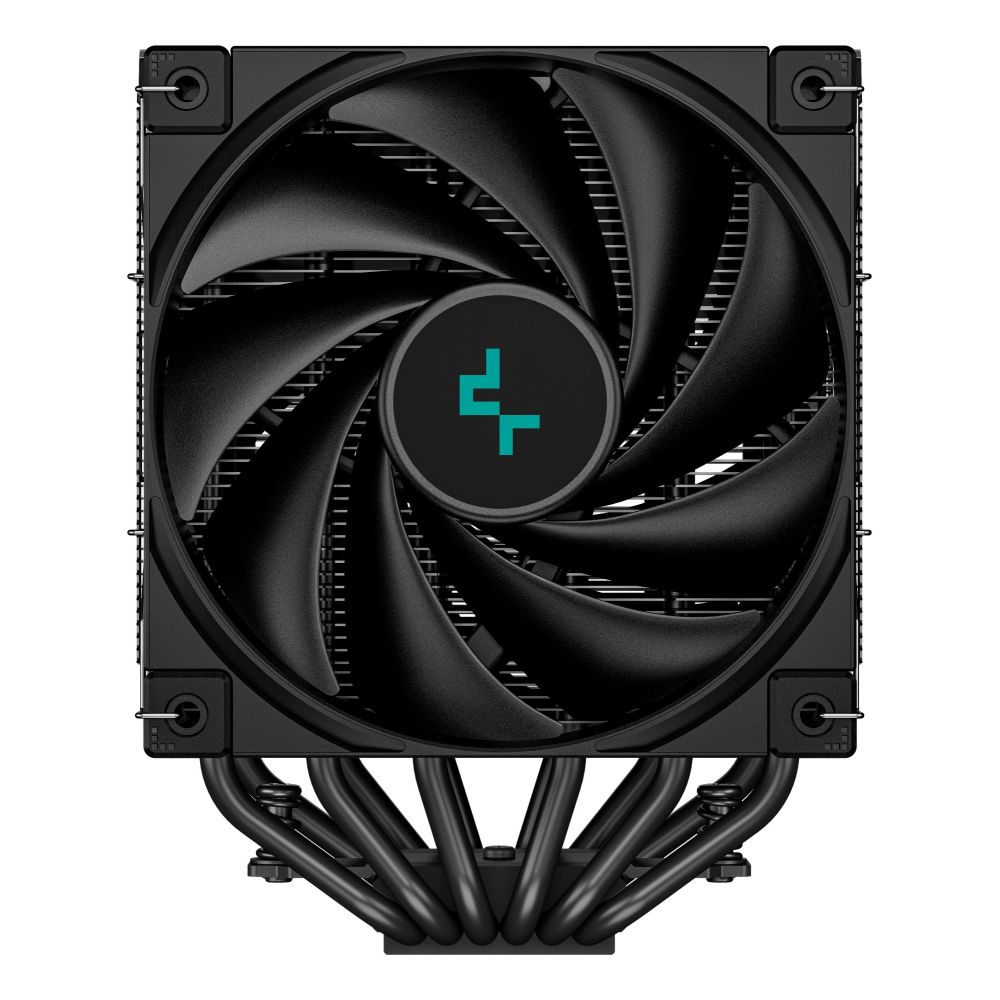

Two Silent PWM Fans with FDB Bearings
Two 120 mm PWM fans with Fluid Dynamic Bearings (FDB) deliver powerful airflow while maintaining quiet operation. The fans operate between 500-1850 RPM and produce a maximum of 28 dB, balancing cooling performance with noise reduction. This makes the AK620 DIGITAL suitable for both performance and noise-sensitive environments.
Wide Compatibility Across Intel and AMD Platforms
The AK620 DIGITAL supports an extensive range of processor sockets including LGA 1700, LGA 1200, LGA 1150, LGA 2011, LGA 2066 for Intel, and AM4, AM5 for AMD. This broad compatibility ensures the cooler will work with most current and recent-generation CPUs, whether you’re building a new system or upgrading an existing one.
Box Contents
- DeepCool AK620 DIGITAL CPU cooler
- Two 120 mm PWM fans
- Mounting hardware for Intel and AMD platforms
- Installation manual
- All-metal mounting bracket
Check Before You Buy
- Confirm your CPU socket is supported (LGA 1150/1151/1155/1200/1700/2011/2066 or AM4/AM5)
- Verify your case has sufficient clearance (162 mm height)
- Check that your motherboard has available USB 2.0 header for display functionality
- Ensure your power supply can support the additional fan load
Frequently Asked Questions
Q: Does the display require special software?
A: Yes, a simple application is required to control the display and connect it to a USB 2.0 header.
Q: Can I control the ARGB lighting?
A: Yes, the ARGB LED strips are compatible with standard 3-pin 5V ARGB headers.
Q: Is this cooler suitable for overclocking?
A: Yes, the substantial cooling capacity makes it well-suited for high-frequency overclocking.
Q: What is the maximum CPU height this cooler can accommodate?
A: The cooler itself is 162 mm tall, so you’ll need a case that can accommodate this height.
The Consultant’s Verdict & Warranty
The DeepCool AK620 DIGITAL is ideal for PC builders and enthusiasts who want high-performance cooling with the added benefit of real-time system monitoring. Its combination of six heat pipes, dual-tower design, and silent FDB fans delivers excellent thermal performance for both gaming and professional workloads. The digital display adds a unique touch that sets it apart from standard coolers. Covered by the standard Manufacturer Warranty.
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Number of heat pipes | 6 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 68.99 cfm |
| Maximum air pressure | 2.19 mmH2O |
| Number of fans | 2 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Fan noise level (max) | 28 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1850 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 6 |
| Number of fans | 2 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Radiator material | Aluminum |
| LED connector type | 3-pin |
| Technical details | |
| Number of heat pipes | 6 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 68.99 cfm |
| Maximum air pressure | 2.19 mmH2O |
| Number of fans | 2 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| LED voltage | 5 V |
| Fan power consumption | 1.44 W |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Width | 129 mm |
| Depth | 138 mm |
| Height | 162 mm |
| Weight | 1.49 kg |
| Radiator width | 12.7 cm |
| Radiator depth | 11 cm |
| Radiator height | 15.7 cm |
| Indication | |
| Illumination colour | Multi |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| LED voltage | 5 V |
