DeepCool AK620 G2 DIGITAL NYX Dual Tower CPU Cooler, Black, 2 x 120mm Fan, 6 x advanced Copper Heatpipes, Intel/AMD
£49.86 inc VAT
76 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Six heat pipes with 6 mm diameter for enhanced heat dissipation
- Two 120 mm PWM fans with Hydro Dynamic Bearing technology
- Maximum airflow of 57.76 CFM and air pressure of 2.78 mmH2O
- Supports multiple Intel and AMD sockets including LGA 1700, LGA 1851, AM4, and AM5
- Integrated 29 x 39 mm display for system monitoring
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

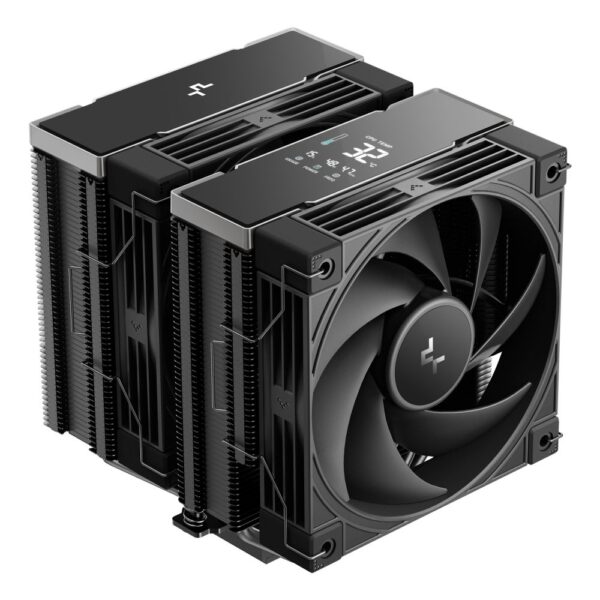

DeepCool AK620 G2 Digital NYX | High-Performance Processor Air Cooler
The DeepCool AK620 G2 Digital NYX Processor Air cooler 12 cm Black 1 pc(s) delivers exceptional cooling for demanding desktop builds. Designed for high-performance processors, this dual-fan air cooler combines advanced heat pipe technology with a built-in digital display for real-time system monitoring. Perfect for gamers, content creators, and power users seeking reliable thermal management without the complexity of liquid cooling.
Slim Specs Table
| Metric | Spec. |
|---|---|
| Fan Diameter | 12 cm |
| Heat Pipes | 6 x 6 mm |
| Maximum Airflow | 57.76 CFM |
| Supported Sockets | LGA 1150/1151/1155/1156/1200/1700/1851, AM4/AM5 |
| Fan Speed | 2200 RPM max |

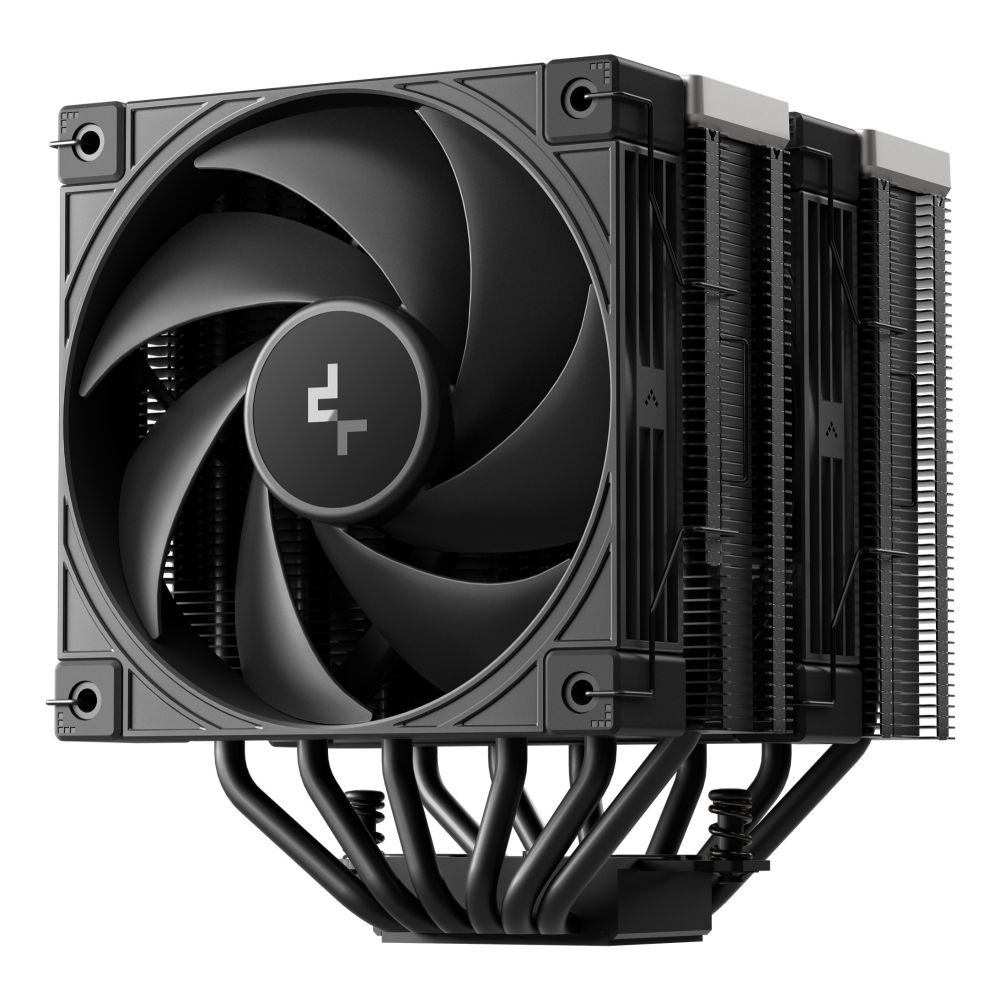

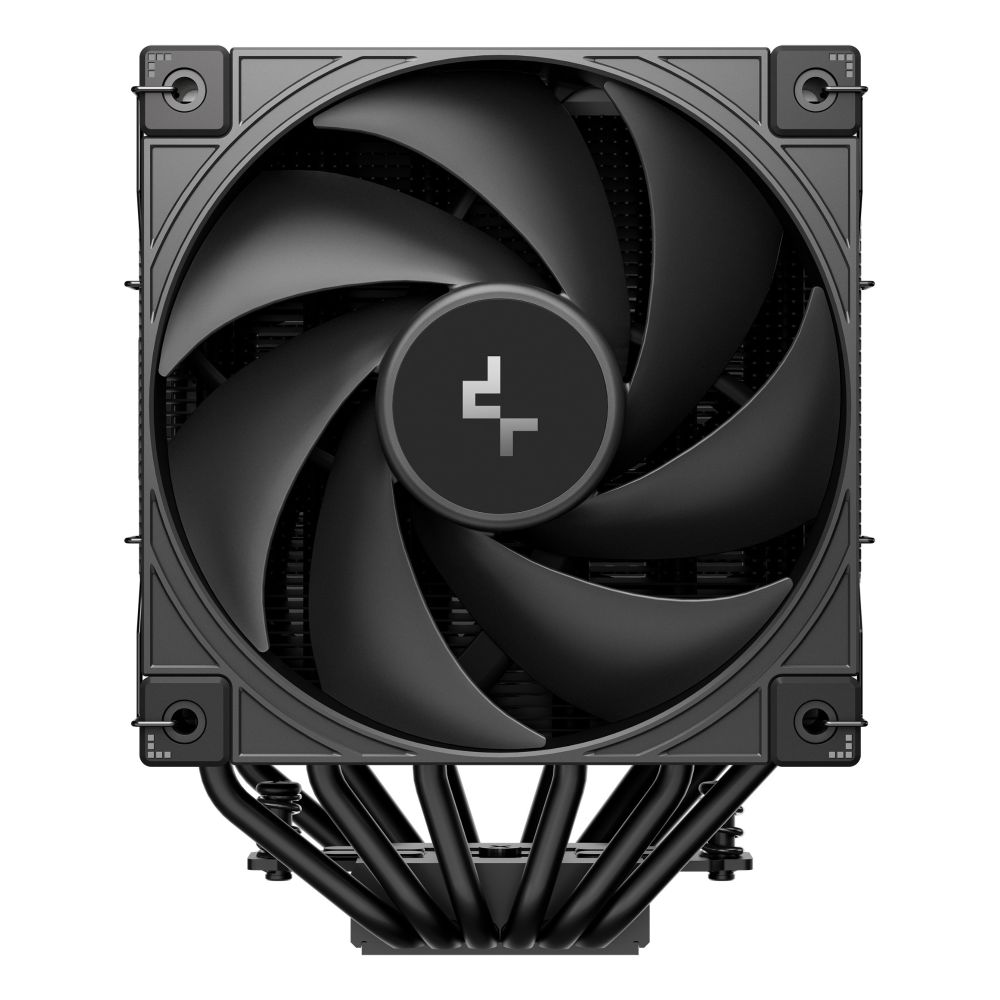

Dual-Fan Design for Enhanced Thermal Performance
The DeepCool AK620 G2 Digital NYX features two 120 mm PWM fans working in tandem to deliver superior airflow and heat dissipation. With a maximum airflow rating of 57.76 CFM and air pressure of 2.78 mmH2O, this cooler effectively manages heat from high-TDP processors. The seven-blade design on each fan optimises air movement while maintaining quiet operation at just 28.87 dB under maximum load.

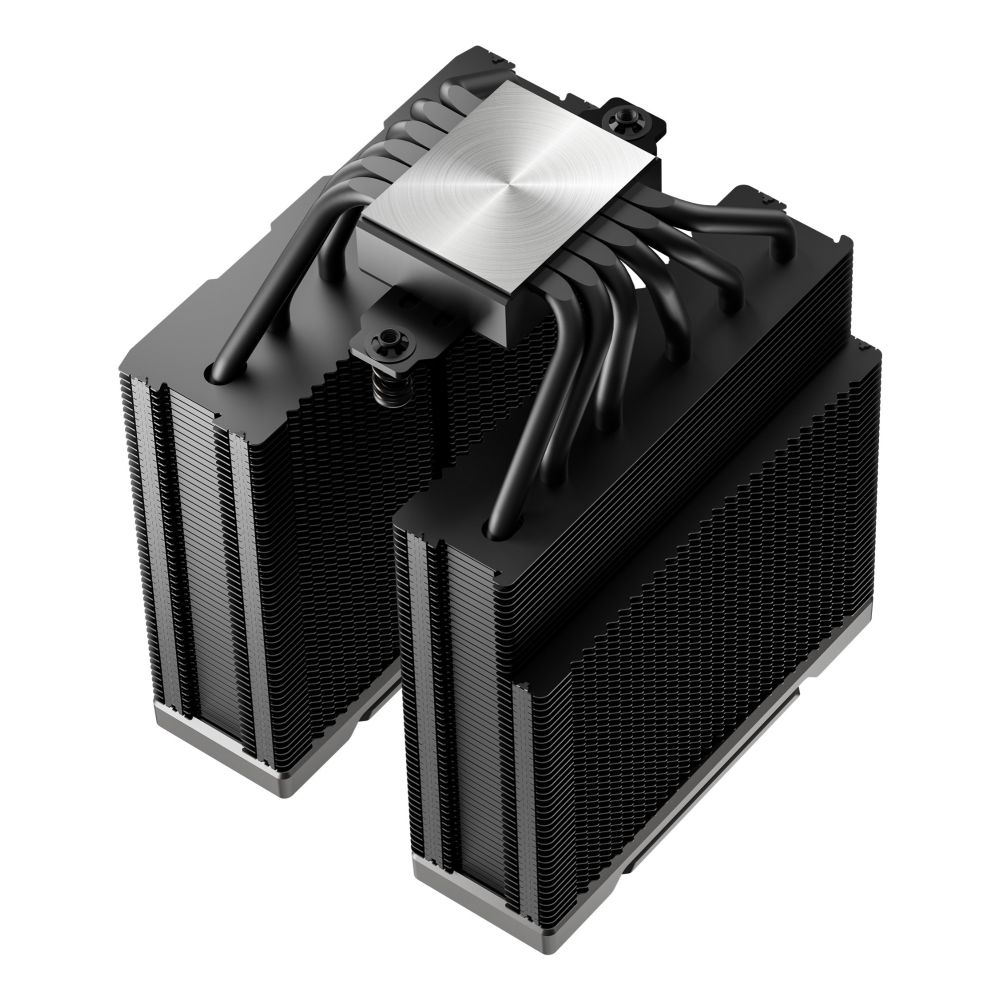

Six Heat Pipes with Direct Touch Technology
Built around six 6 mm copper heat pipes, the AK620 G2 ensures rapid heat transfer from your processor to the aluminum fin stack. The heat pipes feature direct contact with the CPU surface, minimising thermal resistance and improving cooling efficiency. This configuration handles demanding workloads and extended gaming sessions without thermal throttling, keeping your system stable under pressure.

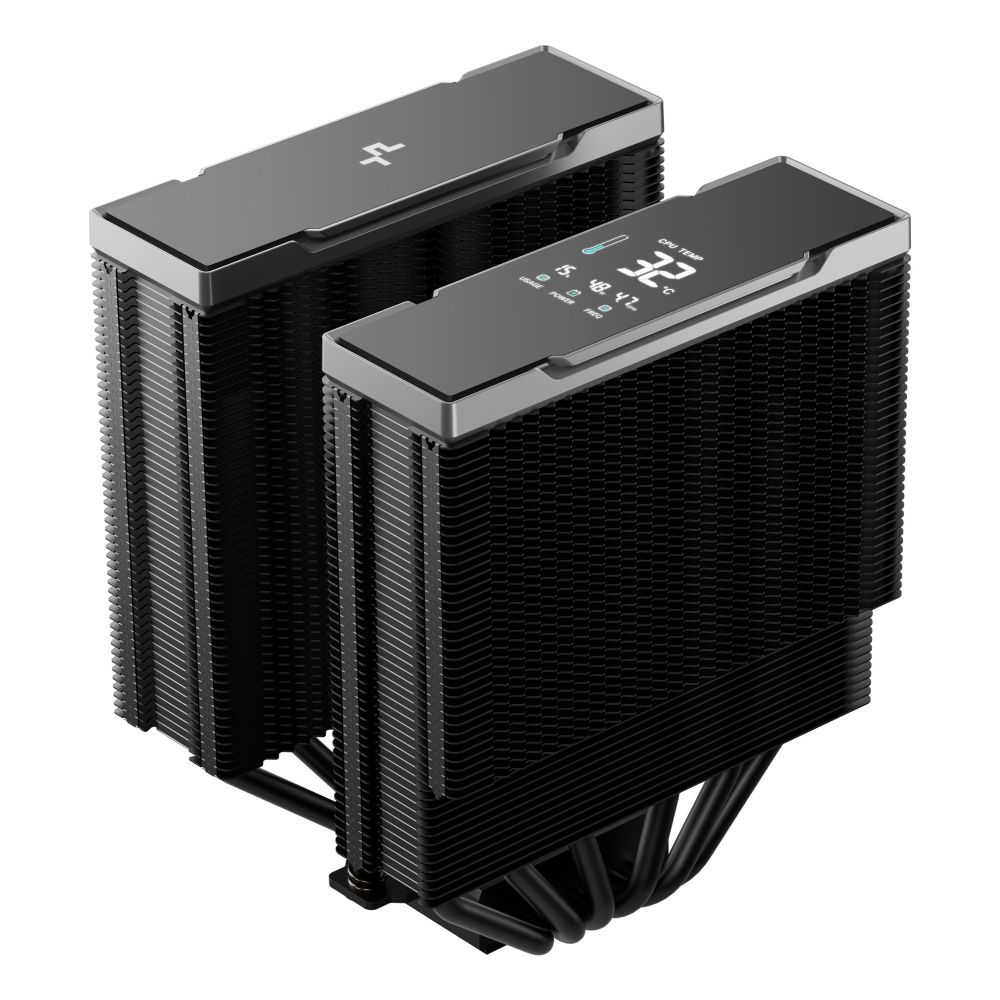

Digital Display for Real-Time Monitoring
A standout feature of the DeepCool AK620 G2 Digital NYX is the integrated 29 x 39 mm display that shows real-time temperature readings and system information. This allows you to monitor your processor’s thermal performance at a glance without relying on software utilities. The display adds both functionality and visual appeal to your build, making it ideal for showcase systems where aesthetics matter.
Broad Socket Compatibility
This air cooler supports an extensive range of processor sockets including Intel’s LGA 1150 through 1851 series and AMD’s AM4 and AM5 platforms. Whether you’re running a legacy system or the latest generation hardware, the AK620 G2 offers broad compatibility. The included mounting kit and CPU brackets ensure secure installation across all supported platforms.
Box Contents
- DeepCool AK620 G2 Digital NYX air cooler
- Mounting kit with CPU brackets
- 2 x 120 mm PWM fans
- Screws and installation hardware
- User manual
Check before you buy
- Confirm your processor socket compatibility (LGA 1150/1151/1155/1156/1200/1700/1851 or AM4/AM5)
- Verify case clearance – height is 159 mm
- Check that your case supports 120 mm fan mounting
- Ensure your motherboard layout accommodates the cooler’s 144 x 127 mm footprint
Frequently Asked Questions
Q: What processors can this cooler handle?
A: It supports Intel LGA 1150 through 1851 and AMD AM4/AM5 sockets, covering most desktop CPUs.
Q: How loud is this cooler under load?
A: Maximum noise level is 28.87 dB, which is relatively quiet for a high-performance cooler.
Q: Does it come with thermal paste?
A: The input doesn’t specify, so you should confirm with the retailer whether thermal paste is included.
Q: Can I control the fan speeds?
A: Yes, both fans support PWM for automatic speed control based on temperature.
Q: What are the dimensions of this cooler?
A: It measures 144 x 127 x 159 mm and weighs 1.39 kg.
The Consultant’s verdict & warranty
The DeepCool AK620 G2 Digital NYX offers excellent value for users seeking high-performance air cooling with modern features. The combination of dual fans, six heat pipes, and a built-in display makes it suitable for gaming rigs, workstations, and enthusiast builds where both performance and monitoring are priorities. Covered by the standard Manufacturer Warranty, this cooler provides reliable thermal management for demanding desktop applications.
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Number of heat pipes | 6 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 57.76 cfm |
| Maximum air pressure | 2.78 mmH2O |
| Number of fans | 2 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 7 |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (max) | 2000 RPM |
| Fan noise level (max) | 28.87 dB |
| Fan bearing technology | Hydro Dynamic Bearing (HDB) |
| Fan speed (max) | 2200 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 6 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Number of fan blades | 7 |
| Radiator material | Aluminum |
| Display size (HxV) | 29 x 39 mm |
| Technical details | |
| Number of heat pipes | 6 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 57.76 cfm |
| Maximum air pressure | 2.78 mmH2O |
| Number of fans | 2 fan(s) |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 2.28 W |
| Fan voltage | 12 V |
| Fan current | 0.19 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Width | 144 mm |
| Depth | 127 mm |
| Height | 159 mm |
| Weight | 1.39 kg |
| Radiator width | 11.5 cm |
| Radiator depth | 12.5 cm |
| Radiator height | 15.3 cm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Built-in display | Yes |
