DeepCool ASSASSIN IV VC VISION Air Cooler
£135.94 inc VAT
101 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 300W TDP air cooler with vapor chamber base for extreme heat dissipation
- Quad-segmented digital display shows CPU temperature, usage, wattage and frequency
- Two 120/140mm PWM fans with 61.25 CFM airflow and 29.3 dB max noise
- Supports LGA1150, LGA1151, LGA1155, LGA1200, LGA1700, LGA1851, LGA2011, LGA2066
- 7 heat pipes with 6mm diameter and fluid dynamic bearing fans for silent operation
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
DeepCool ASSASSIN IV VC VISION | 300W Vapor Chamber Air Cooler
The DeepCool ASSASSIN IV VC VISION Processor Air cooler 120/140 mm Black 1 pc(s) delivers extreme cooling performance for high-end CPUs, combining a vapor chamber base with a striking quad-segmented digital display. Designed for enthusiasts who need both quiet operation and robust thermal management, this cooler supports a massive 300W TDP and fits most modern Intel and AMD sockets.
Slim Specs Table
| Metric | Spec |
|---|---|
| TDP Support | 300W |
| Fan Configuration | 2x (140mm + 120mm) |
| Heat Pipes | 7x 6mm |
| Display Type | Digital Quad-segmented |
| Noise Level | 29.3 dB (max) |
Vapor Chamber Base for Extreme Cooling
The ASSASSIN IV VC VISION uses a vapor chamber at its base to extract heat from the CPU coldplate. This flattened heatpipe design spreads thermal energy evenly before sending it up through seven 6mm heat pipes to dual fin-array towers. The result is a cooling capacity of 300W TDP—ideal for overclocked CPUs or multi-core processors under heavy load.

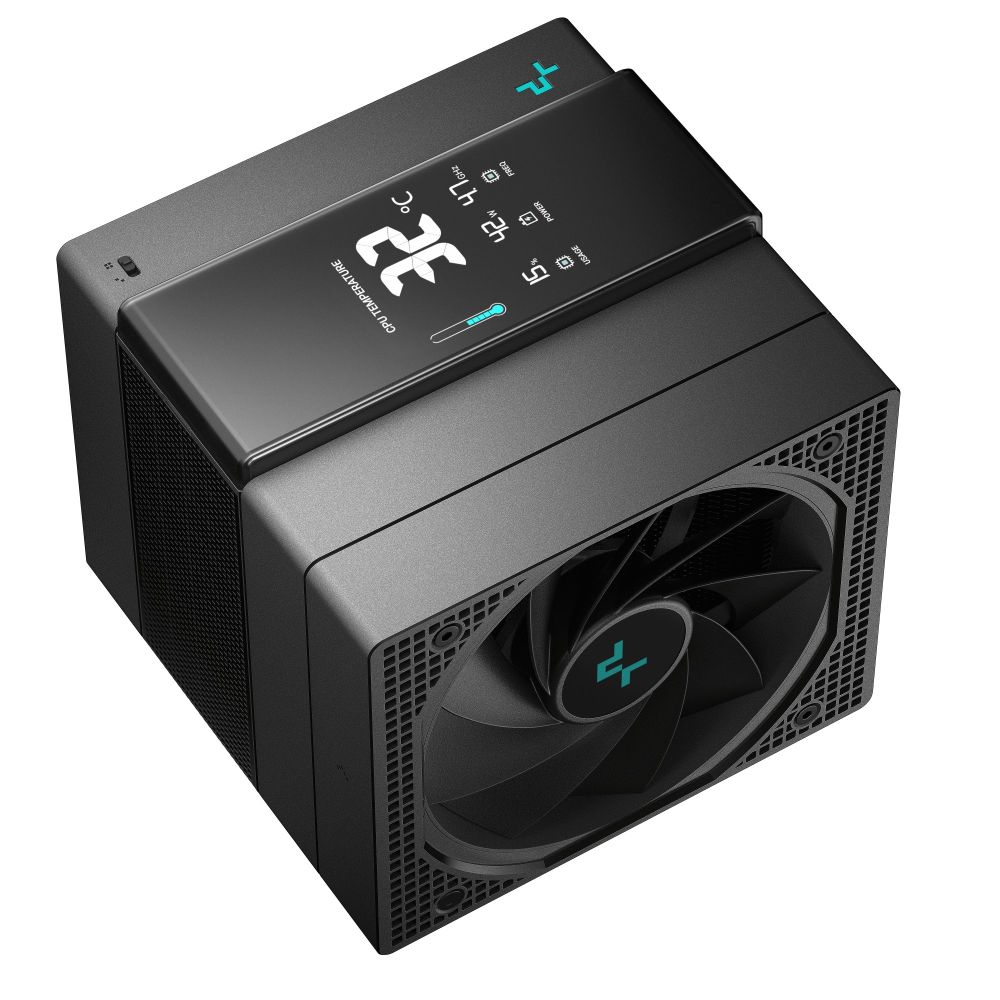

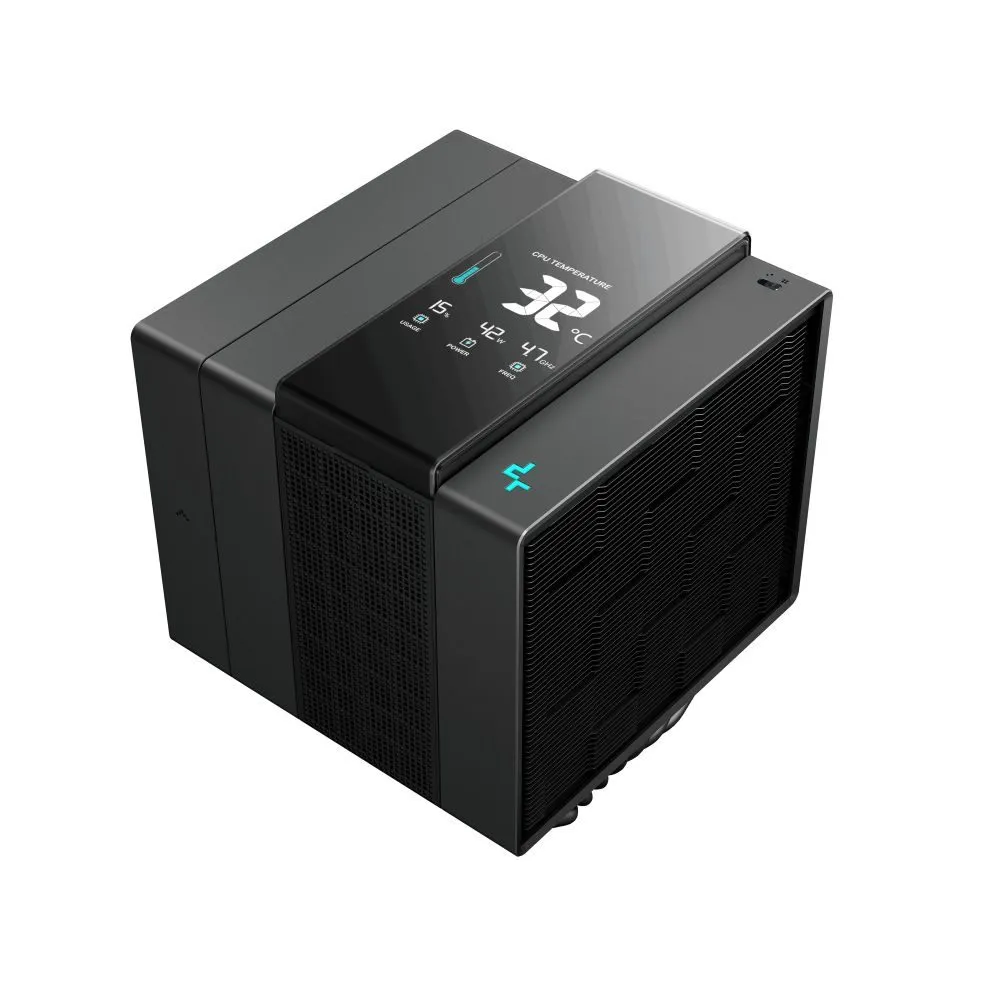

Intelligent Digital Display with Real-Time Monitoring
A standout feature is the magnetized quad-segmented display that shows CPU temperature, usage, wattage, and frequency. Controlled via DeepCool software and powered through a USB 2.0 header, it offers instant system insight without opening monitoring apps. A built-in colour-coded thermometer provides visual alerts: green under 80°C, orange up to 90°C, and red above 90°C with flashing warnings.
Quiet or Performance Mode at Your Fingertips
Switch between whisper-quiet and high-performance cooling with a simple toggle. In quiet mode, the fans operate at minimal noise for silent computing. Flip to performance mode when gaming or rendering to maximise airflow and heat dissipation. This flexibility makes it suitable for both office environments and demanding workloads.
Box contents
- DeepCool ASSASSIN IV VC VISION air cooler (main unit)
- 140mm fan
- 120mm fan
- Mounting hardware kit
- Thermal paste (DM9)
- User manual
Check before you buy
- Confirm your CPU socket is supported (LGA 1700/1851/2066/2011-v3/2011/1200/1155/1151/1150).
- Verify case clearance—172mm height may not fit smaller chassis.
- Ensure your motherboard has a free USB 2.0 header for the display.
- Check RAM height—relocatable fan design helps with high-profile modules.
Frequently Asked Questions
Q: Does the ASSASSIN IV VC VISION support AMD Ryzen CPUs?
A: Yes, it supports all modern AMD sockets including AM5 and AM4.
Q: How is the display powered and controlled?
A: The display connects via USB 2.0 and is managed through DeepCool’s software utility.
Q: What is the maximum noise level?
A: The cooler reaches a maximum of 29.3 dB in performance mode.
Q: Can I install this on a mini-ITX motherboard?
A: Only if your case supports 172mm tall coolers; many mini-ITX cases do not.
Q: Is thermal paste included?
A: Yes, a tube of DeepCool DM9 thermal paste is included in the box.
The Consultant’s verdict & warranty
The DeepCool ASSASSIN IV VC VISION is perfect for power users who want extreme cooling, real-time CPU monitoring, and flexible noise control in one package. Its vapor chamber base and 300W TDP make it ideal for high-performance builds. Covered by the standard Manufacturer Warranty.
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Thermal Design Power (TDP) | 300 W |
| Number of heat pipes | 7 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 120/140 mm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066 |
| Maximum airflow | 61.25 cfm |
| Maximum air pressure | 3.76 mmH2O |
| Number of fans | 2 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan 2 maximum airflow | 58.06 cfm |
| Fan 2 maximum air pressure | 2.1 mmH2O |
| Fan noise level (max) | 29.3 dB |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Display size (HxV) | 44.6 x 53.6 mm |
| Technical details | |
| Thermal Design Power (TDP) | 300 W |
| Number of heat pipes | 7 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 120/140 mm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066 |
| Maximum airflow | 61.25 cfm |
| Maximum air pressure | 3.76 mmH2O |
| Number of fans | 2 fan(s) |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 300 W |
| Power consumption (typical) | 4.8 W |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Heat pipes diameter | 6 mm |
| Width | 147 mm |
| Depth | 144 mm |
| Height | 172 mm |
| Weight | 1.78 kg |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 14 cm |
| Radiator depth | 11 cm |
| Radiator height | 16 cm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Package type | Box |
| Mounting kit | Yes |
