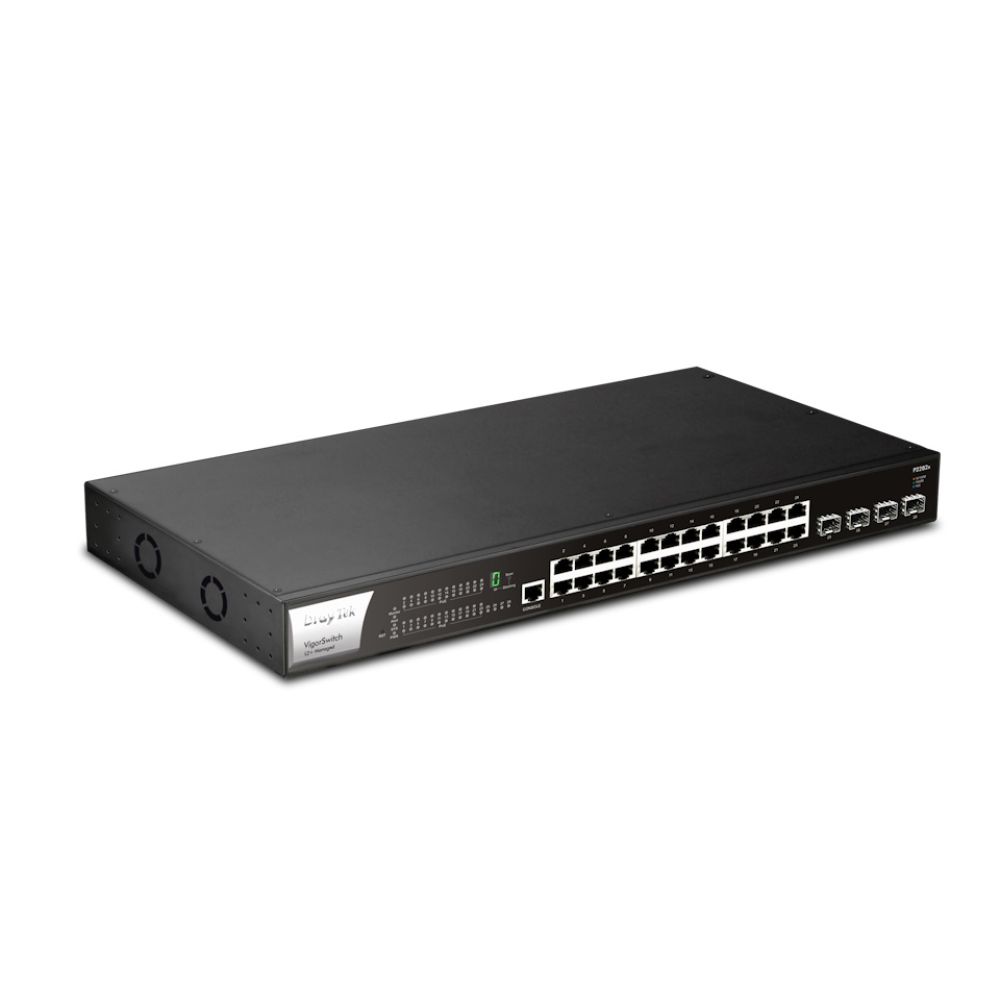

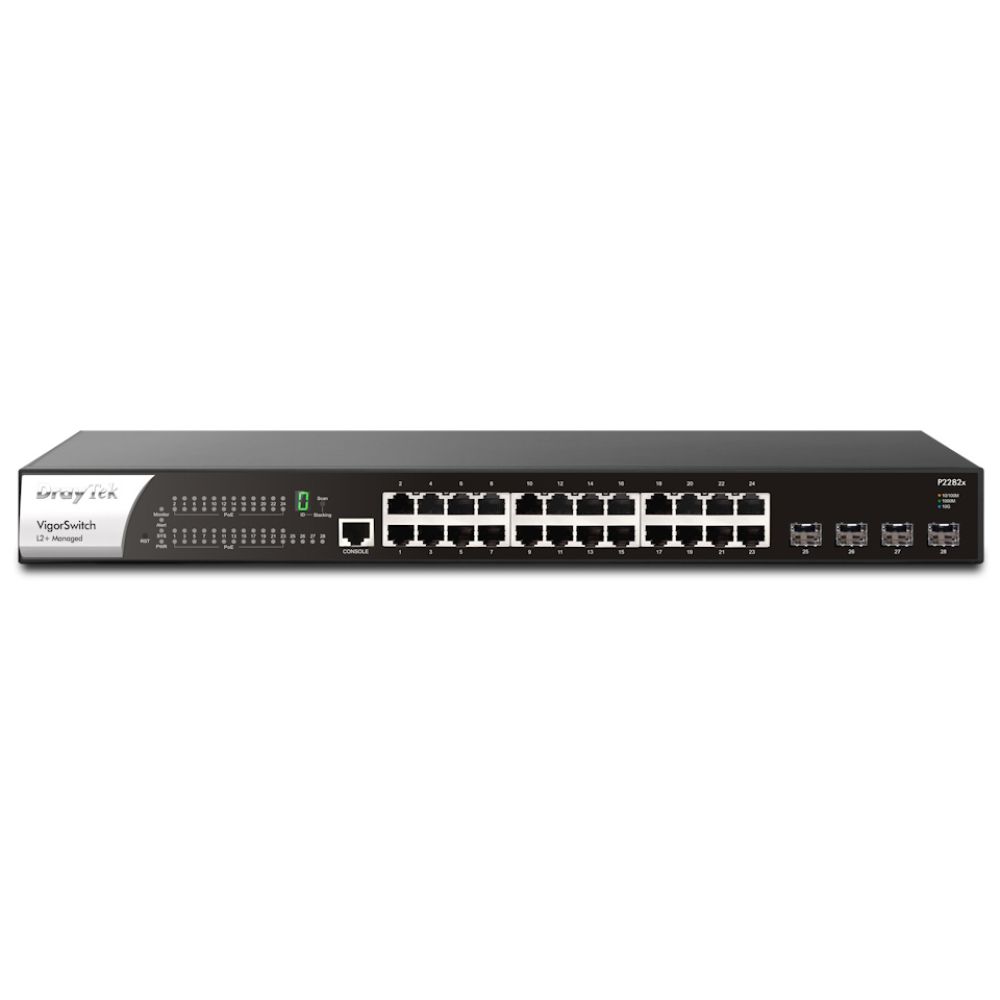

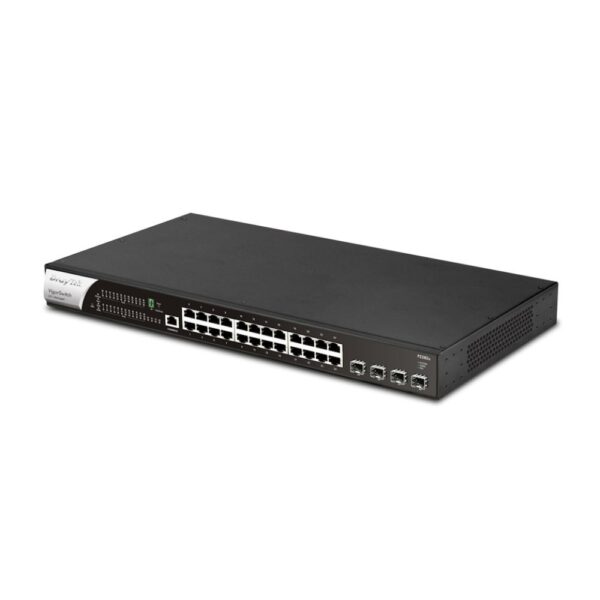

DrayTek 24-Port PoE Switch with 4x 10GbE SFP+

DrayTek VigorSwitch P2282x | 24-Port Gigabit PoE Managed Switch with 4x 10GbE Uplinks

The DrayTek VigorSwitch P2282x L2+ Managed 24-Port Gigabit PoE Switch with 4 x 10GbE SFP+ Ports and Power Backup Input delivers enterprise-grade networking for businesses needing reliable, high-performance connectivity with flexible power options.

This managed switch combines 24 Gigabit PoE ports delivering up to 400W total power budget with 4 high-speed 10GbE SFP+ uplinks for backbone connectivity. The dual power input (AC/DC) with redundant power supply support ensures continuous operation even during power interruptions, making it ideal for critical business infrastructure.

Slim Specs Table

Power Redundancy for Uninterrupted Business Operations

The P2282x’s dual power input capability (AC/DC) with redundant power supply support provides critical business continuity. This feature ensures your network infrastructure remains operational during power outages or maintenance, preventing costly downtime. The switch automatically switches between power sources without interruption, maintaining connectivity for all connected devices including IP phones, access points, and security cameras.

High-Speed Uplinks for Demanding Network Traffic

With 4 dedicated 10GbE SFP+ ports, this switch handles bandwidth-intensive applications and server connections with ease. These high-speed uplinks enable seamless data transfer between switches, network-attached storage devices, and servers at up to 10Gbps per port. This makes the P2282x particularly suitable for environments with heavy data transfer requirements, virtualization, or growing storage needs.

Advanced PoE Management for Simplified Deployment

The 24 PoE+ ports deliver up to 400W total power budget, eliminating the need for separate power adapters for connected devices. Each port supports intelligent power management, allowing you to monitor and control power consumption per device. This centralized power delivery simplifies installation of IP cameras, wireless access points, VoIP phones, and other powered devices while reducing cable clutter and power outlet requirements.

Enterprise-Grade Management and Security Features

Built on DrayOS with web-based management interface, the P2282x offers comprehensive network control including VLAN support, Quality of Service (QoS) prioritization, and 512 Access Control List rules. The switch includes IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring, and spanning tree protocol for loop prevention. Cloud-managed capabilities enable remote configuration and monitoring, ideal for distributed business environments.

Box contents

• DrayTek VigorSwitch P2282x switch unit
• Power supply unit
• Rack mount kit
• Quick start guide
• Package box

Check before you buy

• Confirm your rack space availability for 1U mounting
• Verify your PoE device power requirements against the 400W total budget
• Check compatibility of your SFP+ modules with the 10GbE uplink ports
• Confirm your network management requirements align with DrayOS capabilities

Frequently Asked Questions

Q: What is the maximum power consumption per PoE port?

A: Each PoE port supports up to 30W (802.3at standard), with total budget of 400W shared across all 24 ports.

Q: Can this switch operate without a rack?

A: Yes, while designed for rack mounting, the switch can operate on a desktop or shelf with proper ventilation.

Q: What management protocols are supported?

A: The switch supports SNMP, RMON, SSH, SSL, and web-based management through DrayOS.

Q: Is the switch suitable for outdoor deployment?

A: No, the operating temperature range is 0-50°C, making it suitable for indoor environments only.

Q: Can I stack multiple VigorSwitch P2282x units?

A: Yes, the switch supports stacking functionality for expanded network capacity.

The Consultant’s verdict & warranty

The DrayTek VigorSwitch P2282x represents a robust solution for businesses requiring reliable, high-performance networking with power redundancy. Its combination of 24 PoE ports, 10GbE uplinks, and dual power input makes it particularly suitable for growing businesses with critical infrastructure needs. The comprehensive management features and cloud capabilities provide the control and flexibility modern networks demand. Covered by the standard Manufacturer Warranty.
