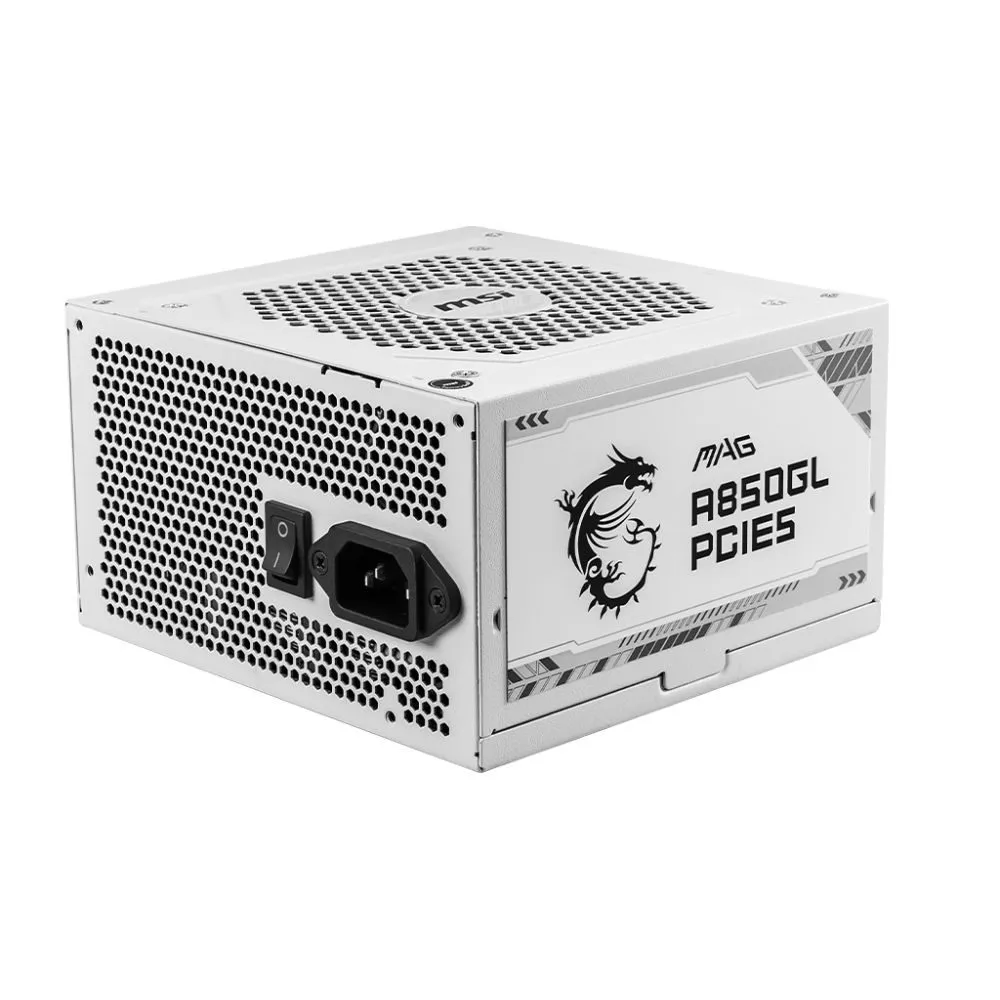

MAG A850GL PCIE5 WHITE

MSI MAG A850GL | Next-Gen 850W ATX3.0 Power Supply

The MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX delivers reliable, high-efficiency power for demanding gaming and workstation builds. With ATX 3.0 compliance and native PCIe 5.0 support, it’s engineered to handle next-generation graphics cards while maintaining stable operation under heavy loads.

Key Specifications

Ready for Next-Generation Graphics

The MAG A850GL features a native 16-pin PCIe connector specifically designed for NVIDIA GeForce RTX 40 Series graphics cards. This allows the power supply to deliver up to 600W directly to PCIe 5.0 graphics cards, ensuring your high-end GPU receives clean, stable power without the need for adapter cables that can introduce voltage drops.

ATX 3.0 Compliance for Modern Systems

Built to Intel’s PSDG (Power Supply Design Guide) ATX 3.0 specification, this unit can handle 2x total power excursion and 3x GPU power excursion. This means it maintains stable output even when your system experiences sudden power spikes during intensive gaming or content creation workloads, protecting both your components and ensuring uninterrupted performance.

Gold Efficiency for Lower Energy Costs

With 80 PLUS Gold certification, the MAG A850GL operates at up to 90% efficiency under typical loads. This translates to less wasted energy as heat, lower electricity bills, and reduced strain on your system’s cooling. The Active Power Factor Correction (PFC) further optimises power delivery, making this an environmentally conscious choice for UK users.

Compact Design for Easy Building

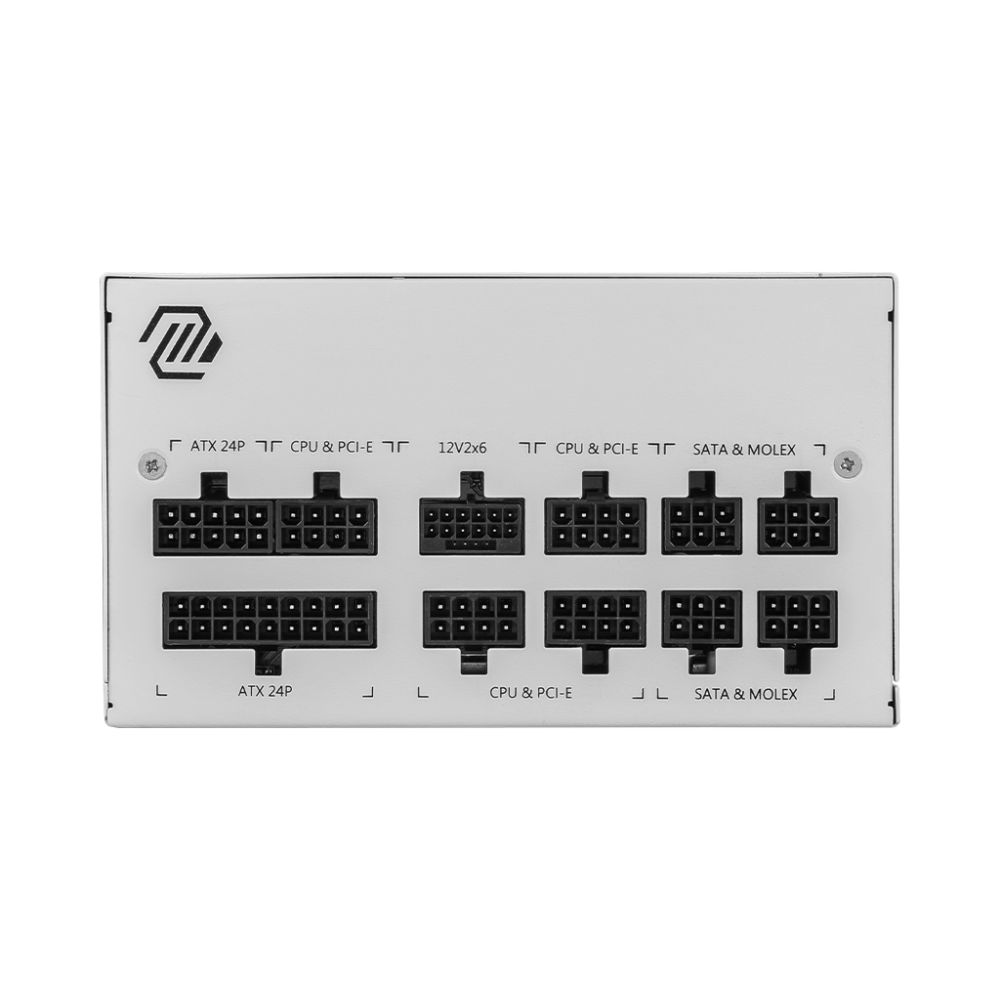

Measuring smaller than many traditional PSUs, the MAG A850GL saves valuable space inside your PC case. This compact footprint makes cable routing simpler and provides better airflow around components. The flat, fully-modular cables further enhance build quality by allowing you to use only the connections you need, reducing clutter and improving case ventilation.

Comprehensive Protection for Peace of Mind

The power supply includes multiple protection mechanisms: over current, over power, over voltage, overheating, and short circuit protection. Combined with DC-to-DC and full bridge technology, these features ensure stable voltage output across all rails, protecting your expensive components from power-related damage.

Box contents

• MSI MAG A850GL PCIE5 WHITE power supply unit
• Modular cable set
• Mounting screws
• User manual
• Warranty card

Check before you buy

• Confirm your case has sufficient clearance for ATX power supply installation
• Verify your graphics card requires or benefits from PCIe 5.0 power delivery
• Check that your build’s total power draw stays within 850W capacity
• Ensure your system uses standard 20+4 pin ATX motherboard connector

Frequently Asked Questions

Q: Is this power supply compatible with older motherboards?

A: Yes, the 20+4 pin ATX connector works with both modern and older motherboards that use standard ATX power connections.

Q: Can I use this with non-PCIe 5.0 graphics cards?

A: Absolutely. The MAG A850GL works perfectly with PCIe 3.0 and 4.0 cards, though the native 16-pin connector is optimised for PCIe 5.0 GPUs.

Q: How many PCIe connectors does it have?

A: It includes four 6+2 pin PCIe connectors plus one native 16-pin PCIe 5.0 connector, supporting multiple graphics cards or high-power single cards.

Q: Is the fan noisy under load?

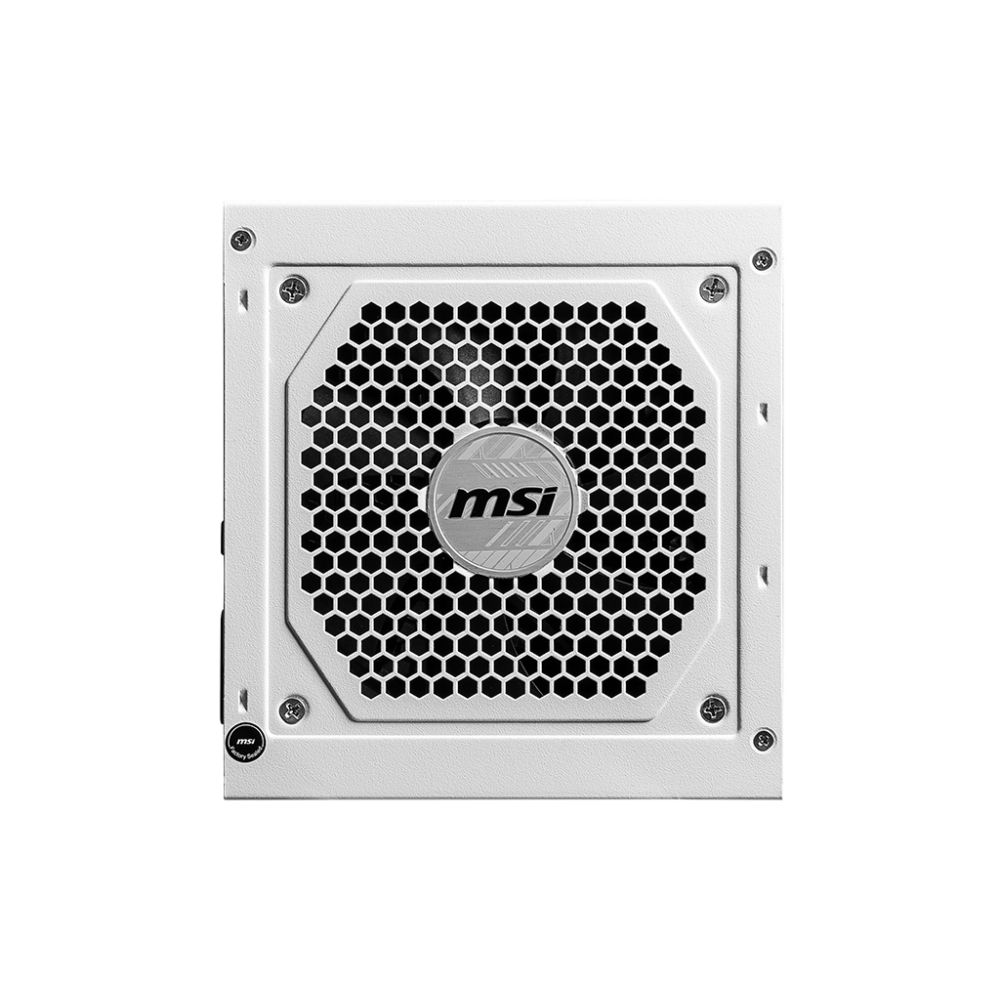

A: The 120mm fluid dynamic bearing fan is designed for quiet operation, with intelligent speed control that keeps noise levels low during typical usage.

Q: What are the dimensions of this PSU?

A: Exact dimensions are not specified in the provided information. Please check the manufacturer’s specifications for precise measurements.

The Consultant’s verdict & warranty

The MSI MAG A850GL PCIE5 WHITE is an excellent choice for UK gamers and professionals building systems with high-end graphics cards, particularly those planning to use NVIDIA RTX 40 Series GPUs. Its ATX 3.0 compliance, native PCIe 5.0 support, and Gold efficiency make it future-proof while delivering reliable performance today. Covered by the standard Manufacturer Warranty.
