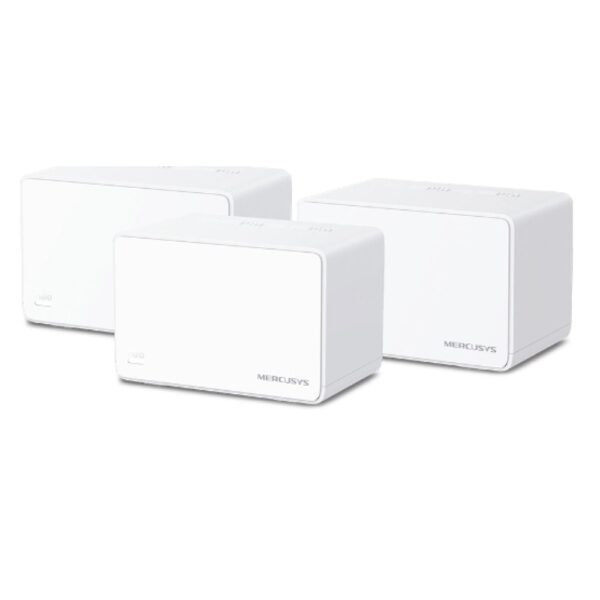

Mercusys AX3000 Mesh WiFi 6 System
£133.90 inc VAT
5 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- White mesh system with 650 m² coverage
- WiFi 6 (802.11ax) dual-band with 3000 Mbps max speed
- 3 Gigabit Ethernet ports with WAN/LAN auto-sensing
- Enhanced capacity for 150+ devices via OFDMA and MU-MIMO
- Parental controls with user profiles and time limits
- Internal antennas with beamforming for stable signals
- Dimensions: 128 x 81 x 83.7 mm per unit
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
Mercusys Halo H80X | Whole Home Mesh WiFi 6 System
The Mercusys AX3000 Whole Home Mesh WiFi 6 System delivers seamless whole-home coverage with tri-band WiFi 6 technology, eliminating dead zones and buffering across up to 650 m². This three-unit kit creates a unified network that automatically connects your devices to the strongest signal as you move through your home.
Key Specifications
| Metric | Spec |
|---|---|
| WiFi Standard | Wi-Fi 6 (802.11ax) |
| Coverage | Up to 650 m² |
| Max Speed | 3000 Mbps (574 Mbps + 2402 Mbps) |
| Units Included | 3 |
True Seamless Roaming with One Unified Network
The Halo system creates a single network name that intelligently manages your connections. As you walk from room to room, your phone or tablet automatically switches to the nearest node without dropping the connection. This means no more frustrating WiFi drops when you’re on a video call or streaming music while moving around your home.
Enhanced by WiFi 6 Technology
Built on the latest WiFi 6 standard, this system uses OFDMA and MU-MIMO technology to handle over 150 connected devices simultaneously. Whether you’re working from home, gaming online, or streaming 4K content on multiple devices, the network maintains consistent speeds without the lag that plagues older systems.
Powerful Parental Controls
Create individual profiles for each family member and manage their online experience with comprehensive controls. Set time limits to encourage healthy device usage, block inappropriate websites, and even pause internet access for family time. All controls are managed through the intuitive Mercusys app without technical expertise.

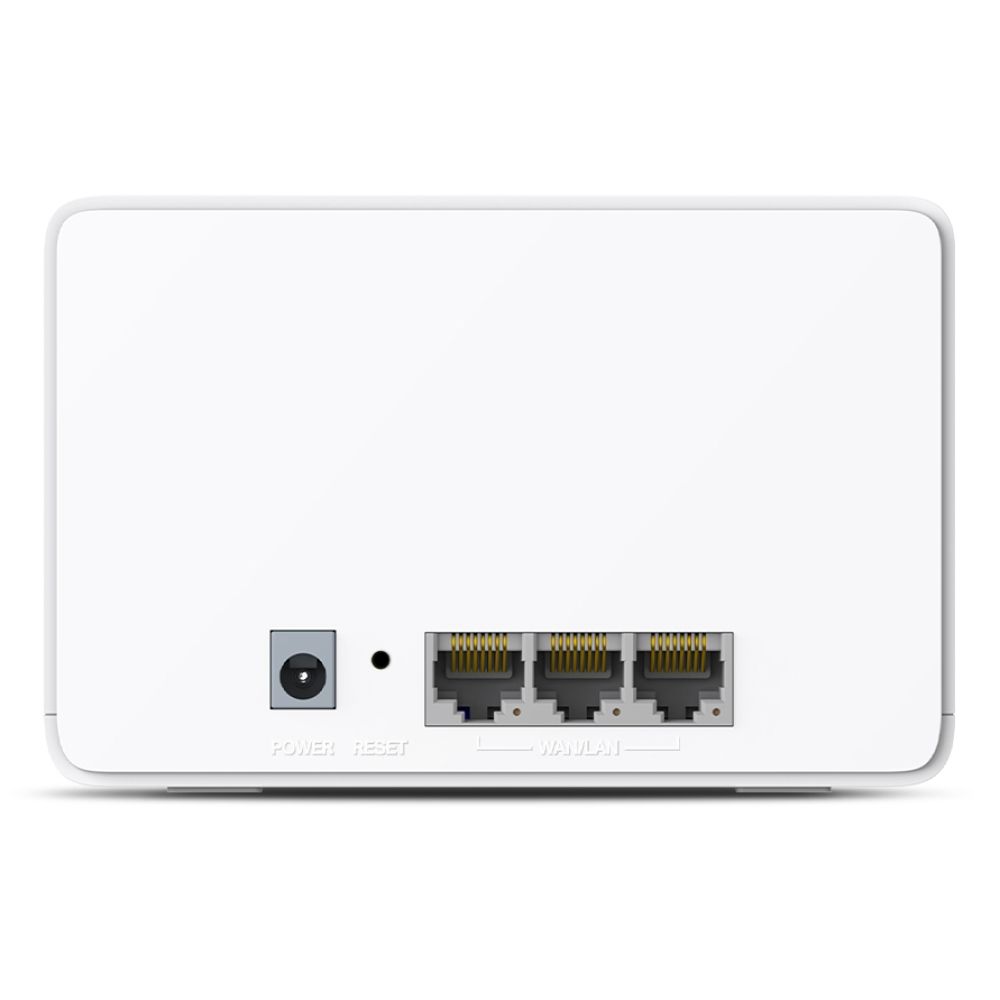

Full Gigabit Ports with Auto-Sensing
Each node features three gigabit Ethernet ports with WAN/LAN auto-sensing, eliminating the confusion of port selection. This means 10× faster wired connections compared to standard Ethernet, perfect for gaming consoles, smart TVs, or desktop computers that demand maximum speed.
Box Contents
- 3 x Halo H80X WiFi 6 nodes
- AC adapters (one per node)
- Ethernet cables
- Quick start guide
Check before you buy
- Confirm your internet speed to ensure it matches the system’s capabilities
- Verify your home layout suits mesh coverage requirements
- Check that your devices support WiFi 6 for maximum benefit
- Confirm you need coverage for up to 650 m²
Frequently Asked Questions
Q: How many devices can this system handle?
A: The system supports over 150 devices simultaneously using WiFi 6 technology.
Q: Can I add more nodes later?
A: Yes, you can expand coverage anytime by adding compatible Halo nodes.
Q: Does it work with my existing ISP?
A: Yes, it’s compatible with any broadband provider using standard PPPoE or DHCP connections.
Q: How difficult is the setup process?
A: Setup takes minutes using the Mercusys app with step-by-step guidance.
Q: What security features are included?
A: The system supports WPA2-PSK, WPA3, and includes SPI firewall protection.
The Consultant’s Verdict & Warranty
The Mercusys Halo H80X is ideal for UK homes struggling with WiFi dead zones, buffering, or multiple device congestion. Its WiFi 6 foundation future-proofs your network while the three-unit kit provides comprehensive coverage for larger properties. Covered by the standard Manufacturer Warranty.
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| Operating temperature (T-T) | 0 - 40 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Maximum coverage | 650 m² |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | WPA2-PSK, WPA3, WPA-PSK |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Guest access | Yes |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Features | |
| DHCP client | Yes |
| DHCP server | Yes |
| Quality of Service (QoS) support | Yes |
| Firewall security | SPI Firewall |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 128 mm |
| Depth | 81 mm |
| Height | 83.7 mm |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 3 pc(s) |
| Number of units included | 3 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 85171800 |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
| Identifiers | |
| Additional EANs | 0849439000829 |
