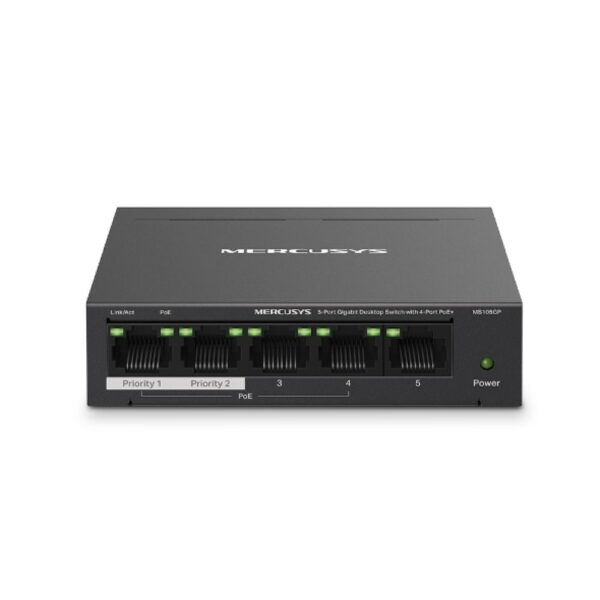

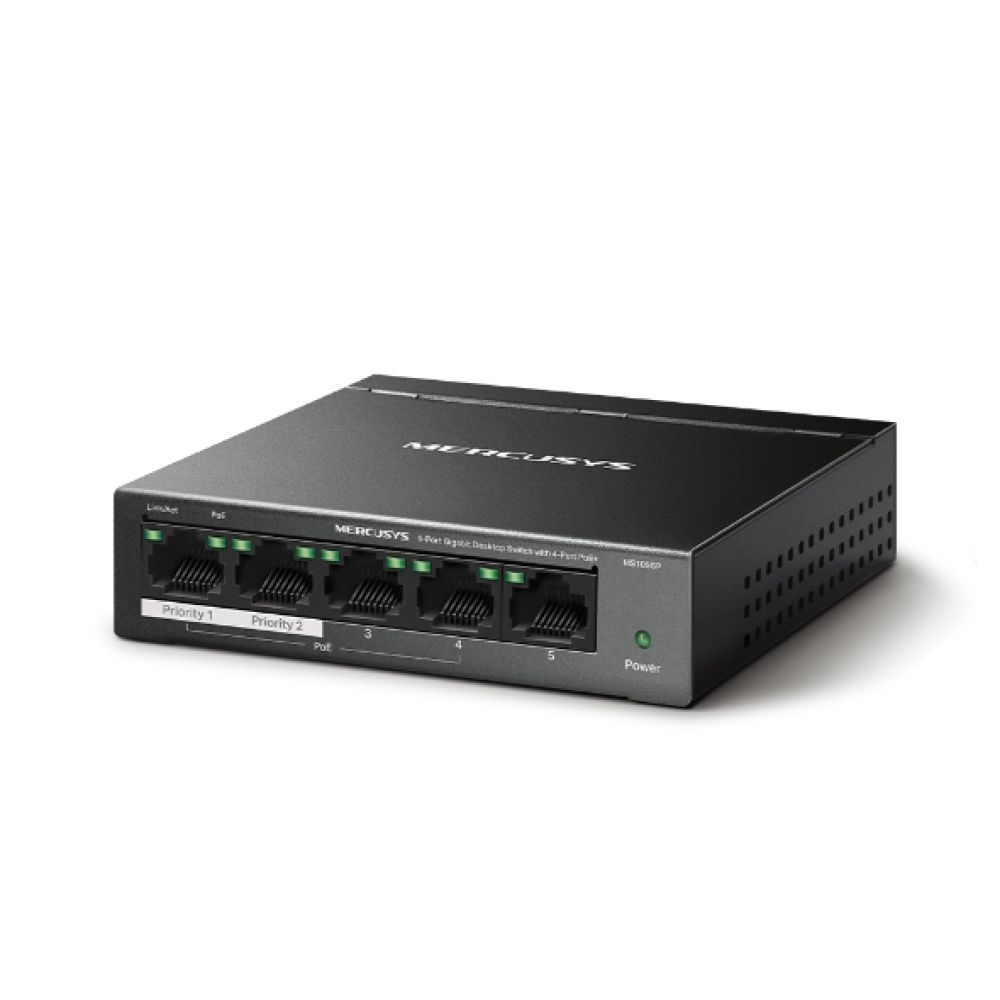

Mercusys 5-Port Gigabit Desktop Switch

Mercusys MS105GP | 5-Port Gigabit Desktop PoE+ Switch

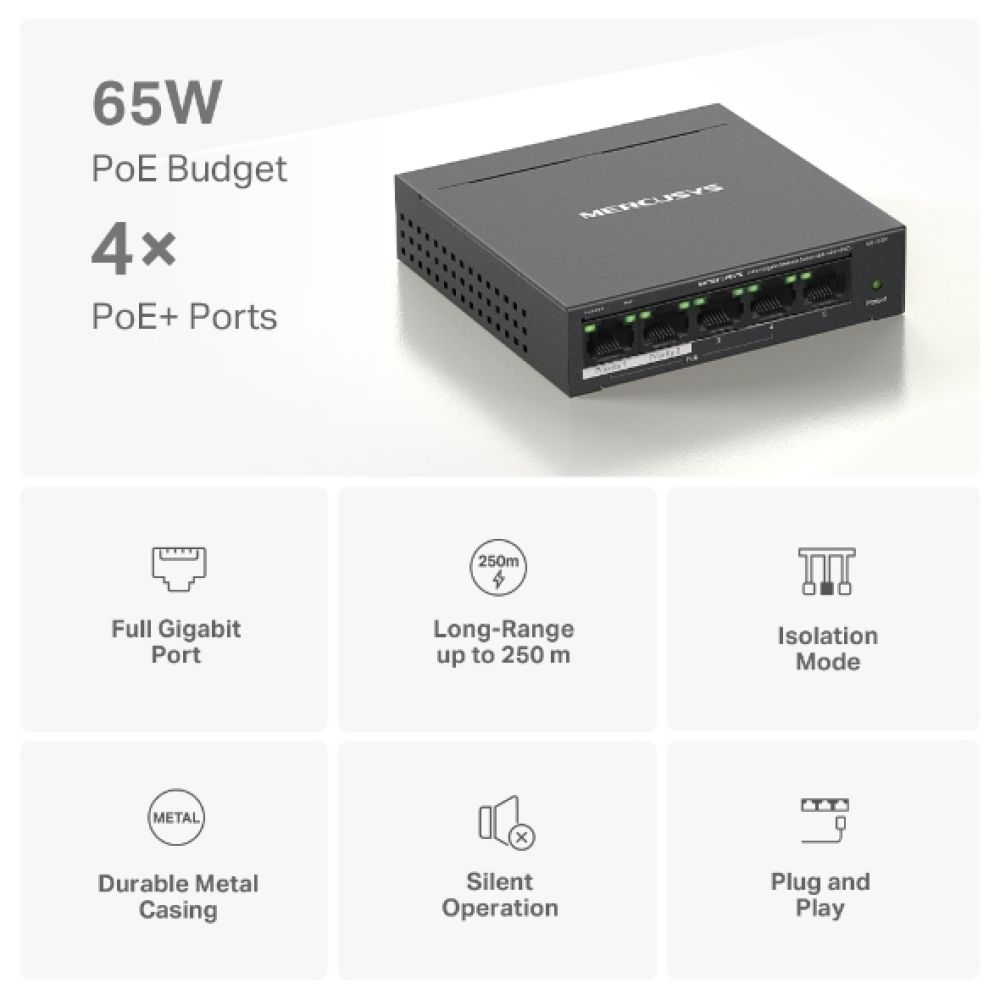

The Mercusys 5-Port Gigabit Desktop Switch with 4-Port PoE+ delivers reliable network expansion for small offices and home setups. With four Power over Ethernet ports delivering up to 65W total budget, it powers compatible devices like IP cameras and VoIP phones without extra adapters. The compact metal chassis ensures durability while maintaining silent operation.

Slim Specs Table

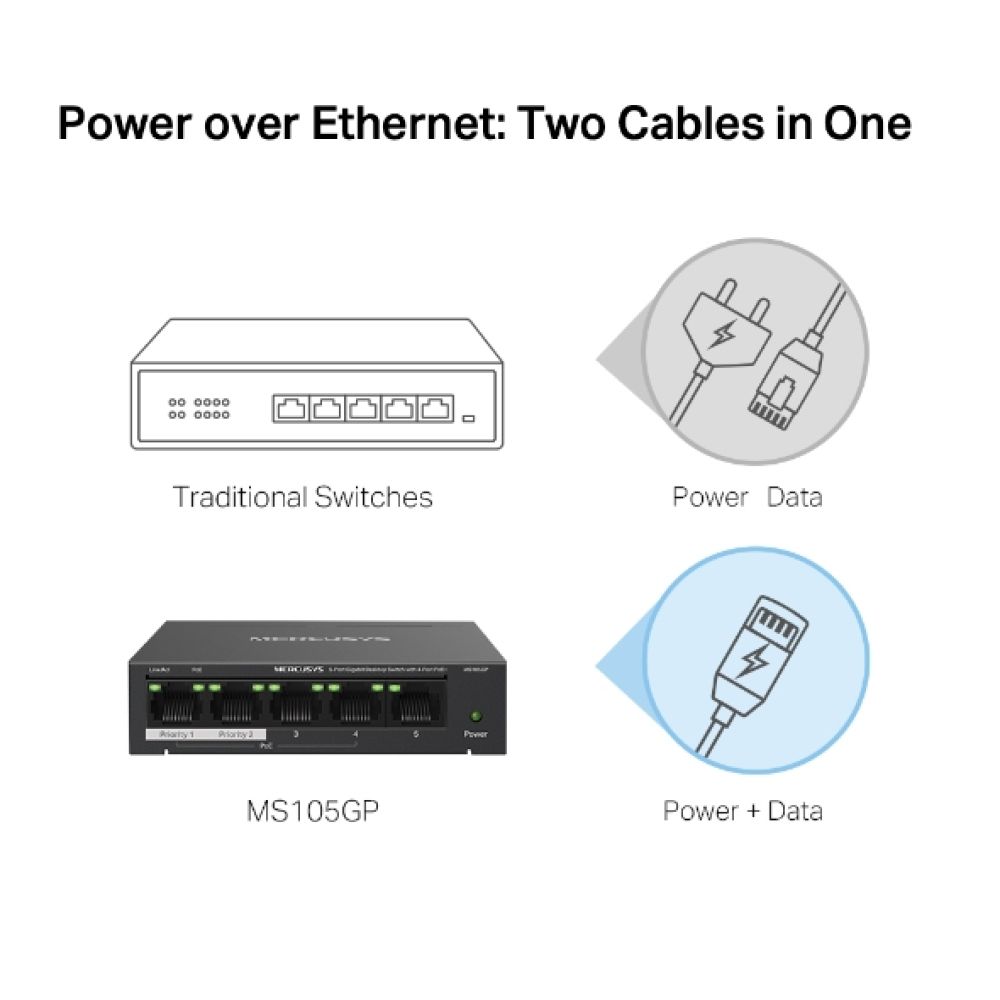

Power over Ethernet Made Simple

This switch eliminates the need for separate power supplies on compatible devices. Each of the four PoE+ ports supports IEEE 802.3af/at standards, delivering up to 30W per port. The total 65W budget intelligently manages power distribution across connected devices. This reduces cable clutter and infrastructure costs while maintaining reliable power delivery to critical equipment.

Plug and Play Installation

Setup requires no technical expertise. Auto-negotiation automatically configures port speeds (10/100/1000 Mbps) and MDI/MDIX crossover detection. The switch immediately begins operating once connected to power and network devices. LED indicators provide clear status information for power and link activity. This straightforward approach saves time and eliminates configuration complexity.

Enhanced Network Security Features

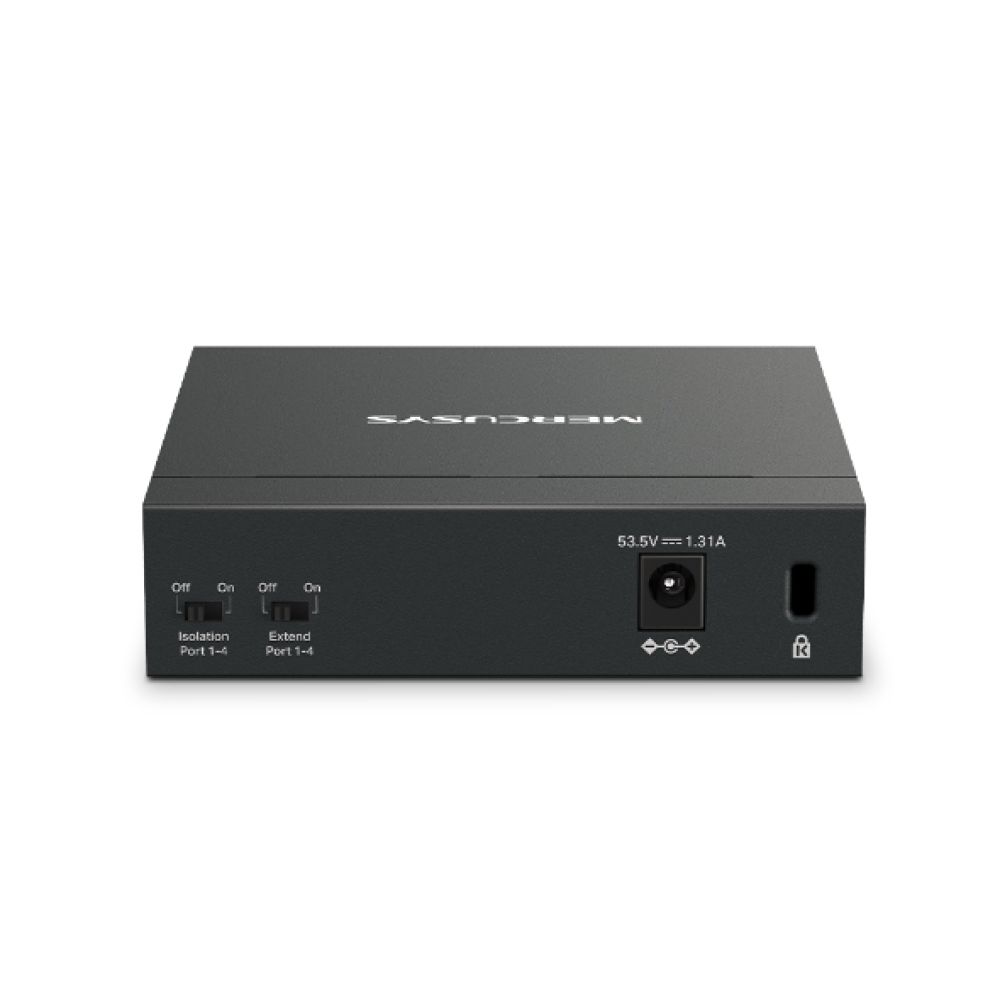

Isolation mode provides one-click traffic separation for ports 1-4. This prevents snooping and tampering between connected devices while containing broadcast storms. Port prioritization ensures quality of service for sensitive applications like voice and video. These features protect your network without requiring advanced configuration.

Durable Metal Construction

The robust metal housing offers superior heat dissipation and signal interference protection. This design extends equipment lifespan and maintains stable performance during continuous operation. Wall-mountable design provides flexible deployment options in space-constrained environments. The silent operation makes it suitable for noise-sensitive locations.

Box contents

• Mercusys MS105GP switch
• Power adapter (AC)
• Quick start guide

Check before you buy

• Confirm your PoE devices support IEEE 802.3af/at standards
• Verify total power requirements don’t exceed 65W budget
• Check that UK mains voltage (220V) matches your supply
• Ensure your devices need Gigabit Ethernet speeds

Frequently Asked Questions

Q: Can this switch power multiple PoE devices simultaneously?

A: Yes, it supports up to four PoE+ devices with a total 65W power budget shared across all ports.

Q: Does this switch require any configuration?

A: No, it operates as plug-and-play with automatic port configuration and no software setup needed.

Q: What is the maximum power per PoE port?

A: Each PoE+ port can deliver up to 30W, following IEEE 802.3at standards.

Q: Is this switch suitable for rack mounting?

A: No, this desktop model is designed for surface placement or wall mounting only.

Q: What temperature range does this switch support?

A: It operates between 0°C and 40°C for standard use.

The Consultant’s verdict & warranty

The Mercusys MS105GP offers excellent value for users needing basic network expansion with PoE capability. Its combination of four PoE+ ports, silent operation, and durable construction makes it ideal for small offices, retail spaces, or home networks with IP cameras and VoIP phones. Covered by the standard Manufacturer Warranty.
