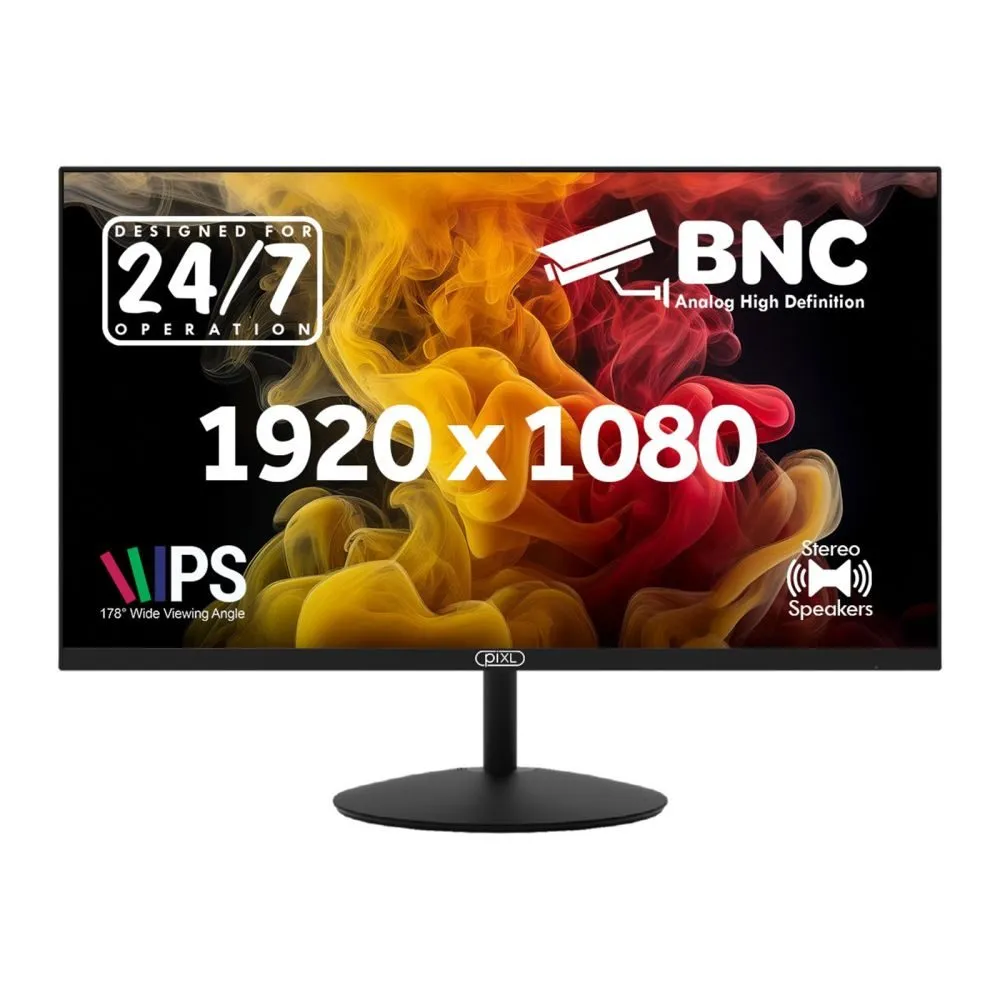

PIXL 24″ Full HD CCTV Monitor with BNC, HDMI, VGA Connections

piXL 24IVHBS | 24-inch Full HD CCTV IPS Monitor for 24/7 Surveillance

Experience crisp, reliable performance with the piXL 24-inch CCTV monitor – designed for both security and professional applications. Featuring a Full HD 1080p display, this monitor delivers sharp visuals and true-to-life colour accuracy, ensuring you never miss a detail. With versatile connectivity options including BNC, HDMI, and VGA, it easily integrates with CCTV systems, DVRs, and PCs alike.

Key Specifications

Always-On Performance with Minimal Power Draw

Built for continuous operation, the piXL 24IVHBS consumes less than 30W and only 0.5W in standby. This low power draw makes it ideal for 24/7 surveillance setups without driving up electricity costs. The external 12V DC adapter ensures stable power delivery even during extended use.

Crystal-Clear Imaging for Security Applications

The IPS panel delivers consistent colour accuracy and sharp detail from any viewing angle. With 16.7 million colours, 1000:1 contrast ratio, and 250 cd/m² brightness, the monitor captures fine details in both bright and dark scenes. The 5ms response time and 60Hz refresh rate ensure smooth motion for real-time monitoring.

Multi-Standard CCTV Signal Support

This monitor supports a wide range of video standards including CVBS, AHD, TVI, and CVI, making it compatible with both modern and legacy CCTV systems. The BNC and AHD inputs allow direct connection to security cameras and DVRs, while HDMI and VGA ports provide flexibility for PC and media use.

Space-Saving Design with VESA Mounting

The slim bezel design and VESA 75x75mm mounting compatibility make this monitor easy to integrate into any surveillance rack or wall-mounted setup. The tiltable stand offers ergonomic adjustment, while the compact footprint (320 x 540 x 51mm without base) saves valuable desk space.

Box Contents

• Monitor
• HDMI cable
• Power line
• Manual

Check before you buy

• Confirm the monitor’s BNC and AHD inputs match your CCTV system’s output signals
• Verify the 12V DC power adapter meets your local voltage requirements
• Check VESA mounting hole pattern matches your existing bracket (75x75mm)
• Confirm the 5ms response time suits your monitoring needs

Frequently Asked Questions

Q: Can this monitor display 4K resolution from CCTV cameras?

A: No, this monitor supports up to 1920 x 1080 Full HD resolution only.

Q: Does it work with both PAL and NTSC video formats?

A: Yes, the monitor supports both PAL and NTSC video standards for international compatibility.

Q: Can I mount this monitor on a standard VESA arm?

A: Yes, it features a 75x75mm VESA mounting pattern compatible with most standard arms.

Q: Is the monitor suitable for colour-critical security work?

A: With 100% sRGB coverage and IPS technology, it provides accurate colour reproduction for security monitoring.

The Consultant’s verdict & warranty

The piXL 24IVHBS offers excellent value for security professionals and home surveillance setups requiring reliable 24/7 operation. Its combination of IPS image quality, multi-standard signal support, and energy efficiency makes it a practical choice for continuous monitoring applications. Covered by the standard Manufacturer Warranty.
