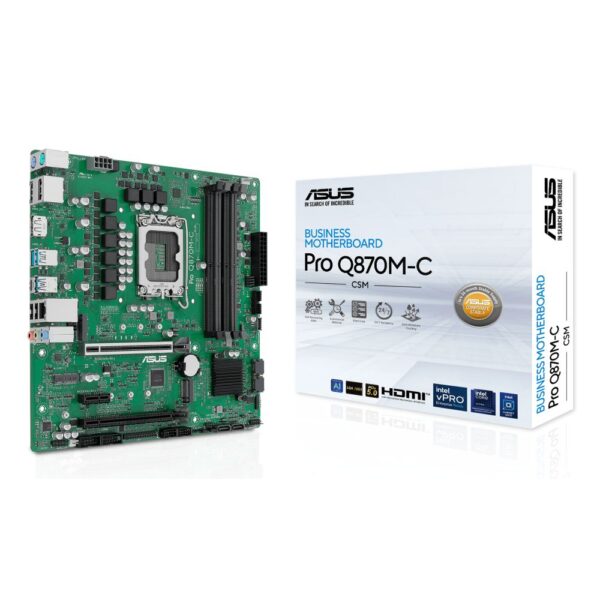

ASUS PRO Q870M-C-CSM micro ATX motherboard

ASUS PRO Q870M-C-CSM | Intel Q870 Business Motherboard

The ASUS PRO Q870M-C-CSM Intel Q870 LGA 1851 (Socket V1) micro ATX motherboard delivers enterprise-grade reliability and Intel vPro support in a compact form factor. Designed for business environments, this micro ATX board combines enhanced security features, 24/7 stability, and comprehensive manageability to streamline IT operations while supporting the latest Intel Core Ultra (Series 2) processors.

Slim Specs Table

Enhanced Business Security & Management

This motherboard incorporates comprehensive system protection features designed for enterprise environments. The Intel Q870 chipset provides hardware-level security enhancements, while the ASUS PRO business suite offers improved management capabilities for IT administrators. With Intel vPro support, remote management becomes straightforward, allowing for efficient deployment and maintenance across business networks. The board’s enhanced reliability ensures 24/7 operation without compromise, making it ideal for mission-critical business applications.

Future-Proof Performance Architecture

Built to support Intel Core Ultra (Series 2) processors, this motherboard positions your business for next-generation computing. The LGA 1851 socket accommodates the latest CPU advancements, while the Intel Q870 chipset provides robust connectivity options. Dual-channel DDR5 memory support with speeds up to 6400 MHz ensures responsive performance for demanding applications. The micro ATX form factor balances expansion capabilities with space efficiency, making it suitable for both tower and small form factor business systems.

Comprehensive Connectivity Options

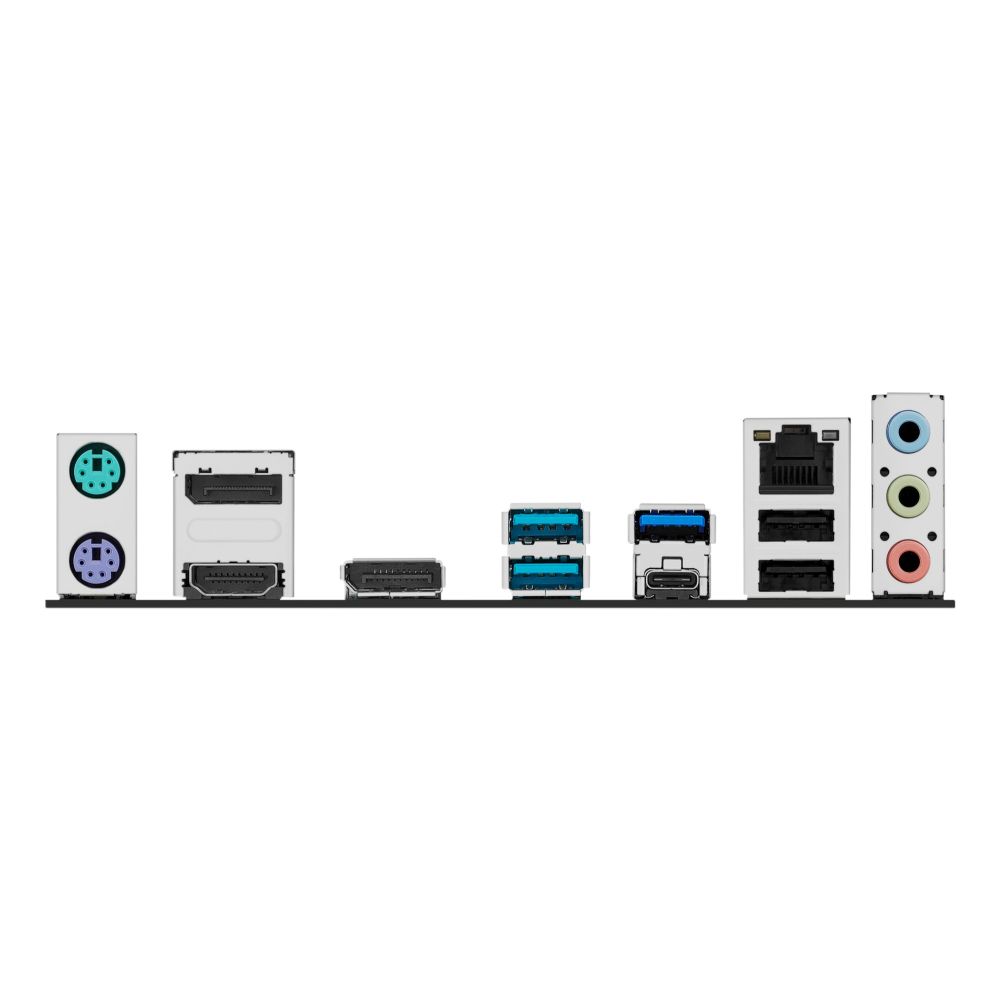

Connectivity remains paramount in business environments, and this motherboard delivers extensive options. With 6 storage drive interfaces including M.2 and SATA III, you can configure flexible storage solutions supporting RAID levels 0, 1, 5, and 10. The board features 6 USB ports including USB 3.2 Gen 2 Type-C for high-speed peripherals, plus HDMI and DisplayPort outputs for multi-monitor setups. Gigabit Ethernet via Intel I219-LM controller ensures reliable network connectivity, while 7.1 channel audio output supports comprehensive communication needs.

Expansion & Storage Flexibility

Business applications often require versatile expansion capabilities, which this motherboard addresses through thoughtful design. A single PCI Express x16 Gen 4 slot accommodates high-performance graphics cards or other expansion cards, while a PCI Express x1 Gen 4 slot provides additional flexibility. Support for up to 6 storage drives across M.2 and SATA III interfaces allows for complex storage configurations. The 4 DIMM slots support up to 256 GB of DDR5 memory, ensuring adequate headroom for virtualization and other memory-intensive business workloads.

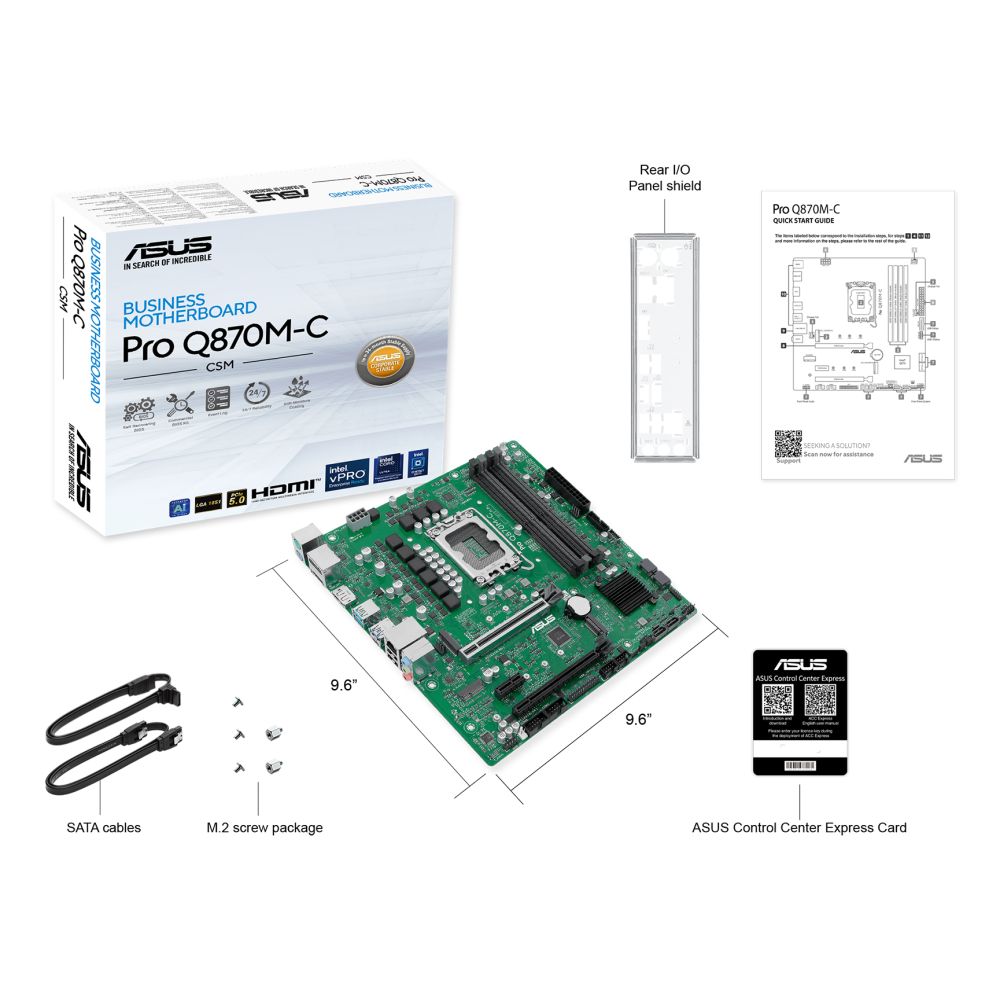

Box contents

• ASUS PRO Q870M-C-CSM motherboard

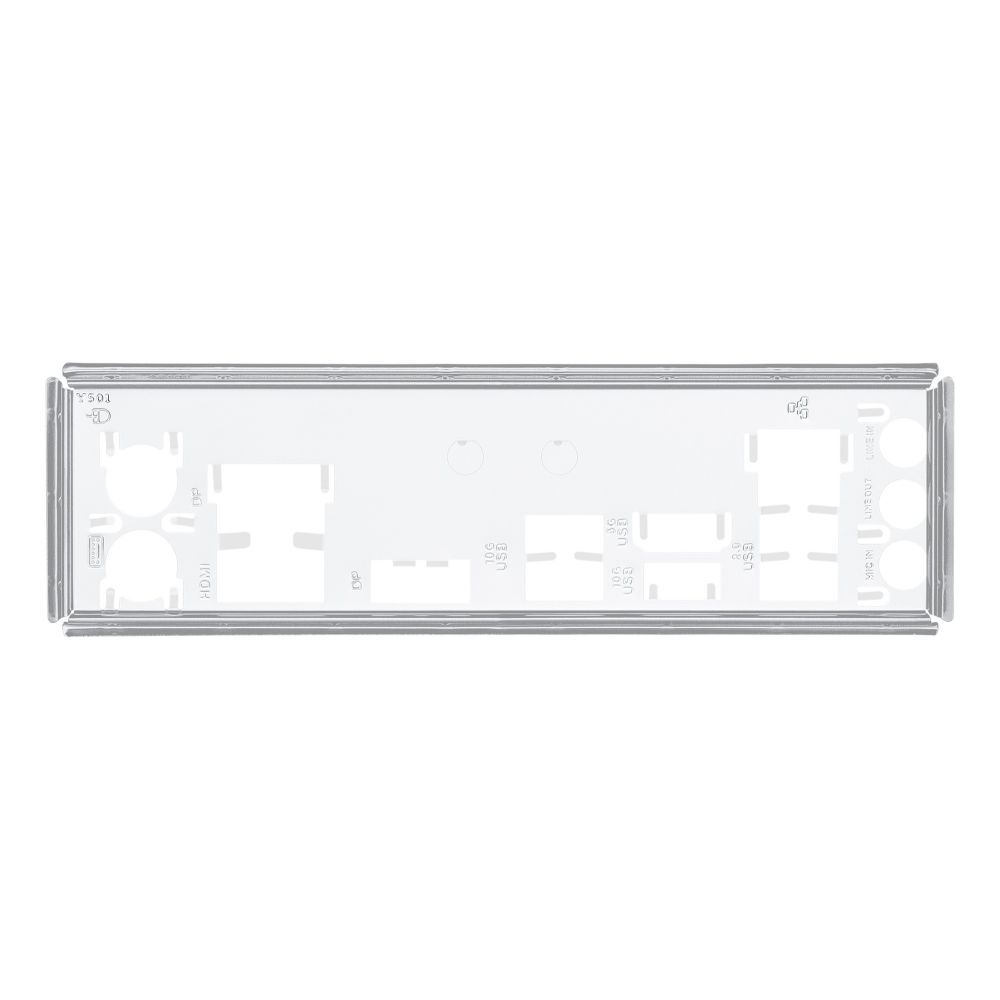

• I/O shield
• User manual
• Driver/software CD (where applicable)
• SATA cables (quantity varies by region)
• CPU support list

Check before you buy

• Confirm your Intel Core Ultra (Series 2) processor is compatible with LGA 1851 socket
• Verify your chassis supports micro ATX form factor dimensions
• Check that your power supply provides adequate 8-pin EPS connector
• Ensure your operating system is Windows 10 x64 or Windows 11 for full compatibility

Frequently Asked Questions

Q: Does this motherboard support integrated graphics?

A: No, this motherboard does not feature on-board graphics. A dedicated graphics card is required for display output.

Q: What RAID configurations are supported?

A: This motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations for enhanced data protection and performance.

Q: Is Wi-Fi included on this motherboard?

A: No, this motherboard does not include built-in Wi-Fi. Wired Gigabit Ethernet is provided via the Intel I219-LM controller.

Q: What is the maximum memory capacity supported?

A: The motherboard supports up to 256 GB of DDR5-SDRAM memory across 4 DIMM slots.

Q: Does this support ECC memory?

A: No, this motherboard supports non-ECC memory only.

The Consultant’s verdict & warranty

The ASUS PRO Q870M-C-CSM represents a solid investment for businesses requiring reliable, manageable computing platforms. Its combination of Intel vPro support, enhanced security features, and comprehensive connectivity makes it particularly suitable for enterprise environments, SMBs, and professional workstations. The micro ATX form factor offers excellent balance between expansion capabilities and space efficiency. Covered by the standard Manufacturer Warranty, this motherboard delivers the stability and support that business operations demand.
