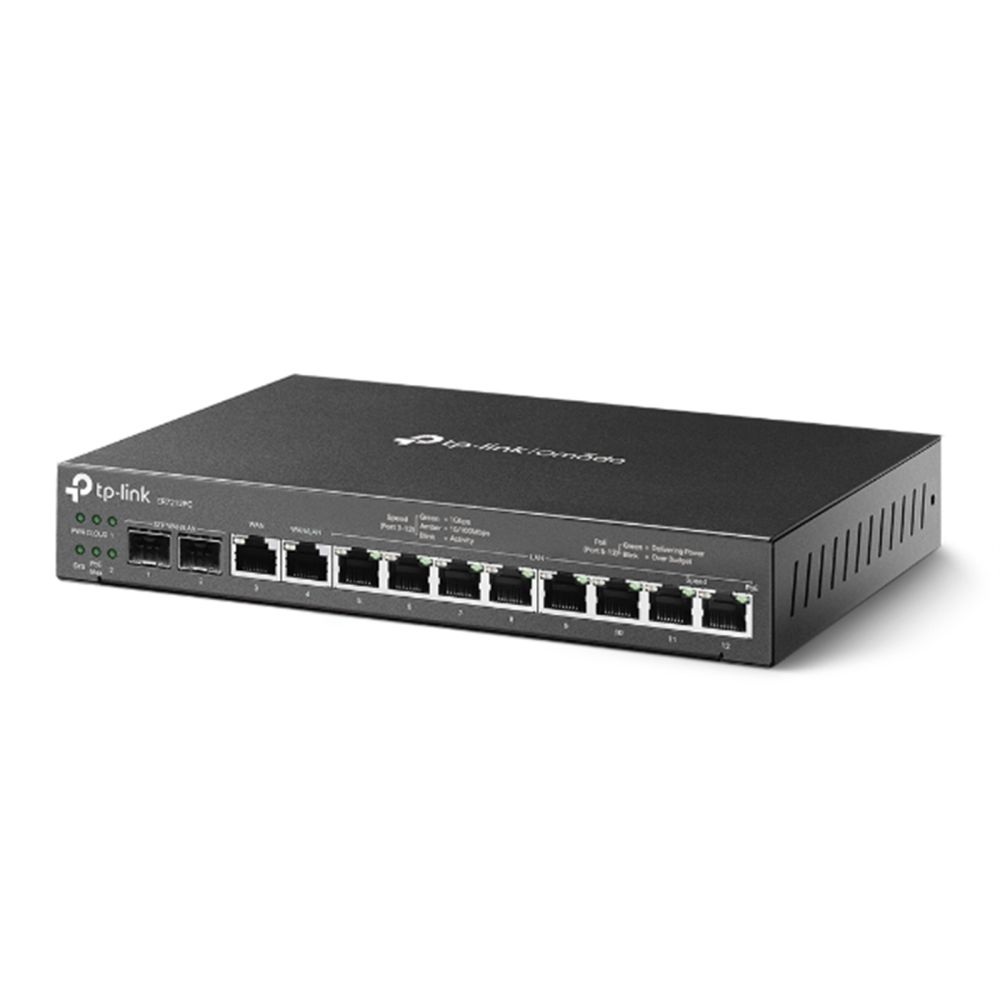

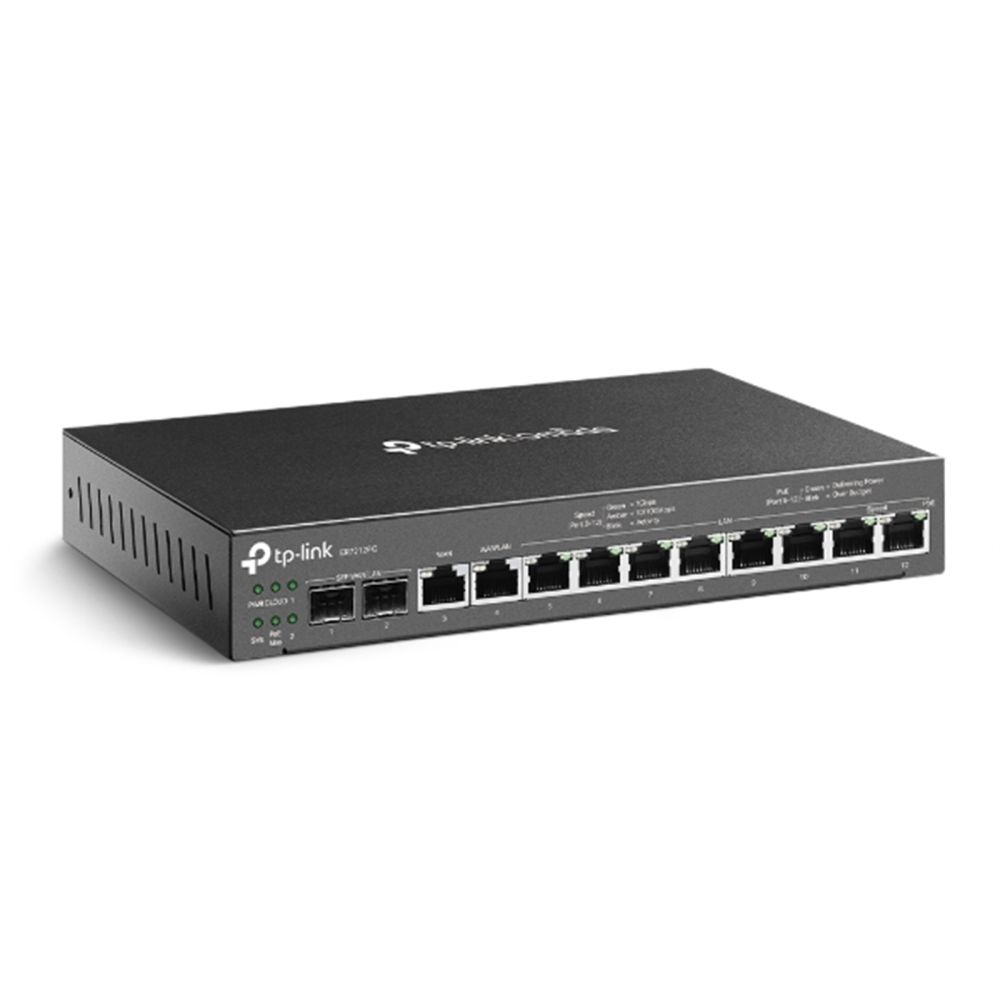

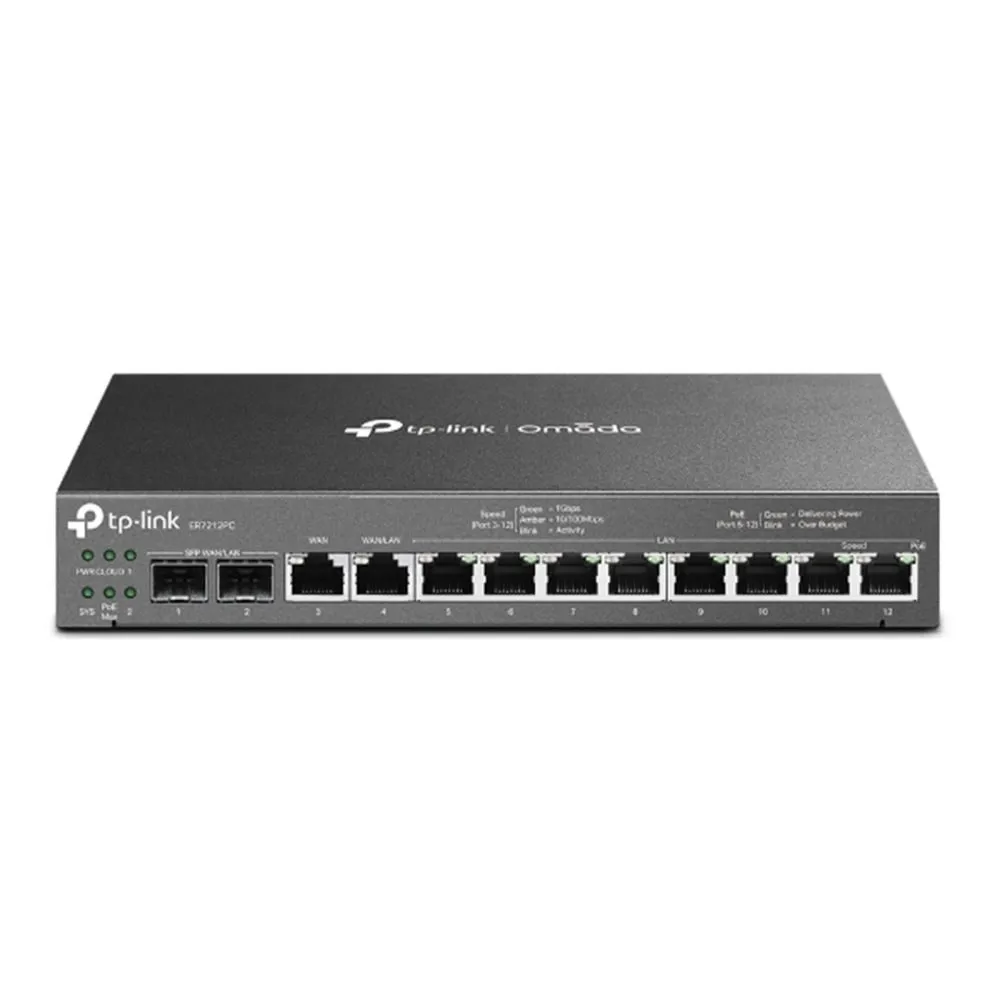

TP-Link ER7212PC 3-in-1 Router & Switch

TP-Link ER7212PC | 3-in-1 Gigabit VPN Router

The TP-Link Omada ER7212PC 3-in-1 (Router, PoE Switch and Omada Controller) Gigabit VPN Router is a compact all-in-one solution for small businesses and home offices needing robust networking without multiple devices. It combines a router, 8-port PoE+ switch, and integrated SDN controller into a single unit.

Slim Specs

Professional Hardware for Demanding Networks

Powered by a dual-core 1.2 GHz CPU with 1GB DDR3 memory, the ER7212PC delivers consistent performance across all 12 Gigabit ports. This hardware foundation ensures smooth operation even when multiple PoE devices, VPN tunnels, and network management tasks run simultaneously.

Streamlined Deployment with Built-in SDN Controller

The embedded Omada SDN controller eliminates the need for separate hardware controllers. You can manage, update, and monitor all connected Omada devices through a single interface using the Omada app or web browser. This centralised approach reduces setup time and ongoing maintenance complexity.

Flexible WAN Connectivity and Load Balancing

With four Gigabit WAN ports (including two SFP slots), the ER7212PC supports multiple internet connections. The intelligent load balancing feature distributes traffic across available WAN links based on bandwidth capacity, optimising throughput and providing basic failover protection.

Powering PoE Devices Efficiently

Eight 802.3at/af-compliant PoE+ ports deliver up to 110W total power, supporting access points, IP cameras, and VoIP phones without additional injectors. This integrated approach lowers infrastructure costs and reduces cable clutter in small office environments.

Enterprise-Grade Security Built In

The ER7212PC includes a comprehensive security suite: firewall with advanced policies, IP/MAC/URL filtering, DoS defence, VLAN support, and IP-MAC binding to prevent spoofing. Multiple VPN protocols (IPsec, OpenVPN, L2TP/PPTP) enable secure remote access with one-click auto-configuration for IPsec connections.

Compact, Silent Operation

The fanless design ensures silent operation, making it ideal for noise-sensitive environments like retail spaces or home offices. Its compact 226 x 131 x 35 mm footprint allows flexible placement—desktop, wall-mounted, or ceiling installation in commercial settings.

Box Contents

• ER7212PC unit
• Power adapter (53.5VDC/2.43A)
• Power cord
• Quick installation guide

Check before you buy

• Confirm the power adapter includes a UK plug or requires an adaptor
• Verify your PoE devices are 802.3at/af compatible for full functionality
• Check that your VPN requirements match supported protocols (IPsec, OpenVPN, L2TP/PPTP)
• Confirm the 1GB RAM and dual-core CPU meet your network size and performance needs

Frequently Asked Questions

Q: Can this router manage other Omada devices?

A: Yes, the built-in controller can manage up to 1 router, 2 switches, and 10 EAPs through the Omada app or web interface.

Q: What VPN throughput can I expect?

A: IPsec AES256 throughput is 168.5 Mbps, OpenVPN 34 Mbps, and L2TP up to 845.3 Mbps unencrypted.

Q: Is the PoE power budget sufficient for multiple access points?

A: The 110W total budget supports several standard PoE+ devices; check individual device power requirements for compatibility.

Q: Can I use this as a standalone router without PoE devices?

A: Yes, the ER7212PC functions fully as a router and switch even without PoE-powered devices connected.

Q: Does it support VLAN configuration?

A: Yes, VLAN support is available for enhanced network segmentation and security.

The Consultant’s Verdict & Warranty

The TP-Link Omada ER7212PC is ideal for small businesses and home offices seeking a consolidated networking solution that reduces hardware footprint while maintaining professional features. Its integrated controller, PoE capability, and VPN support make it particularly suitable for environments with multiple wireless access points or security requirements. Covered by the standard Manufacturer Warranty.
