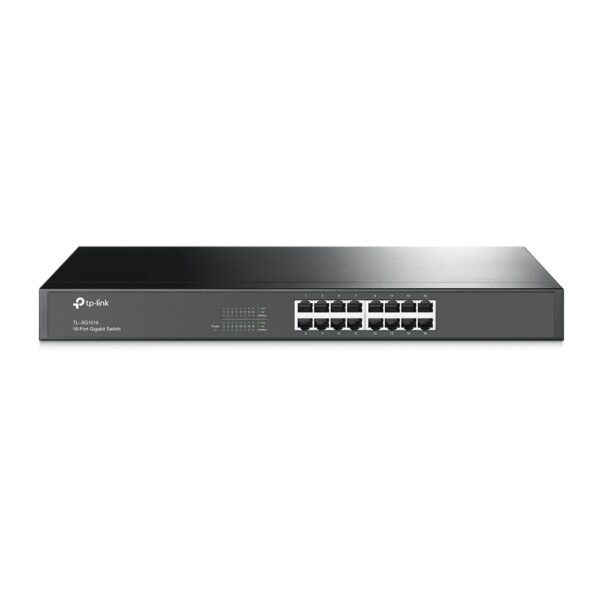

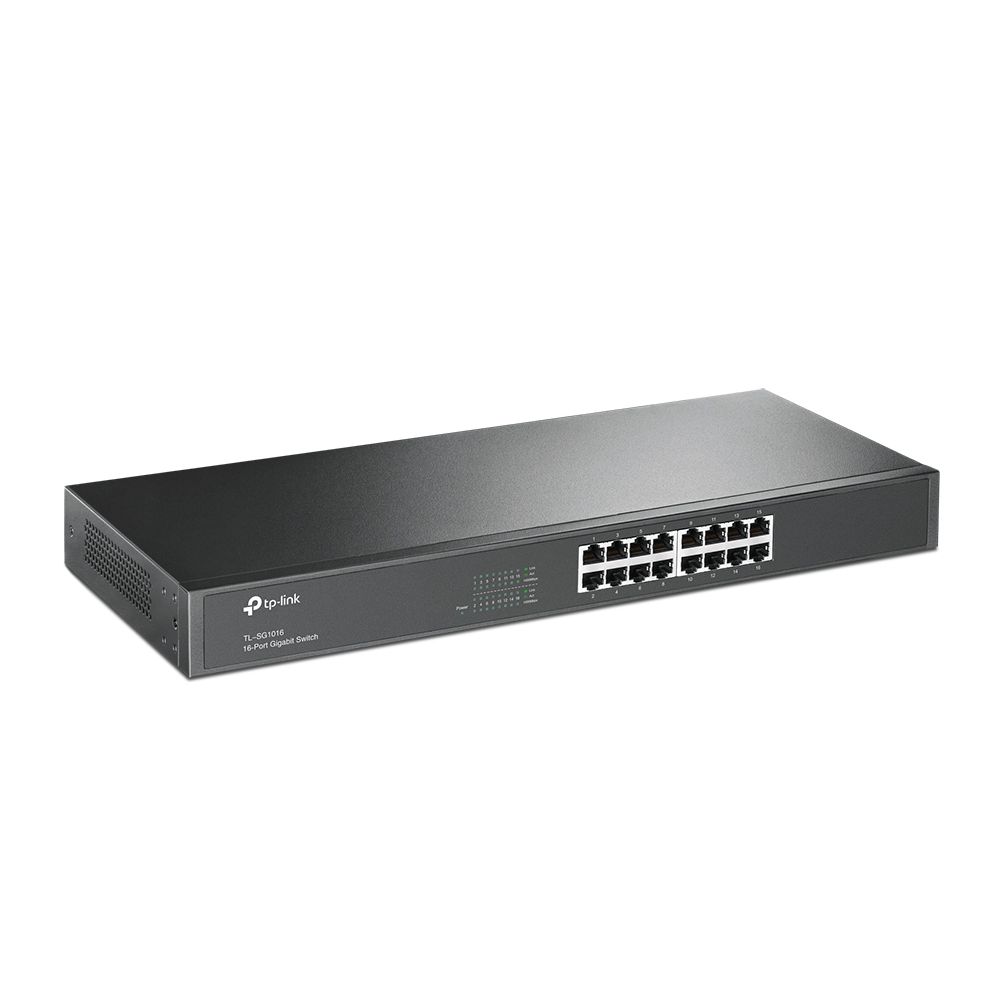

TP-Link TL-SG1016 16-Port Unmanaged Switch

TP-Link TL-SG1016 | 16-Port Gigabit Unmanaged Switch

The TP-Link TL-SG1016 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black delivers enterprise-grade connectivity for expanding networks without the complexity of managed configurations. This 16-port switch offers plug-and-play operation with auto-sensing ports that eliminate crossover cable concerns, making it ideal for small to medium businesses upgrading from Fast Ethernet to Gigabit speeds.

Slim Specs Table

Plug-and-Play Gigabit Expansion

The TL-SG1016 provides immediate network expansion without configuration headaches. All 16 Gigabit ports feature auto MDI/MDI-X technology, automatically detecting cable types and eliminating the need for crossover cables. Auto-negotiation intelligently senses connected device speeds (10/100/1000 Mbps) and adjusts accordingly, ensuring optimal performance whether connecting legacy Fast Ethernet devices or modern Gigabit equipment.

Energy-Efficient Operation

TP-Link’s Green Technology automatically adjusts power consumption based on link status and cable length, reducing energy waste when ports are idle or connected to shorter cables. The switch complies with EU RoHS regulations, using environmentally friendly materials and recyclable packaging. Operating at just 9.26W typical power consumption, this fanless design operates silently while minimizing your carbon footprint.

Enterprise-Grade Performance

With 32 Gbit/s switching capacity and 23.8 Mpps forwarding rate, the TL-SG1016 delivers wire-speed performance across all ports simultaneously. The 10KB jumbo frame support significantly improves large file transfer speeds, while IEEE 802.3x flow control prevents packet loss in full-duplex mode. The non-blocking architecture ensures consistent throughput without bottlenecks, even during peak network usage.

Advanced Network Features

Despite being unmanaged, this switch includes robust features typically found in managed counterparts. VLAN support allows network segmentation, while IGMP snooping optimizes multicast traffic for IPTV and streaming applications. The 8,000-entry MAC address table supports extensive device connectivity, and Access Control Lists provide basic security filtering. Port mirroring enables network monitoring without additional hardware.

Box contents

• TP-Link TL-SG1016 switch
• Rack mounting kit
• Power cable (AC)

Check before you buy

• Confirm your existing devices support Gigabit Ethernet for full speed benefits
• Verify rack space availability (1U height, 440mm width)
• Check power requirements match your facility’s 100-240V supply
• Ensure adequate ventilation for fanless operation in your installation environment

Frequently Asked Questions

Q: Is this switch suitable for home use?

A: Yes, the TL-SG1016 works well for home offices and small businesses needing multiple Gigabit connections.

Q: Does this switch support Power over Ethernet?

A: No, the TL-SG1016 does not support PoE. All connected devices require separate power supplies.

Q: Can I stack multiple TL-SG1016 switches?

A: This unmanaged switch cannot be stacked. For stacking capabilities, consider TP-Link’s managed switch range.

Q: What cable types are compatible?

A: The switch supports Cat3, Cat4, Cat5, and Cat5e cables for Gigabit connectivity.

The Consultant’s verdict & warranty

The TP-Link TL-SG1016 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black offers exceptional value for businesses requiring reliable, high-performance network expansion without management complexity. Its combination of energy efficiency, enterprise features, and silent operation makes it particularly suitable for office environments where reliability and low maintenance are priorities. Covered by the standard Manufacturer Warranty.
