TP-Link 24-Port Gigabit Network Switch
£83.13 inc VAT
1 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 24 Gigabit RJ-45 ports for high-speed network expansion
- Auto MDI/MDIX eliminates crossover cables for plug-and-play setup
- Energy-efficient technology reduces power consumption and carbon footprint
- Fanless design for quiet operation and rack-mountable form factor
- Supports IEEE 802.3x flow control and backpressure for reliable traffic management
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

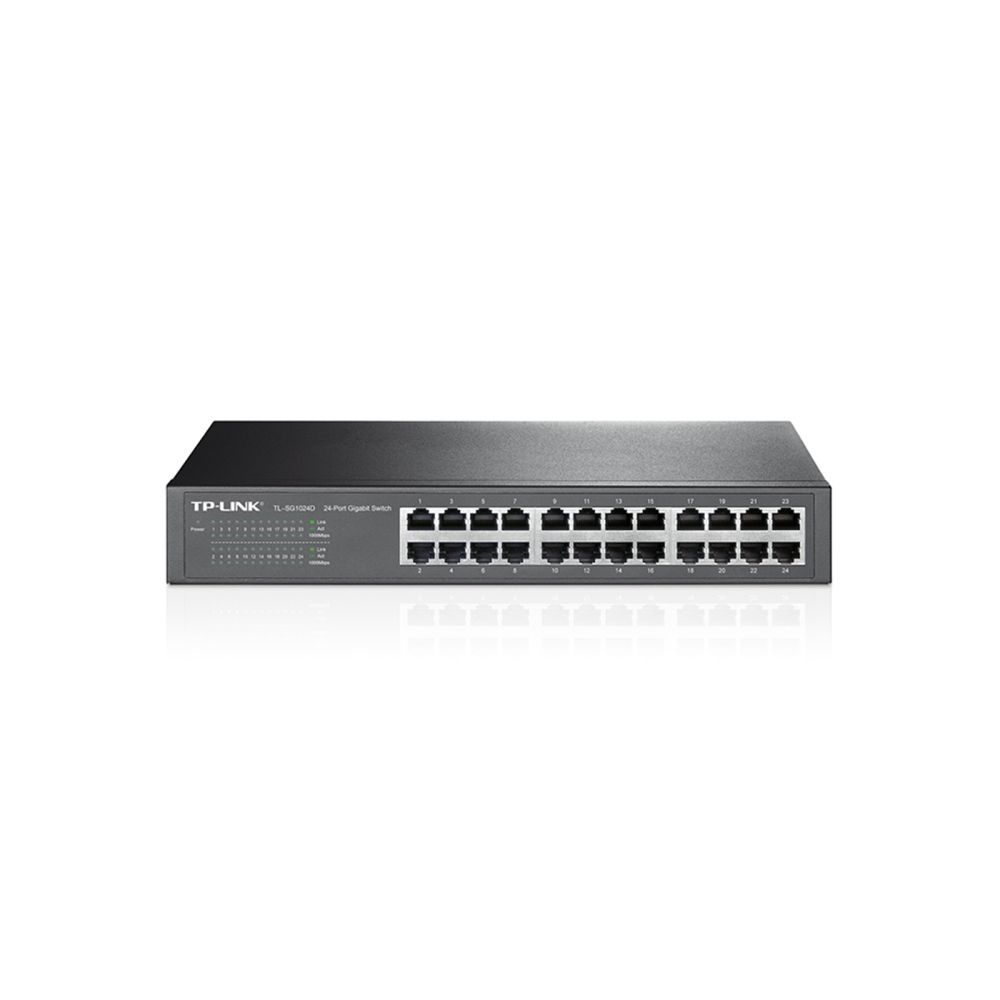

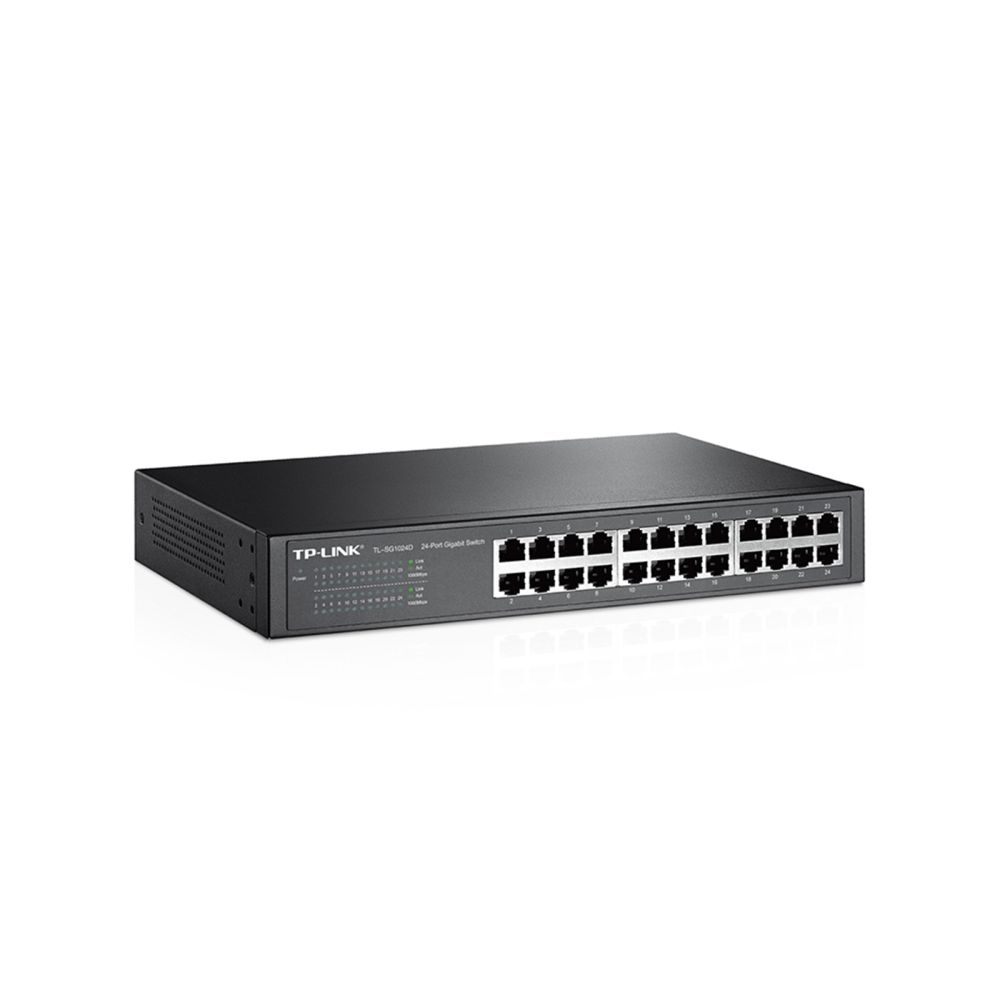

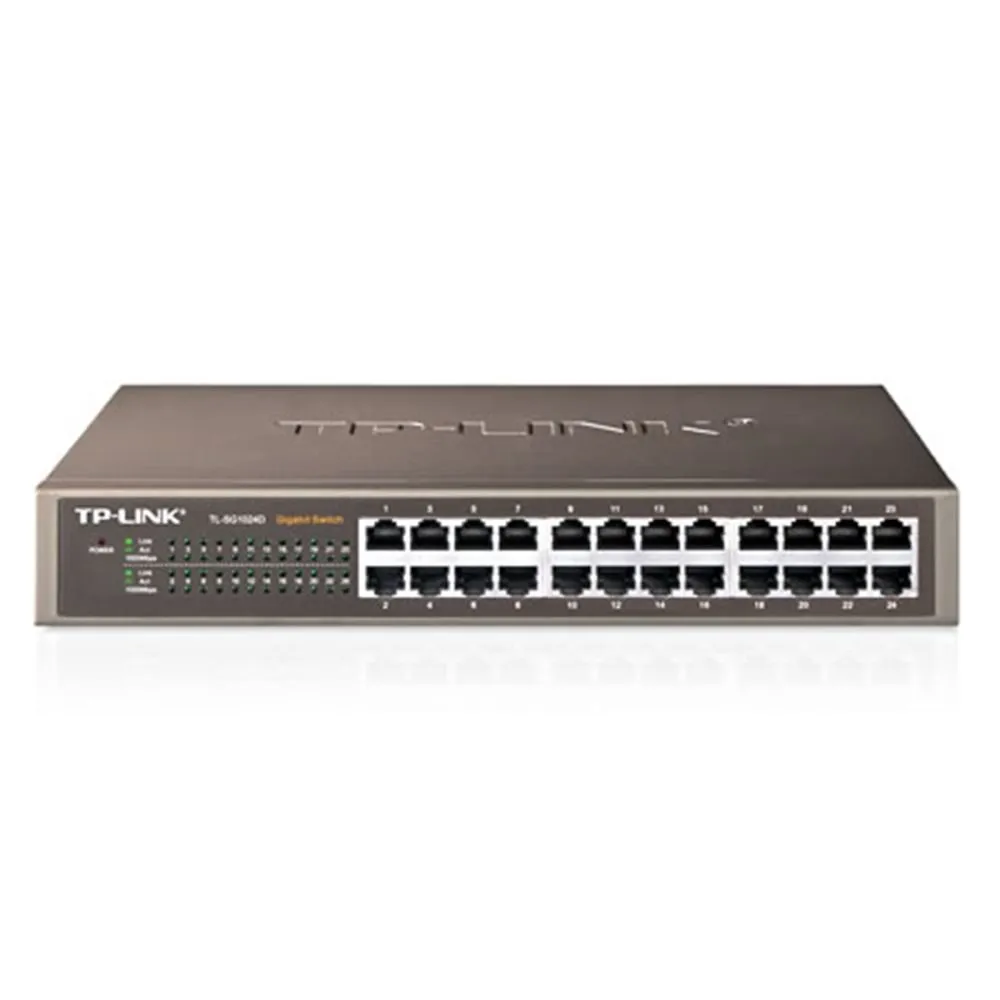

TP-Link TL-SG1024D | 24-Port Gigabit Network Switch
The TP-Link TL-SG1024D 24-Port Metal Gigabit Desktop/Rackmount Network Switch delivers robust, energy-efficient networking for businesses upgrading to gigabit speeds. With 24 auto-sensing ports and plug-and-play simplicity, it’s built for high performance without complexity.
Slim Specs Table
| Metric | Spec. |
|---|---|
| Ports | 24 x Gigabit RJ-45 |
| Switching Capacity | 48 Gbps |
| Power Consumption | Max 13.08W |
| Dimensions | 294 x 180 x 44 mm |
| Fan | Fanless |
Effortless Gigabit Expansion
The TL-SG1024D makes network upgrades simple with its auto MDI/MDIX feature, removing the need for crossover cables. Every port auto-negotiates speeds of 10, 100, or 1000 Mbps, ensuring seamless compatibility with existing devices. Installation is truly plug and play—no configuration required.
Energy-Efficient Business Networking
TP-Link’s Green Technology automatically adjusts power usage based on link status and cable length, reducing energy waste. The switch also complies with RoHS standards and uses packaging that is 80% recyclable, making it an eco-conscious choice for modern offices.
High-Performance Switching
Featuring non-blocking architecture, the TL-SG1024D forwards packets at full wire speed for maximum throughput. Jumbo frame support (10KB) enhances large file transfers, while IEEE 802.3x flow control and backpressure prevent congestion in both full and half duplex modes.
Flexible Desktop or Rackmount Design
The metal chassis supports both desktop placement and rackmount installation, offering flexibility for any workspace. Its fanless design ensures silent operation, ideal for noise-sensitive environments like offices or studios.
Box contents
- 24-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
Check before you buy
- Confirm the power supply matches your local voltage (100-240VAC).
- Verify your existing network devices support Gigabit Ethernet for full performance.
- Check rack dimensions if planning rackmount installation.
- Ensure your cabling is Cat5e or above for gigabit speeds.
Frequently Asked Questions
Q: Does the TL-SG1024D require any configuration?
A: No, it is plug-and-play with no setup required.
Q: Can I mount this switch in a standard 19-inch rack?
A: Yes, it includes rackmount kits for standard racks.
Q: Is the switch fanless?
A: Yes, it operates silently without a fan.
Q: What is the maximum power consumption?
A: The maximum power draw is 13.08W at 220V/50Hz.
The Consultant’s verdict & warranty
The TP-Link TL-SG1024D is ideal for small to medium businesses needing a reliable, energy-efficient gigabit upgrade without added complexity. Its auto-sensing ports, silent operation, and flexible mounting make it a practical choice for modern networks. Covered by the standard Manufacturer Warranty.
| Weight | 2.3 kg |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet copper ports quantity | 24 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 35.7 Mpps |
| Supported network protocols | CSMA/CD, TCP/IP |
| Power consumption max | 13.08 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power connector | DC-in jack |
| Power over Ethernet PoE | No |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Operating temperature T-T | 0 – 40 °C |
| Operating relative humidity H-H | 10 – 90% |
| Heat dissipation | 44.63 BTU/h |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Package type | Box |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Auto-negotiation | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Certification | FCC, CE, RoHS |
| LED indicators | Yes |
| Harmonized System HS code | 85176990 |
