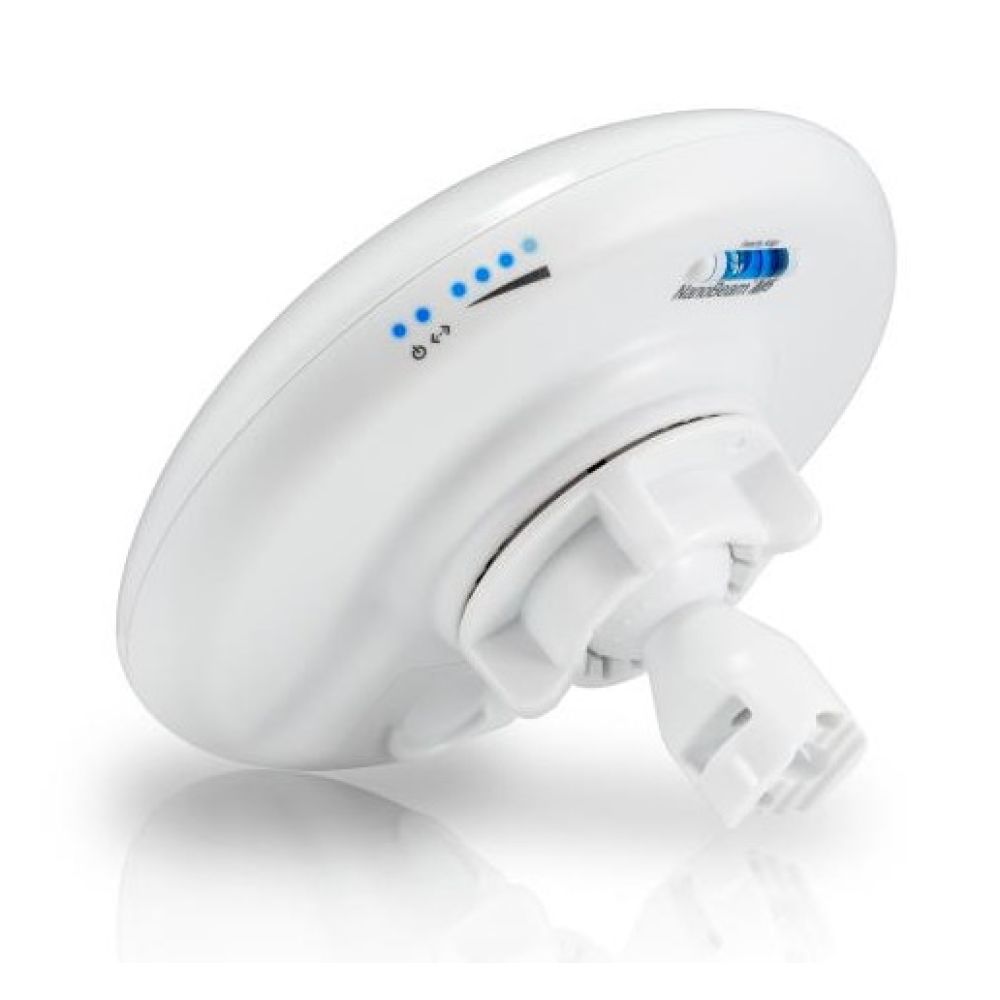

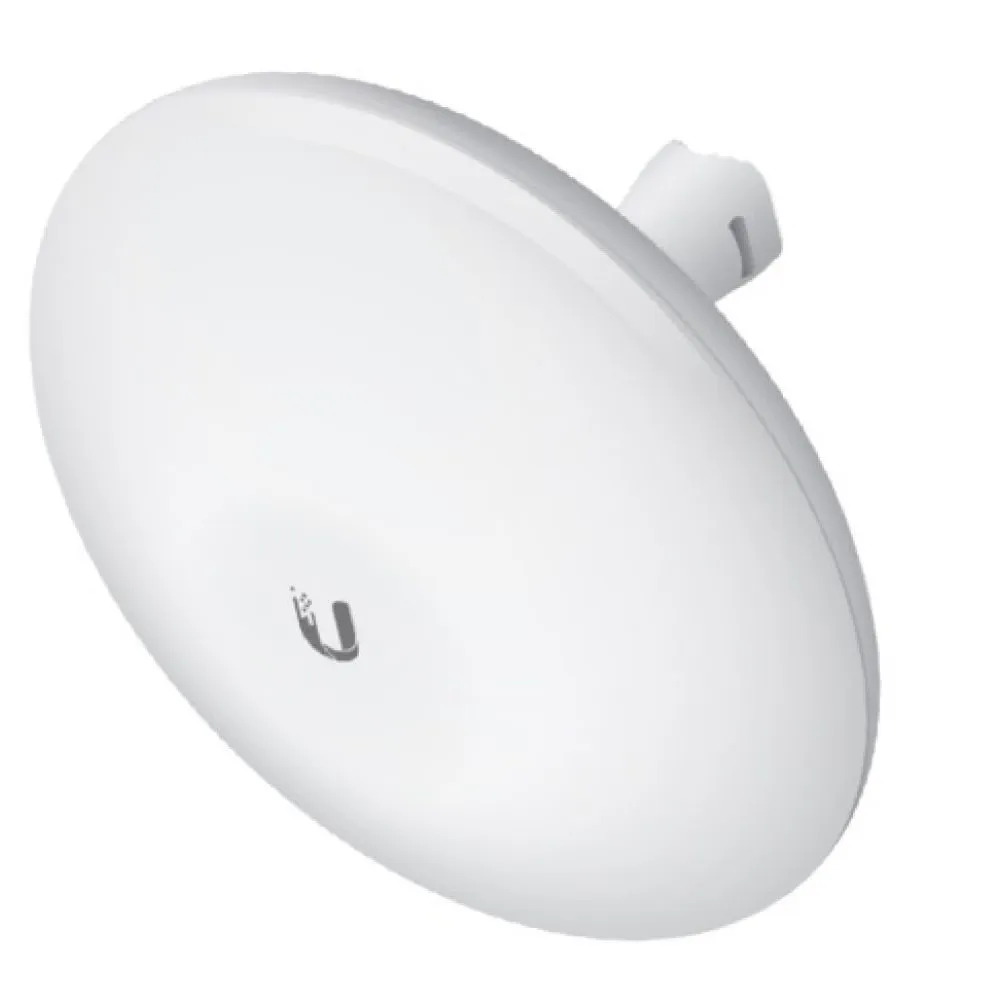

Ubiquiti NanoBeam M5 16 dBi Antenna

Ubiquiti NanoBeam M5 | High-Gain 5 GHz CPE Antenna

The Ubiquiti NanoBeam M5 network antenna 16 dBi is a compact, high-performance CPE (Customer Premises Equipment) designed for reliable 5 GHz wireless connectivity in demanding outdoor environments. Built on Ubiquiti’s proven airMAX technology, it delivers exceptional signal strength and interference resistance for point-to-point and point-to-multipoint links.

Key Specifications

High-Gain Beam Performance for Noisy Environments

The 16 dBi antenna gain focuses the wireless signal into a narrow, powerful beam, significantly reducing interference from surrounding networks. This makes the NanoBeam M5 ideal for congested urban or industrial areas where signal clarity is critical. Its dual-polarization design further enhances link stability and throughput, even in challenging RF conditions.

Quick and Flexible Installation

Designed for ease of deployment, the NanoBeam M5 supports pole or wall mounting with three-axis alignment for precise aiming. Pole mounting requires no screws, while wall mounting needs only a single screw (not included). Its lightweight 320 g form factor and compact 140 x 140 x 54 mm footprint make it easy to handle and position for optimal coverage.

Advanced airMAX Technology for Scalability

Powered by Ubiquiti’s TDMA airMAX protocol, this antenna enables high throughput, low latency, and exceptional scalability in unlicensed multipoint networks. With millions of global deployments, airMAX is proven to deliver reliable outdoor performance, making the NanoBeam M5 a trusted choice for ISPs and enterprise networks.

Rugged Outdoor Design

Built to withstand harsh conditions, the NanoBeam M5 operates reliably from -40°C to 70°C and in 5–95% relative humidity. Its robust enclosure is rated for continuous outdoor use, ensuring long-term durability in exposed installations.

Box Contents

• Ubiquiti NanoBeam M5 antenna
• Mounting kit (pole and wall compatible)
• 24V passive PoE injector
• Power adapter with regional plug

Check Before You Buy

• Confirm the 5 GHz frequency band is legal and unlicensed in your region.
• Verify your network hardware supports 24V passive PoE.
• Check mounting surface compatibility (pole or wall).
• Ensure your network design requires 16 dBi gain and dual polarization.

Frequently Asked Questions

Q: What is the maximum range of the NanoBeam M5?

A: Range depends on line of sight, interference, and output power; typically several kilometres in clear conditions.

Q: Does it include a power adapter?

A: Yes, a 24V passive PoE injector and regional power adapter are included.

Q: Can it be used indoors?

A: It is designed for outdoor use but can be installed indoors if needed.

Q: What certifications does it have?

A: FCC, IC, CE, and RoHS certified.

Q: Is the antenna weatherproof?

A: Yes, it is built for continuous outdoor operation in harsh weather.

The Consultant’s Verdict & Warranty

The Ubiquiti NanoBeam M5 network antenna 16 dBi is an excellent choice for network installers and operators needing a high-gain, interference-resistant 5 GHz CPE. Its combination of advanced airMAX technology, rugged outdoor design, and easy installation makes it ideal for reliable long-range wireless links. Covered by the standard Manufacturer Warranty.
