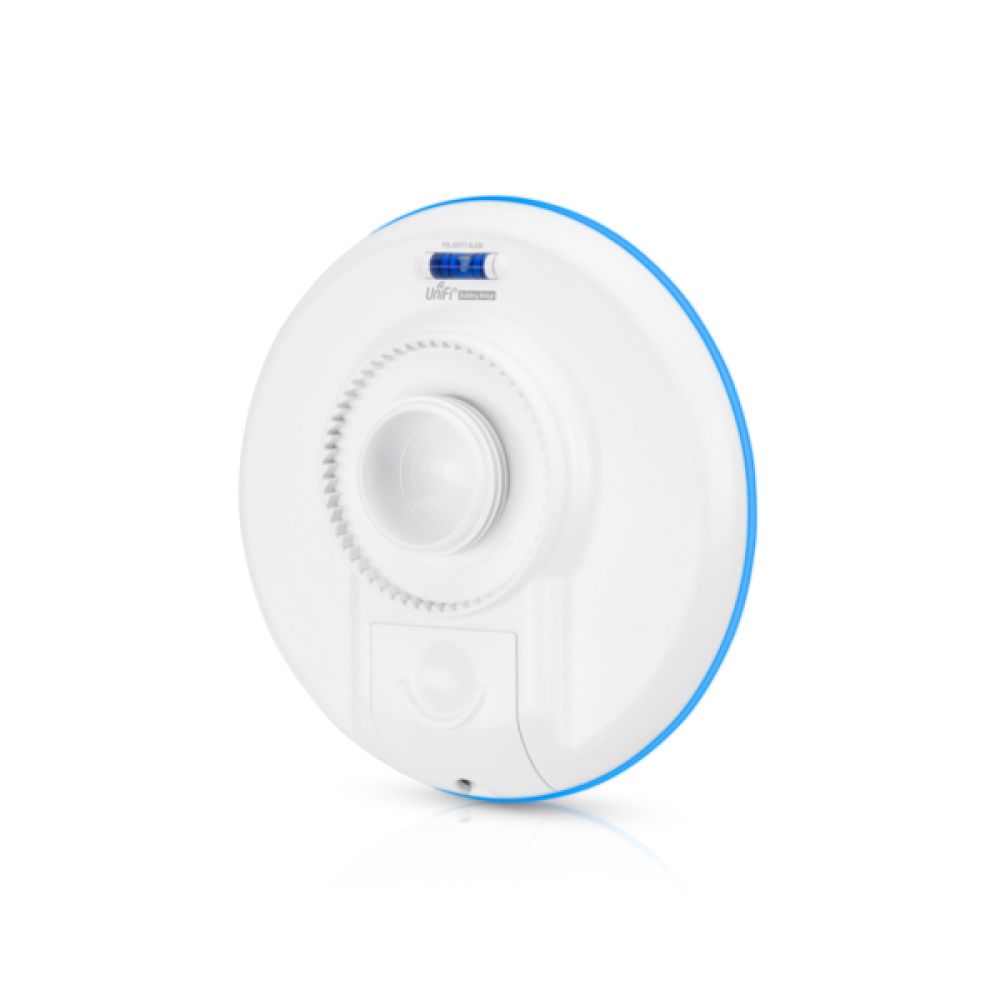

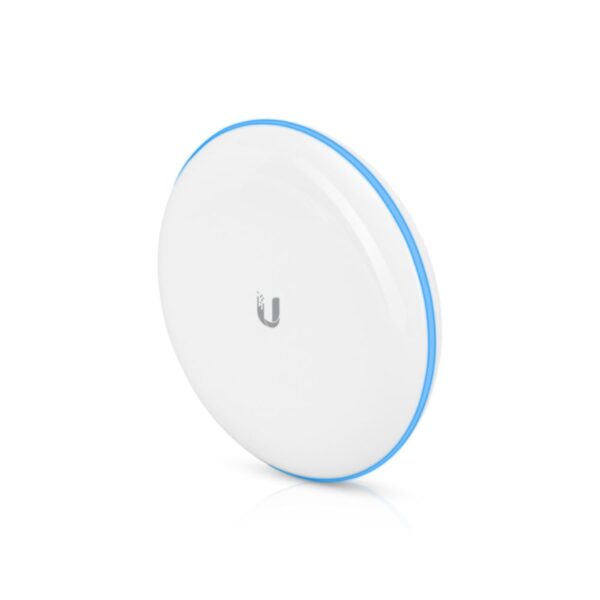

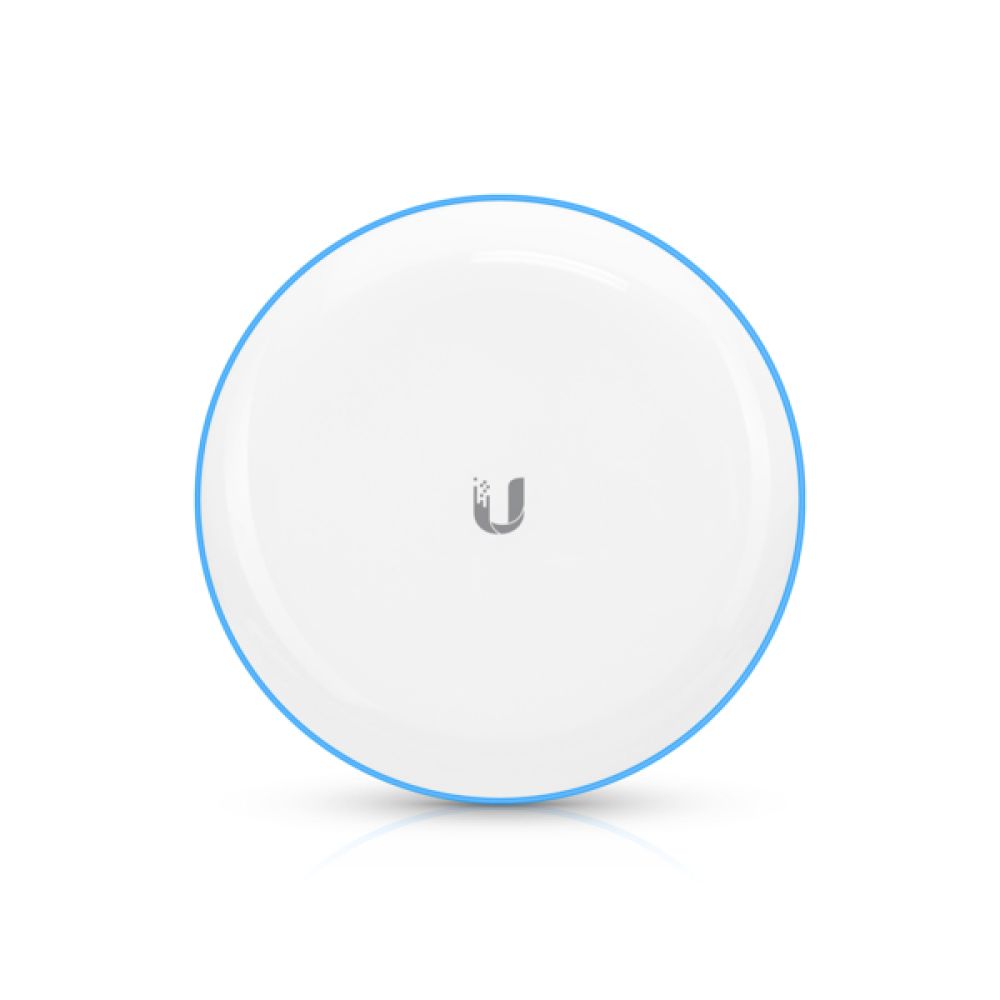

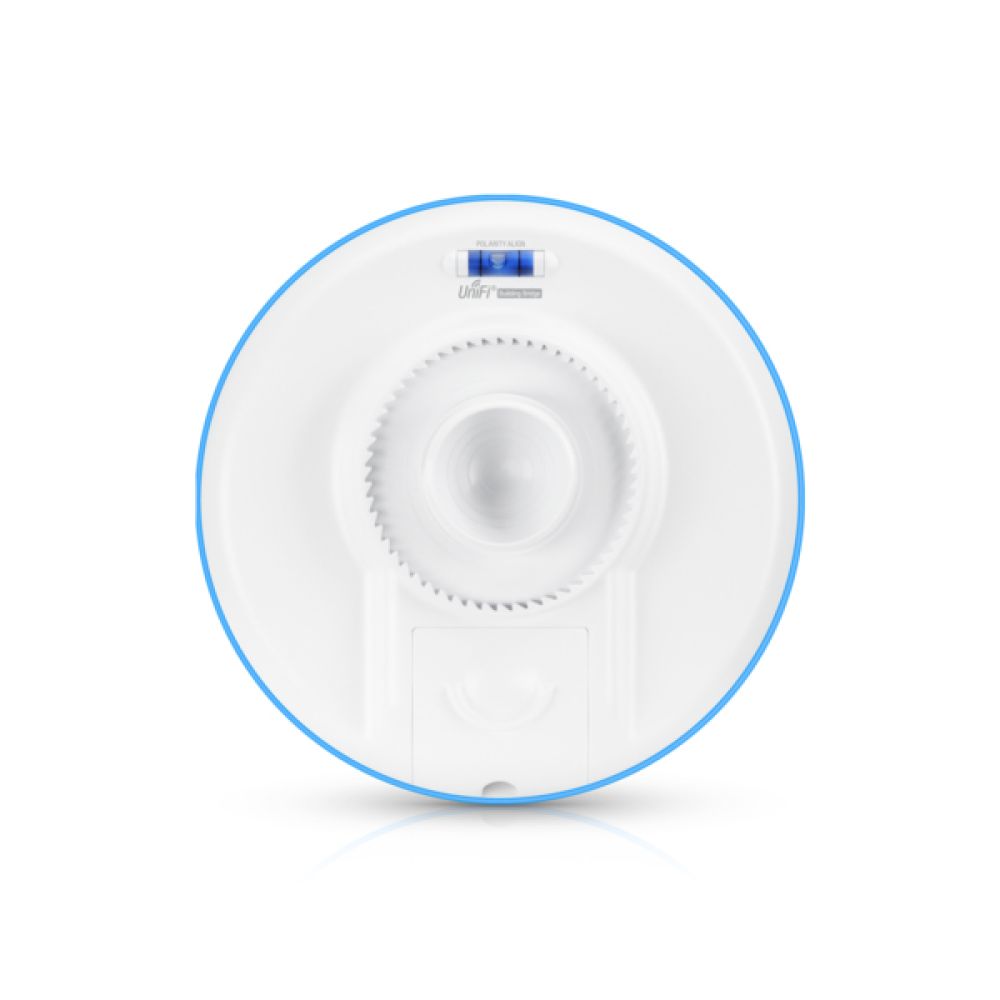

Ubiquiti Building-to-Building Bridge Network

Ubiquiti UniFi Building-to-Building Bridge | 60 GHz High-Throughput Bridge

The Ubiquiti Networks Building-to-Building Bridge Network bridge White delivers ultra-fast, short-range connectivity using 60 GHz 802.11ad with 5 GHz radio redundancy. This plug-and-play solution is ideal for UK businesses needing reliable gigabit links between buildings up to 500 m apart. With UniFi Controller integration, setup and management are seamless.

Key Specifications

Ultra-fast 60 GHz connectivity with backup

This bridge uses 60 GHz 802.11ad technology to deliver 1.7+ Gbps throughput, perfect for high-bandwidth applications like CCTV feeds, VoIP, or large file transfers. The integrated 5 GHz radio provides automatic failover if the 60 GHz link encounters interference, ensuring continuous connectivity. With antenna gain of 17.2 dBi and signal strength of 36.5 dBm, the bridge maintains strong performance even in challenging environments.

Simple UniFi Controller integration

The UniFi Building-to-Building Bridge works seamlessly with the UniFi Controller software, allowing centralised management of multiple devices across your network. This integration simplifies configuration, monitoring, and firmware updates from a single interface. The plug-and-play design means you can have both units operational within minutes, making it ideal for quick deployments or temporary setups.

Rugged design for UK conditions

Built with polycarbonate housing, this bridge withstands harsh environments with an operating temperature range of -40 to 60 °C and humidity tolerance of 5-95%. The compact 140 x 140 x 90 mm form factor allows discreet mounting on walls or poles. CE, FCC, and IC certifications confirm compliance with international standards, though buyers should verify UKCA marking for current regulations.

Check before you buy

• Confirm your network supports 802.3af PoE for power delivery
• Verify line-of-sight between buildings for optimal 60 GHz performance
• Check that your existing UniFi Controller version supports this model
• Measure the distance to ensure it’s within the 500 m range specification

Box contents

• 2 x UniFi Building-to-Building Bridge units
• Mounting hardware
• Power over Ethernet adapters

Frequently Asked Questions

Q: What is the maximum range of this bridge?

A: Up to 500 m in ideal conditions with clear line-of-sight.

Q: Does this require a separate power supply?

A: No, it uses Power over Ethernet (802.3af) for both data and power.

Q: Can I manage this with other UniFi devices?

A: Yes, it integrates with the UniFi Controller for centralised management.

Q: What happens if the 60 GHz link fails?

A: The 5 GHz radio automatically takes over to maintain connectivity.

Q: Is this suitable for outdoor use?

A: Yes, it’s designed for outdoor deployment with its rugged polycarbonate housing.

The Consultant’s verdict & warranty

The Ubiquiti UniFi Building-to-Building Bridge is an excellent choice for UK businesses needing reliable, high-speed links between nearby buildings. Its 60 GHz primary link with 5 GHz redundancy provides exceptional performance with built-in failover protection. The seamless UniFi Controller integration makes it particularly valuable for existing UniFi network deployments. Covered by the standard Manufacturer Warranty.
