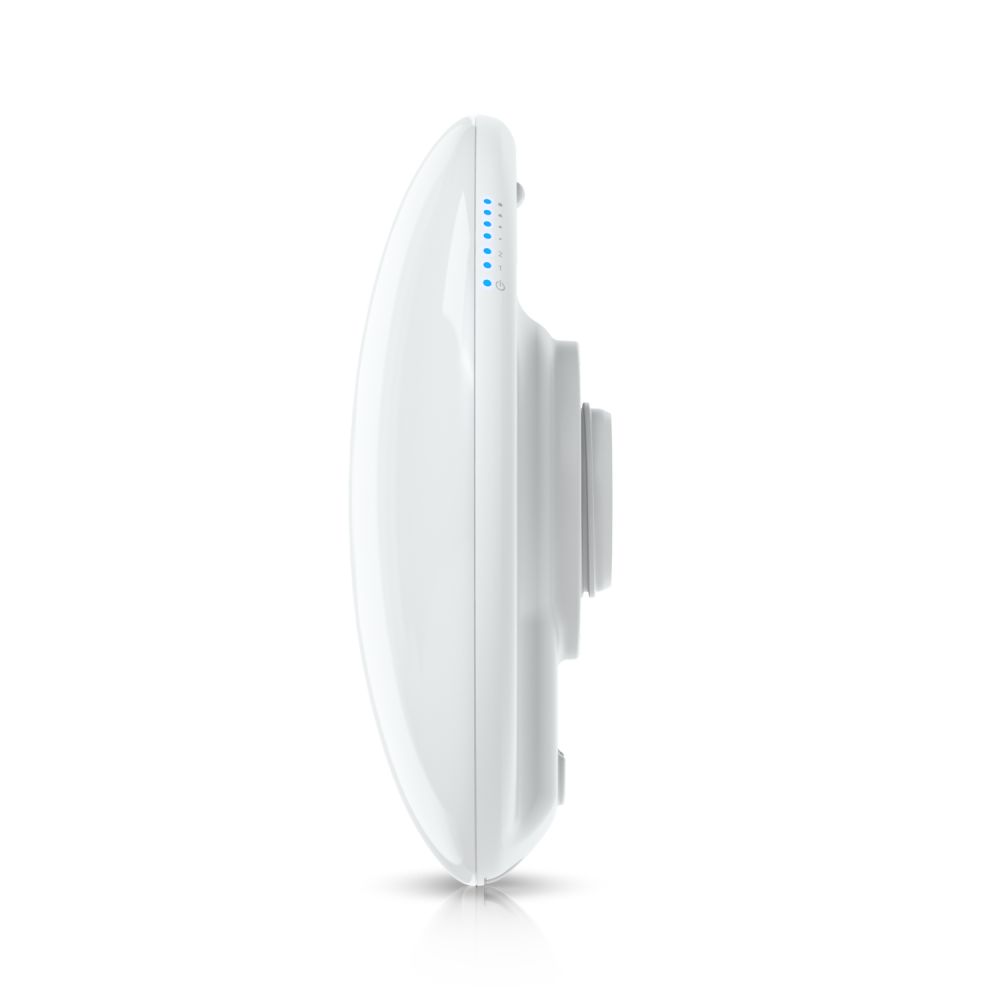

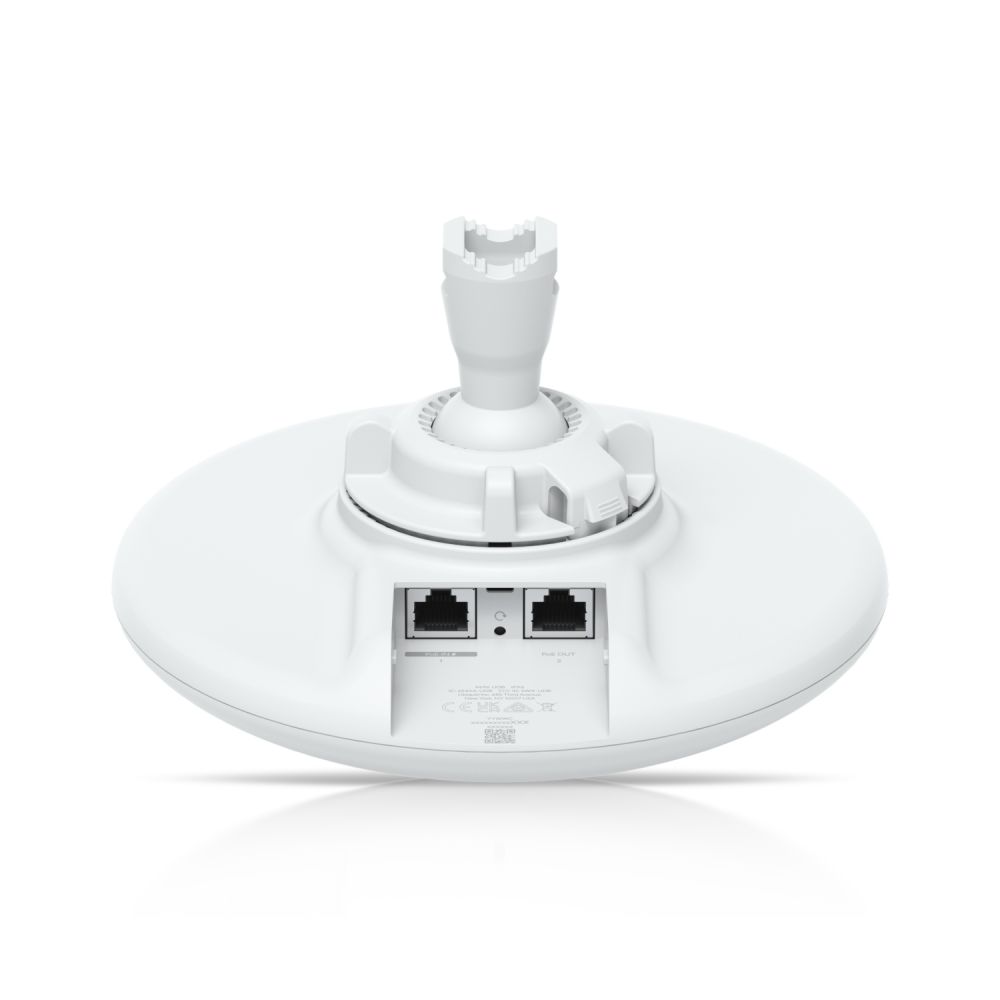

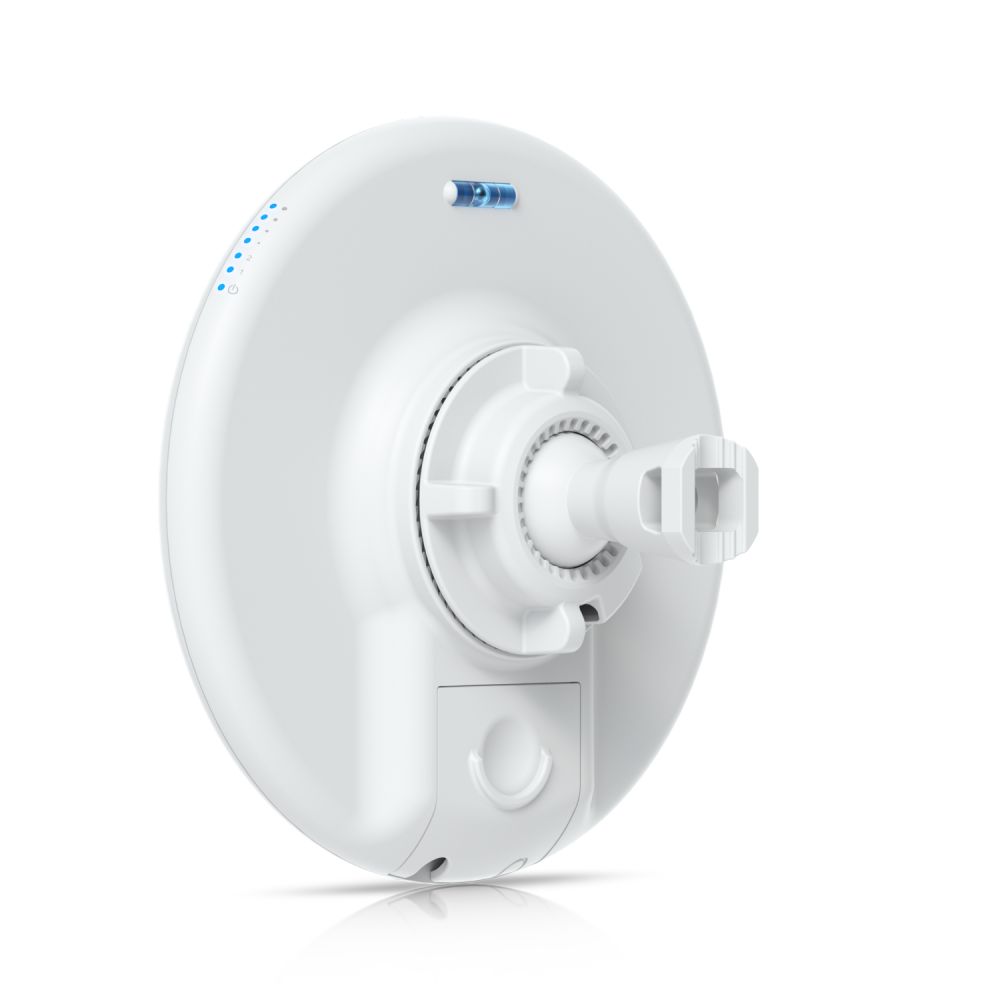

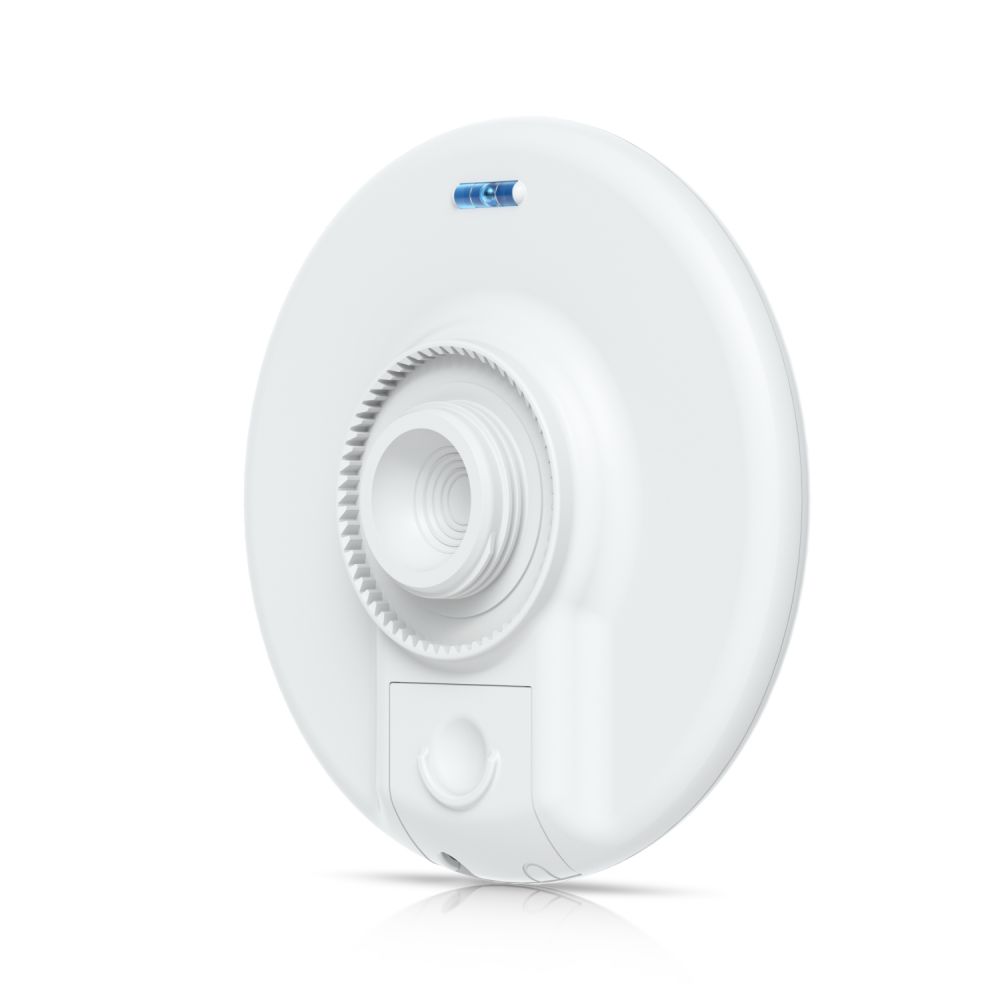

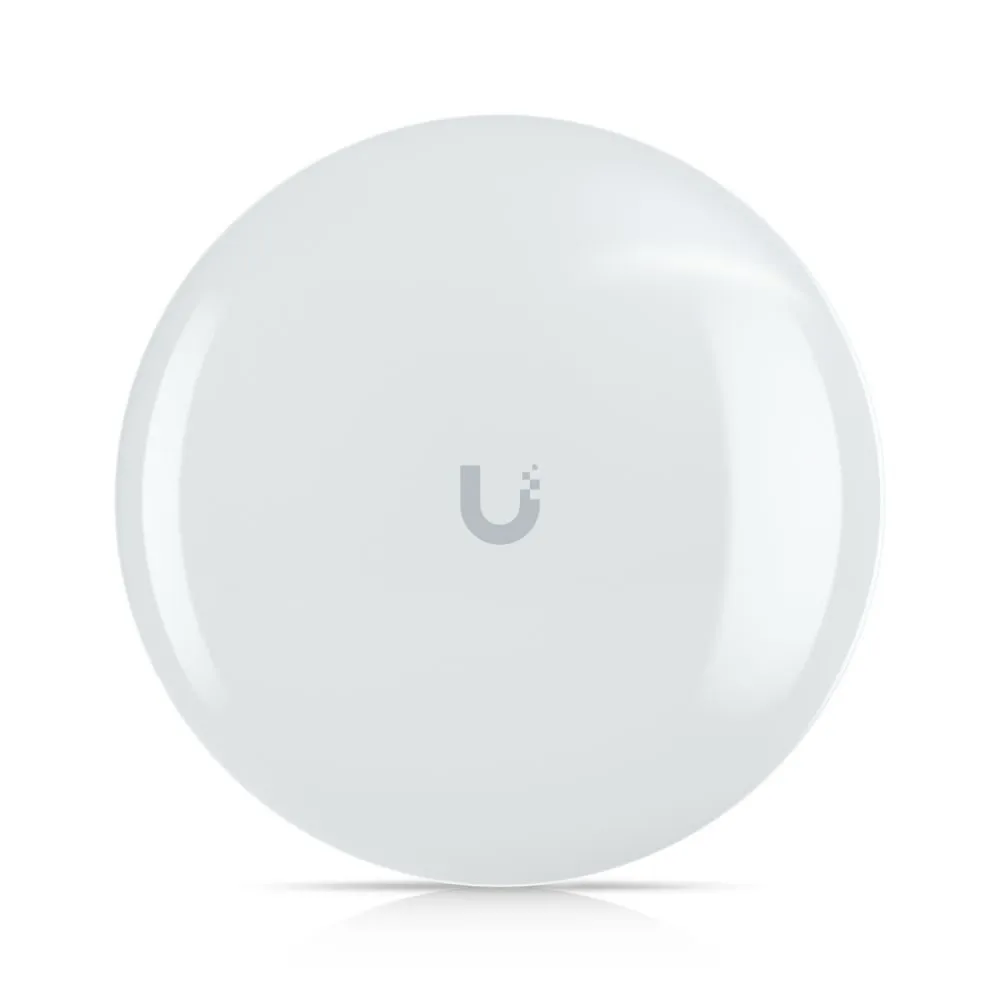

Ubiquiti UDB-Pro Network Bridge
£183.34 inc VAT
8 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 866.7 Mbit/s data transfer via 5 GHz Wi-Fi 5 (802.11ac)
- 19 dBi antenna gain with 2×2 MIMO internal design
- 5+ km outdoor range with 25 dBm signal strength
- Gigabit Ethernet ports (2x RJ-45) plus PoE output
- IPX6-rated polycarbonate/stainless steel enclosure
- Supports IEEE 802.11a/n/ac, WPA2-AES security
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
Ubiquiti UDB-Pro | 5 GHz Long-Range Wireless Bridge
The Ubiquiti UDB-Pro Network bridge 866. 7 Mbit/s White delivers enterprise-grade wireless connectivity for point-to-point links up to 5+ km. Designed for outdoor deployment, this compact unit combines high-gain antennas with Gigabit Ethernet ports to create reliable, high-speed backhaul links.
| Metric | Spec |
|---|---|
| Max Data Rate | 866. 7 Mbit/s |
| Frequency Band | 5 GHz |
| Outdoor Range | 5+ km |
| Antenna Gain | 19 dBi |
| Power Input | 48V PoE |
Built for extreme outdoor conditions
With an IPX6 weatherproof rating and operating temperatures from -40 °C to +60 °C, the UDB-Pro withstands harsh UK environments. The rugged polycarbonate and stainless steel construction resists corrosion, while the internal 2×2 antenna array provides stable 5 GHz performance across long distances.
PoE passthrough for simplified deployment
The integrated PoE output port eliminates the need for separate power injectors at remote locations. This feature reduces installation complexity and cabling costs, making it ideal for connecting remote buildings, security cameras, or wireless access points where grid power is limited.
Enterprise-grade security and management
WPA2-AES encryption protects your wireless link from unauthorised access, while IEEE 802. 11a/ac/n compatibility ensures broad interoperability. The device integrates seamlessly with UniFi Controller software for centralised monitoring, firmware updates, and performance optimisation across your network infrastructure.
Flexible mounting and power options
Pole-mount ready with included brackets, the UDB-Pro adapts to various deployment scenarios. Power via standard 48V PoE or DC input (42. 5-57V), with LED indicators providing clear status feedback for LAN, power, and signal strength monitoring.
Box contents
- Ubiquiti UDB-Pro Network Bridge
- Power adapter (AC)
- Pole mounting brackets
- Quick start guide
Check before you buy
- Confirm your network requires 5 GHz band operation
- Verify 48V PoE availability or DC power source availability
- Check mounting pole diameter compatibility
- Confirm line-of-sight availability for 5+ km range
Frequently Asked Questions
Q: What is the maximum distance for reliable connection?
A: Up to 5+ km in clear line-of-sight conditions with proper antenna alignment.
Q: Does this support mesh networking?
A: No, this is designed as a point-to-point bridge, not a mesh node.
Q: Can I use this indoors?
A: Yes, though it’s optimised for outdoor use with weatherproof construction.
Q: What power sources are supported?
A: 48V PoE or DC input ranging from 42. 5V to 57V.
Q: Is this compatible with other UniFi devices?
A: Yes, it works with UniFi Controller for centralised management.
The Consultant’s verdict & warranty
The Ubiquiti UDB-Pro Network bridge 866. 7 Mbit/s White excels as a long-range wireless backhaul solution for UK businesses needing reliable 5+ km connectivity. Its weatherproof design, PoE passthrough capability, and enterprise security make it ideal for connecting remote sites, security systems, or extending network coverage. Covered by the standard Manufacturer Warranty.
| Data transmission | |
|---|---|
| Maximum data transfer rate | 866.7 Mbit/s |
| Antenna | |
| Antenna gain level (max) | 19 dBi |
| Antenna design | Internal |
| Antenna type | 2x2 |
| Wireless LAN features | |
| Signal strength | 25 dBm |
| Outdoor range | 5+ km |
| Frequency band | 5 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Antenna gain level (max) | 19 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Outdoor range | 5+ km |
| Frequency band | 5 GHz |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Security | |
| Security algorithms | WPA2-AES |
| Features | |
| Product type | Network bridge |
| Material | Polycarbonate (PC), Stainless steel |
| Product colour | White |
| Reset button | Yes |
| International Protection (IP) code | IPX6 |
| Power LED | Yes |
| LED indicators | LAN, Power, Signal strength |
| Mounting type | Pole |
| Power | |
| Power consumption (max) | 9 W |
| Power source type | DC, PoE |
| DC input voltage | 42.5 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Management features | |
| LED indicators | LAN, Power, Signal strength |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Technical details | |
| Material | Polycarbonate (PC), Stainless steel |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions | |
| Weight | 515 g |
| Width | 189.5 mm |
| Depth | 64.3 mm |
| Height | 189.5 mm |
| Indication | |
| Power LED | Yes |
| Packaging content | |
| Cables included | AC |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Identifiers | |
| Additional EANs | 0810084698013 |
