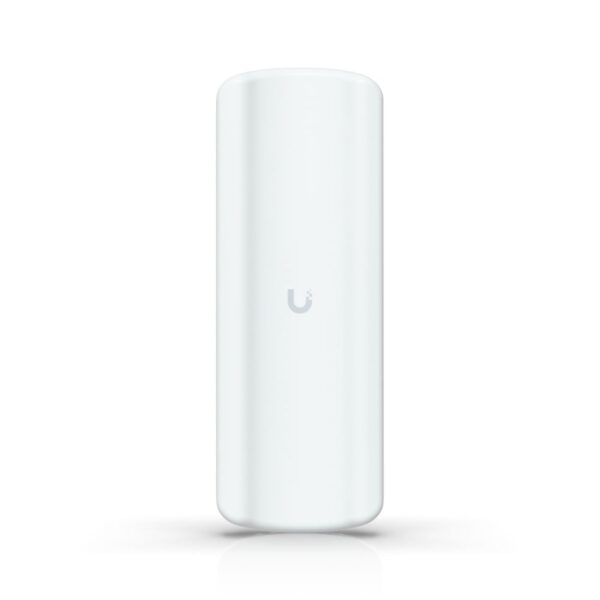

Ubiquiti UDB-Pro-Sector WiFi 5 PtMP Bridge
£177.68 inc VAT
1 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 5 GHz point-to-multipoint access point bridging 40+ clients at 5+ km distances
- WiFi 5 standard with 2 spatial streams and 17 dBi antenna gain
- Max data rate of 400 Mbps with 25 dBm max TX power
- IPX6 weatherproof design with UV-stabilized polycarbonate enclosure
- Pole mountable with 0.9—2.4″ diameter compatibility
- 6W power consumption via PoE with 42.5—57V DC voltage range
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
Ubiquiti UDB-Pro-Sector | 5 GHz PtMP Bridge with 17 dBi Antenna
The Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector WiFi 5 Point To Multi-Point Link (PtMP) is a high-performance 5 GHz point-to-multipoint access point designed to wirelessly bridge over 40 Device Bridge Pro clients at distances exceeding 5 km. Built for long-range outdoor deployments, it combines rugged weatherproofing with powerful MIMO technology to deliver stable, high-throughput connectivity in demanding environments.
Key Specifications
| Metric | Spec |
|---|---|
| WiFi Standard | WiFi 5 (802.11ac) |
| Max Data Rate | 400 Mbps (5 GHz) |
| Antenna Gain | 17 dBi |
| Coverage Range | 5 km (3.1 mi) |
| Power Method | PoE (42.5—57V DC) |
| Weather Rating | IPX6 |
Long-Range PtMP Connectivity for Remote Sites
Engineered for point-to-multipoint bridging, the UDB-Pro-Sector uses a 17 dBi directional antenna to maintain strong signal integrity across 5+ km links. Its 2×2 MIMO configuration supports up to 400 Mbps throughput, making it ideal for connecting remote buildings, rural installations, or temporary event networks without laying costly cabling.
Rugged Outdoor Design with IPX6 Weatherproofing
Built from UV-stabilised polycarbonate and stainless steel, the UDB-Pro-Sector is rated IPX6 for weather resistance, ensuring reliable operation in harsh outdoor conditions. The integrated pole-mount design allows secure installation on masts from 0.9 to 2.4 inches in diameter, while the unit’s -40 to 60°C operating range covers extreme climates.
Simple PoE Power and Management
Power is delivered via PoE within a 42.5—57V DC range, simplifying installation by eliminating the need for local power outlets. Management is handled through UniFi’s centralised controller software, giving administrators real-time monitoring, firmware updates, and performance analytics from a single dashboard.
Box Contents
- Ubiquiti UDB-Pro-Sector device
- Pole mount bracket
- Quick start guide
Check before you buy
- Confirm your network devices support 802.11ac WiFi 5.
- Verify you have a compatible PoE injector or switch (42.5—57V DC).
- Check pole diameter falls within 0.9—2.4 inches for mounting.
- Ensure line-of-sight is available for 5+ km PtMP links.
Frequently Asked Questions
Q: What is the maximum number of clients this device can support?
A: It can bridge over 40 Device Bridge Pro clients in point-to-multipoint mode.
Q: Does it include a power supply?
A: No, it requires an external PoE injector or switch within 42.5—57V DC.
Q: Is the antenna removable or replaceable?
A: The antenna is internal and integrated; it is not user-replaceable.
Q: What certifications does it hold?
A: It is certified CE, FCC, and IC compliant, and NDAA compliant.
The Consultant’s Verdict & Warranty
The Ubiquiti UDB-Pro-Sector is a specialist outdoor PtMP bridge for users needing robust, long-range wireless links without wired infrastructure. Its 17 dBi antenna, weatherproof build, and UniFi management make it a dependable choice for remote site connectivity. Covered by the standard Manufacturer Warranty.
| Weight | 0.78 kg |
|---|---|
| Maximum data transfer rate | 400 Mbit/s |
| Maximum transfer distance | 5000 m |
| Antenna design | Internal |
| Signal strength | 25 dBm |
| Antenna gain level max | 17 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2×2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN RJ-45 ports | 1 |
| Security algorithms | WPA2-AES |
| Product type | Network bridge |
| Reset button | Yes |
| International Protection IP code | IPX6 |
| Mounting type | Pole |
| Power consumption max | 6 W |
| Power source type | PoE |
| DC input voltage | 42.5 – 57 V |
| Power over Ethernet PoE | Yes |
| Operating relative humidity H-H | 5 – 95% |
| LED indicators | LAN, Power |
| Material | Polycarbonate (PC) |
| Product colour | White |
| Operating temperature T-T | -40 – 140 °F |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight | 782 g |
| Width | 129.6 mm |
| Depth | 71.4 mm |
| Height | 360.9 mm |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
