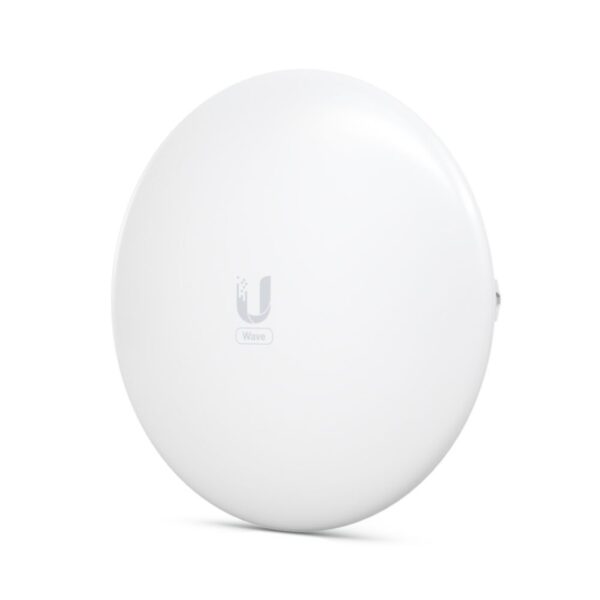

Ubiquiti UISP Nano White Access Point
£214.42 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 60 GHz PtMP station powered by Wave Technology
- 2 Gbps total throughput (1 Gbps duplex) with Wave AP
- High-performance 5GHz backup radio for uninterrupted connection
- Bluetooth radio for setup via UISP® Mobile app
- Maximum transfer distance: 5000 m with 41 dBi antenna gain
- Single-band 60 GHz Wi-Fi with 8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK modulation
- Power over Ethernet (PoE) with 10/100/1000Base-T(X) Ethernet
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
Ubiquiti UISP Wave Nano | 60 GHz PtMP Station

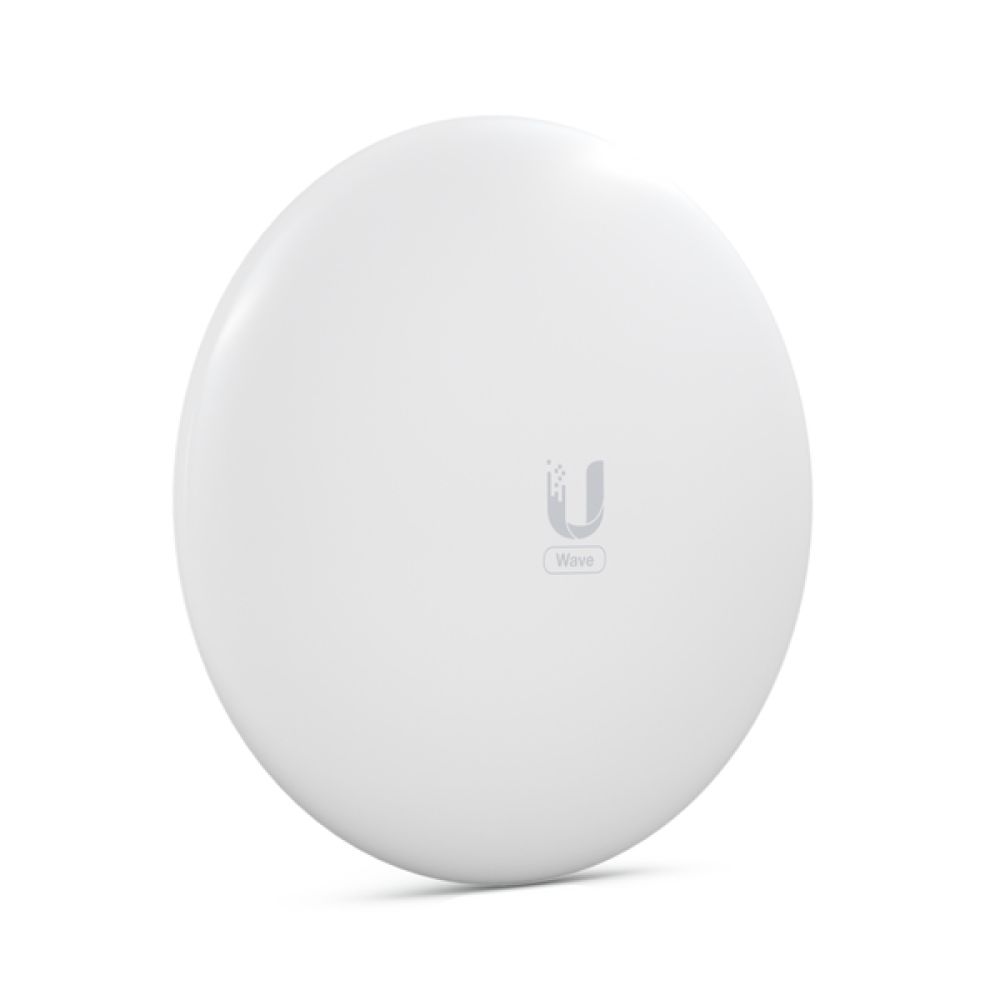

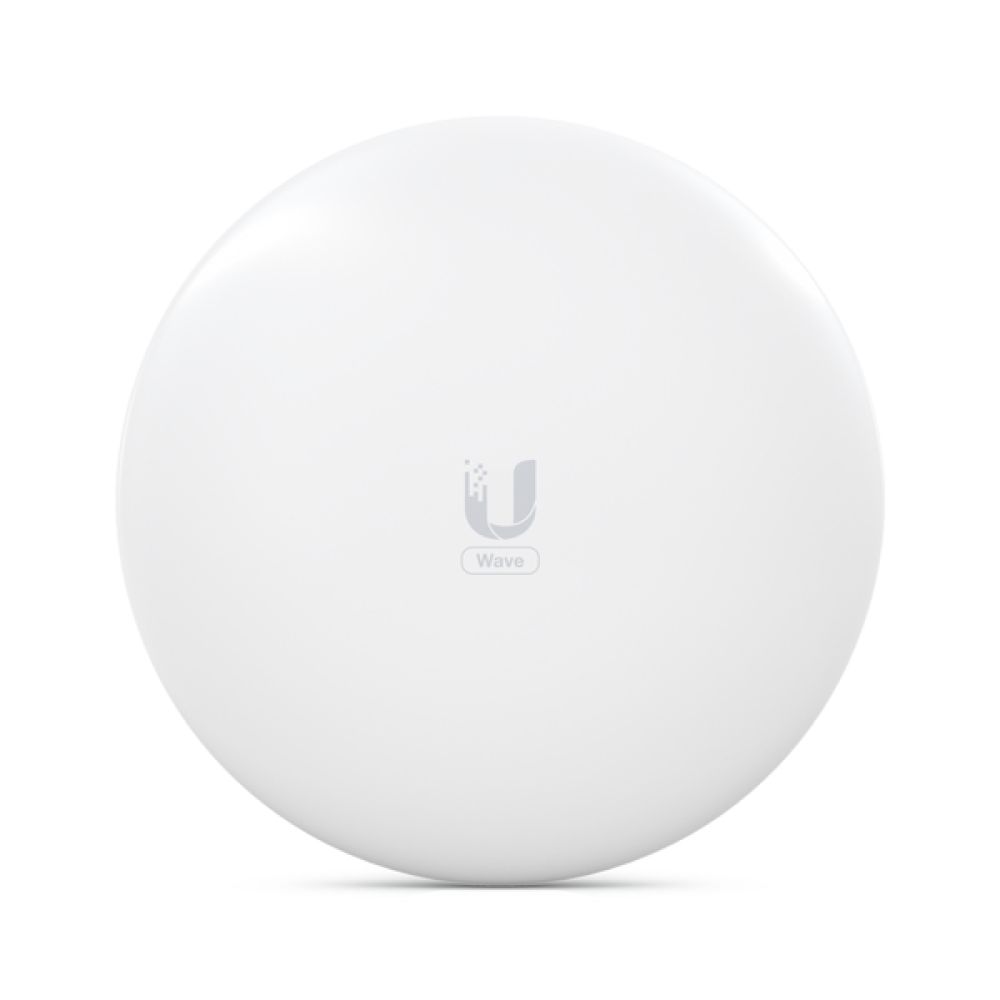

The Ubiquiti UISP Wave Nano White is a compact 60 GHz point-to-multipoint (PtMP) station powered by Wave Technology. Designed for high-speed wireless backhaul, it can connect to a Wave access point and deliver up to 2 Gbps total throughput with 1 Gbps full-duplex capability. Equipped with a 5 GHz backup radio for uninterrupted connectivity and Bluetooth for mobile app setup, this device is ideal for professional wireless network deployments.
Key Specifications
| Metric | Spec. |
|---|---|
| Maximum Transfer Distance | 5000 m |
| Antenna Gain | 41 dBi |
| Wi-Fi Band | Single-band (60 GHz) |
| Ethernet Ports | 1 x 10/100/1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| IP Rating | IPX6 |
| Operating Temperature | -40 to 60 °C |
Ultra-Long-Range 60 GHz Connectivity
The Wave Nano leverages 60 GHz spectrum to deliver exceptional throughput over distances up to 5000 metres. With a high-gain 41 dBi antenna, it maintains strong signal integrity even in challenging environments. This makes it suitable for connecting remote buildings, rural sites, or temporary installations where wired infrastructure is impractical.
Dual-Radio Redundancy for Uninterrupted Service
To ensure continuous operation, the Wave Nano includes a high-performance 5 GHz backup radio. If the primary 60 GHz link experiences interference or obstruction, the device automatically switches to the backup band, maintaining network uptime. This redundancy is critical for applications requiring constant connectivity, such as surveillance, industrial control, or emergency communications.
Simplified Deployment with Mobile App
Setting up the Wave Nano is streamlined through Bluetooth connectivity and the UISP® Mobile app. This eliminates the need for complex configuration via a computer, allowing technicians to position and configure the device quickly on-site. The app provides intuitive controls for alignment, channel selection, and performance monitoring.
Weather-Resistant Design for Outdoor Use

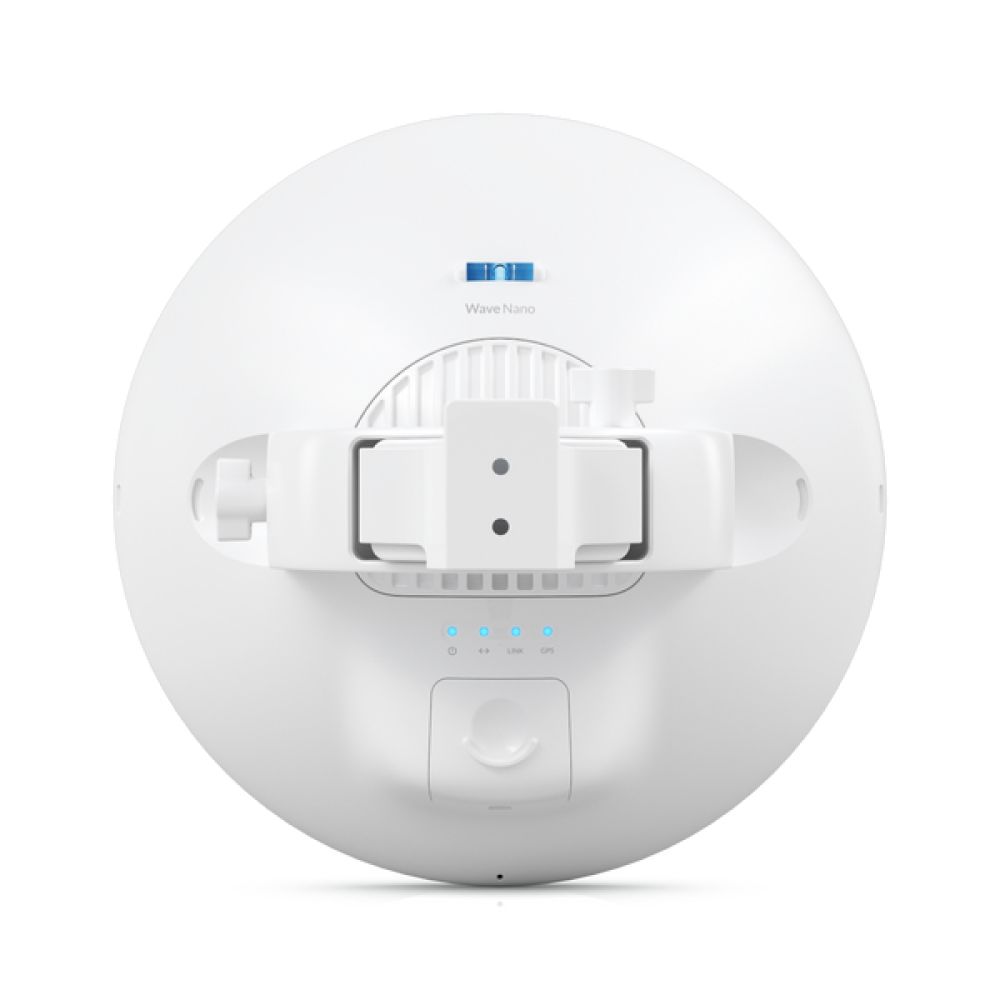

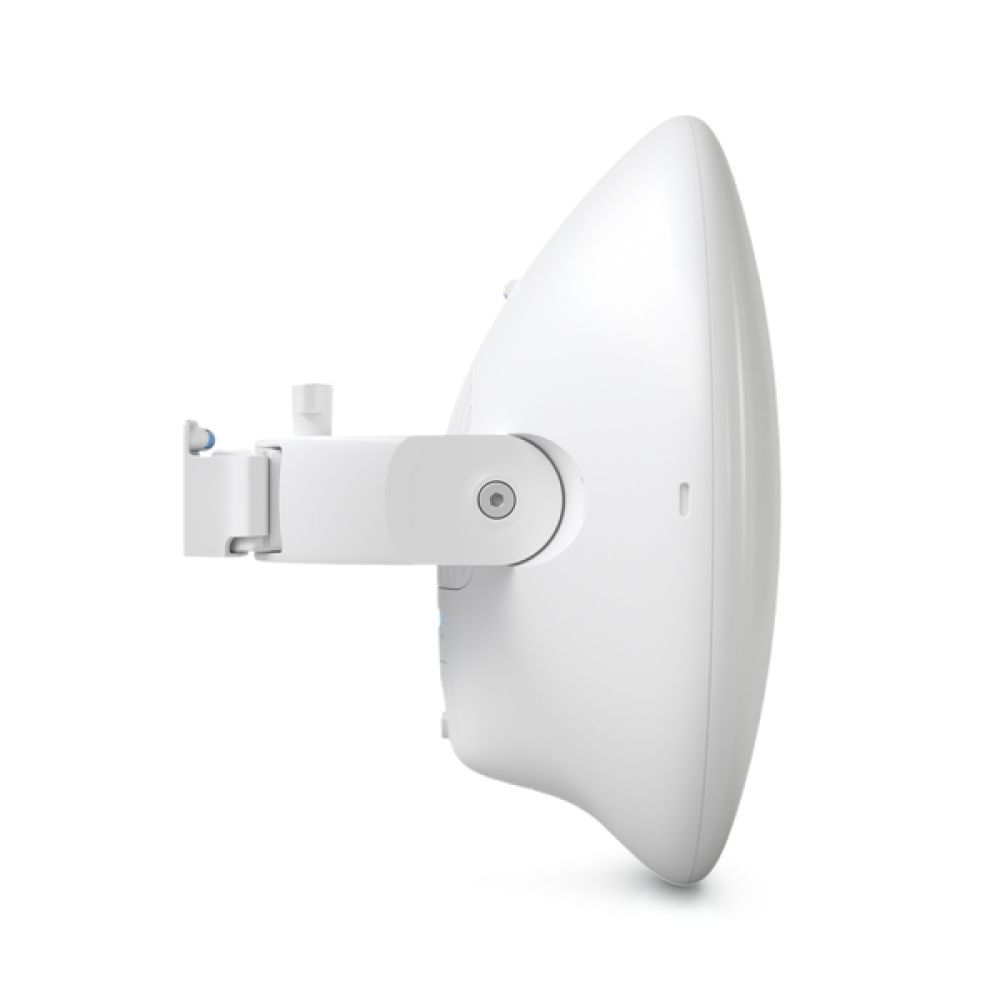

Built to withstand harsh conditions, the Wave Nano features an IPX6 rating, protecting it against heavy rain and dust ingress. Its operating temperature range of -40 to 60 °C ensures reliable performance in both freezing and scorching climates. The pole-mount design offers flexible installation options for rooftops, towers, or poles.
Check before you buy
- Confirm the 60 GHz frequency is licensed or permitted for use in your region
- Verify your existing network infrastructure supports Wave Technology
- Ensure you have compatible Wave access points for PtMP configuration
- Check local power supply and PoE injector compatibility
Frequently Asked Questions
Q: What is the maximum throughput of the Wave Nano?
A: It delivers up to 2 Gbps total throughput with 1 Gbps full-duplex capability.
Q: Can the Wave Nano be used indoors?
A: Yes, but it is designed for outdoor use with weather-resistant IPX6 protection.
Q: Does it support mesh networking?
A: No, it is a PtMP station designed to connect to a Wave access point, not for mesh configurations.
Q: What management options are available?
A: It supports web-based management and Bluetooth setup via the UISP® Mobile app.
The Consultant’s verdict & warranty
The Ubiquiti UISP Wave Nano White is an excellent choice for professionals needing high-speed, long-range wireless backhaul with built-in redundancy. Its combination of 60 GHz performance, 5 GHz failover, and mobile app setup makes it a versatile tool for demanding outdoor deployments. Covered by the standard Manufacturer Warranty.
| Data transmission | |
|---|---|
| Maximum transfer distance | 5000 m |
| Antenna | |
| Antenna gain level (max) | 41 dBi |
| Wireless LAN features | |
| Modulation | 8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK |
| Antenna gain level (max) | 41 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (60 GHz) |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security | |
| Security algorithms | AES, WPA2-PSK |
| Management features | |
| Web-based management | Yes |
| LED indicators | Yes |
| Features | |
| Product colour | White |
| Reset button | Yes |
| International Protection (IP) code | IPX6 |
| Rack mounting | No |
| LED indicators | Yes |
| Internal memory | 512 MB |
| Mounting type | Pole |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC, IC |
| Technical details | |
| Product colour | White |
| Rack mounting | No |
| Internal memory | 512 MB |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 932 g |
| Width | 256.5 mm |
| Depth | 113.5 mm |
| Height | 256.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Identifiers | |
| Additional EANs | 0810010078940 |
