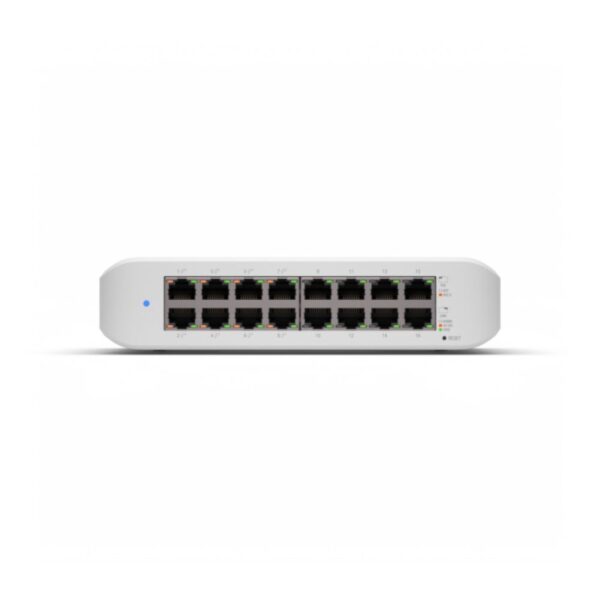

UniFi Switch Lite 16 PoE L2

Ubiquiti UniFi Switch Lite 16 PoE | Managed Gigabit PoE+ Switch

The Ubiquiti UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch designed for small to medium-sized networks requiring both Gigabit Ethernet connectivity and Power over Ethernet support. With sixteen Gigabit ports and eight PoE+ capable ports, this white desktop or wall-mountable switch delivers reliable performance for powering and connecting UniFi access points and other PoE devices.

Slim Specs Table

Layer 2 Management with UniFi Controller

The UniFi Switch Lite 16 PoE offers comprehensive Layer 2 switching capabilities through the UniFi Network Controller. This software-based management platform provides a centralised interface for configuring VLANs, QoS, port mirroring, and other advanced networking features. The controller’s graphical user interface makes network administration accessible whether you’re managing a single switch or a large deployment across multiple sites.

Eight PoE+ Ports for Network Devices

Eight of the sixteen ports support 802.3at PoE+ technology, delivering up to 30W per port for compatible devices. This capability eliminates the need for separate power adapters for UniFi access points, IP cameras, and other PoE-enabled equipment. The switch provides a total PoE budget of 45W across all PoE ports, making it suitable for powering multiple access points simultaneously in small office or home office environments.

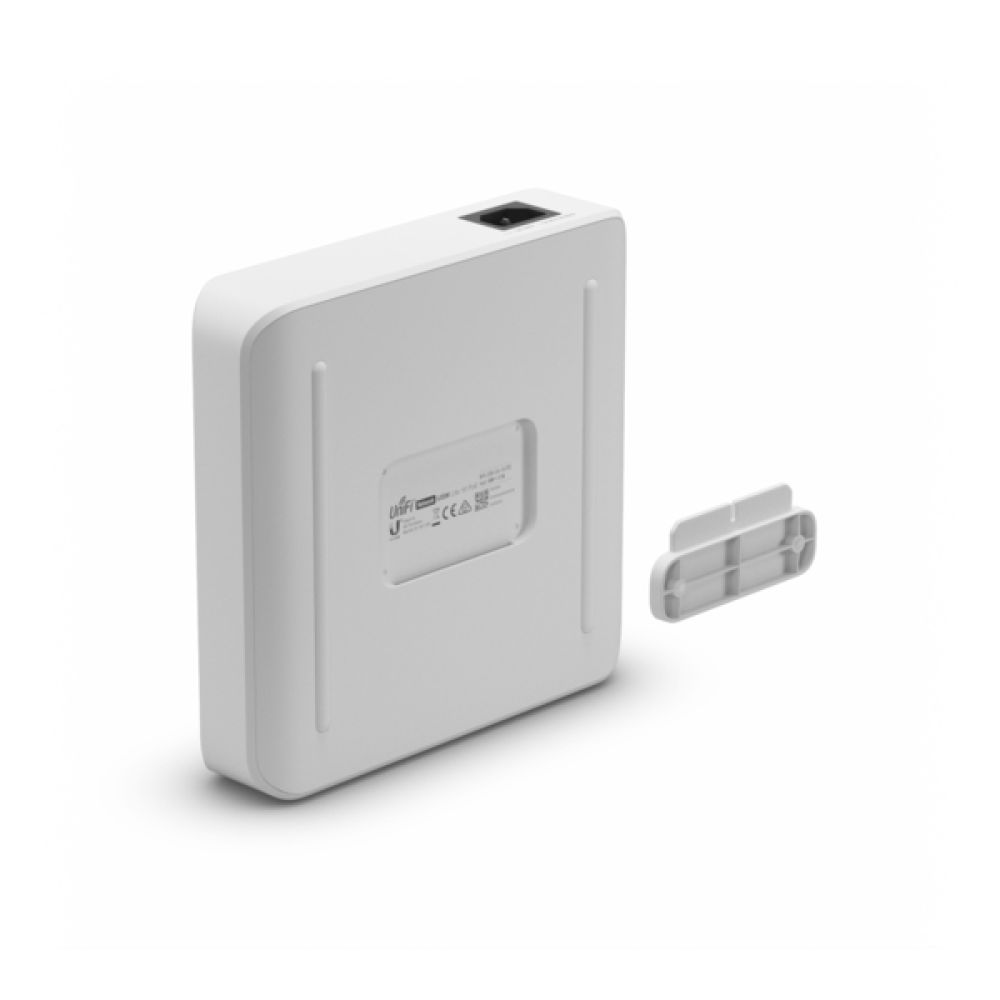

Compact Design with Flexible Mounting

Measuring just 191.7mm wide and 43.7mm high, the UniFi Switch Lite 16 PoE features a compact footprint that fits easily on desktops or can be mounted on walls using the integrated brackets. The white finish complements other UniFi devices, creating a cohesive network infrastructure appearance. LED indicators for network status, PoE activity, and system operation provide at-a-glance monitoring without requiring software access.

Reliable Performance for UK Networks

Operating within a temperature range of -15 to 40°C and humidity levels from 10 to 90%, this switch performs reliably in typical UK office environments. The 100-240V AC input voltage ensures compatibility with UK power standards, while the included power supply eliminates the need for additional purchases. CE and FCC certifications confirm compliance with regulatory requirements for use in the United Kingdom.

Box contents

• UniFi Switch Lite 16 PoE
• Power supply unit
• Mounting brackets
• Quick start guide

Check before you buy

• Confirm your PoE devices require 802.3af/at standard and don’t exceed 30W per port
• Verify you have a compatible UniFi Network Controller (software or cloud) for management
• Check rack or wall space dimensions match the 191.7 x 185 x 43.7mm footprint
• Ensure your network design benefits from Layer 2 switching rather than Layer 3 routing

Frequently Asked Questions

Q: Does this switch support 10 Gigabit Ethernet?

A: No, all sixteen ports are Gigabit Ethernet (10/100/1000) only.

Q: Can I manage this switch without the UniFi Controller?

A: No, this is a managed switch requiring the UniFi Network Controller software or cloud service for configuration.

Q: How many PoE devices can I power simultaneously?

A: You can connect up to eight PoE+ devices, with a total power budget of 45W across all PoE ports.

Q: Is this switch suitable for outdoor installation?

A: No, this switch is designed for indoor use only with an operating temperature range of -15 to 40°C.

Q: Does it include rack mounting hardware?

A: The switch includes wall mounting brackets but not rack mounting hardware. Rack mounting would require separate brackets.

The Consultant’s verdict & warranty

The Ubiquiti UniFi Switch Lite 16 PoE delivers an excellent balance of port density, PoE capability, and management features for small to medium network deployments. Its eight PoE+ ports make it particularly suitable for powering UniFi access point networks without requiring separate power injectors. The managed Layer 2 functionality provides enterprise-grade control through an intuitive interface, while the compact design suits space-constrained installations. Covered by the standard Manufacturer Warranty.
