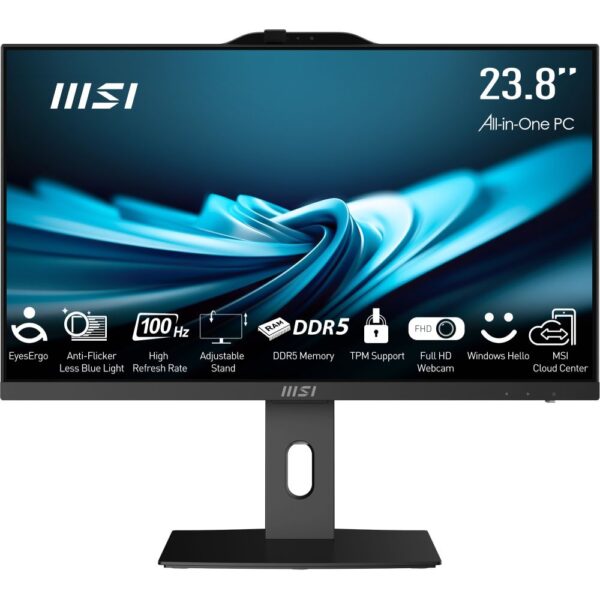

MSI Pro AP242P i7 14700 All-in-One PC with 23.8″ IPS Display

£880.52 inc VAT

21 in stock

More Ways to Pay

  • Buy now, pay later with Klarna
  • Pay in 3 interest-free payments with PayPal

About This Item

  • 23.8″ Full HD IPS display with 100Hz refresh rate and anti-glare coating
  • 14th Gen Intel Core i7-14700 processor with 20 cores and 28 threads
  • 16GB DDR5 RAM and 512GB NVMe SSD storage
  • Windows 11 Pro with integrated webcam and privacy shutter
  • Wi-Fi 6E, Bluetooth 5.3, and multiple USB ports including Type-C

Payment Methods:

payments
Description

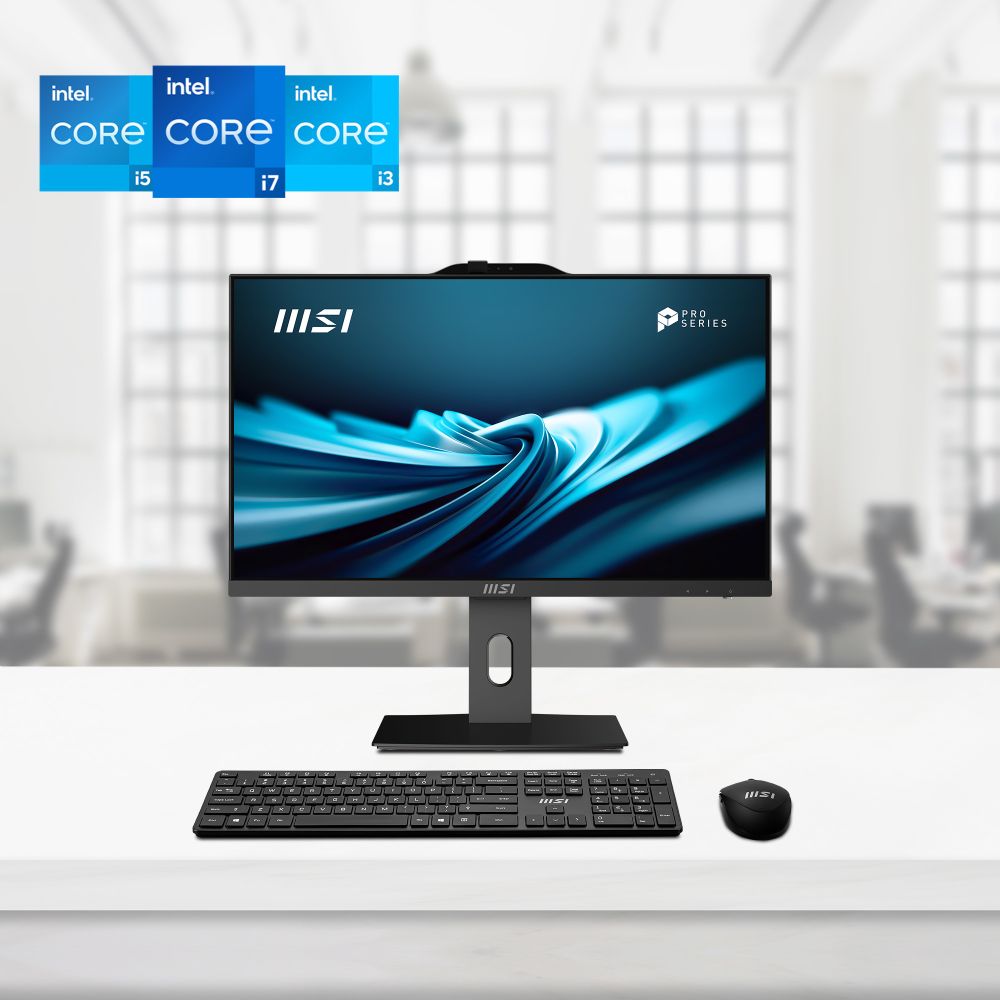

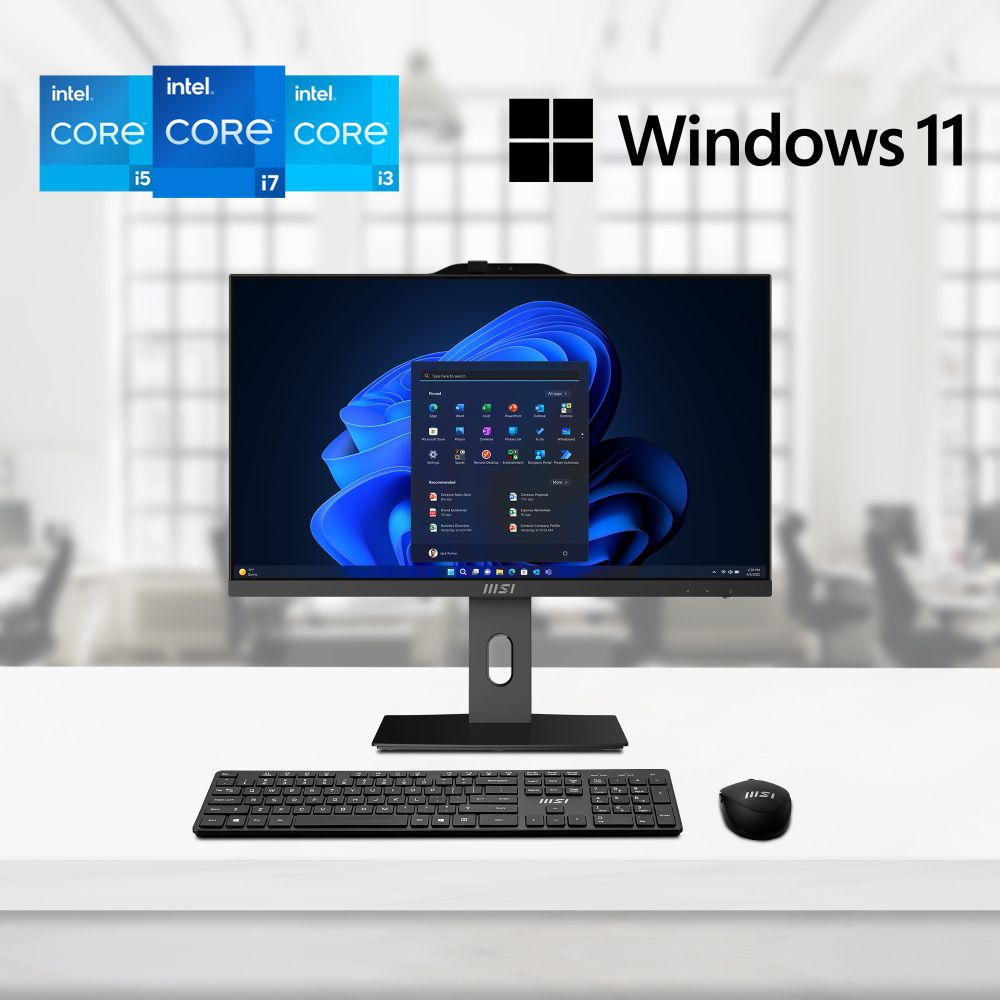

MSI Pro AP242P 14M | 23.8″ All-in-One Business PC with Intel Core i7

The MSI Pro AP242P 14M Intel Core i7 14700 All in One PC delivers a powerful 23.8″ Full HD IPS display with anti-glare protection, making it ideal for professionals who spend long hours at their desk. With 16GB DDR5 RAM, 512GB NVMe SSD, and Windows 11 Pro pre-installed, this all-in-one solution combines robust performance with a space-saving design.

Quick Specs

Metric Spec
Processor Intel Core i7-14700 (20 cores)
Memory 16GB DDR5 @ 3200MHz
Storage 512GB M.2 NVMe SSD
Display 23.8″ Full HD IPS (1920×1080)
Operating System Windows 11 Pro

Performance That Keeps Up with Demanding Workloads

Powered by Intel’s 14th Gen Core i7-14700 processor, this all-in-one PC delivers exceptional multi-threaded performance for demanding business applications. With 8 performance cores and 12 efficient cores, you can run multiple applications simultaneously without lag. The 33MB Smart Cache and Turbo Boost up to 5.4GHz ensure smooth operation whether you’re working with large spreadsheets, video conferencing, or running productivity software.

Eye-Care Display for Extended Work Sessions

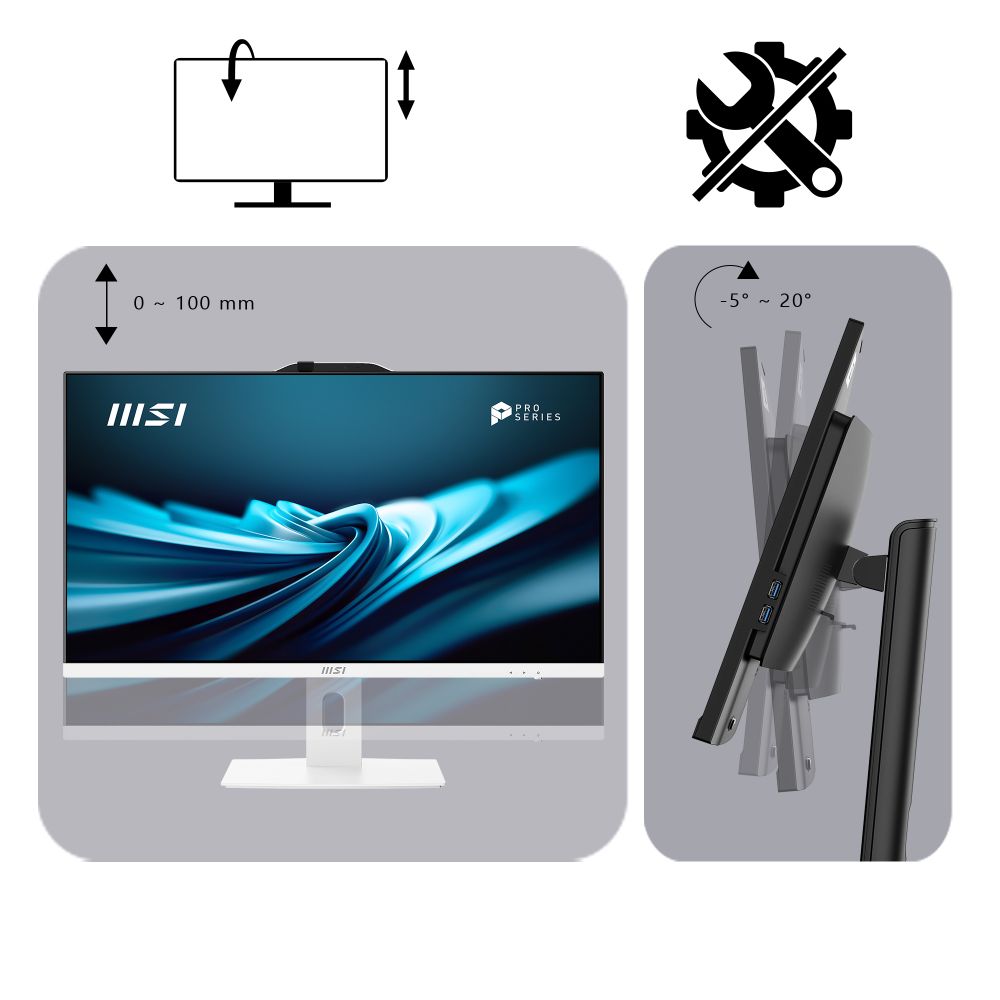

The 23.8″ Full HD IPS display features anti-glare technology and 250 cd/m² brightness, reducing eye strain during long working hours. With a 100Hz refresh rate and IPS-grade panel, you’ll experience crisp visuals and wide viewing angles. The frameless design maximizes screen space while the tilt adjustment (-4° to 20°) lets you find the perfect viewing angle for your workspace.

Comprehensive Connectivity for Modern Workflows

Stay connected with the latest Wi-Fi 6E and Bluetooth 5.3 technology. The Pro AP242P offers extensive connectivity options including USB 3.2 Gen 2 Type-C, multiple USB-A ports, HDMI 2.1, DisplayPort, and Gigabit Ethernet. Whether you’re connecting external displays, peripherals, or network storage, you’ll have the ports you need. The integrated webcam with privacy shutter and built-in microphone ensure professional video conferencing capabilities.

Business-Class Reliability and Security

Built to MIL-STD-1916 standards, this all-in-one PC undergoes rigorous testing for durability and reliability. The Trusted Platform Module (TPM 2.0) provides hardware-based security for sensitive business data. With a 3-year warranty and VESA mount compatibility, it’s designed for both stability and flexibility in professional environments.

Box contents

  • MSI Pro AP242P 14M All-in-One PC
  • AC power cable
  • Quick start guide

Check before you buy

  • Confirm the UK plug type and power requirements match your setup
  • Verify your specific software compatibility with Windows 11 Pro
  • Check that your workspace accommodates the 541.9mm width with stand
  • Confirm any additional peripherals (keyboard/mouse) are purchased separately

Frequently Asked Questions

Q: Can I upgrade the memory on this all-in-one PC?

A: Yes, the system supports up to 64GB DDR5 memory across 2 SO-DIMM slots.

Q: Does this PC support dual monitors?

A: Yes, with HDMI 2.1 and DisplayPort outputs, you can connect multiple external displays.

Q: Is the webcam suitable for professional video calls?

A: The 2MP Full HD camera with privacy shutter provides clear video quality for conferencing.

Q: Can I mount this on a wall or monitor arm?

A: Yes, the VESA mounting interface (75x75mm) allows for wall or arm mounting.

Q: What type of storage can be added?

A: The M.2 NVMe SSD slot supports Gen3 SSDs for fast storage expansion.

The Consultant’s verdict & warranty

The MSI Pro AP242P 14M stands out as a reliable all-in-one solution for business professionals who need performance without the clutter of a traditional desktop setup. Its combination of Intel’s latest processor, eye-care display technology, and comprehensive connectivity makes it particularly suitable for office environments, remote workers, and anyone seeking a space-efficient yet powerful computing solution. Covered by the standard Manufacturer Warranty.

Specifications
Display
HD typeFull HD
Pixel pitch0.2745 x 0.2745 mm
Tilt angle range-4 - 20°
Panel typeIPS
Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
TouchscreenNo
Display brightness250 cd/m²
Tilt adjustmentYes
Anti-glare screenYes
Processor
Processor generationIntel® Core™ i7 (14th gen)
Processor cache typeSmart Cache
Processor frequency1.5 GHz
Processor boost frequency5.4 GHz
Processor familyIntel® Core™ i7
Processor modeli7-14700
Processor cores20
Processor threads28
Processor cache33 MB
Motherboard chipsetIntel H610
Processor manufacturerIntel
Processor base power65 W
Maximum turbo power219 W
Efficient-core base frequency1.5 GHz
Performance-core base frequency2.1 GHz
Efficient-core Max Turbo Frequency4.2 GHz
Performance-core Max Turbo Frequency5.3 GHz
Performance cores8
Efficient cores12
Memory
Memory form factorDIMM/SO-DIMM
Internal memory16 GB
Memory layout (slots x size)2 x 8 GB
Maximum internal memory64 GB
Internal memory typeDDR5-SDRAM
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed3200 MHz
Hard drive
Number of storage drives installed1
Storage mediaSSD
Total storage capacity512 GB
Storage
Number of storage drives installed1
Storage mediaSSD
Total storage capacity512 GB
Optical drive typeNo
SSD interfaceM.2
SSD capacity512 GB
Number of SSDs installed1
SSD form factorM.2
Total SSDs capacity512 GB
NVMeYes
M.2 SSD size2280 (22 x 80 mm)
Graphics
Discrete graphics cardNo
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics
On-board GPU manufacturerIntel
Audio
Audio chipRealtek ALC897
Number of speakers2
Audio systemHD
Built-in speaker(s)Yes
RMS rated power3 W
Built-in microphoneYes

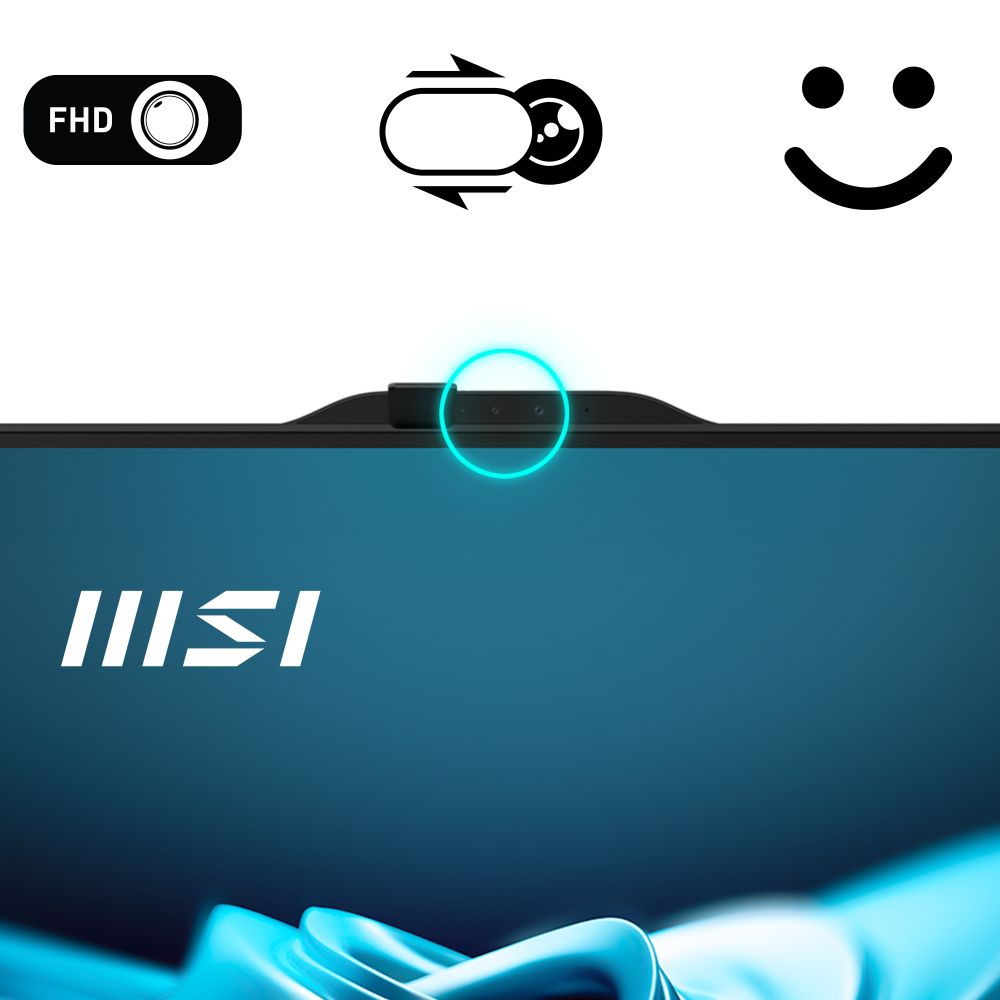

Camera
Built-in cameraYes
Total megapixels2 MP
Privacy cameraYes
Camera HD typeFull HD
Optical drive
Optical drive typeNo
Network
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Wi-Fi standardsWi-Fi 6E (802.11ax)
Ethernet LANYes
Ethernet LAN data rates1000 Mbit/s
BluetoothYes
Bluetooth version5.3
WLAN controller modelIntel Wi-Fi 6E AX211
WLAN controller manufacturerIntel

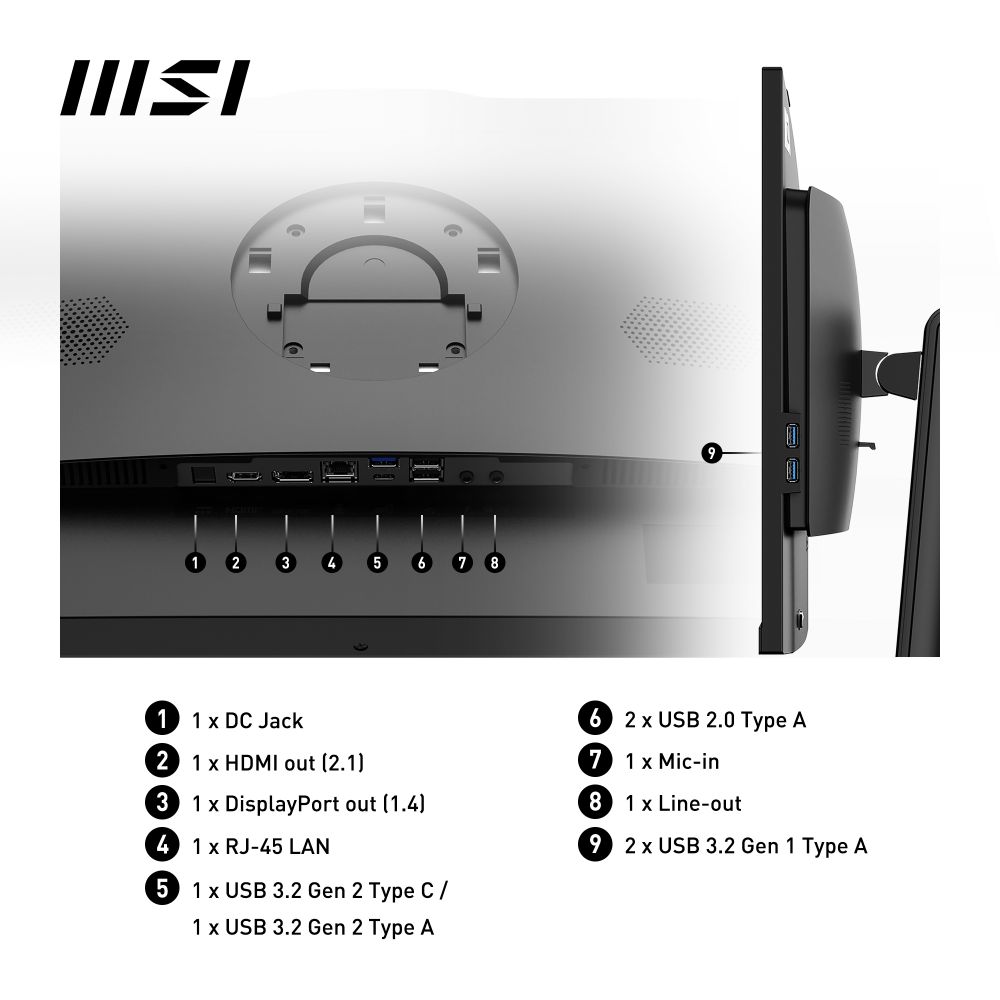

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 2.0 ports quantity2
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
On/off buttonYes
HDMI version2.1
Number of rear USB ports4
Number of rear audio ports2
Number of front USB ports2
Technical details
Housing materialPlastic
Product typeAll-in-One PC
Product colourBlack
Wall mountableYes
Warranty period3 year(s)
Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL
Security
Cable lock slot typeKensington
Trusted Platform Module (TPM)Yes
Cable lock slotYes
Design
Housing materialPlastic
Cable lock slot typeKensington
Product colourBlack
Wall mountableYes
Cable lock slotYes
On/off buttonYes
Panel mounting interface75 x 75 mm
VESA mountingYes
Colour nameBLACK
Country of originChina
Introduction year2024
Frameless designYes
Height adjustmentYes
PivotYes
Cable managementYes
Performance
Market positioningBusiness
Product typeAll-in-One PC
Motherboard chipsetIntel H610
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Cooling typeActive
Software
Operating system installedWindows 11 Pro
Power
AC adapter power120 W
Multimedia
Built-in cameraYes
Total megapixels2 MP
Privacy cameraYes
Camera HD typeFull HD
Ergonomics
Tilt adjustmentYes
Weight & dimensions
Package width640 mm
Package depth243 mm
Package height508 mm
Package weight8 kg
Width (with stand)541.9 mm
Depth (with stand)333.3 mm
Height (with stand)480 mm
Weight (with stand)4.63 kg
Packaging data
Package width640 mm
Package depth243 mm
Package height508 mm
Package weight8 kg
Features
Country of originChina
Operational conditions
Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 90%
Certificates
Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL
Packaging content
Mouse includedNo
Cables includedAC
Keyboard includedNo
Other features
On-board graphics cardYes
SSD interfaceM.2
SSD capacity512 GB
Processor manufacturerIntel
Number of SSDs installed1
Country of originChina
Warranty period3 year(s)
Identifiers
Distributor SKUs4711377231879, CL4711377231879
