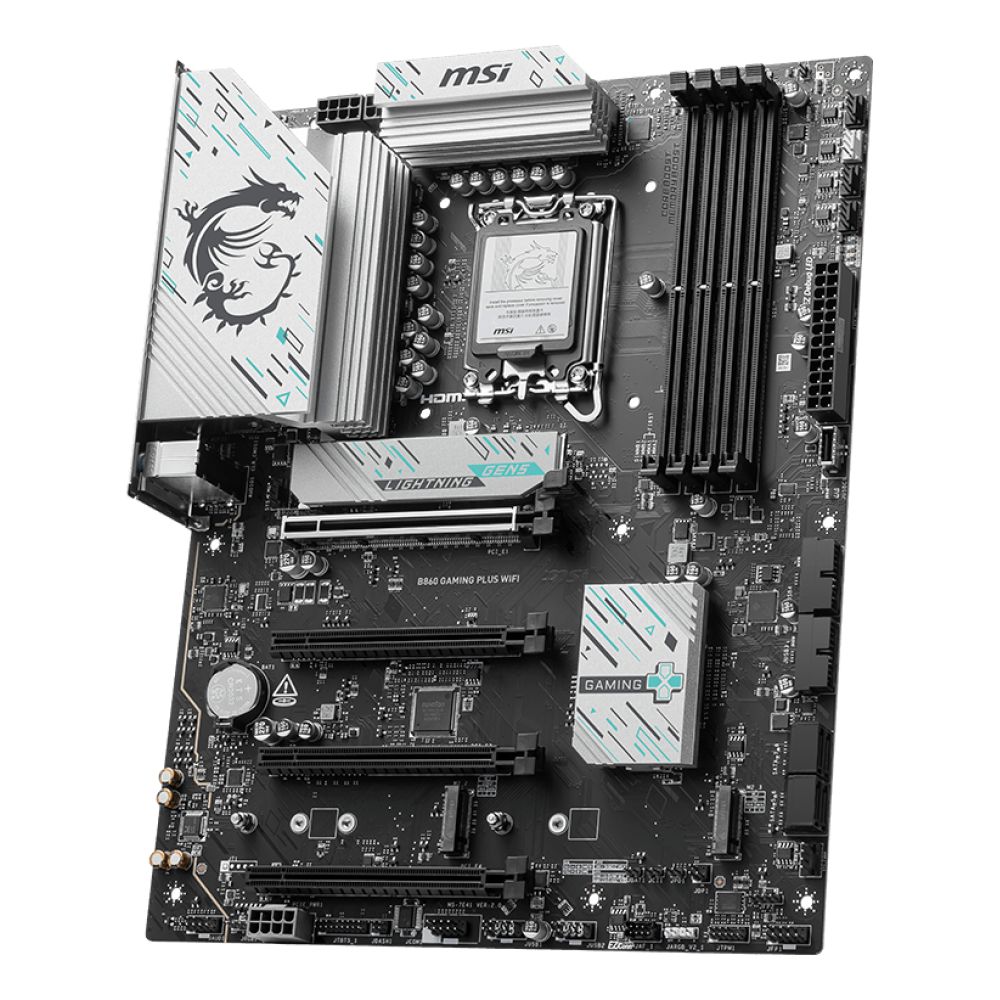

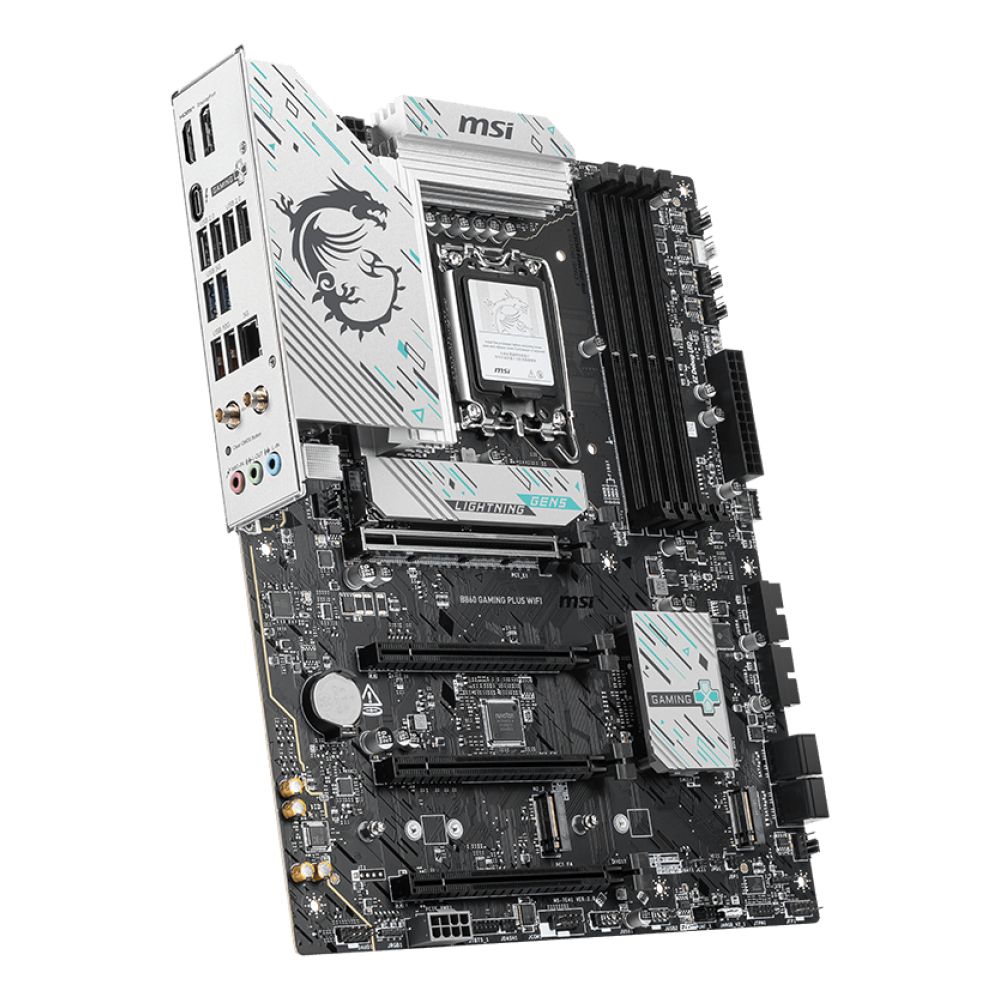

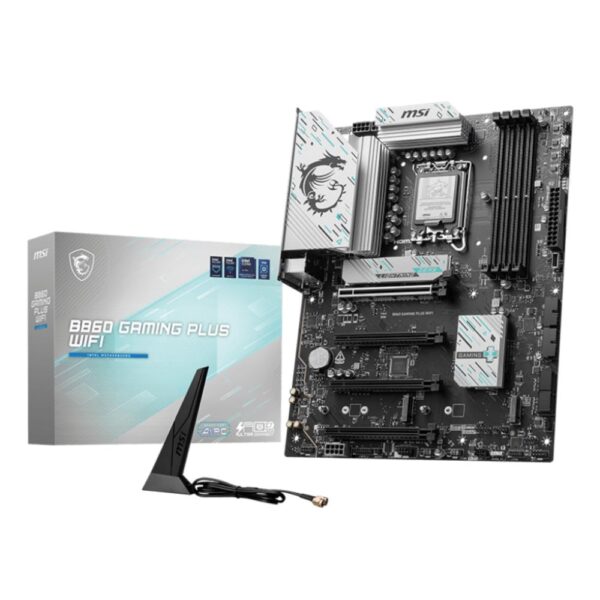

MSI B860 GAMING PLUS WIFI Motherboard
£168.31 inc VAT
16 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- ATX motherboard for Intel Core Ultra (Series 2) processors
- 3 M.2 slots with PCIe 5.0 and PCIe 4.0 support
- 256 GB maximum DDR5 memory with dual-channel architecture
- Wi-Fi 7 and 5 Gb Ethernet for high-speed connectivity
- 7.1 channel audio with Realtek ALC897 codec
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
MSI B860 GAMING PLUS WIFI | Intel B860 ATX Gaming Motherboard
The MSI B860 GAMING PLUS WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX delivers comprehensive connectivity and premium features for gamers building systems with Intel Core Ultra (Series 2) processors. This ATX board combines Thunderbolt 4, Wi-Fi 7, and PCIe 5.0 support in a versatile package designed for 24/7 gaming performance.
Quick Specs
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1851 (Socket V1) |
| Memory Support | DDR5-SDRAM, 4x DIMM, up to 256 GB |
| Max Memory Speed | 8800 MHz |
| Storage Support | 7 drives (M.2, SATA III) |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| LAN Speed | 5 Gigabit Ethernet |
Intel Core Ultra Ready Performance
Built around the Intel B860 chipset, this motherboard supports Intel Core Ultra (Series 2) processors with LGA 1851 socket compatibility. The dual-channel DDR5 memory architecture supports up to 256 GB across four DIMM slots, with speeds reaching 8800 MHz for demanding applications and multitasking workloads.
Comprehensive Connectivity Options
Connectivity stands out with Thunderbolt 4 ports, Wi-Fi 7 with Killer controller, and 5G LAN providing versatile networking options. The board features three M.2 slots (one PCIe 5.0, two PCIe 4.0) plus four SATA III connectors, supporting up to seven storage drives total. USB options include 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, and 4x USB 2.0 ports.
Gaming-Optimized Audio and Cooling
Realtek ALC897 audio delivers 7.1 channel surround sound for immersive gaming experiences. Cooling support includes one CPU fan connector and one water pump header, plus three RGB LED pin headers for customizable lighting. The 7-layer PCB design helps with heat dissipation during extended gaming sessions.
Expandable PCIe Configuration
With one PCIe 5.0 x16 slot and three PCIe 4.0 x16 slots, this board accommodates multiple graphics cards and expansion cards. The configuration supports everything from high-end GPUs to capture cards and storage controllers, making it suitable for both gaming and content creation workloads.
Box contents
- MSI B860 GAMING PLUS WIFI motherboard
- I/O shield
- User manual
- Driver/software disc
- SATA cables (quantity not specified)
- Wi-Fi antennas (quantity not specified)
Check before you buy
- Confirm your Intel Core Ultra (Series 2) processor is LGA 1851 compatible
- Verify your case supports ATX motherboard dimensions (243.8 x 304.8 mm)
- Check that your power supply provides sufficient PCIe power connectors
- Confirm your DDR5 memory modules are on the motherboard’s qualified vendor list
Frequently Asked Questions
Q: What processors work with this motherboard?
A: Intel Core Ultra (Series 2) processors with LGA 1851 socket
Q: Does it support DDR4 memory?
A: No, only DDR5-SDRAM memory is supported
Q: How many graphics cards can I install?
A: One GPU in the PCIe 5.0 x16 slot, plus additional cards in PCIe 4.0 slots
Q: What Wi-Fi standard is included?
A: Wi-Fi 7 (802.11be) with Killer Wi-Fi 7 1750x controller
Q: Is Bluetooth included?
A: Yes, Bluetooth 5.4 is integrated
The Consultant’s verdict & warranty
The MSI B860 GAMING PLUS WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX suits gamers and enthusiasts seeking future-proof connectivity with Wi-Fi 7, Thunderbolt 4, and PCIe 5.0 support. Its comprehensive storage options and robust cooling make it ideal for high-performance Intel Core Ultra builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | M.2, Micro SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 4 |
| CPU fan connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Maximum internal memory supported by processor | 256 GB |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,6400,8800 MHz |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8800 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Micro SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |

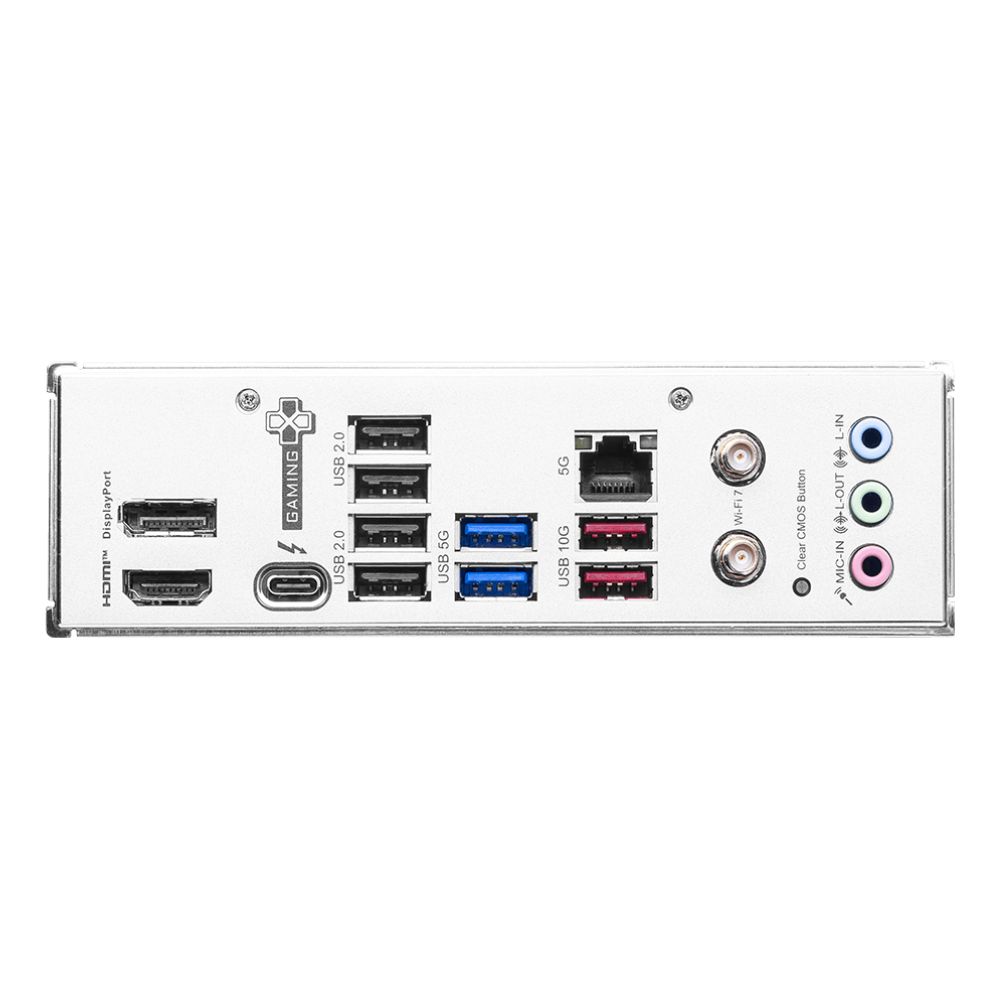

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi 7 1750x |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Identifiers | |
| Distributor SKUs | 10451509, 4711377289764, 911-7E41-003, 911-7E41-11S, 545482, STD10218033, CL4711377289764 |
| Additional EANs | 0824142394854 |
