DeepCool PF700 700W ATX Power Supply
£56.58 inc VAT
100 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 700 W ATX power supply with 80 PLUS Standard efficiency
- 12 cm hydraulic bearing fan for silent cooling
- Non-modular flat black cables for easy cable management
- Comprehensive protection: over power, over voltage, short circuit, under voltage
- 4 SATA and 2 PCI Express 6+2 pin power connectors
- MTBF of 100,000 hours for reliable performance
- Operating temperature range 0-40°C with CCC, CE, EAC, UKCA compliance
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

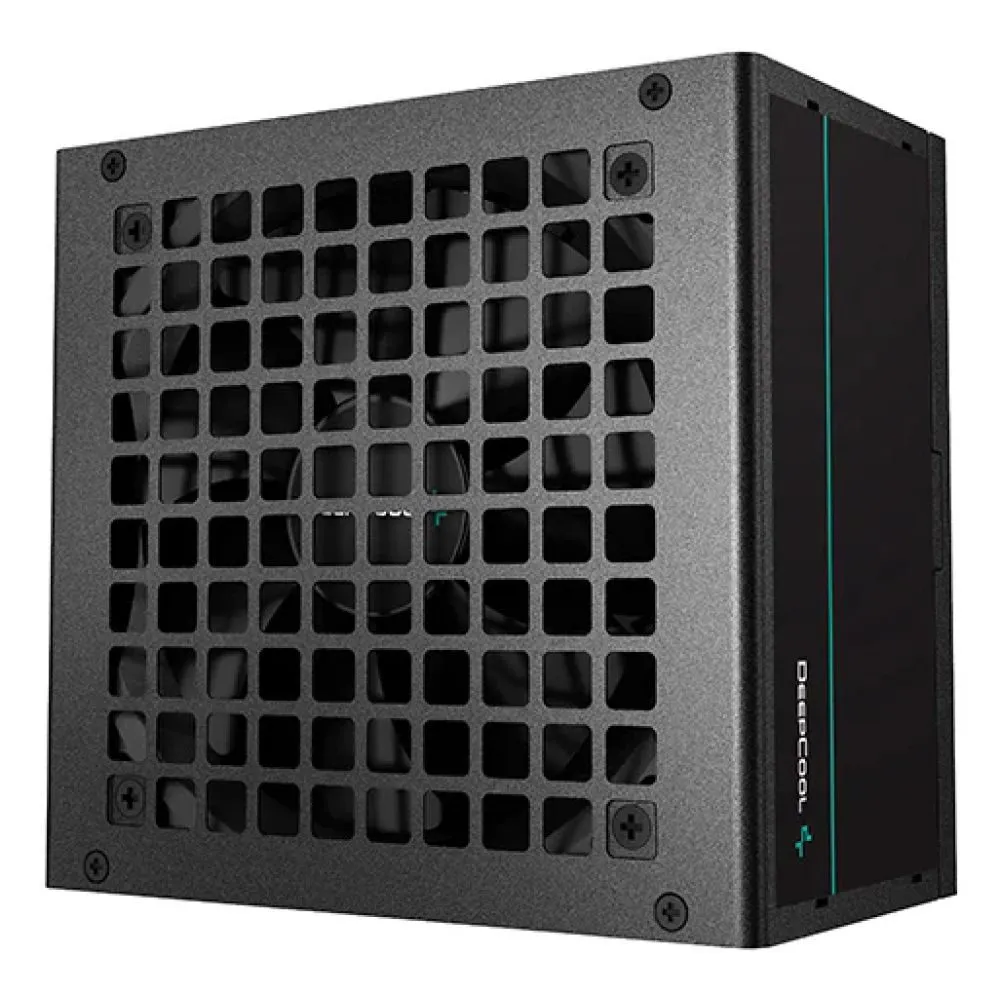

DeepCool PF700 | 700 W ATX Power Supply with 80 PLUS Efficiency
The DeepCool PF700 power supply unit 700 W 20+4 pin ATX ATX Black delivers reliable, efficient power for desktop PCs and small servers. With 80 PLUS certification ensuring 85% efficiency under typical loads, it reduces energy waste and operating temperatures while maintaining stable performance.
Key Specifications
| Metric | Spec |
|---|---|
| Total Power Output | 700 W |
| Efficiency Rating | 80 PLUS Standard (85%) |
| Fan Size | 120 mm hydraulic bearing |
| Protection Features | Over power, over voltage, short circuit, under voltage |
| PSU Form Factor | ATX |
Higher Efficiency for Lower Operating Costs
Certified to 80 PLUS 230V EU Standard, this PSU maintains 85% efficiency during typical 50% loading. This translates to reduced electricity consumption and cooler operation, which can extend component lifespan and lower long-term running costs.

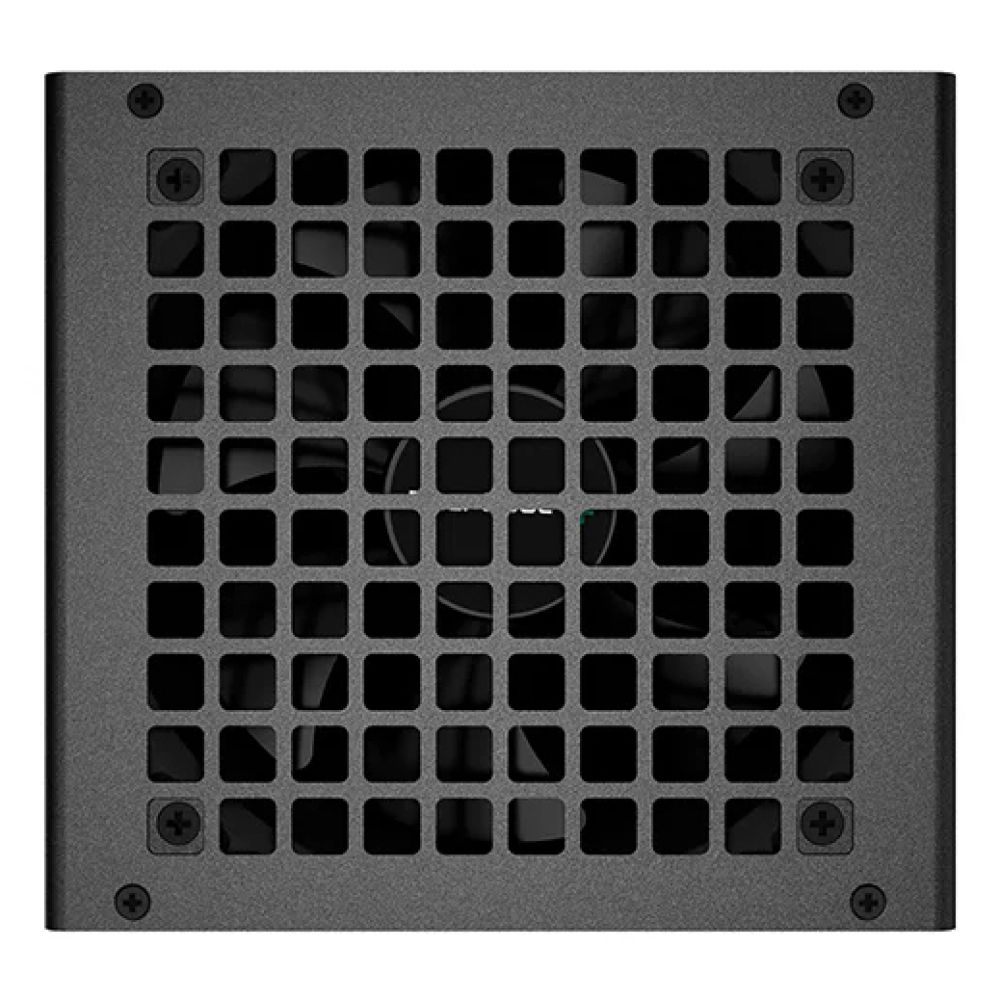

Quiet Hydraulic Bearing Fan
The 120 mm fluid dynamic bearing fan operates with minimal noise while improving overall reliability. Its design reduces friction and vibration compared to standard sleeve bearings, resulting in longer operational life and quieter system performance during extended use.
Flexible Cable Management with Flat Black Cables
Fixed flat black cables provide a stealthy appearance while being easier to route and manage within your case. The non-modular design saves space and simplifies installation, though it may require more planning for optimal cable routing in compact builds.
Comprehensive Power Protection
Built-in protection circuits guard against common electrical faults including overpower, over voltage, short circuit, and under voltage conditions. The 12 ms hold-up time ensures stable power delivery during brief interruptions, protecting your valuable components from potential damage.
Box Contents
- DeepCool PF700 power supply unit
- Fixed flat black power cables
- AC power cable
- User manual
Check before you buy
- Confirm your case supports standard ATX PSU dimensions (150 x 140 x 86 mm)
- Verify your system requires 700 W total power capacity
- Check motherboard compatibility with 20+4 pin ATX and 4+4 pin EPS connectors
- Confirm you need 4 SATA and 2 PCI-E 6+2 pin connectors for your components
Frequently Asked Questions
Q: Is this power supply suitable for gaming PCs?
A: Yes, the 700 W capacity and 58 A +12V rail make it suitable for mid-range gaming systems with dedicated graphics cards.
Q: What efficiency can I expect under normal use?
A: The unit maintains approximately 85% efficiency during typical 50% loading conditions.
Q: Does this PSU have modular cables?
A: No, this is a non-modular design with fixed flat black cables.
Q: What are the operating temperature limits?
A: The PSU operates safely between 0°C and 40°C ambient temperature.
Q: How many storage drives can I connect?
A: With 4 SATA power connectors, you can connect up to 4 storage drives or devices.
The Consultant’s verdict & warranty
The DeepCool PF700 power supply unit 700 W 20+4 pin ATX ATX Black offers solid performance for budget-conscious builders seeking reliable 80 PLUS efficiency. Its 700 W capacity suits mid-range gaming and workstation systems, while comprehensive protection features provide peace of mind. Covered by the standard Manufacturer Warranty.
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC/Server |
| ATX version | 2.4 |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
| 80 PLUS certification | 80 PLUS |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |

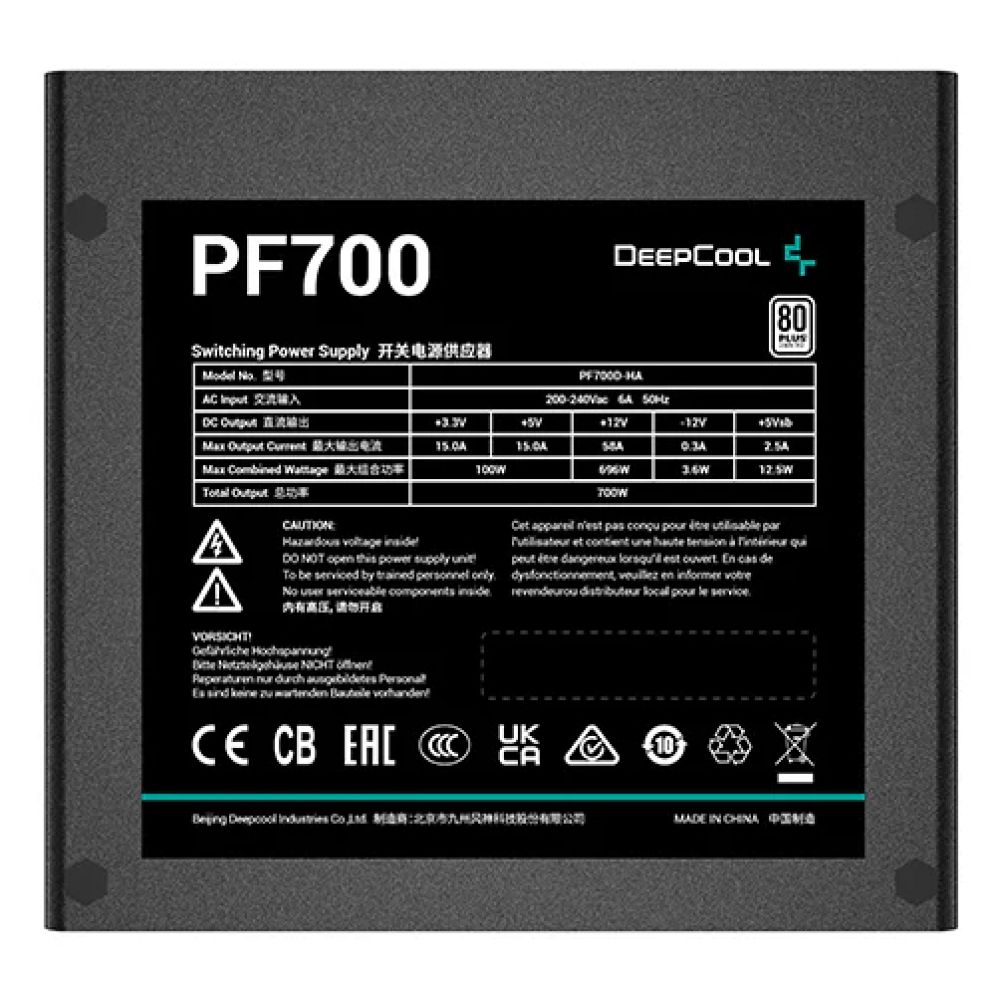

| Power | |
| Total power | 700 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 696 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 58 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Hold time | 12 ms |
| Efficiency | 85% |
| Ports & interfaces | |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450,600,750,900 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Compliance certificates | CCC, CE, EAC, UKCA |
| 80 PLUS certification | 80 PLUS |
| Packaging content | |
| Cables included | AC |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging data | |
| Cables included | AC |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CCC, CE, EAC, UKCA |
