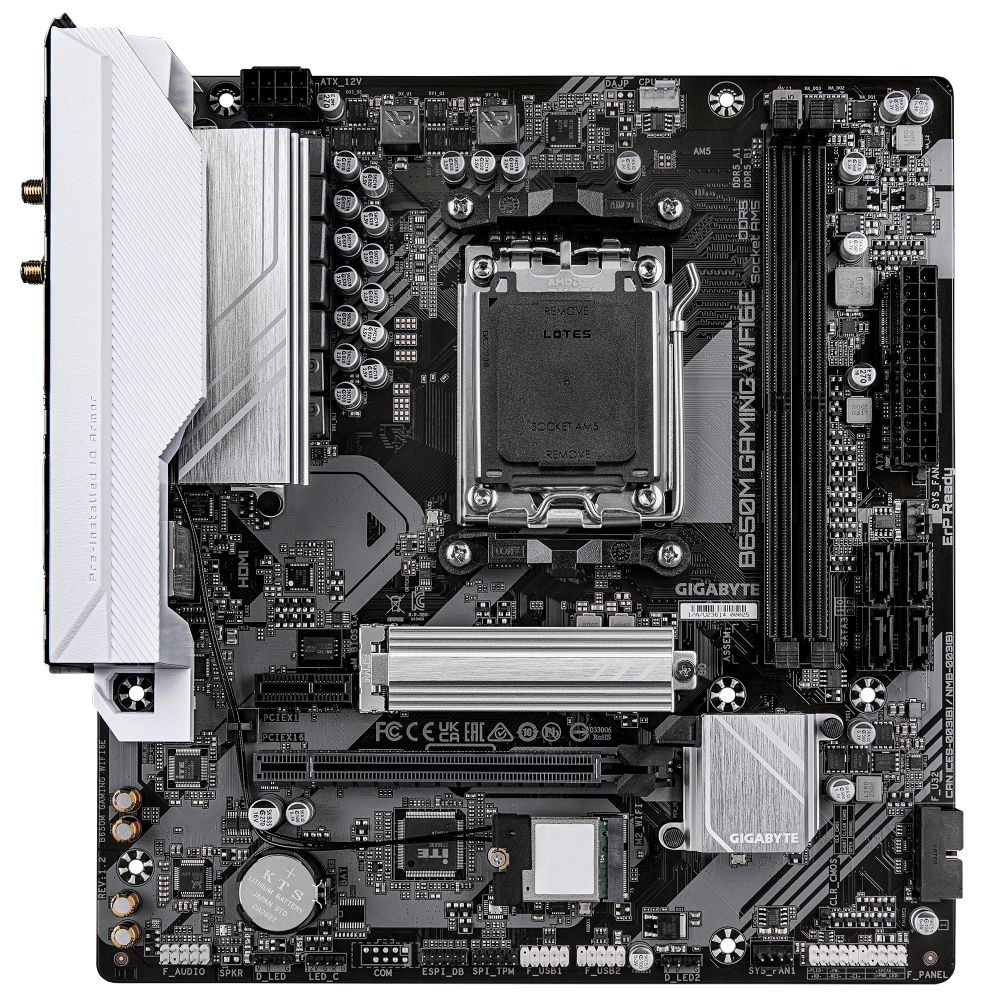

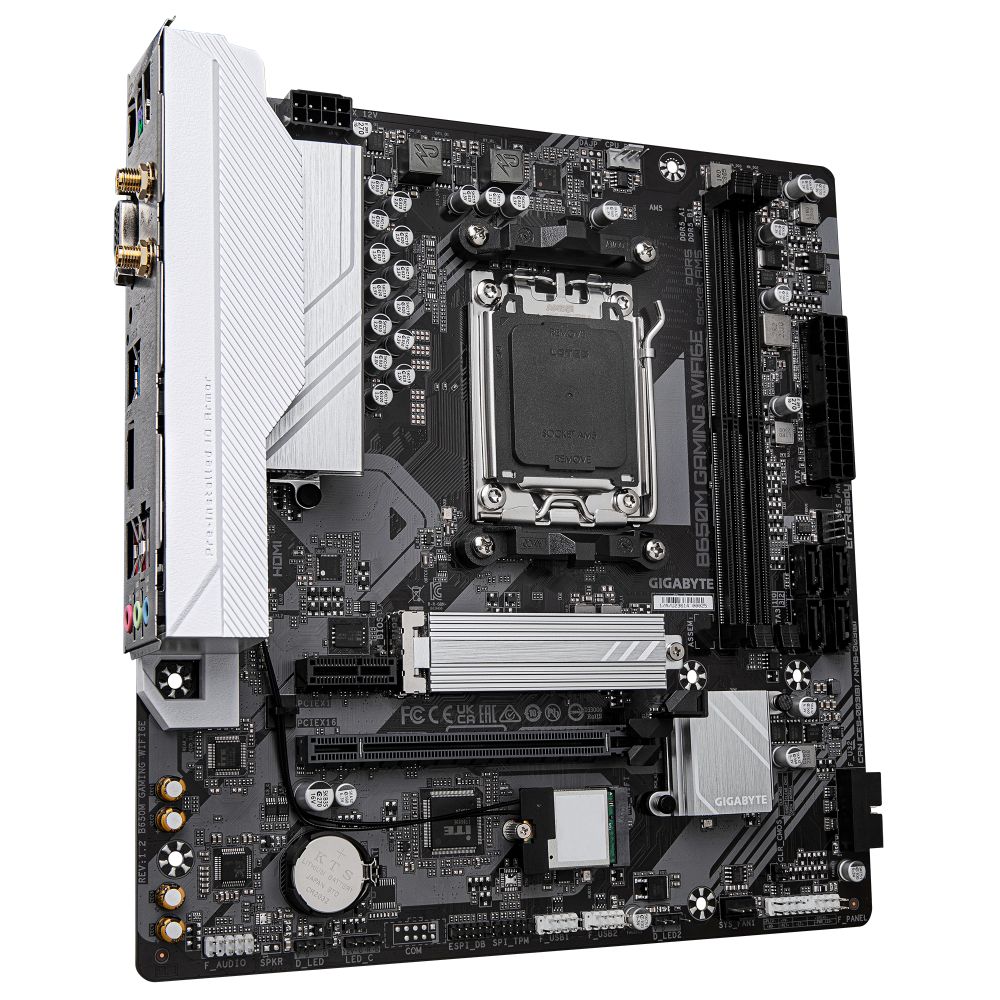

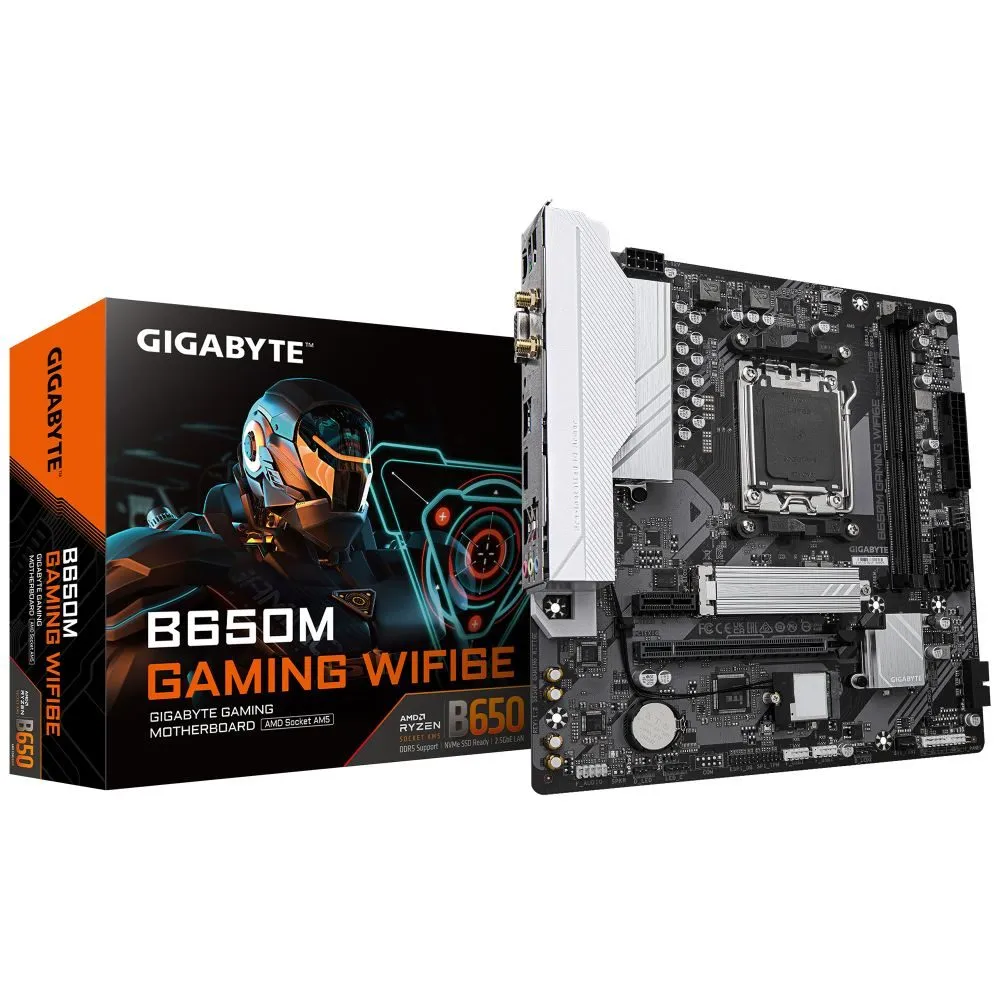

GIGABYTE B650M Gaming WiFi6E Motherboard

GIGABYTE B650M GAMING WIFI6E | AMD AM5 Micro ATX Powerhouse

The GIGABYTE B650M GAMING WIFI6E Motherboard – AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5 GbE LAN, WIFI 6E, USB 3.2 Gen 1 delivers exceptional performance for compact AMD Ryzen builds. With its micro ATX form factor and robust VRM design, this board offers a perfect balance of power, connectivity, and future-proofing for gamers and content creators working within space constraints.

Slim Specs Table

Built for AMD Ryzen 9000 Series Performance

This motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors through the AM5 socket. The 5+2+2 phase VRM design ensures stable power delivery even under heavy workloads, making it ideal for demanding applications. Whether you’re gaming at high frame rates or rendering 4K video, the robust power delivery system maintains consistent performance without thermal throttling.

DDR5 Memory and PCIe 4.0 Storage Ready

With four DIMM slots supporting up to 256GB of DDR5 memory at speeds up to 6400MHz, this board delivers the bandwidth modern applications demand. The single PCIe 4.0 M.2 slot provides ultra-fast NVMe SSD performance, while four SATA III ports offer flexibility for additional storage options. Dual-channel memory architecture optimises data throughput for improved system responsiveness.

Comprehensive Connectivity Suite

The B650M GAMING WIFI6E excels in connectivity options despite its compact size. It features 2.5GbE LAN for lag-free online gaming and streaming, plus Wi-Fi 6E with Bluetooth 5.3 for wireless convenience. The rear I/O includes HDMI 2.1 with 4K support, USB 3.2 Gen 1 Type-A ports, and legacy PS/2 for peripherals. Front panel connectors support modern case designs while maintaining compatibility with older components.

Efficient Cooling and System Monitoring

Two chassis fan headers and one CPU fan connector allow for effective cooling configuration. The motherboard includes comprehensive PC health monitoring for fan speeds, temperatures, and voltages, ensuring system stability. The UEFI AMI BIOS with clear CMOS jumper simplifies troubleshooting and system tuning. These features help maintain optimal operating temperatures during extended gaming sessions or intensive workloads.

Box contents

• GIGABYTE B650M GAMING WIFI6E motherboard
• I/O shield
• SATA cables (quantity not specified)
• Wi-Fi antenna set
• User manual and driver disk
• Warranty card
• M.2 screws and standoff
• RGB LED extension cable (if applicable)

Check before you buy

• Confirm your CPU is compatible with the AM5 socket (Ryzen 7000/8000/9000 Series)
• Verify your case supports micro ATX motherboards (240mm x 225mm)
• Check if your PSU has the required 24-pin ATX and 8-pin EPS connectors
• Confirm DDR5 memory compatibility with your chosen modules

Frequently Asked Questions

Q: Does this motherboard support Windows 11?

A: Yes, it supports Windows 10 x64 and Windows 11 operating systems.

Q: What is the maximum RAM capacity?

A: The motherboard supports up to 256GB of DDR5 memory across four DIMM slots.

Q: Is Wi-Fi 6E included or is it optional?

A: Wi-Fi 6E is built-in with the Realtek RTL8852CE controller and includes external antennas.

Q: Can I use this with a Ryzen 5000 Series CPU?

A: No, this AM5 motherboard only supports Ryzen 7000, 8000, and 9000 Series processors.

The Consultant’s verdict & warranty

The GIGABYTE B650M GAMING WIFI6E represents excellent value for users seeking AMD AM5 performance in a compact micro ATX form factor. Its combination of DDR5 support, robust VRM design, and comprehensive connectivity makes it ideal for space-conscious gamers and creators who don’t want to compromise on features. Covered by the standard Manufacturer Warranty, this motherboard delivers reliable performance for mainstream to high-end AMD Ryzen builds.
