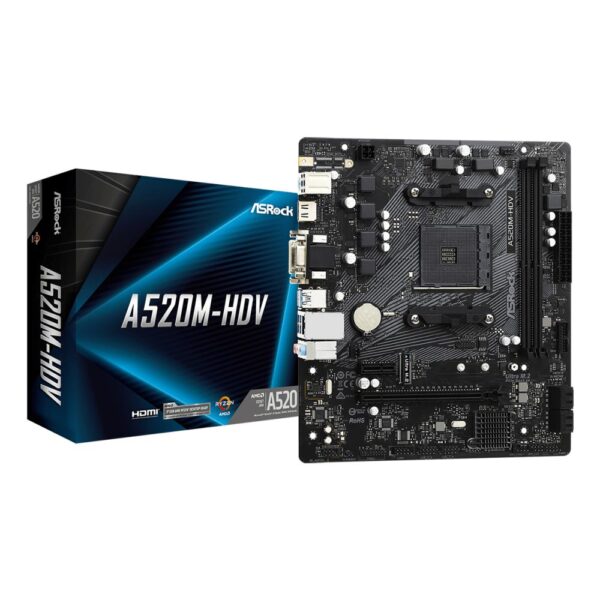

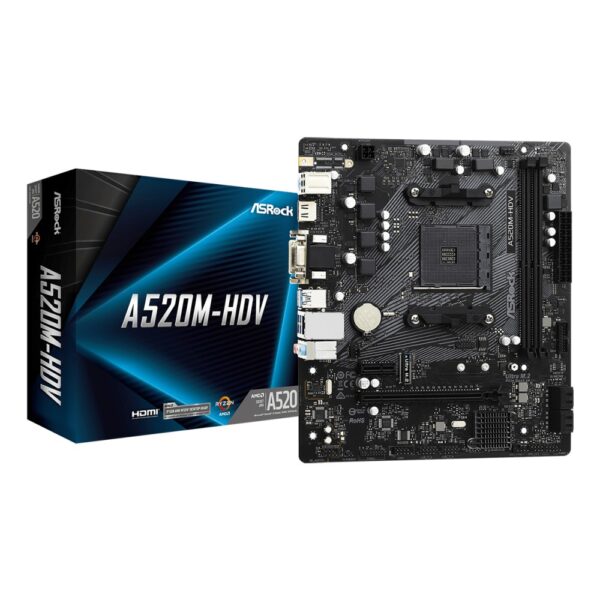

Asrock A520M-HDV AM4 mATX Motherboard
£49.48 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD A520 chipset supporting AMD Ryzen 3000 Series processors
- Socket AM4 with 2 DIMM slots for DDR4 memory up to 64 GB
- Ultra M.2 slot and 5 SATA ports for storage
- 7.1 channel audio with Full Spike Protection
- Micro ATX form factor with HDMI, D-Sub, and DVI-D outputs
- Gigabit Ethernet LAN with Wake-on-LAN ready
- Check CPU support list for integrated graphics compatibility
Payment Methods:
You may also like

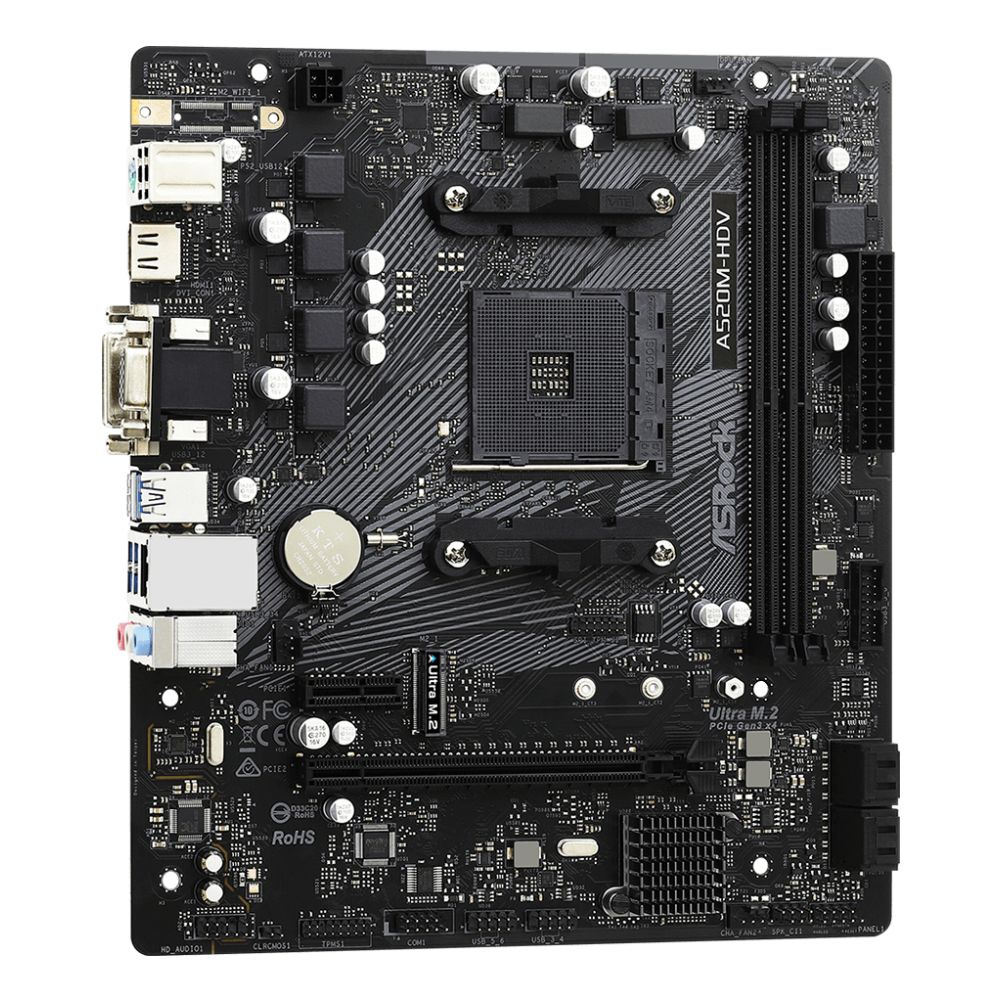

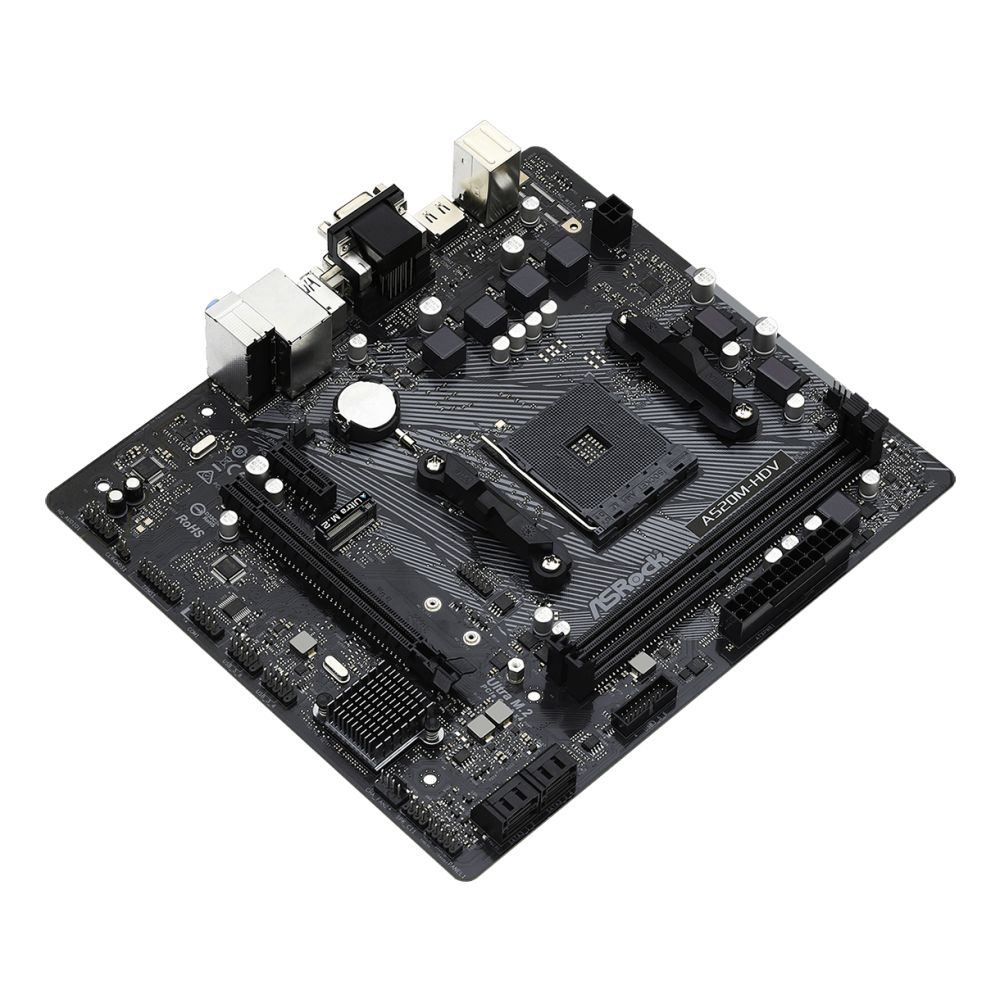

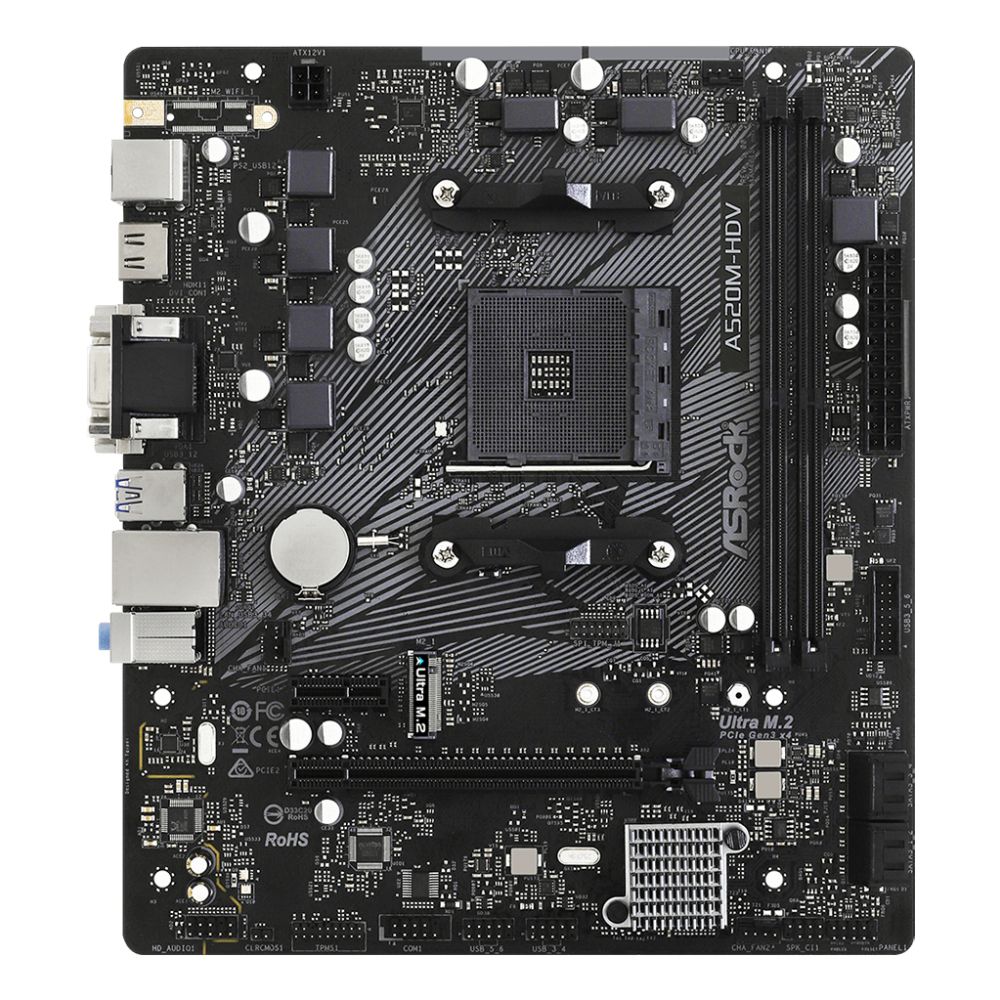

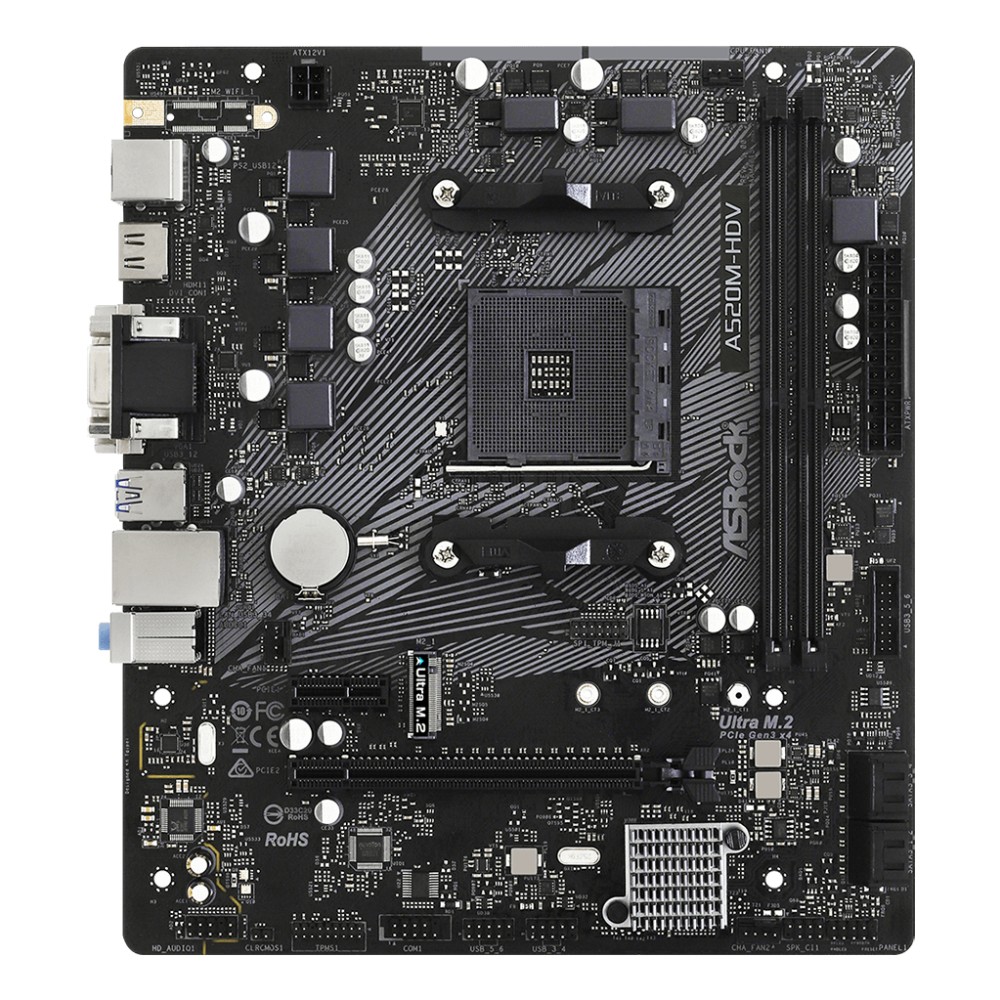

Asrock A520M-HDV | Micro ATX AM4 Foundation
The Asrock A520M-HDV Socket AM4 micro ATX is a practical foundation for budget-friendly AMD builds. It targets users assembling a reliable PC for home office, study, or light media tasks. This board provides essential connectivity and supports AMD Ryzen 3000 series processors, making it a solid choice for a value-oriented system.
Slim Specifications
| Metric | Spec. |
|---|---|
| Processor Socket | Socket AM4 |
| Memory Slots | 2 x DDR4 DIMM |
| Maximum Memory | 64 GB |
| Graphics Outputs | D-Sub, HDMI |
| Storage Interfaces | M.2, SATA III |
| Form Factor | Micro ATX |
Integrated Graphics Connectivity
This motherboard includes three physical video outputs: D-Sub, HDMI, and DVI-D. You can connect modern monitors via HDMI for 4K resolution at 60Hz, provided you use a compatible AMD processor with integrated graphics. This flexibility is useful for multi-monitor setups or legacy displays.
Fast Storage Support
The board features an Ultra M.2 slot supporting PCIe Gen3 x4 speeds up to 32Gb/s. This allows you to install a high-speed NVMe SSD for quicker boot times and application loading. It also accepts SATA3 6Gb/s M.2 modules, giving you build flexibility.
Core Component Protection
ASRock includes Full Spike Protection to guard sensitive motherboard components against unexpected voltage surges. The Premium 50A Power Choke enhances voltage stability to the CPU. Additionally, the High-Density Glass Fabric PCB design helps protect against electrical shorts from humidity.
Essential Connectivity
You get four USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports for peripherals. The Realtek Gigabit LAN controller provides stable wired networking. Note that this model does not include built-in Wi-Fi; you will need a separate adapter for wireless connectivity.
Box contents
- Asrock A520M-HDV motherboard
- I/O shield
- SATA cables
- M.2 screw
Check before you buy
- Confirm your processor is an AMD Ryzen 3000 series CPU (or newer, compatible series).
- Verify your case supports the Micro ATX (230 mm x 201 mm) form factor.
- Check that your memory is DDR4-SDRAM and matches the supported speeds.
- Confirm you have a separate graphics card if your CPU lacks integrated graphics.
Frequently Asked Questions
Q: Does the Asrock A520M-HDV support Wi-Fi?
A: No, this motherboard does not have built-in Wi-Fi. You will need a USB or PCIe Wi-Fi adapter.
Q: What is the maximum RAM capacity?
A: The board supports up to 64 GB of DDR4 memory across its two DIMM slots.
Q: Can I use a Ryzen 5000 series CPU?
A: Yes, with a BIOS update. Please check the official ASRock CPU support list for your specific model.
Q: How many drives can I connect?
A: You can connect up to five storage drives using the M.2 slot and SATA III ports.
Q: Does it have a VGA port?
A: Yes, it includes one VGA D-Sub port alongside HDMI and DVI-D outputs.
The Consultant’s verdict & warranty
This ASRock board is ideal for budget-conscious builders, students, or office users needing a stable AMD platform without extra features. It delivers the essentials for a functional PC. Covered by the standard Manufacturer Warranty.
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 5 |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| Internal I/O | |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |

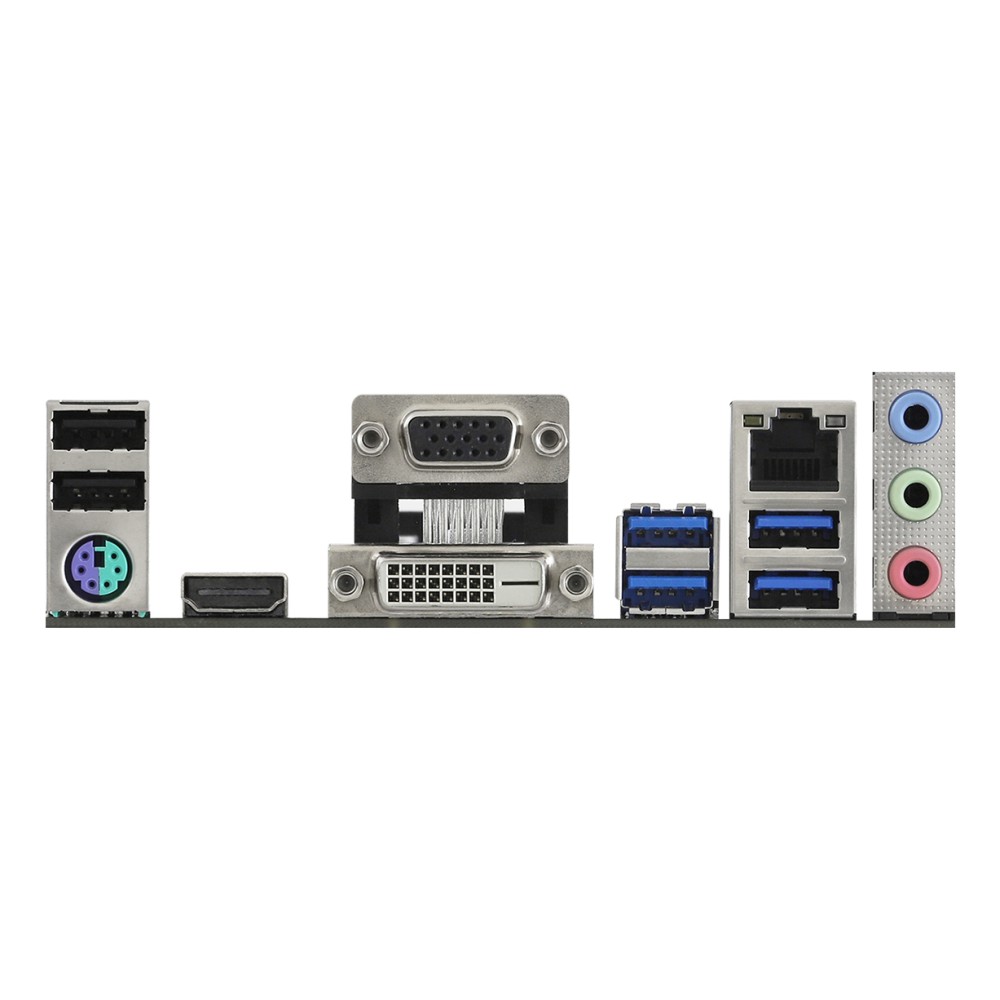

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Video | |
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 201 mm |
| Identifiers | |
| Distributor SKUs | 90-MXBE50-A0UAYZ, 202480, 565847, STD10232870, MBASR-A520MHDV, CLA520M-HDV, 9231342000 |
