GIGABYTE B760M H DDR4 Motherboard – Intel 14th Gen, 6+1+1 VRM, 3200MHz DDR4, PCIe 4.0 M.2, GbE, USB 3.2

GIGABYTE B760M H DDR4 | Intel Micro ATX Motherboard

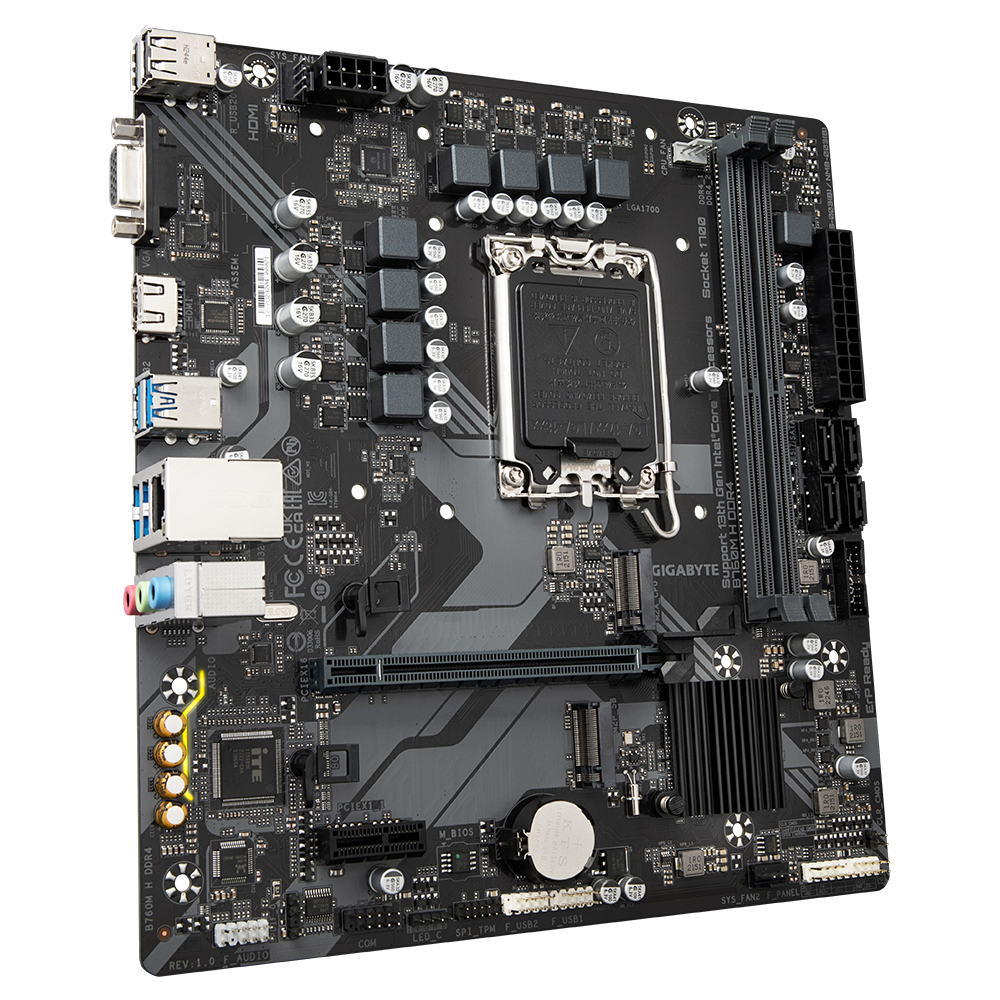

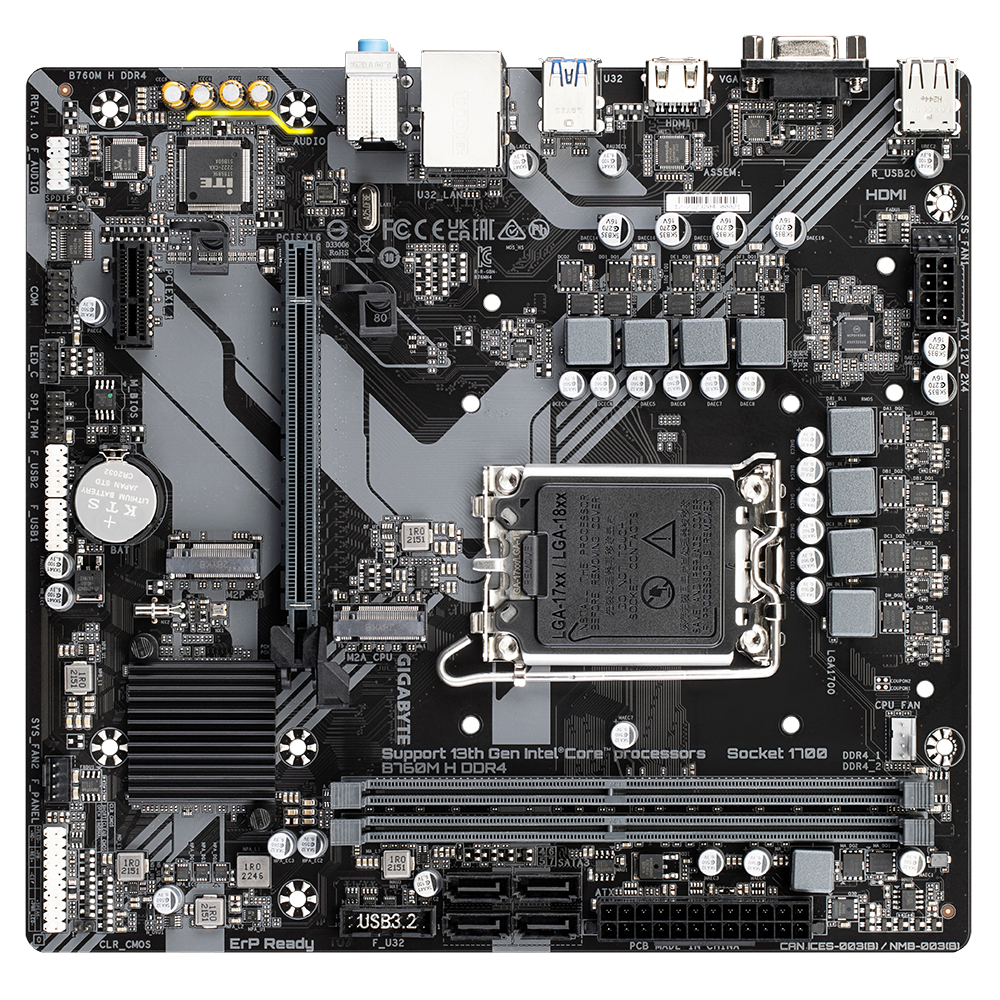

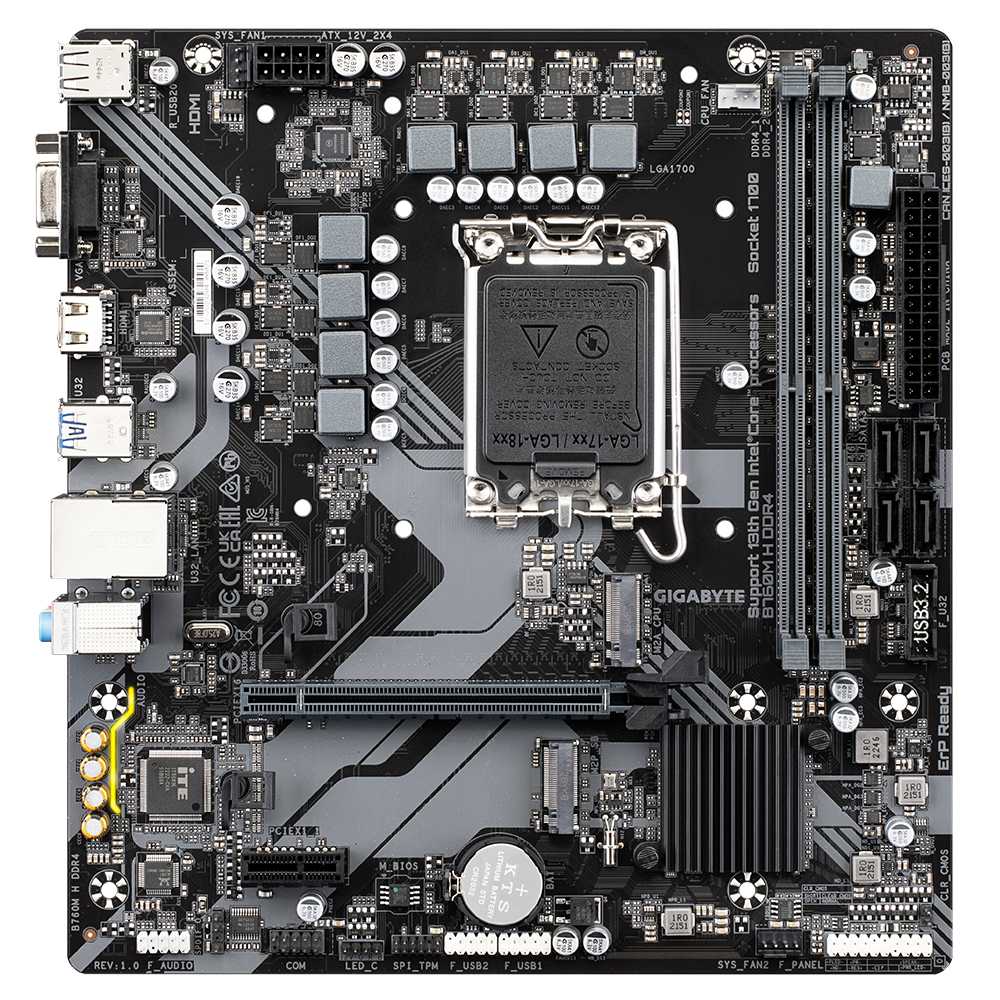

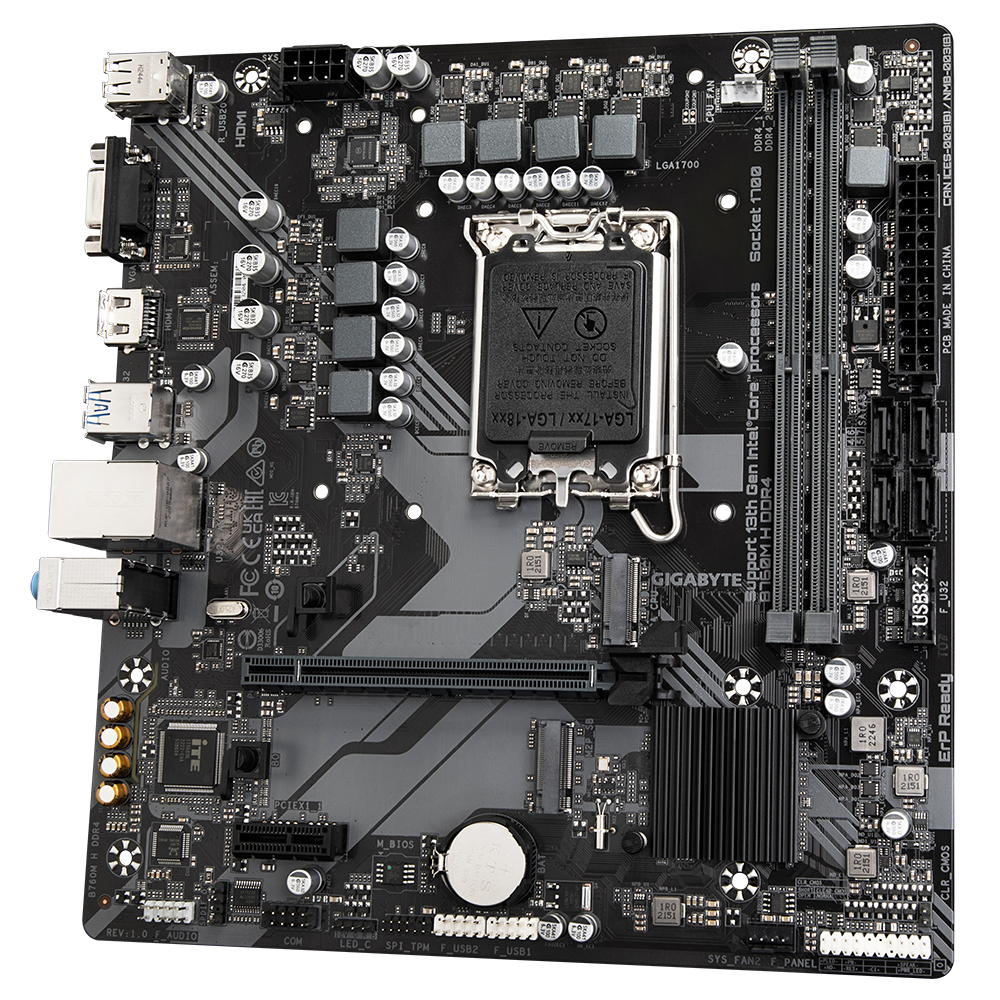

The GIGABYTE B760M H DDR4 motherboard delivers a solid foundation for Intel Core 14th Gen processors, featuring a 6+1+1 phase digital VRM design and support for up to 3200MHz DDR4 memory. This micro ATX board balances performance and practicality for compact builds.

Intel Core 14th Gen Ready Performance

Built with the Intel B760 Express chipset, this motherboard supports Intel Core 14th Gen CPUs right out of the box. The 6+1+1 phase digital VRM delivers stable power delivery for demanding workloads and gaming sessions. Whether you’re building a productivity workstation or a gaming PC, the B760M H handles modern Intel processors with confidence.

Dual M.2 PCIe 4.0 Storage

Equipped with two M.2 slots supporting PCIe 4.0, this board enables ultra-fast NVMe SSD storage. You can run dual high-speed drives for your operating system and applications, significantly reducing load times. The M.2 thermal design helps maintain optimal temperatures during intensive storage operations.

Compact Micro ATX Design

The micro ATX form factor (230mm x 215mm) makes this board ideal for space-conscious builds without sacrificing connectivity. Four SATA III ports complement the M.2 slots, giving you flexibility for multiple storage devices. The compact size fits standard ATX cases while leaving room for other components.

Comprehensive I/O Connectivity

With four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, and both HDMI and DisplayPort outputs, connectivity options are plentiful. The Gigabit Ethernet port ensures reliable wired networking, while the Realtek ALC897 audio codec delivers 7.1 channel sound quality for immersive gaming and media experiences.

Box contents

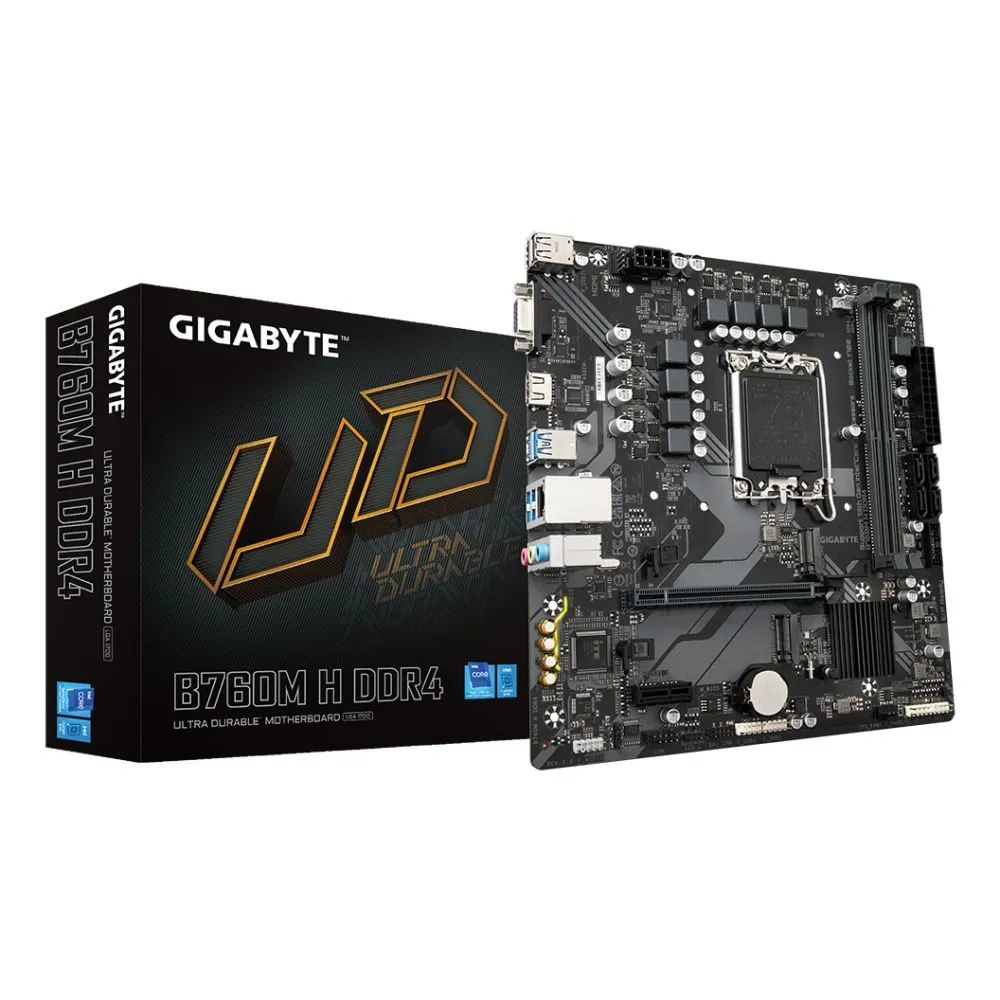

• GIGABYTE B760M H DDR4 motherboard
• I/O shield
• User manual
• Driver/software disc
• SATA cables (quantity varies)
• M.2 screws
• CMOS battery (CR2032)

Check before you buy

• Confirm your Intel Core 14th Gen CPU is compatible with this motherboard
• Verify your case supports micro ATX form factor dimensions
• Check if your GPU fits alongside the PCIe x16 slot
• Ensure you have appropriate DDR4 memory modules (up to 3200MHz)

Frequently Asked Questions

Q: Does this motherboard support Windows 11?

A: Yes, it supports both Windows 10 and Windows 11 operating systems.

Q: What is the maximum memory capacity?

A: The motherboard supports up to 64GB of DDR4 memory across two DIMM slots.

Q: Can I use PCIe 4.0 graphics cards?

A: Yes, the PCIe x16 slot supports PCIe 4.0 graphics cards.

Q: Is Wi-Fi included on this motherboard?

A: No, this model does not include built-in Wi-Fi. You’ll need a separate Wi-Fi adapter.

Q: What RAID configurations are supported?

A: The motherboard supports RAID 0, 1, 5, and 10 configurations.

The Consultant’s verdict & warranty

The GIGABYTE B760M H DDR4 offers excellent value for users building systems around Intel Core 14th Gen processors who need reliable performance in a compact form factor. With dual M.2 PCIe 4.0 slots, comprehensive connectivity, and micro ATX dimensions, it suits both first-time builders and upgrades. Covered by the standard Manufacturer Warranty.
