Asrock H610M-HDV/M.2 R2.0 motherboard
£55.92 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel H610 LGA 1700 micro ATX motherboard for Intel Core i3/i5/i7/i9 processors
- Supports up to 64 GB DDR4 memory at 3200 MHz in dual-channel configuration
- Features 1 Ultra M.2 slot with PCIe Gen3 x4 for high-speed storage
- Offers 4 SATA III ports and 1 M.2 slot supporting both HDD and SSD
- Includes HDMI 2.1, DisplayPort 1.4, and VGA for versatile display connectivity
Payment Methods:
You may also like

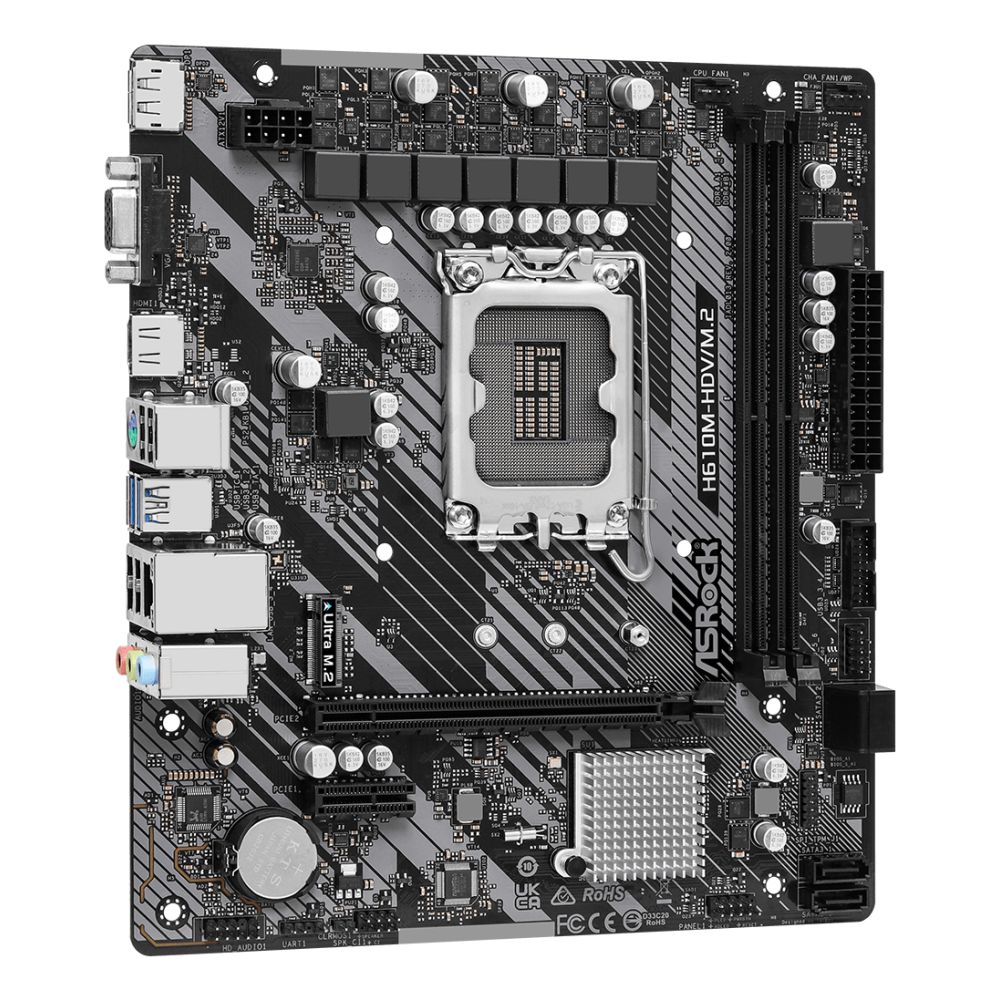

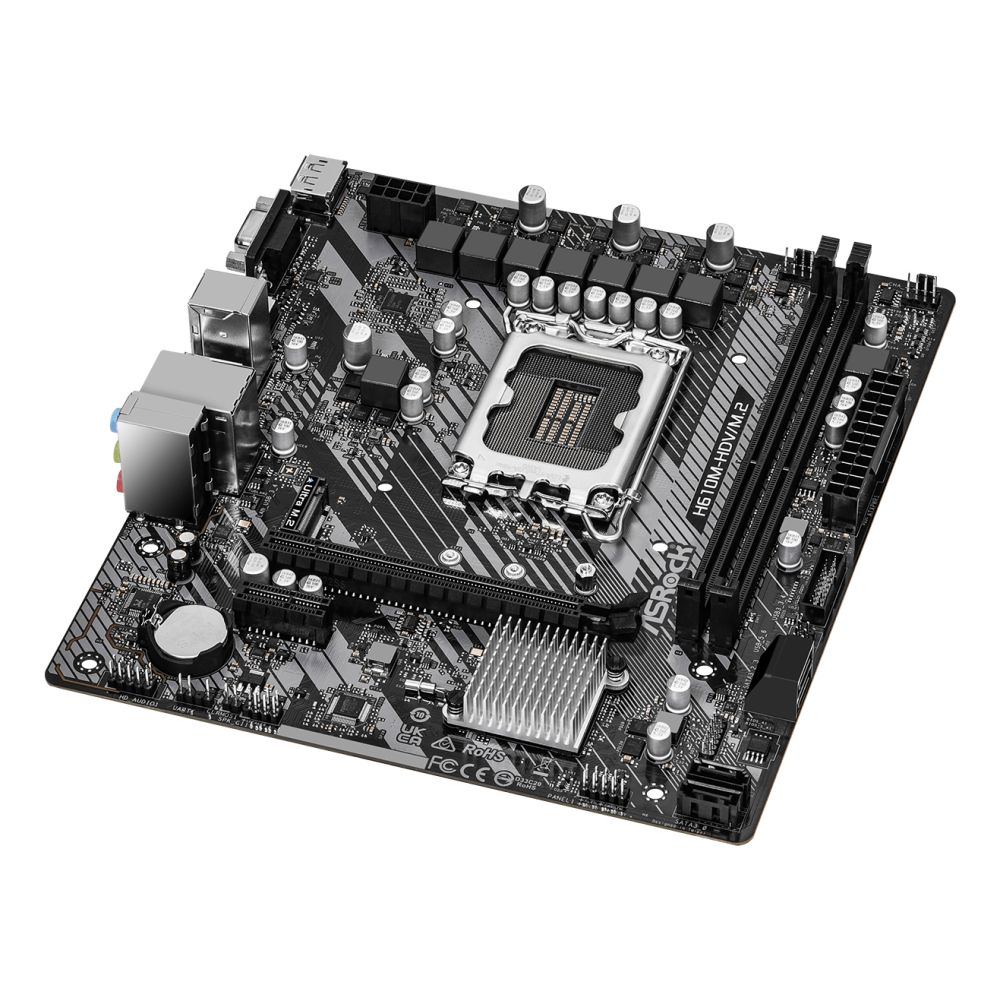

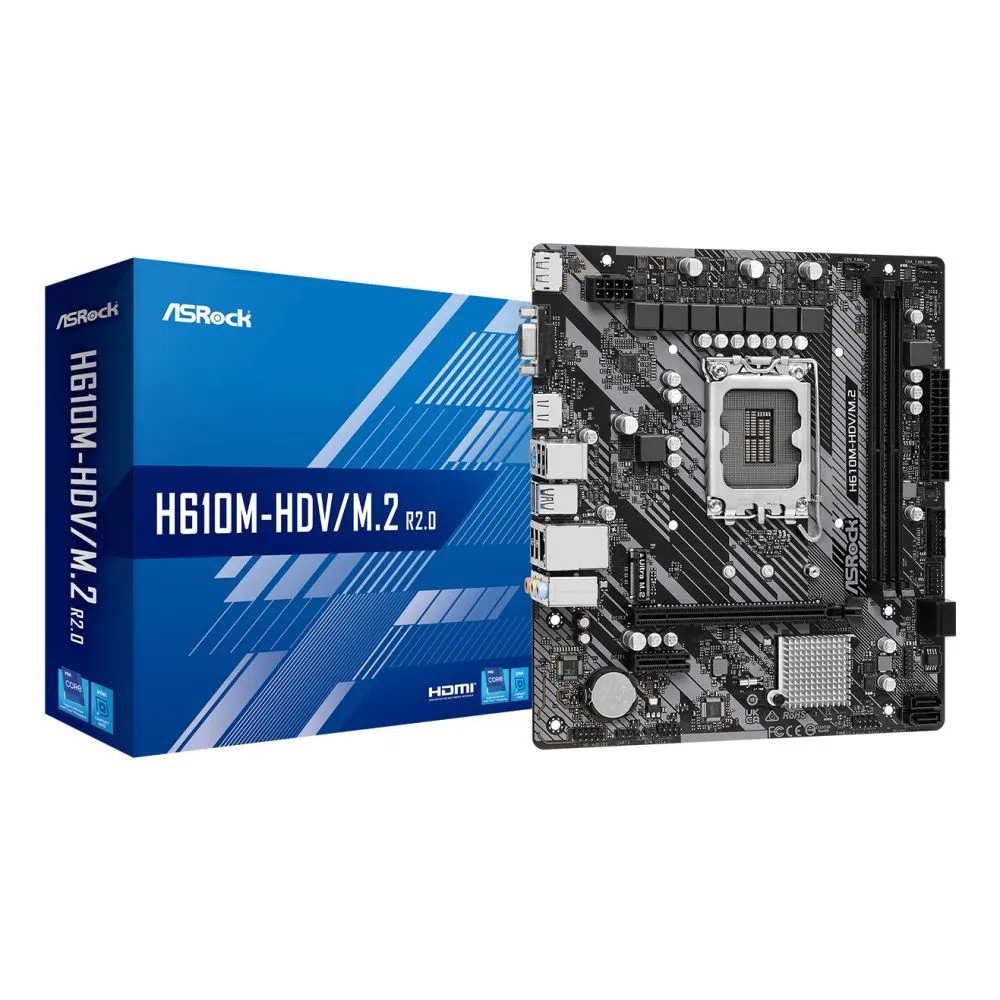

ASRock H610M-HDV/M.2 R2.0 | Micro ATX Intel H610 Motherboard
The ASRock H610M-HDV/M.2 R2.0 motherboard Intel H610 LGA 1700 micro ATX delivers reliable performance for Intel Core processors in a compact micro ATX form factor. Built around the Intel H610 chipset, it supports 12th and 13th Gen Intel Core CPUs through the LGA 1700 socket, making it suitable for home and office builds requiring stability and essential connectivity.
| Metric | Spec. |
|---|---|
| Socket | LGA 1700 |
| Memory Support | DDR4, up to 64 GB |
| M.2 Slots | 1 (PCIe Gen3 x4) |
| PCIe Slots | 1 x16 Gen4, 1 x1 Gen3 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4, VGA |
Compact micro ATX design with full connectivity
Measuring just 220 mm x 193 mm, this micro ATX board fits easily into smaller cases while providing all essential ports. The layout includes four SATA III connectors for traditional storage alongside a single Ultra M.2 slot supporting PCIe Gen3 x4 speeds up to 32 Gb/s. This combination allows users to run multiple drives without sacrificing expansion options.
Stable power delivery with Digi Power technology
Unlike conventional analog designs, the H610M-HDV/M.2 R2.0 uses digital PWM control to deliver smoother, more efficient CPU Vcore voltage. This improves system stability and extends motherboard lifespan. Premium power chokes further enhance current delivery, reducing voltage ripple under load for consistent performance during demanding tasks.
Flexible display connectivity for integrated graphics
With three simultaneous display outputs—HDMI 2.1, DisplayPort 1.4, and VGA—this motherboard supports multi-monitor setups when paired with compatible Intel processors featuring integrated graphics. HDMI 2.1 enables 4K resolution at 60 Hz, ensuring sharp, fluid visuals for productivity or media consumption. Note that discrete graphics cards are not supported on this chipset.
Enhanced durability and protection features
ASRock incorporates several reliability features including Full Spike Protection to guard against voltage surges, and a High Density Glass Fabric PCB that reduces moisture-related short circuits. The Sapphire Black PCB not only provides a sleek aesthetic but also signifies robust build quality. Realtek ALC897 audio and RTL8111H LAN deliver dependable multimedia and network performance.
In the box
- ASRock H610M-HDV/M.2 R2.0 motherboard
- I/O shield
- User manual
- SATA cables (quantity not specified)
Before you order
- Confirm your CPU is LGA 1700 and compatible with Intel H610 chipset
- Verify your case supports micro ATX (9.6″ x 8.1″) motherboards
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Confirm you need integrated graphics support, as this board does not support discrete GPUs
Buyer FAQs
Does this motherboard support DDR5 memory?
Can I install a PCIe 5.0 graphics card?
How many monitors can I connect simultaneously?
Is Wi-Fi built in?
What size power supply do I need?
Our recommendation
The ASRock H610M-HDV/M.2 R2.0 offers a solid foundation for Intel-based systems where integrated graphics and essential connectivity are priorities. Its micro ATX footprint, reliable power delivery, and multiple display outputs make it well-suited for office PCs, home media setups, and budget-conscious builds. Covered by the applicable manufacturer warranty.
| Weight | 1.35 kg |
|---|---|
| Certification | – FCC, CE – ErP/EuP ready |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector 24-pin | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 3200 MHz |
| ECC сompatibility | ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Wake-on-LAN ready | Yes |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Number of M.2 M slots | 1 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 220 mm |
| Depth | 193 mm |
