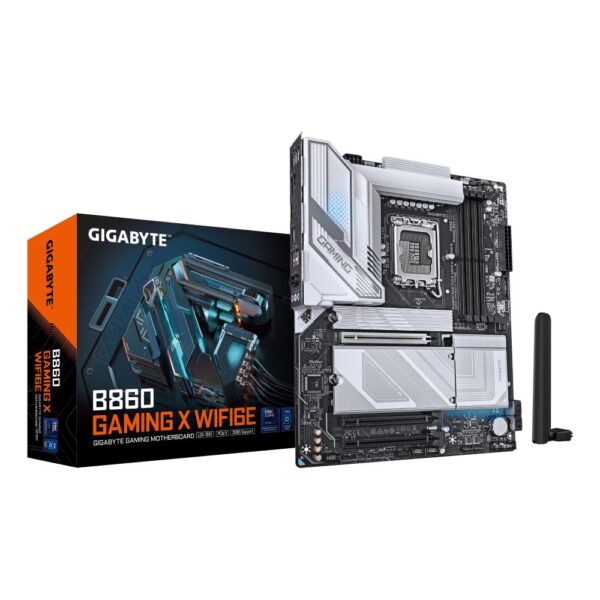

GIGABYTE B860 GAMING X WIFI6E Motherboard – Intel Core Ultra, 12+1+2+1 VRM, DDR5, PCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE, WIFI 6E, USB4

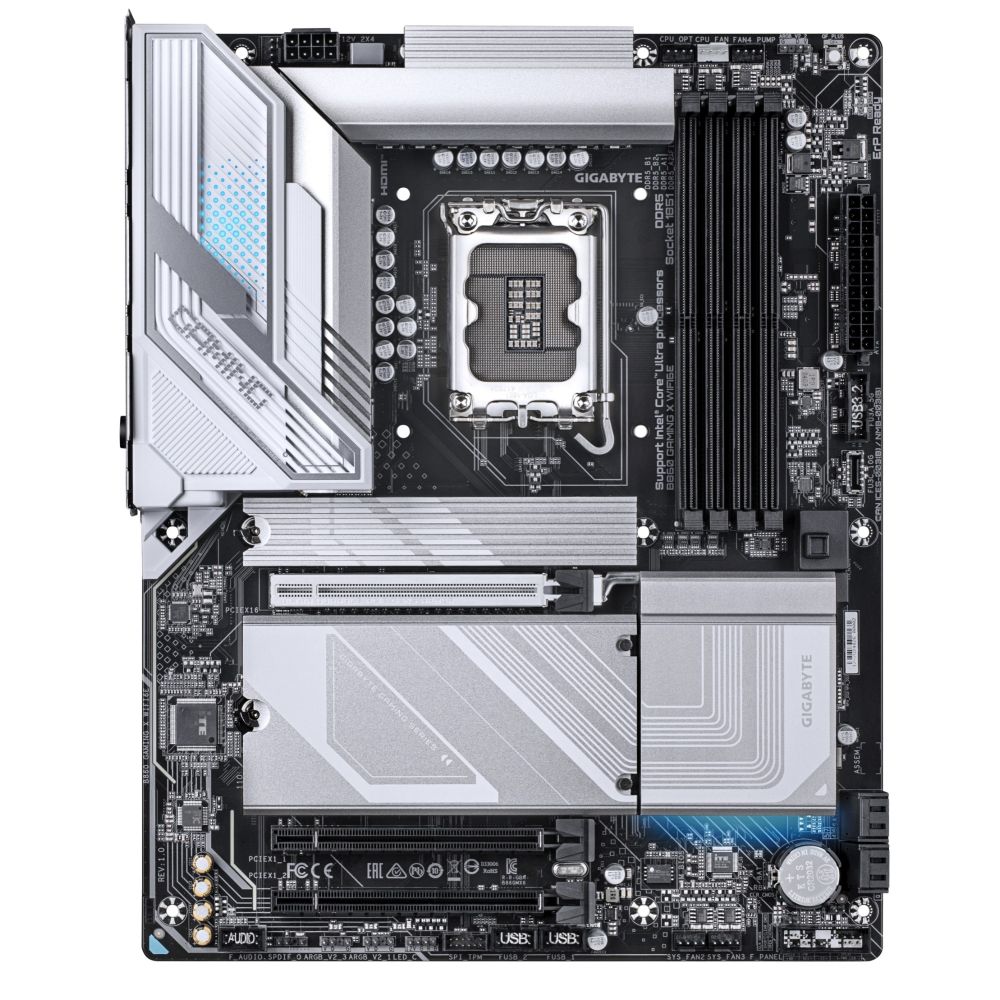

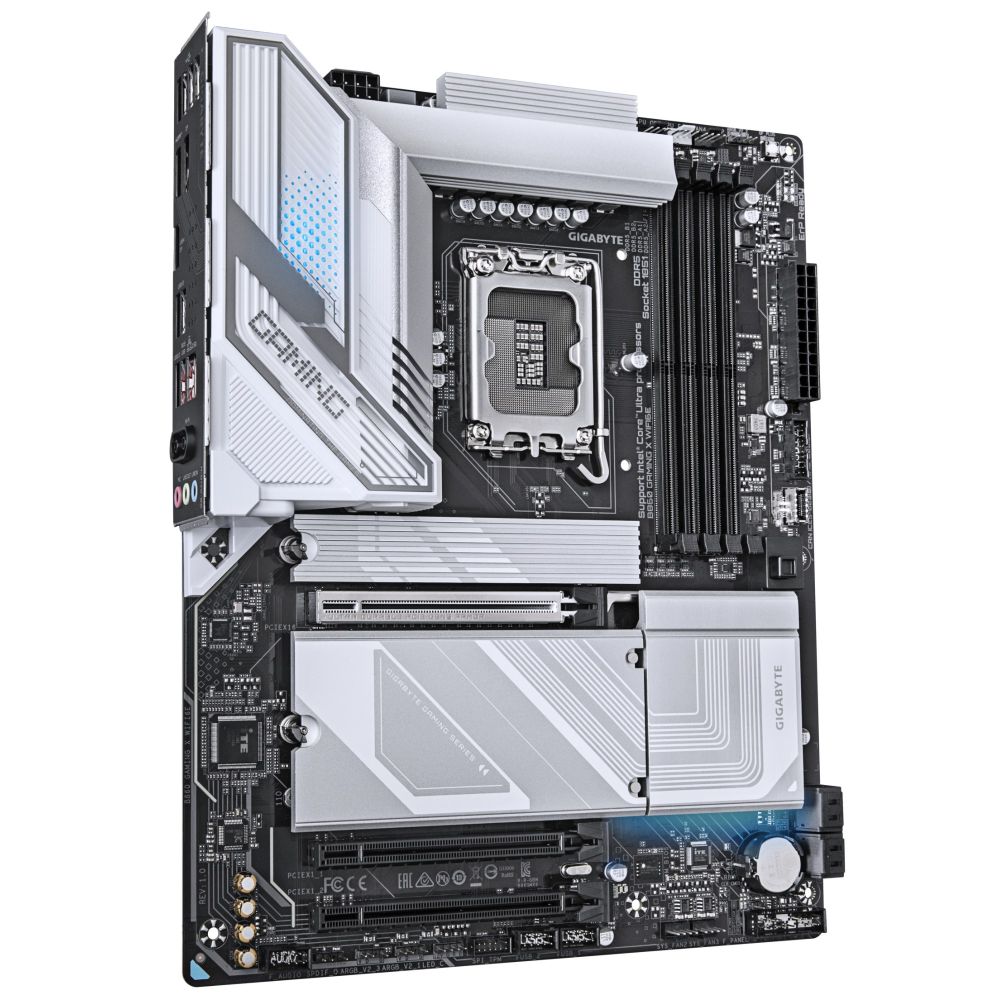

GIGABYTE B860 GAMING X WIFI6E | Intel Core Ultra Ready Motherboard

The GIGABYTE B860 GAMING X WIFI6E motherboard delivers a robust foundation for Intel Core Ultra Series processors, featuring 12+1+2+1 phase VRM, DDR5 memory up to 9066MHz, and PCIe 5.0/4.0 M.2 slots. Designed for gamers and creators who demand reliable performance, this ATX board combines modern connectivity with comprehensive cooling support.

Built for Intel Core Ultra CPUs

This motherboard is engineered specifically for Intel’s Core Ultra Series processors, supporting both Series 1 and Series 2 chips. The LGA 1851 socket and 12+1+2+1 phase VRM design ensures stable power delivery even under heavy workloads. Whether you’re gaming, streaming, or running creative applications, the power architecture maintains consistent performance without thermal throttling.

Next-Generation Storage and Expansion

With three M.2 slots including one PCIe 5.0 capable drive, you can achieve blazing-fast storage speeds. The motherboard supports up to seven storage drives total, combining M.2 and SATA III options. PCIe 5.0 x16 slot provides headroom for the latest graphics cards, while two additional PCIe 4.0 x16 slots offer flexibility for multiple GPUs or expansion cards.

Comprehensive Connectivity Suite

Stay connected with dual-band Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for wireless peripherals. The 2.5GbE LAN controller ensures lag-free online gaming and fast file transfers. Front panel USB 3.2 Gen 2 Type-C and multiple USB 3.2/2.0 ports provide easy access to high-speed connections. HDMI 2.1 and DisplayPort 2.1 outputs support 4K resolution at high refresh rates.

Advanced Cooling and System Monitoring

The B860 GAMING X features passive cooling design with extensive thermal management options. Four chassis fan headers, two CPU fan headers, and two water pump connectors allow for custom cooling configurations. PC health monitoring tracks fan speeds, temperatures, and voltages in real-time, giving you complete control over system thermals.

Box Contents

• GIGABYTE B860 GAMING X WIFI6E motherboard
• I/O shield
• SATA cables (quantity not specified)
• User manual
• Driver/software support disc
• Wi-Fi antennas (2x)
• Screws and standoffs
• CMOS battery (CR2032)
• Norton Internet Security (OEM version)

Check before you buy

• Confirm your Intel Core Ultra processor is compatible with LGA 1851 socket
• Verify your case supports ATX form factor (305x244mm)
• Check that your PSU has required connectors (24-pin ATX, 8-pin EPS)
• Ensure your cooling solution fits the CPU socket area

Frequently Asked Questions

Q: Does this motherboard support DDR4 memory?

A: No, it only supports DDR5-SDRAM memory modules.

Q: Can I use this with older Intel processors?

A: No, it’s designed exclusively for Intel Core Ultra Series CPUs with LGA 1851 socket.

Q: What’s the maximum supported memory capacity?

A: Up to 256GB across four DIMM slots, with ECC or non-ECC memory support.

Q: Does it include built-in Wi-Fi and Bluetooth?

A: Yes, featuring Intel Wi-Fi 6E AX211 and Bluetooth 5.3 connectivity.

Q: How many graphics cards can I install?

A: One GPU in the primary PCIe 5.0 x16 slot, with two additional PCIe 4.0 x16 slots available.

The Consultant’s verdict & warranty

The GIGABYTE B860 GAMING X WIFI6E represents excellent value for users building systems around Intel Core Ultra processors. Its combination of PCIe 5.0 storage, robust VRM design, and comprehensive connectivity makes it suitable for both gaming and content creation workloads. Covered by the standard Manufacturer Warranty.
