ASRock H810M-X WiFi | Intel H810 LGA 1851 micro ATX Motherboard

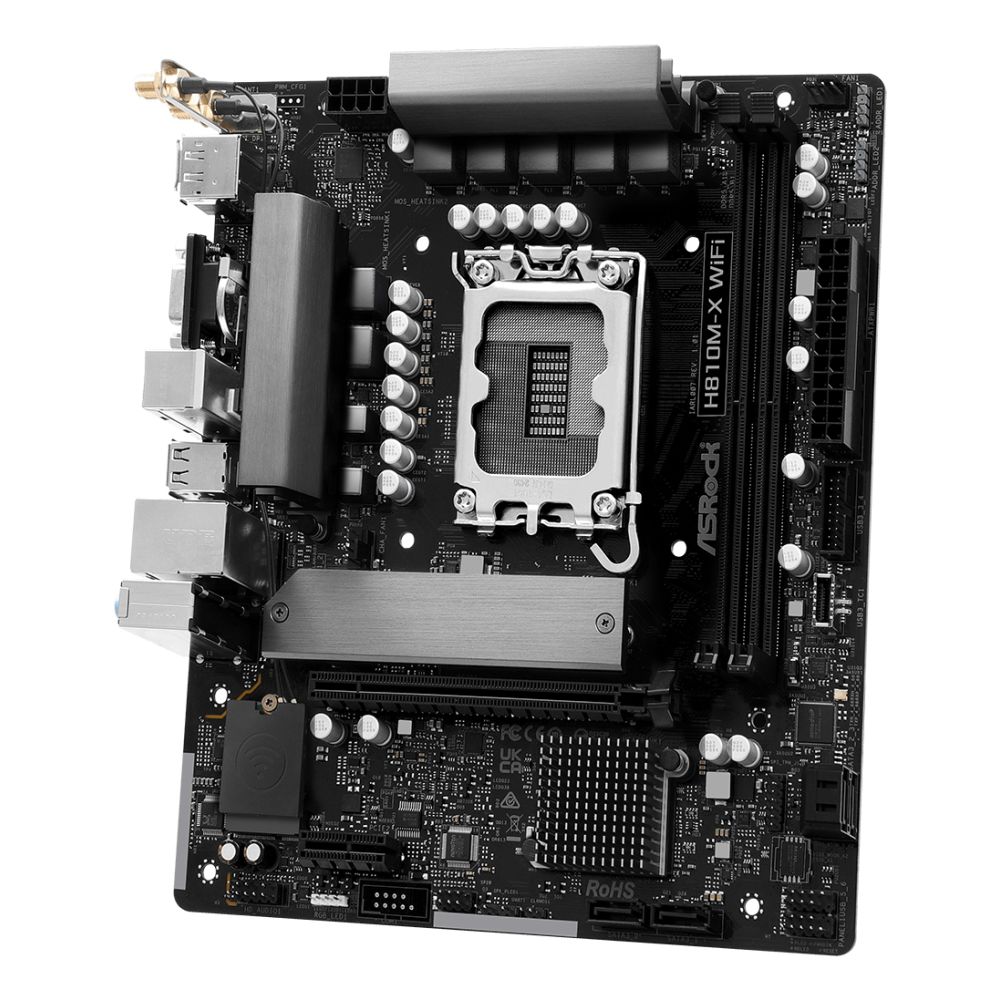

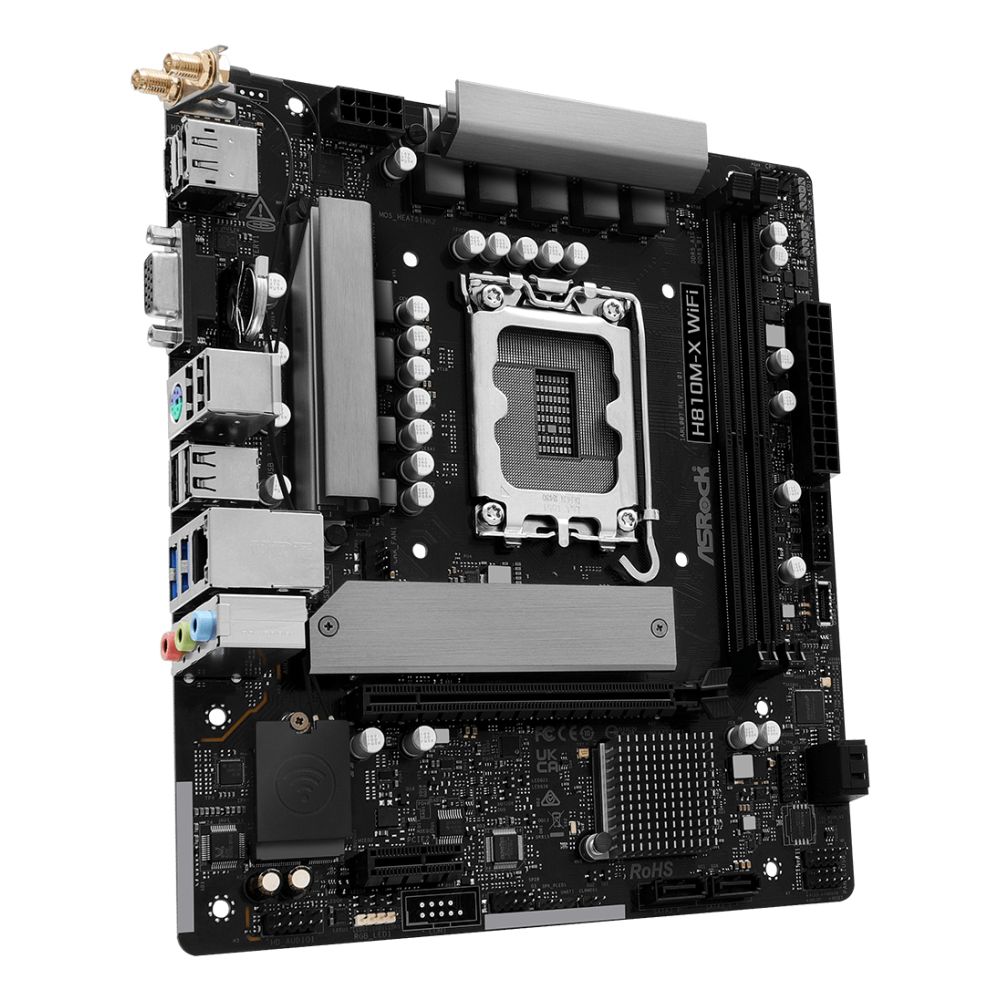

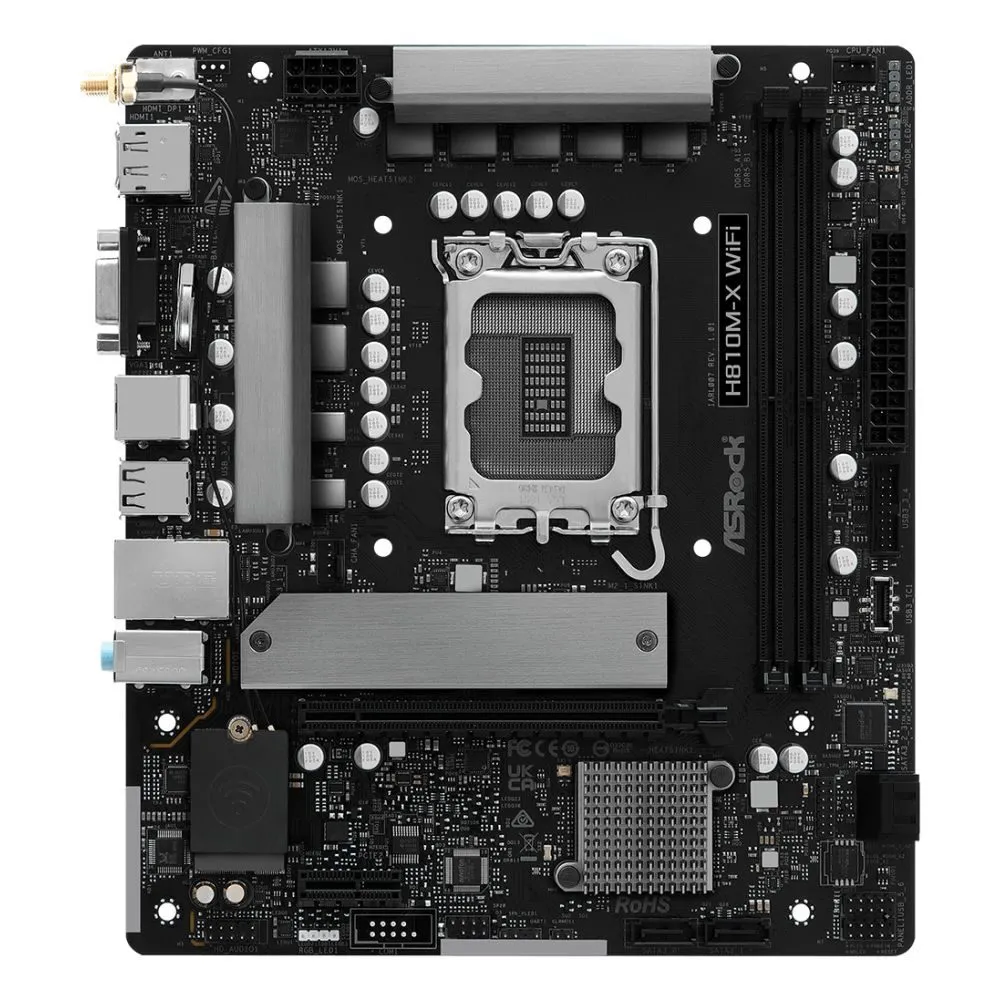

The ASRock H810M-X WiFi is a compact micro ATX motherboard built around the Intel H810 chipset, designed for Intel Core Ultra (Series 2) processors on the LGA 1851 socket. It balances performance and versatility in a space-saving form factor, making it suitable for both professional productivity and everyday PC builds.

Key Specifications

High-Speed M.2 Storage Support

The motherboard includes one M.2 slot supporting Gen4 x4 NVMe SSDs, delivering significantly faster data transfer speeds compared to previous-generation storage. This is ideal for users who need quick boot times, rapid file access, and smooth multitasking in professional or creative workloads.

Robust Connectivity and Expansion

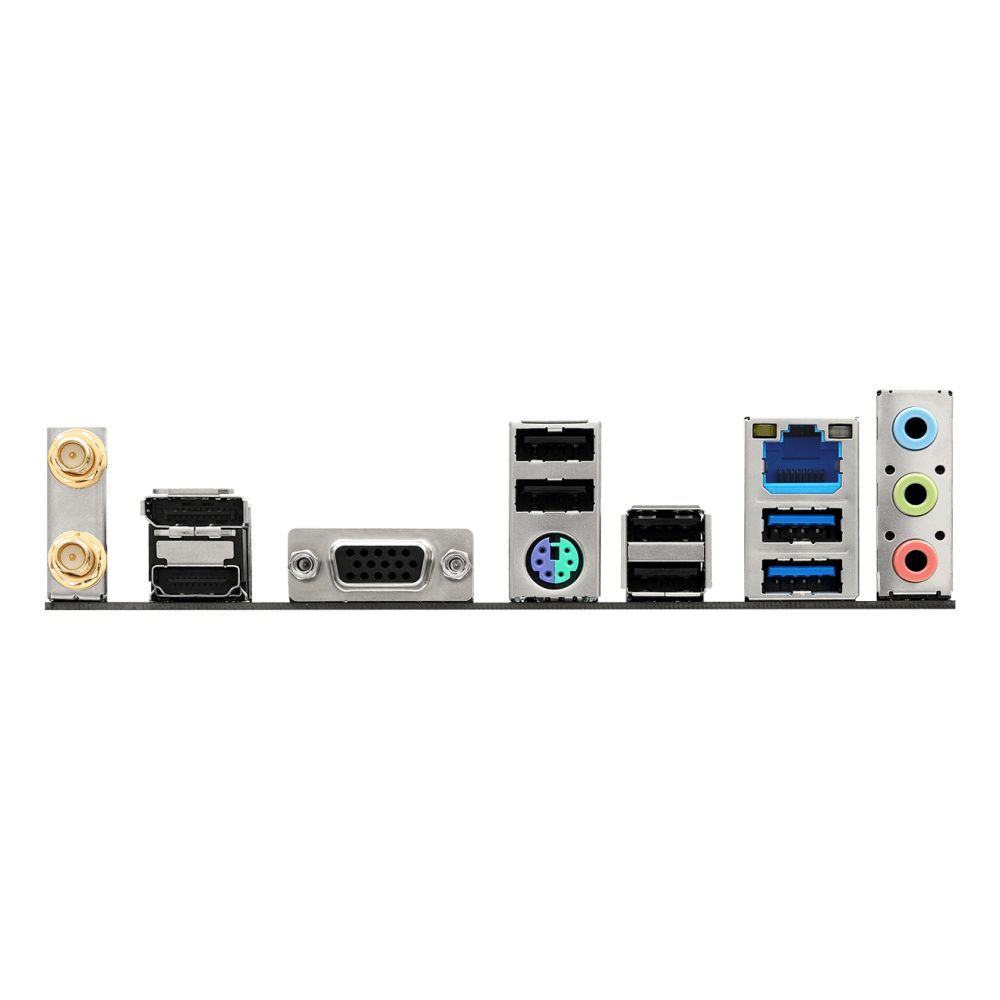

With two USB 3.2 Gen 1 ports, four USB 2.0 ports, and a front USB 3.2 Gen 1 Type-C header, the H810M-X WiFi offers versatile connectivity for modern peripherals. It also features a PCIe x16 Gen 4 slot for high-performance graphics cards and a PCIe x1 Gen 4 slot for additional expansion cards, ensuring compatibility with a wide range of hardware upgrades.

Advanced Networking and Wireless

Equipped with a Dragon RTL8125BG 2.5 Gb/s LAN controller, this motherboard provides up to 2.5 times the bandwidth of standard gigabit Ethernet, perfect for gaming, streaming, and large file transfers. Dual-band Wi-Fi 5 (802.11ac) and Bluetooth 5.0 ensure reliable wireless connectivity for peripherals and internet access.

Enhanced Cooling and System Stability

The optimised aluminium heatsink design helps maintain efficient heat dissipation during intensive tasks, contributing to system stability and longevity. Combined with support for multiple fan headers, the motherboard allows for effective thermal management in compact builds.

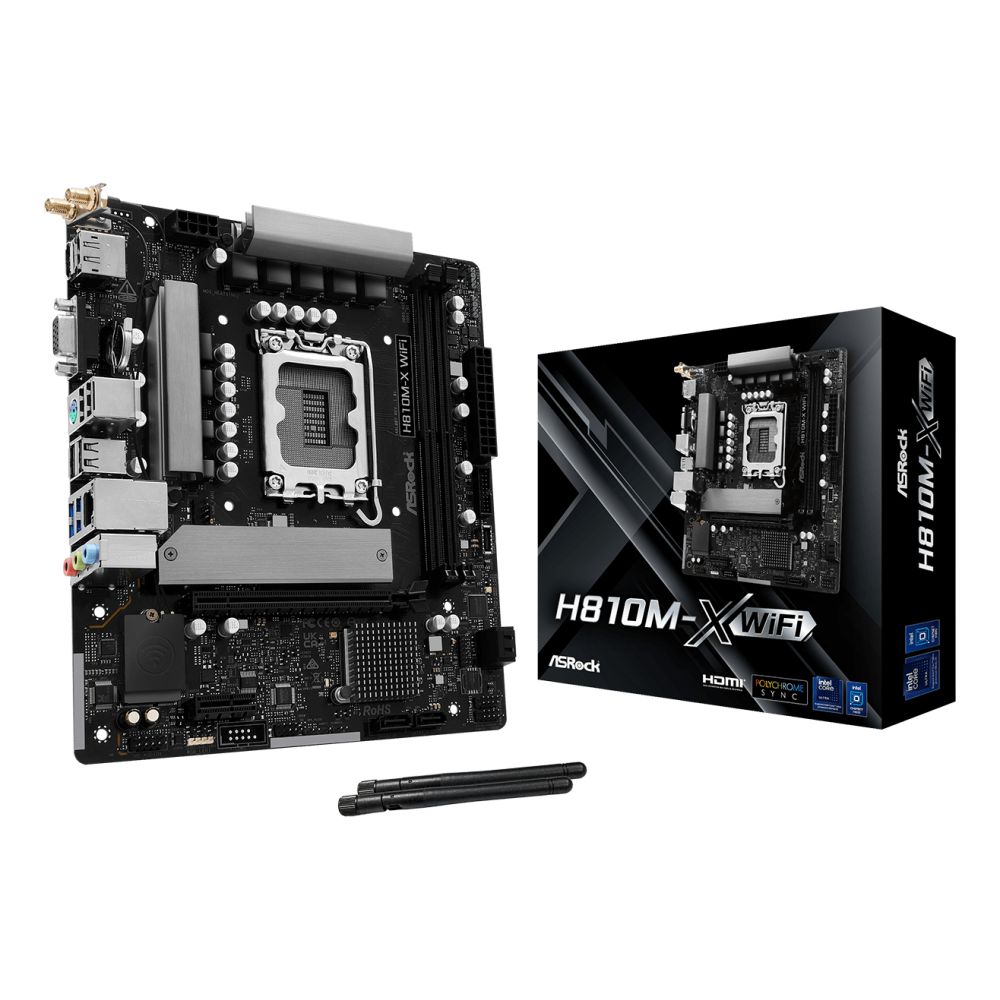

Package contents

• ASRock H810M-X WiFi motherboard
• I/O shield
• SATA cables
• User manual and driver DVD

Things to check first

• Confirm your CPU is an Intel Core Ultra (Series 2) with LGA 1851 socket compatibility.
• Verify your case supports micro ATX motherboards (220 mm x 193 mm).
• Ensure your power supply has the required 24-pin ATX and 8-pin EPS connectors.
• Check that your DDR5 memory modules are compatible and do not exceed 6400 MHz.

Frequently Asked Questions

Final thoughts

The ASRock H810M-X WiFi offers a well-rounded feature set for users building compact yet capable systems with Intel’s latest processors. Its combination of high-speed storage, robust networking, and flexible expansion makes it a strong choice for both work and play. Covered by the applicable manufacturer warranty.
