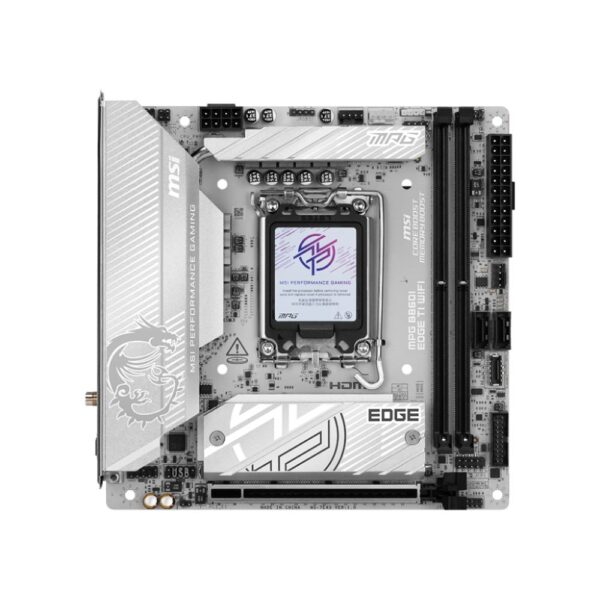

MSI MPG B860I EDGE TI WIFI mini ITX motherboard
£182.72 inc VAT
1 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B860 mini-ITX motherboard for Intel Core Ultra processors
- Killer Wi-Fi 7 and 5G LAN with Thunderbolt 4 connectivity
- 2x M.2 slots (PCIe 5.0 and PCIe 4.0) for high-speed storage
- Support for DDR5-SDRAM up to 128 GB with dual-channel memory
- 7.1 channel audio with HDMI 2.1 and 7 USB ports including Type-C
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
MSI MPG B860I EDGE TI WIFI | Mini-ITX Intel B860 Powerhouse
The MSI MPG B860I EDGE TI WIFI motherboard Intel B860 LGA 1851 (Socket V1) mini ITX delivers exceptional performance in a compact form factor, designed specifically for Intel Core Ultra processors. This mini-ITX powerhouse combines advanced connectivity with robust power delivery to create an ideal foundation for high-performance compact builds.
Key Specifications
| Metric | Spec |
|---|---|
| Form Factor | Mini-ITX (170×170 mm) |
| Memory Support | DDR5, 2× DIMM slots, up to 128 GB |
| Storage | 2× M.2 (PCIe 5.0/4.0), 2× SATA III |
| Network | 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4 |
| Expansion | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 |
Compact Design Meets Premium Performance
The MPG B860I EDGE TI WIFI maximises performance in a mini-ITX footprint. Its robust power design ensures stable operation even under heavy workloads, making it perfect for compact gaming rigs or professional workstations where space is at a premium. The white aesthetic adds a distinctive look to any build.
Next-Generation Connectivity
This motherboard delivers comprehensive connectivity options. The Killer Wi-Fi 7 BE1750x controller provides cutting-edge wireless performance, while the 5Gb Ethernet port ensures reliable wired connections. Thunderbolt 4 support enables ultra-fast data transfer and multi-device connectivity, perfect for creative professionals and gamers alike.
Storage Flexibility and Speed
With two M.2 slots supporting PCIe 5.0 and 4.0 respectively, plus two SATA III ports, this motherboard offers versatile storage options. Whether you’re installing multiple NVMe drives for maximum speed or need additional SATA storage for larger files, the B860I EDGE TI WIFI has you covered. RAID 0 and 1 support adds data protection and performance options.
Enhanced Audio Experience
The 7.1-channel audio output delivers immersive sound quality for gaming, movies, and music. Combined with the dedicated audio connectors and comprehensive front panel support, this motherboard ensures excellent audio performance without requiring additional sound cards.

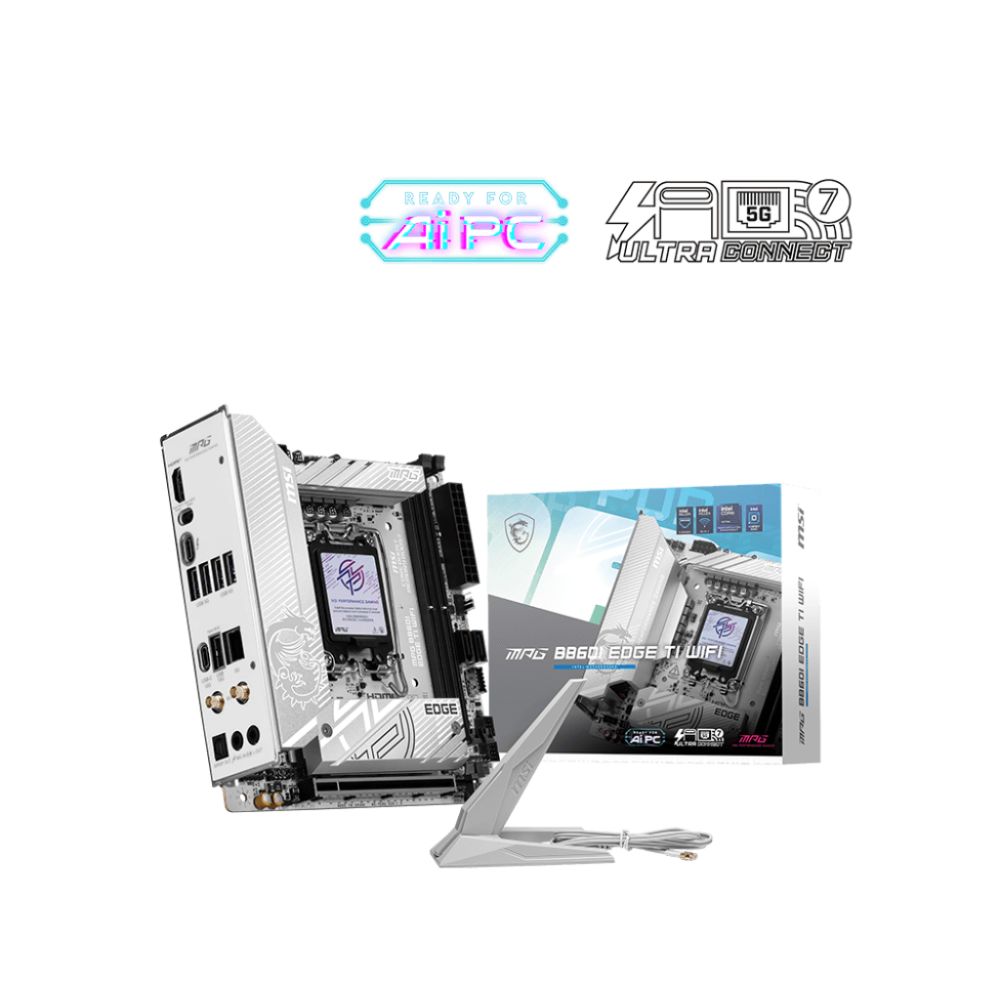

Box Contents
- MSI MPG B860I EDGE TI WIFI motherboard
- SATA cables
- Mounting screws
- Wi-Fi antennas
- I/O shield
Check before you buy
- Confirm your Intel Core Ultra processor is compatible with LGA 1851 (Socket V1)
- Verify your case supports mini-ITX form factor (170×170 mm)
- Check if your GPU will fit with the PCIe 5.0 x16 slot layout
- Confirm you have adequate cooling for your specific CPU model
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM memory modules.
Q: Can I use this with an AMD processor?
A: No, this motherboard is designed exclusively for Intel processors using LGA 1851 socket.
Q: How many graphics cards can I install?
A: This mini-ITX board supports one graphics card via the PCIe 5.0 x16 slot.
Q: Is the Wi-Fi 7 included ready to use?
A: Yes, the Killer Wi-Fi 7 BE1750x module is pre-installed and ready for immediate use.
Q: Does it come with RGB lighting?
A: Yes, it includes RGB LED headers for custom lighting configurations.
The Consultant’s Verdict & Warranty
The MSI MPG B860I EDGE TI WIFI represents an excellent choice for users seeking maximum performance in a mini-ITX package. Its combination of advanced connectivity, robust power delivery, and compact design makes it ideal for high-end compact builds where space efficiency matters. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| Audio connector | Yes |
| Supported storage drive interfaces | M.2, SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| Number of SATA III connectors | 2 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |

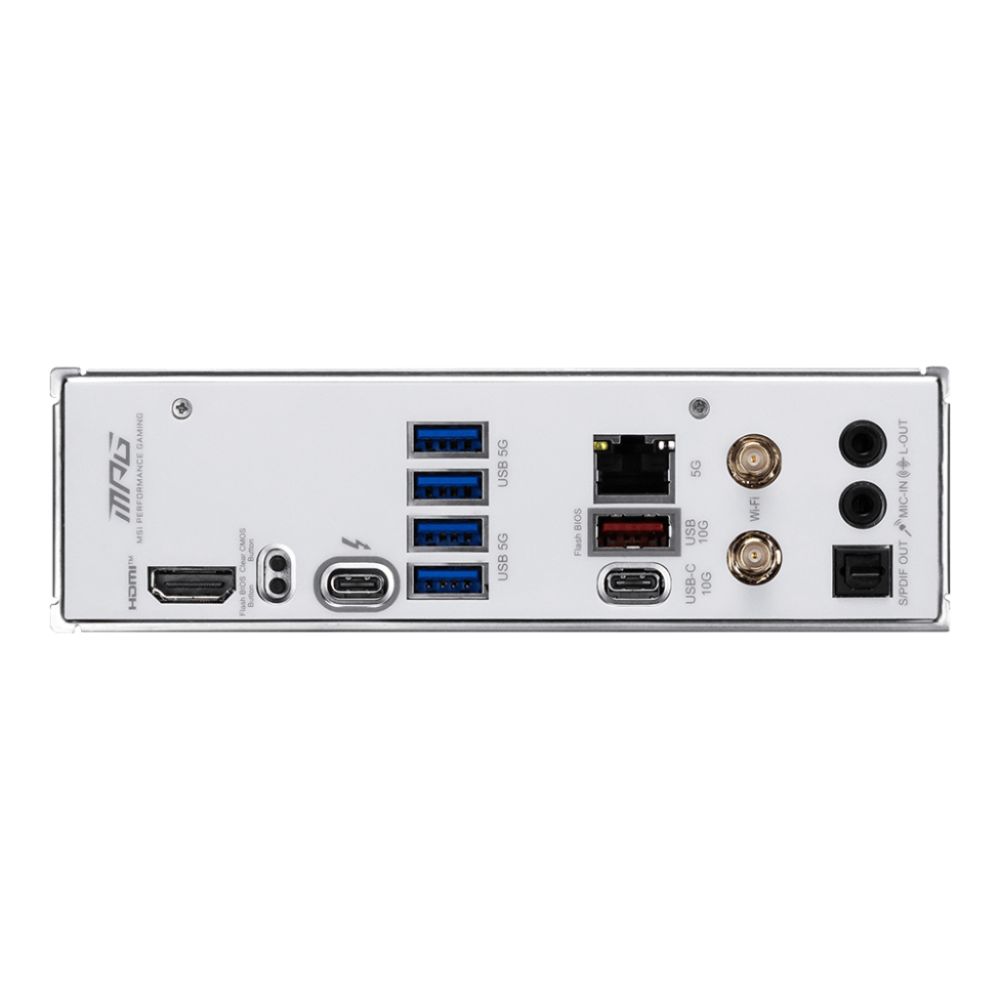

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt ports quantity | 1 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi BE1750x |
| Features | |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Identifiers | |
| Distributor SKUs | 127182, 4711377350174 |
