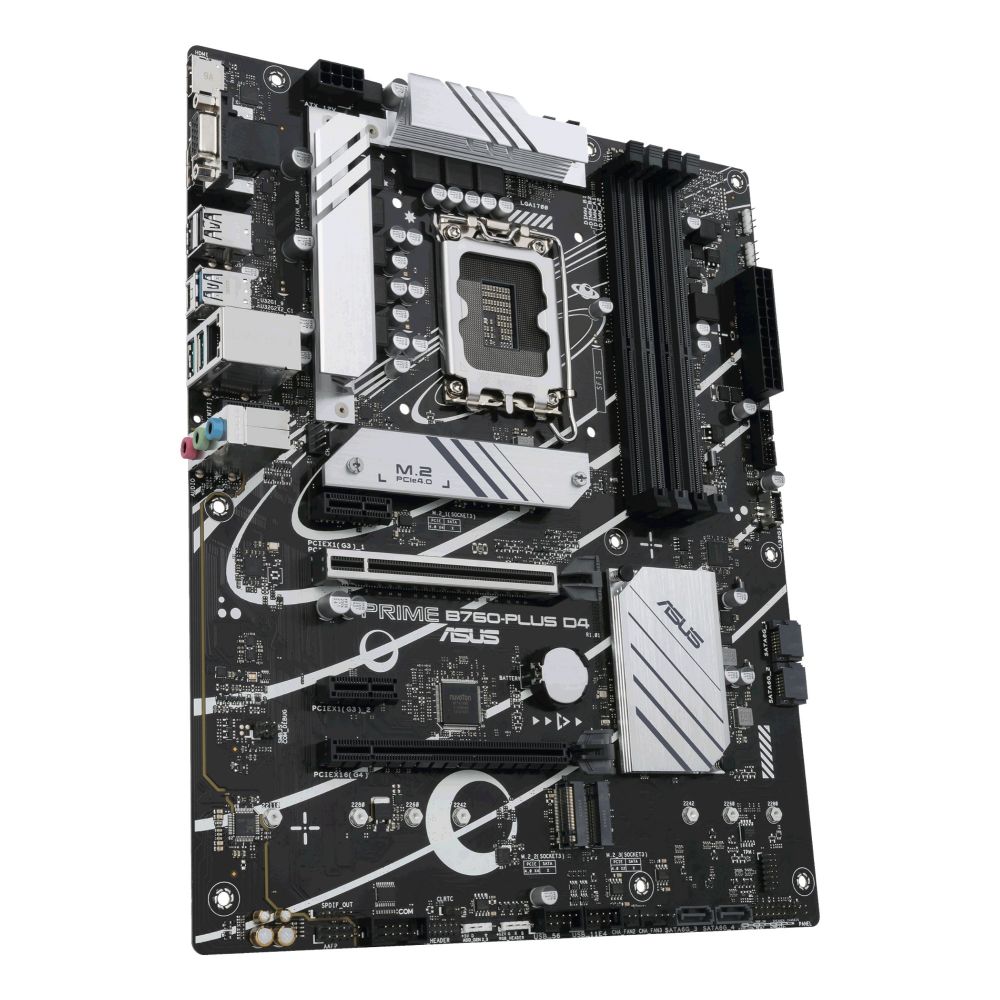

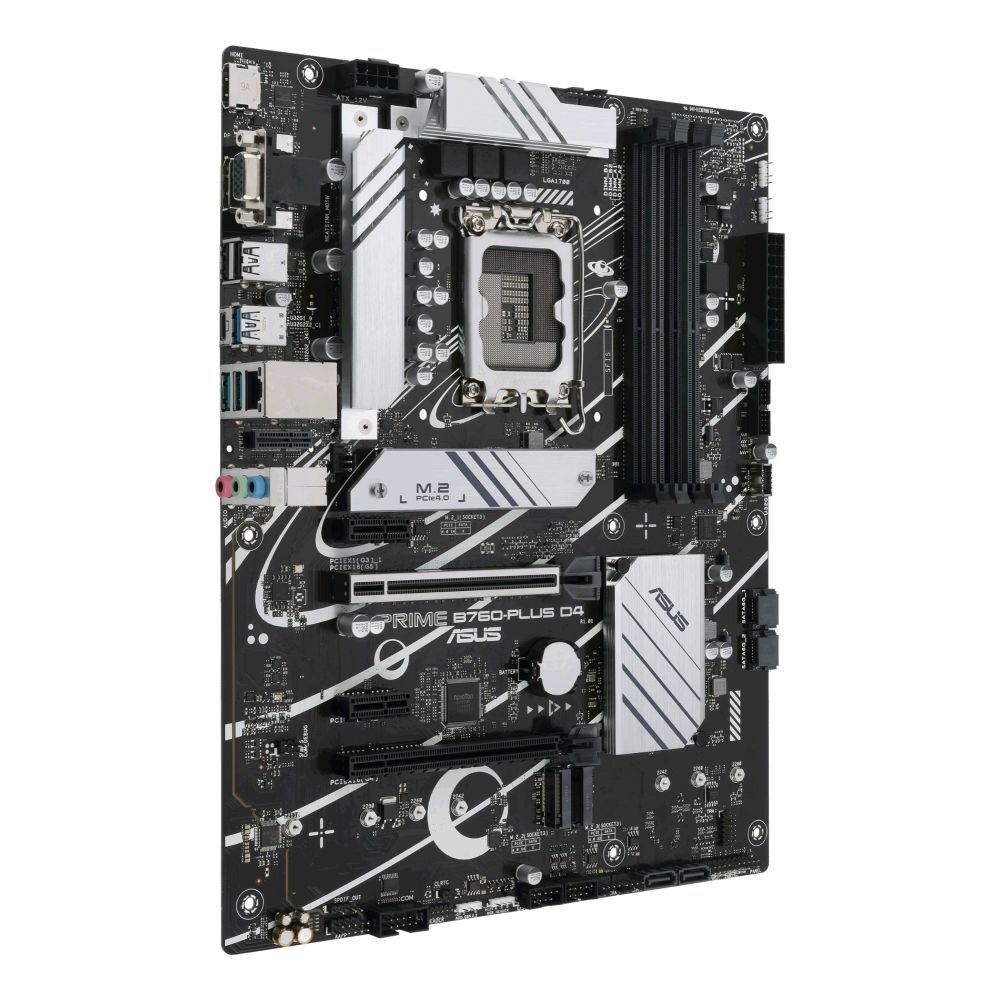

ASUS PRIME B760-PLUS D4 ATX Motherboard
£110.22 inc VAT
6 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- ATX motherboard for 13th Gen Intel Core processors with LGA 1700 socket
- Supports up to 128GB DDR4 memory across 4 DIMM slots
- Features 3 M.2 slots for high-speed storage with PCIe 4.0 support
- Includes PCIe 5.0 x16 and PCIe 4.0 x16 slots for graphics cards
- Equipped with 2.5Gb Ethernet, HDMI 2.1, and multiple USB ports
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Samsung Galaxy Book4 NP750XGJ-KG4UK Laptop 15.6″ FHD i7-1355U 16GB 512GB SSD Windows 11
In stock
Acer Aspire C27-A All-in-One Desktop – i7-1355U, 8GB, 1TB SSD, 27″ FHD, Win 11, White
In stock
Acer Aspire C27-A All-in-One Desktop, i5-13420H, 8GB, 1TB SSD, 27″ FHD, Win 11, White
In stock

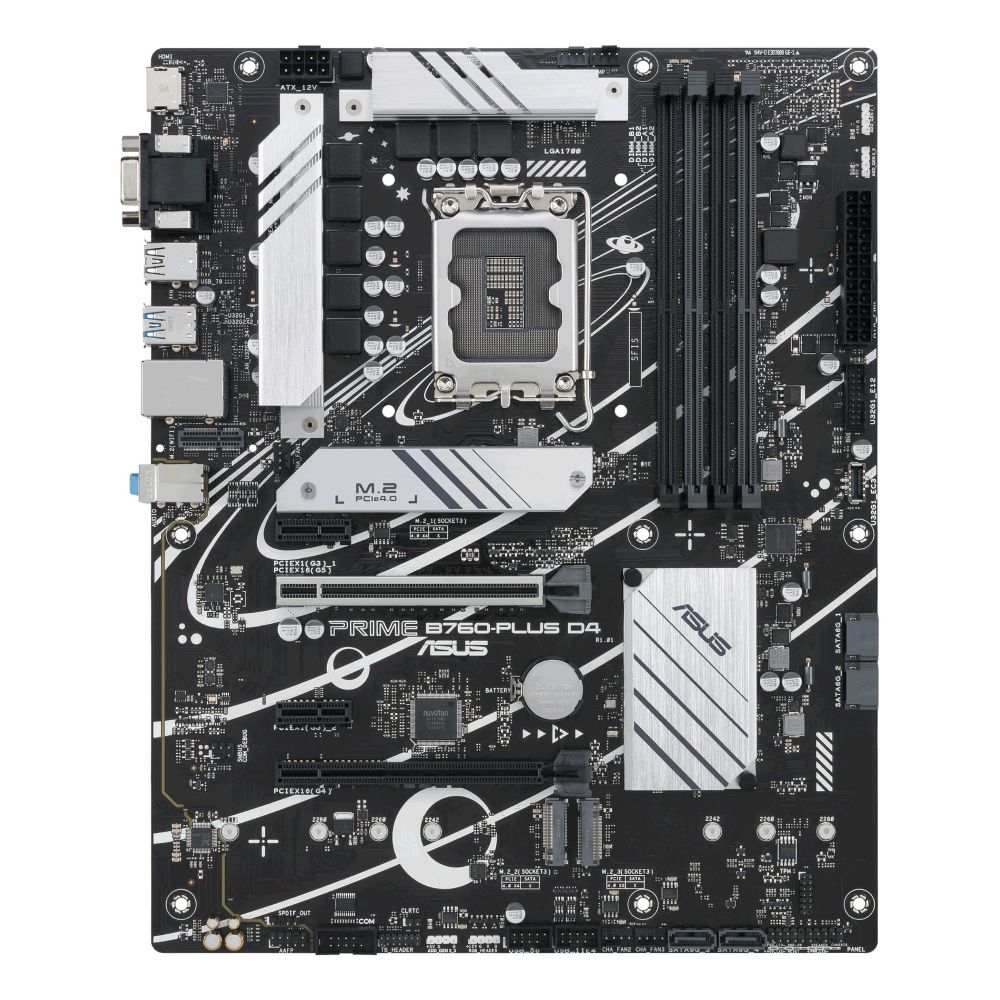

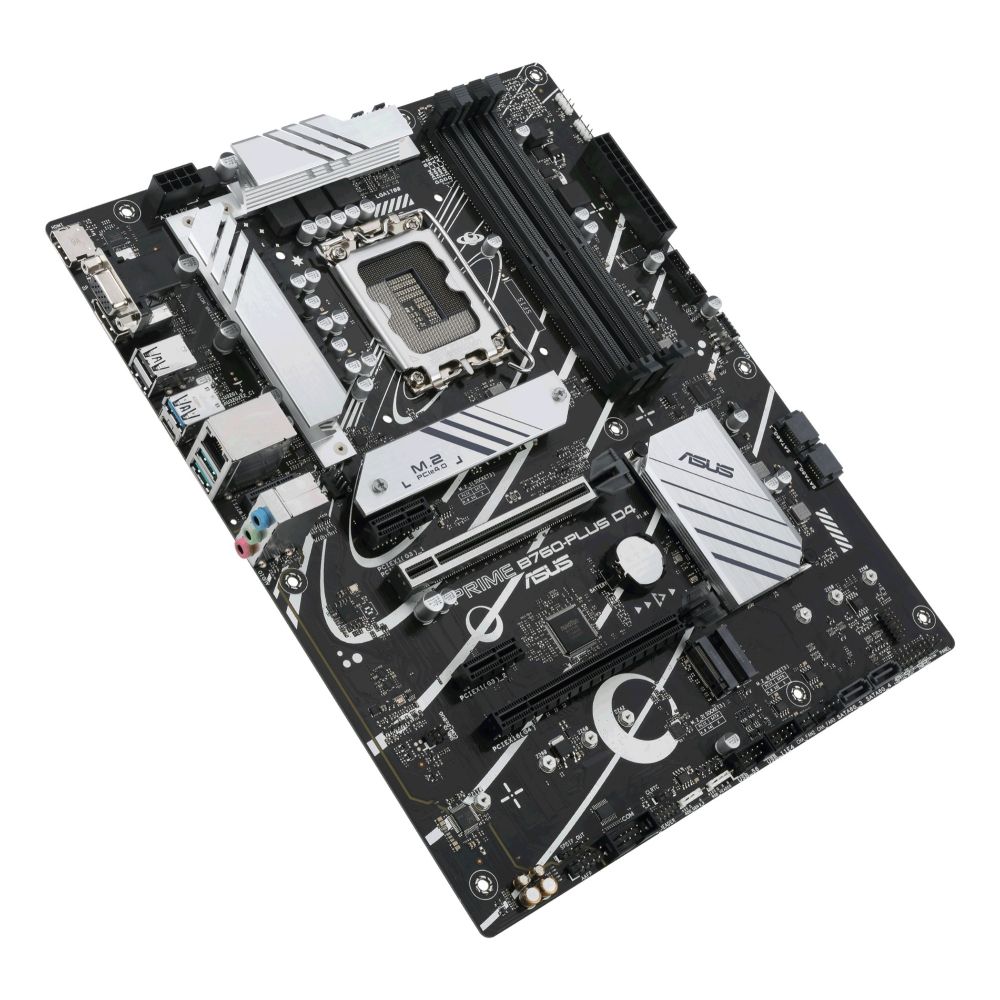

ASUS PRIME B760-PLUS D4 | Intel B760 ATX Motherboard
The ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX motherboard delivers robust performance for 13th Gen Intel Core processors. This ATX board combines intelligent tuning, comprehensive cooling, and flexible connectivity for both PC builders and performance enthusiasts.
Key specifications
| Metric | Spec |
|---|---|
| Processor socket | LGA 1700 |
| Memory support | DDR4, up to 128 GB |
| Storage | 3x M.2, 4x SATA III |
| Expansion | PCIe 5.0 x16, PCIe 4.0 x16 |
| LAN | 2.5 Gb Ethernet |
Intelligent performance tuning
The PRIME B760-PLUS D4 features ASUS Intelligent Control for dynamic system optimisation. The Digi+ VRM provides real-time voltage regulation, automatically adjusting frequency and power efficiency. This ensures stable performance whether you’re running intensive applications or everyday productivity tasks.
Comprehensive cooling design
Multiple onboard heatsinks and hybrid fan headers keep your system cool under load. The M.2 heatsink prevents throttling during sustained storage transfers, while VRM heatsinks with thermal pads improve heat dissipation. Fan Xpert 2+ software offers precise control over all cooling solutions, including AIO pumps and chassis fans.
Storage and expansion flexibility
With three M.2 slots supporting PCIe 4.0 speeds up to 64 Gbps, plus four SATA III ports, this motherboard offers extensive storage options. The PCIe 5.0 x16 slot provides future-proofing for next-generation graphics cards, while additional PCIe 4.0 and PCIe 3.0 slots accommodate expansion cards.
Enhanced connectivity options
The board includes USB 3.2 Gen 2×2 Type-C for 20 Gbps transfers, plus front-panel USB 3.2 Gen 1 Type-C. A Thunderbolt 4 header enables high-speed connectivity with compatible ASUS add-on cards. Realtek 2.5 Gb Ethernet reduces CPU overhead for faster, more reliable networking.

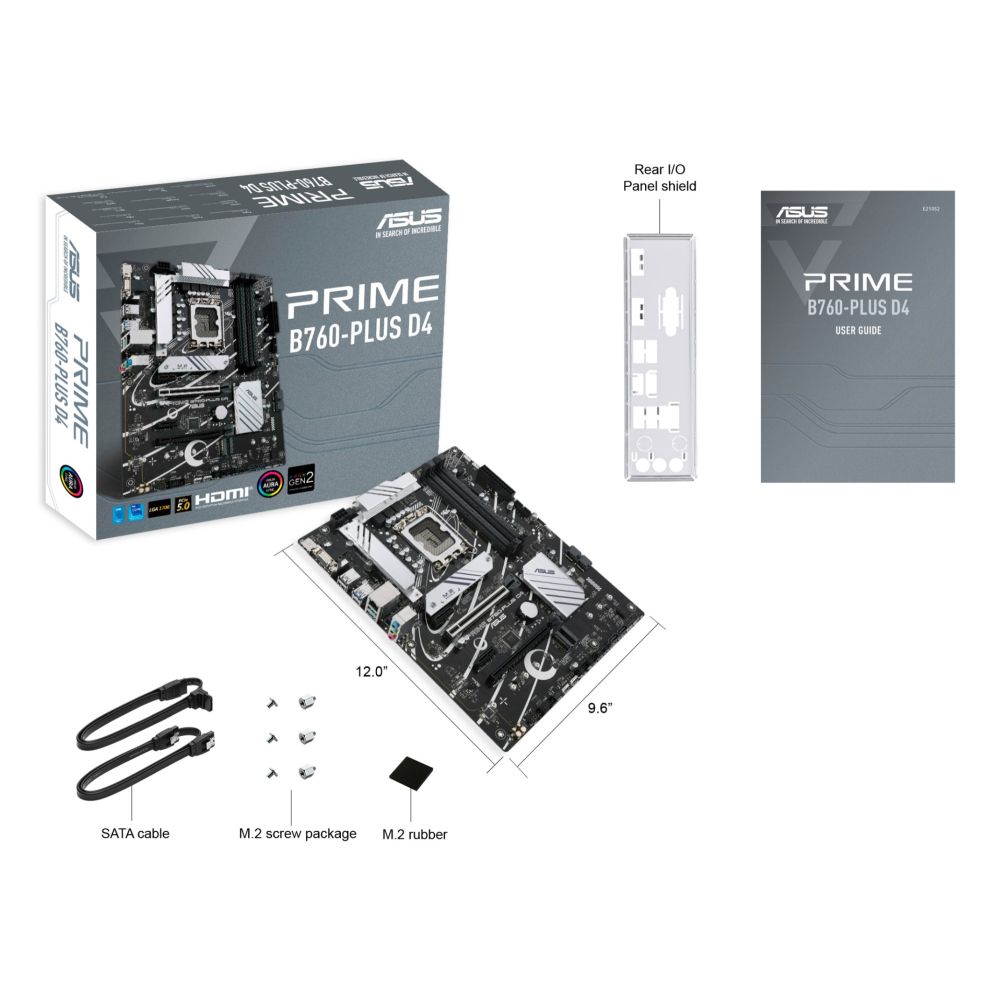

Box contents
- ASUS PRIME B760-PLUS D4 motherboard
- SATA cables
- User manuals and support DVD
Check before you buy
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your case supports ATX form factor (305 x 244 mm)
- Check that your power supply has required connectors (24-pin ATX, 8-pin EPS)
- Confirm you have DDR4 memory modules for installation
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: No, this board supports DDR4-SDRAM only, not DDR5.
Q: Can I use this with 12th Gen Intel processors?
A: Yes, it supports both 12th and 13th Gen Intel Core processors with LGA 1700 socket.
Q: Is Wi-Fi built into this motherboard?
A: No, this model does not include built-in Wi-Fi. You would need a Wi-Fi adapter or card.
Q: How many graphics cards can I install?
A: You can install one graphics card in the primary PCIe 5.0 x16 slot.
Q: What RAID configurations are supported?
A: This motherboard supports RAID 0, 1, 5, and 10 configurations for compatible storage drives.
The Consultant’s verdict & warranty
The ASUS PRIME B760-PLUS D4 offers excellent value for users building systems with 12th or 13th Gen Intel processors who want robust performance without excessive complexity. Its combination of PCIe 5.0 support, comprehensive cooling, and intelligent tuning makes it suitable for both gaming and productivity builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5066 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |

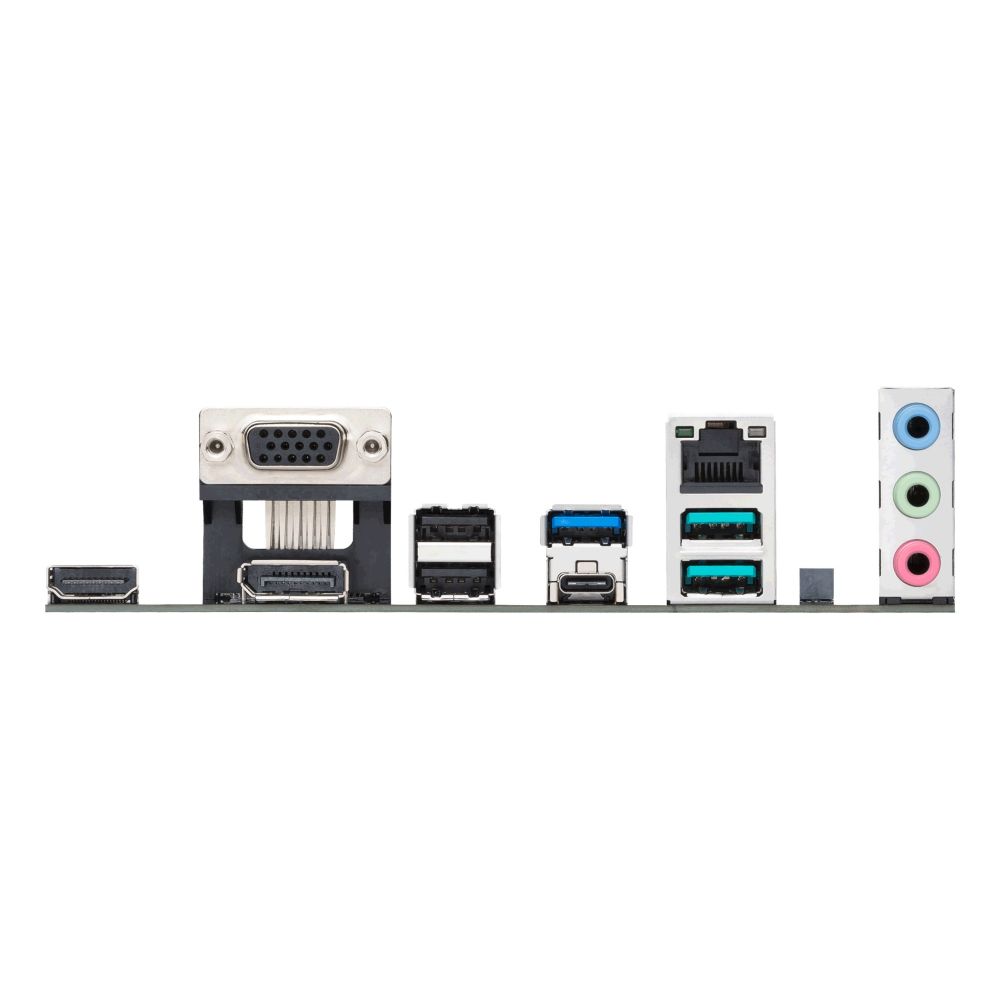

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Identifiers | |
| Distributor SKUs | MBD-90MB1CW0-M1EAY0, 9738369, 122806, W128599235, 10379460, 492962, STD10215668, CL90MB1CW0-M1EAY0 |
| Additional EANs | 0195553970303 |
