MSI PRO B760M-P Intel B760 Motherboard
£91.37 inc VAT
27 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B760 micro ATX motherboard with LGA 1700 socket
- Supports DDR5 memory up to 192 GB with speeds from 4800 to 6800 MHz
- 7.1 channel audio with Realtek ALC897 codec and Gigabit Ethernet
- 4 SATA III ports, 6 total storage drives, RAID 0/1/5/10 support
- 1 PCIe 4.0 x16, 2 PCIe 4.0 x1 slots, HDMI 1.4 and DisplayPort 1.4 outputs
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE B760 GAMING X Motherboard – Intel 14th Gen, DDR5, PCIe 4.0 M.2, 2.5GbE LAN
In stock

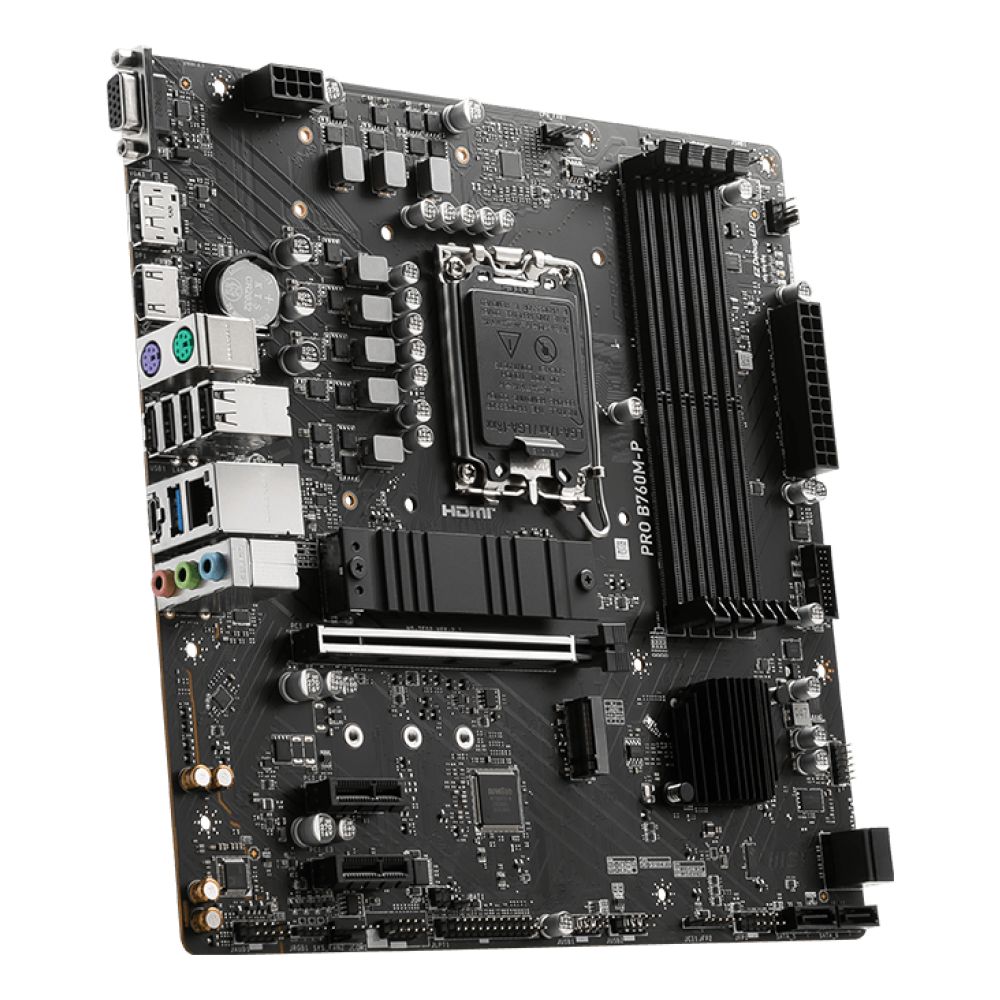

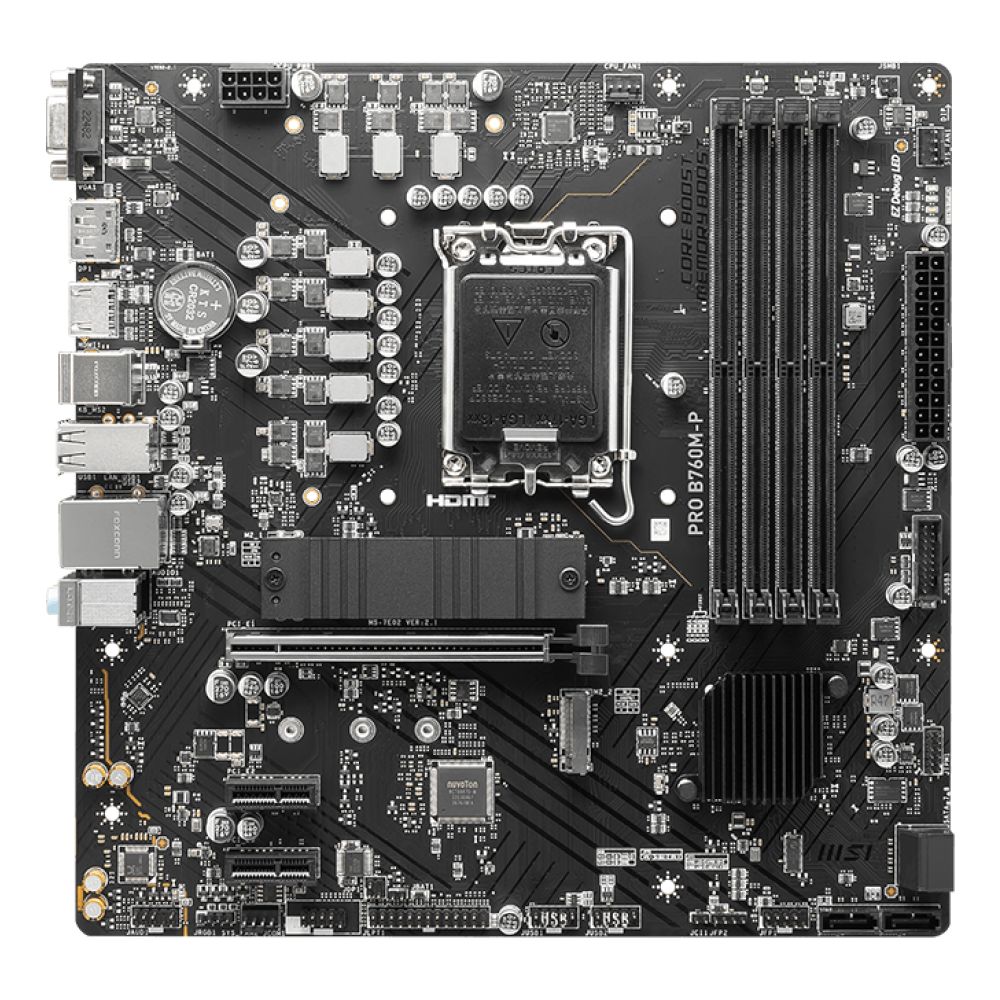

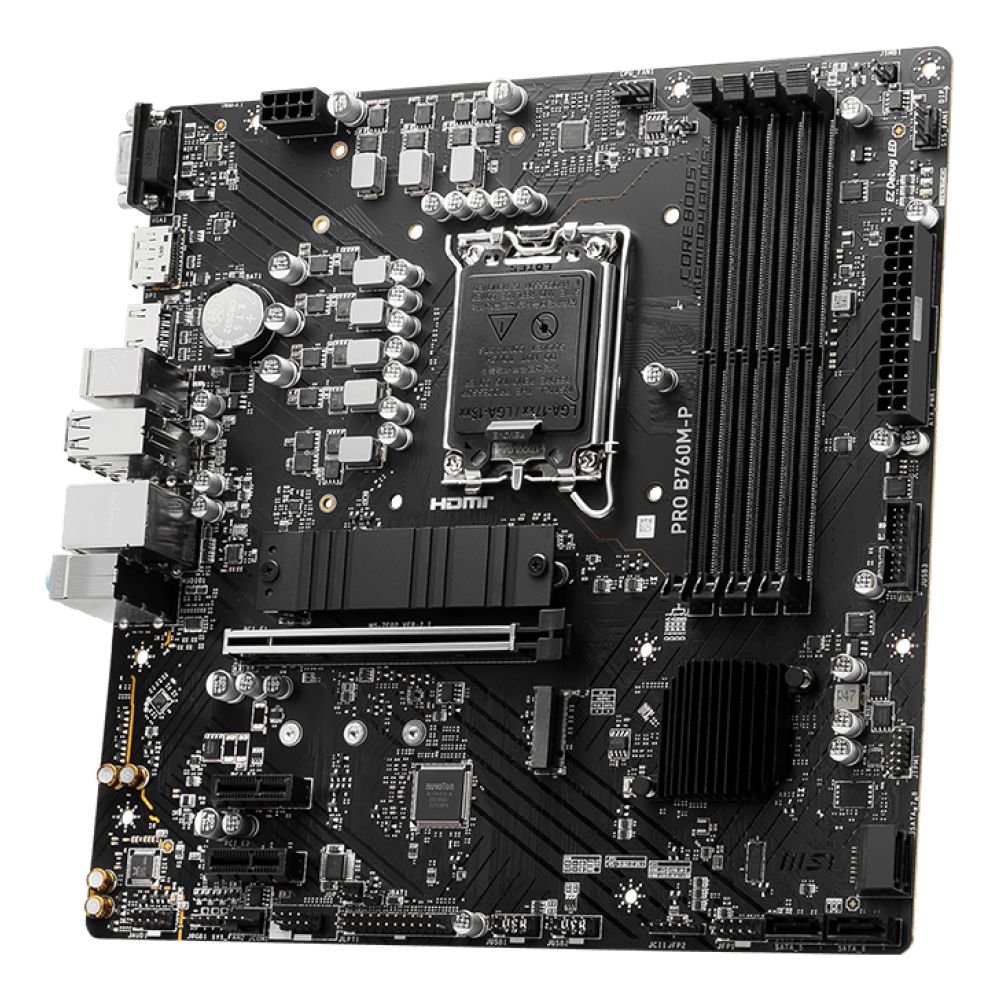

MSI PRO B760M-P | Micro ATX Motherboard for Intel B760
The MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX is designed for professionals and DIY builders seeking reliable performance with modern DDR5 memory support. Built on the Intel B760 chipset, it delivers stable multi-core processing and efficient multitasking for everyday computing and light creative workloads.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1700 |
| Memory Support | DDR5 (4800–6800 MHz) |
| Form Factor | Micro ATX (243.8 x 243.8 mm) |
| Expansion Slots | 1 x PCIe x16 Gen 4, 2 x PCIe x1 Gen 4 |
| Storage | 6 x SATA III + M.2 (with heatsink) |
| Network | Gigabit Ethernet (Realtek RTL8111H) |
DDR5 Performance Ready
The PRO B760M-P supports the latest DDR5 memory, offering speeds from 4800 MHz up to 6800 MHz. Combined with MSI’s SMT welding process and Memory Boost technology, this motherboard ensures stable, high-speed memory performance for demanding applications and future upgrades.
Core Boost Power Delivery
MSI’s Core Boost technology uses a premium layout and optimised power design to deliver clean, undistorted current to the CPU. This not only supports multi-core processors but also creates ideal conditions for safe and stable overclocking when needed.
Enhanced Cooling & Storage Protection
A reinforced M.2 Shield Frozr prevents thermal throttling of high-speed SSDs, maintaining peak storage performance. The chipset heatsink is engineered to reduce dust and noise while keeping the PCH running efficiently under load.
Business Elegance & Build Quality
Part of MSI’s PRO Series, this motherboard is tailored for professionals who value productivity and reliability. Its micro ATX size fits neatly into compact builds without sacrificing expansion options or build quality.

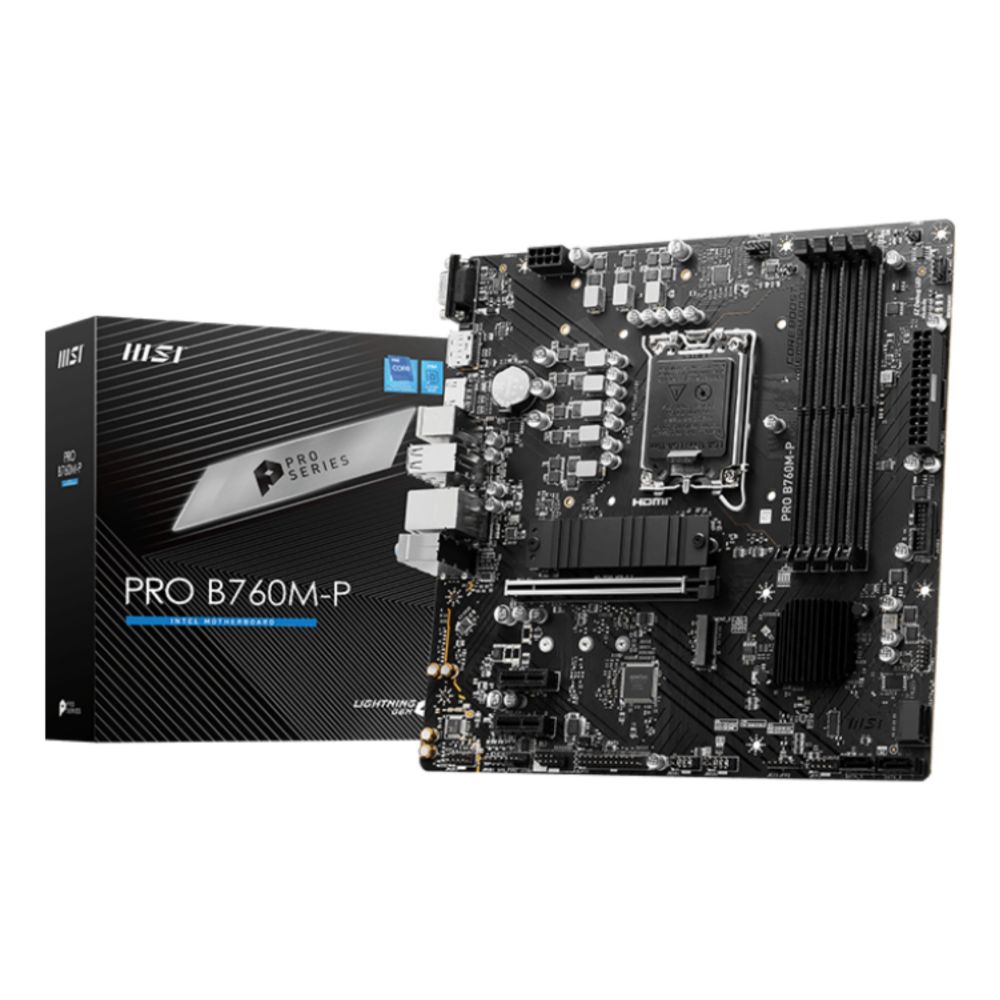

Box Contents
- MSI PRO B760M-P motherboard
- SATA cables (quantity not specified)
- I/O shield
- User manual and driver DVD
Check before you buy
- Confirm your Intel processor is compatible with LGA 1700 socket
- Verify DDR5 memory modules are supported at your desired speed
- Check that your case supports micro ATX motherboards (243.8 x 243.8 mm)
- Ensure you have a 24-pin ATX power supply
Frequently Asked Questions
Q: Does this motherboard support Wi-Fi?
A: No, the MSI PRO B760M-P does not include built-in Wi-Fi. A separate adapter is required for wireless connectivity.
Q: Can I use DDR4 memory with this board?
A: No, this motherboard only supports DDR5 memory modules.
Q: How many M.2 drives can I install?
A: The motherboard includes at least one M.2 slot with thermal protection; exact number of M.2 slots is not specified in the data.
Q: Is this motherboard suitable for gaming?
A: While not a gaming-focused model, it can handle mainstream gaming when paired with a suitable CPU and GPU.
The Consultant’s verdict & warranty
The MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX is an excellent choice for professionals and home builders who need a dependable, DDR5-ready platform with strong expansion and cooling features. Its micro ATX footprint makes it ideal for space-conscious builds without compromising on connectivity or performance. Covered by the standard Manufacturer Warranty.
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| HDMI version | 1.4 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Internal I/O | |
| Front panel connector | Yes |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Parallel connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |

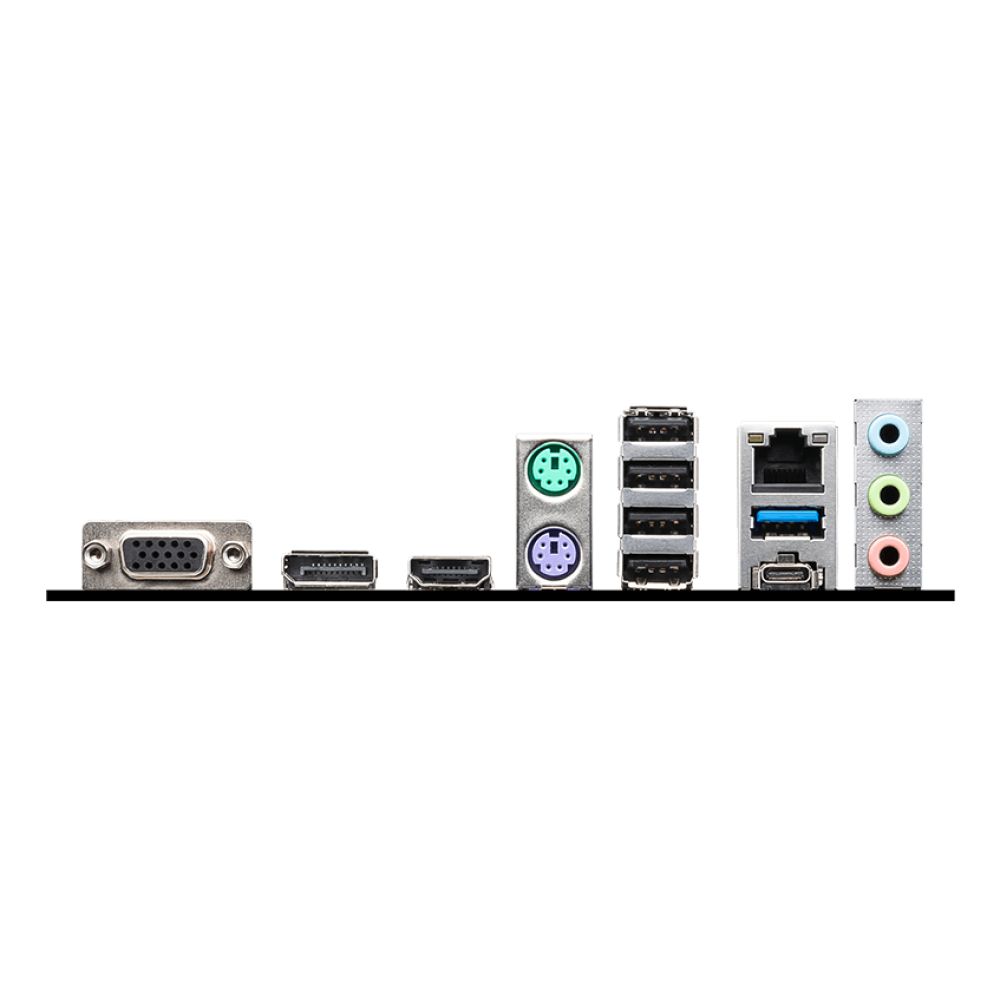

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Power | |
| Power source type | ATX |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Identifiers | |
| Distributor SKUs | 10387049, 123297, 4711377086578, 7E02-009R, 911-7E02-009, 471359, STD10149161 |
| Additional EANs | 4526541046001 |
