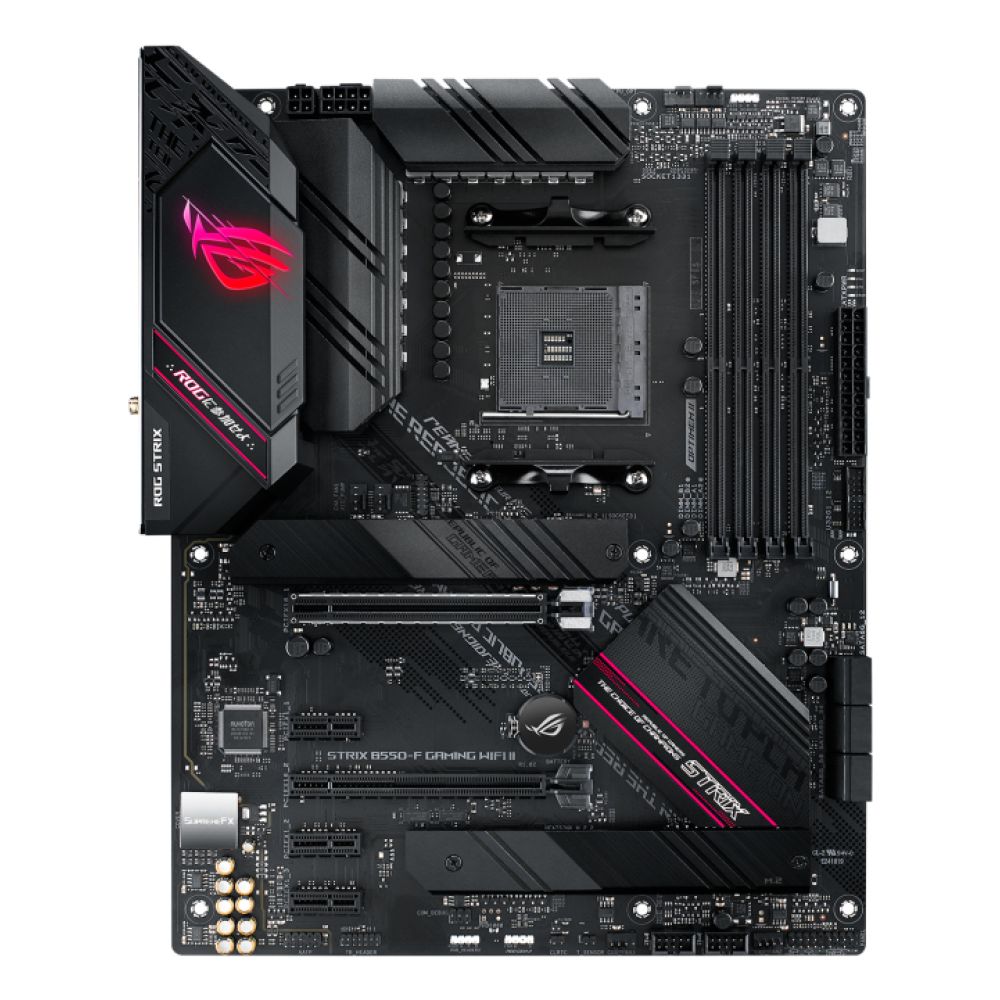

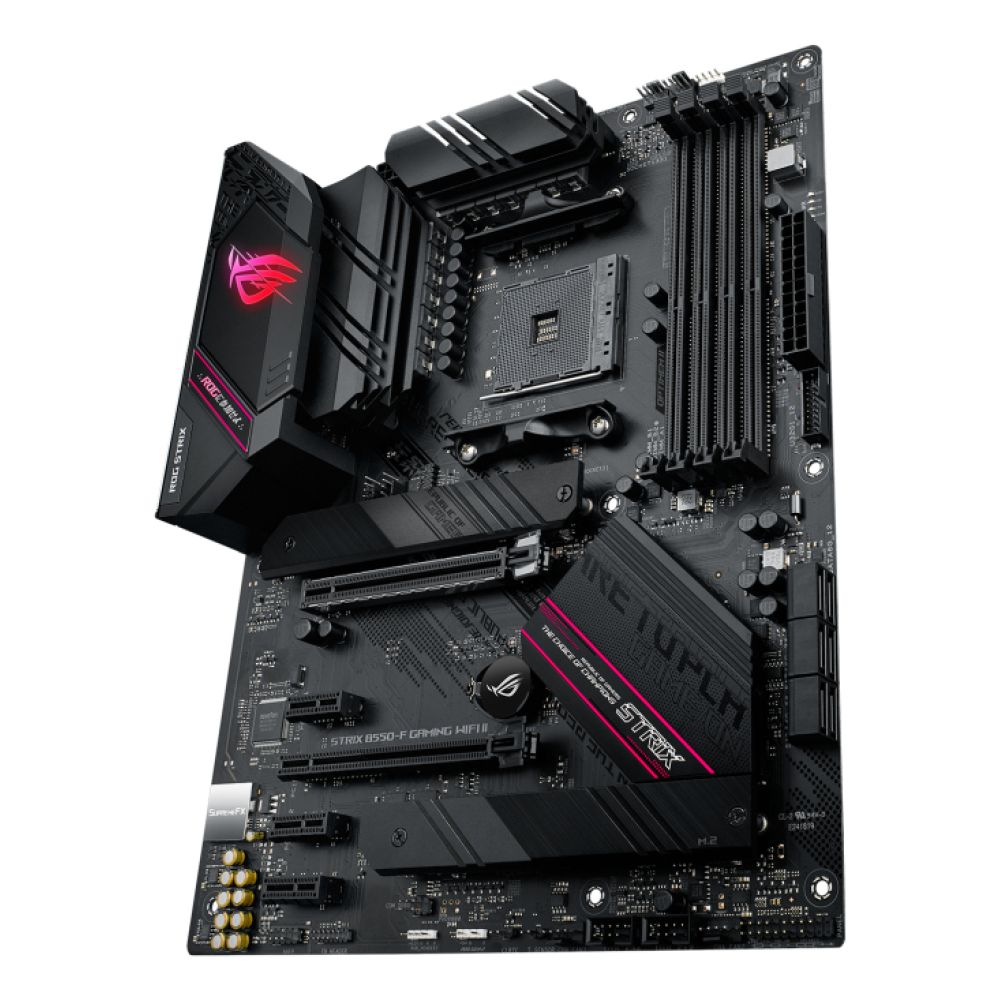

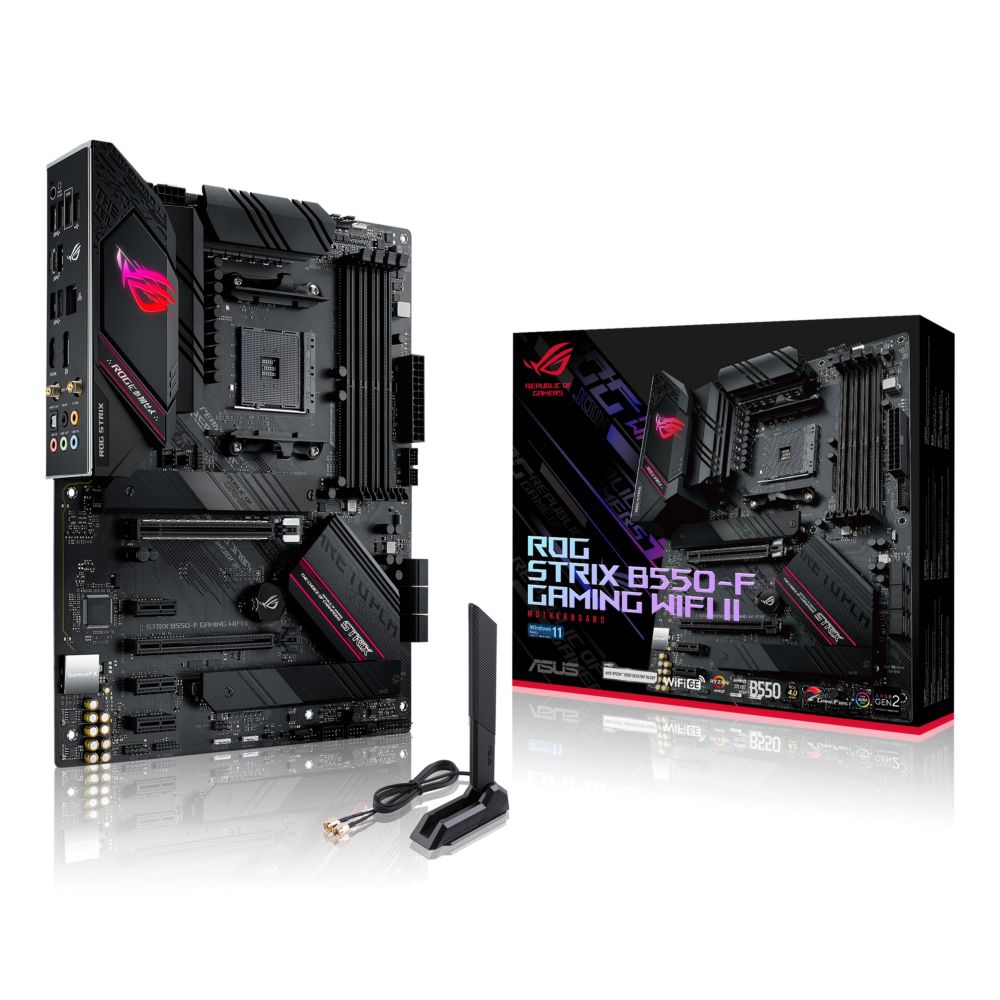

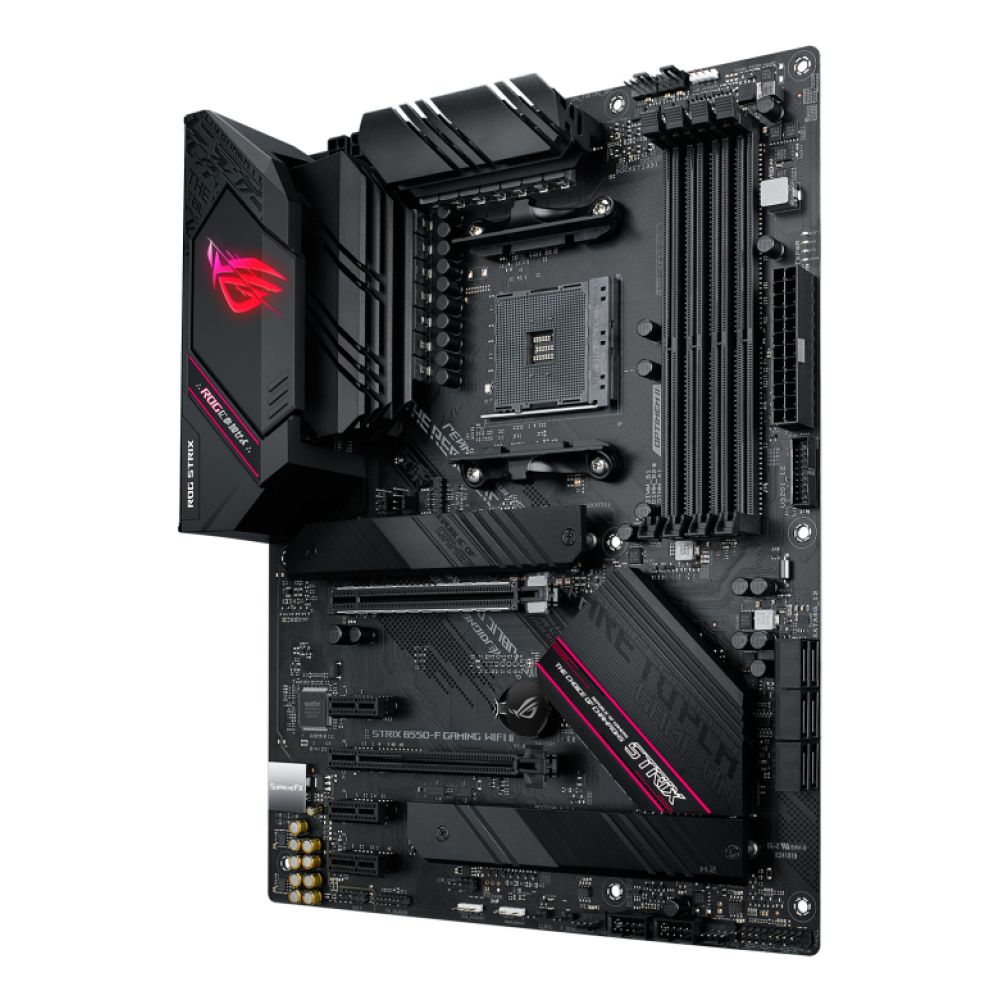

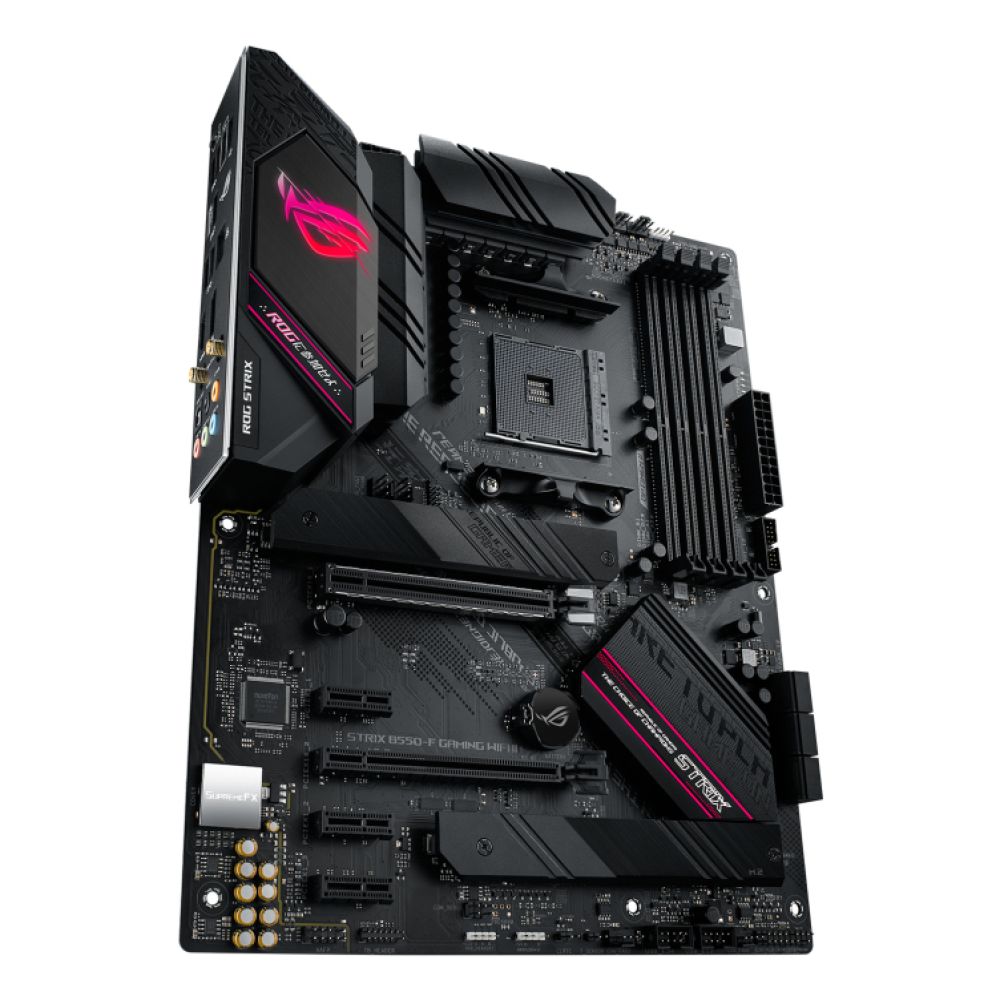

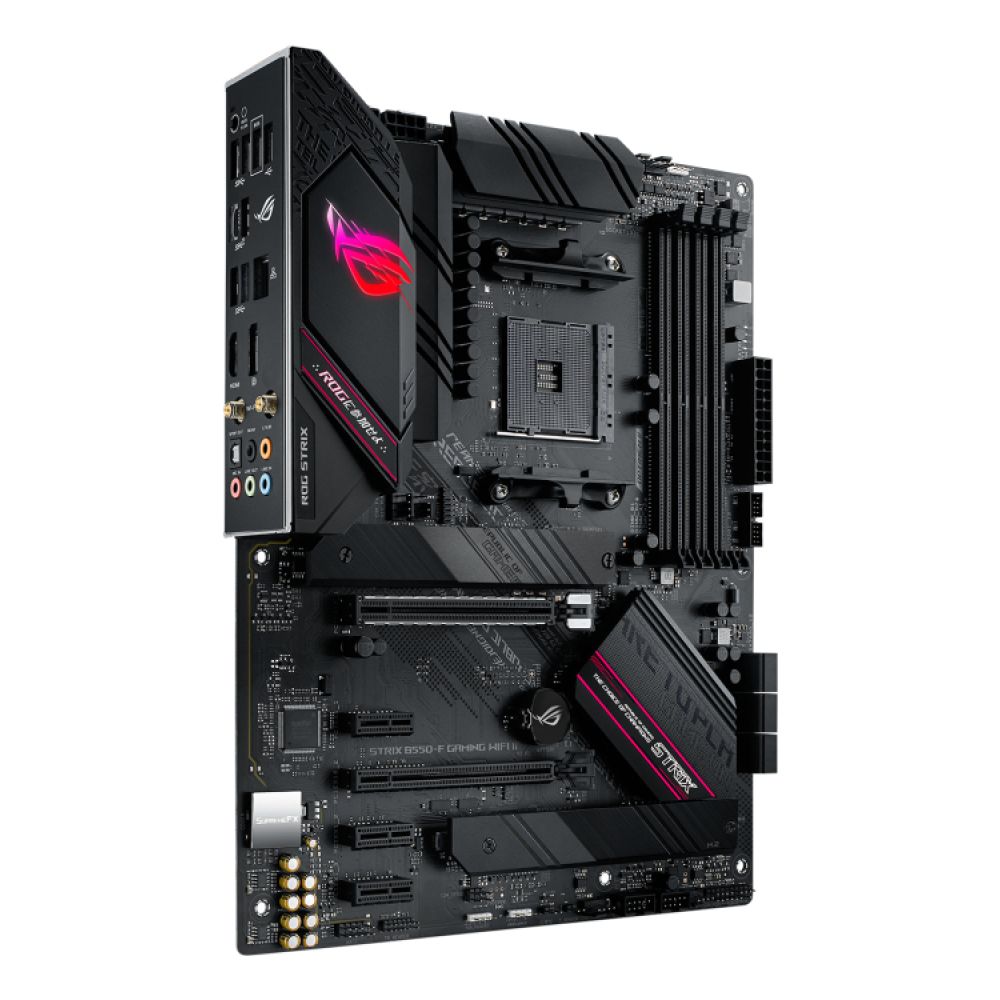

ASUS ROG STRIX B550-F Gaming Motherboard
£148.99 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B550 chipset with Socket AM4 for Ryzen 3000 series processors
- PCIe 4.0-ready with two M.2 slots for high-speed storage
- WiFi 6E and 2.5 Gb Ethernet for ultra-fast networking
- 4 DIMM slots supporting up to 128 GB DDR4-4600 memory
- ATX form factor with 7.1 channel audio and comprehensive cooling options
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS ROG STRIX B550-F Gaming WiFi II | AMD B550 ATX Motherboard
The ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX is a high-performance gaming motherboard built for AMD Ryzen processors, delivering PCIe 4.0 speeds, robust power delivery, and comprehensive cooling for serious PC builders.
Key Specifications
| Metric | Spec. |
|---|---|
| Form Factor | ATX |
| Socket | AM4 |
| Memory Support | DDR4 up to 4600 MHz |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 |
| M.2 Slots | 2 |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Ethernet | Intel 2.5 Gb |
| USB Ports | 4x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C |
| Audio | 7.1 Channel SupremeFX |
| RGB Lighting | Aura Sync compatible |
PCIe 4.0 Storage Ready
This motherboard features two M.2 slots, with one supporting PCIe 4.0 for blistering storage speeds. Both slots accommodate up to 22110 drives and support NVMe RAID, giving you maximum flexibility for ultra-fast storage configurations.
Enhanced Connectivity
With onboard Wi-Fi 6E and Intel 2.5 Gb Ethernet, you get cutting-edge wireless networking in the 6 GHz band plus wired speeds 2.5x faster than standard Gigabit. Bluetooth 5.2 rounds out the wireless options for seamless peripheral connectivity.
Superior Audio Experience
Built-in ROG SupremeFX audio delivers pristine 7.1 channel sound with a flat frequency response for neutral, detailed audio. Front-panel outputs with dedicated op-amps provide high-quality audio to gaming headsets, giving you the competitive edge of hearing every subtle in-game cue.
Advanced Cooling Design
ROG Strix B550 series offers comprehensive cooling options configurable via Fan Xpert 4 or UEFI BIOS. From multiple fan headers to dedicated water pump headers, you can fine-tune your system’s thermals for optimal performance under load.
Box Contents
- ASUS ROG STRIX B550-F GAMING WIFI II motherboard
- SATA cables (quantity not specified)
- I/O shield (pre-mounted)
- User manual
- Warranty card
- Support DVD
Check before you buy
- Confirm your AMD Ryzen processor is compatible with AM4 socket
- Verify your case supports ATX form factor (305 x 244 mm)
- Check you have a suitable ATX power supply
- Ensure you have DDR4 memory modules for installation
Frequently Asked Questions
Q: Does this motherboard support PCIe 5.0?
A: No, this motherboard supports PCIe 4.0, which is the latest generation available for AMD B550 chipset.
Q: Can I use this with an Intel processor?
A: No, this motherboard uses the AMD AM4 socket and is only compatible with AMD Ryzen processors.
Q: What type of Wi-Fi does this motherboard include?
A: It includes Wi-Fi 6E (802.11ax) with support for the 6 GHz band for faster wireless speeds.
Q: How many RAM slots does it have?
A: The motherboard has 4 DIMM slots supporting up to 128 GB of DDR4 memory.
Q: Does it support RGB lighting?
A: Yes, it features Aura Sync compatible RGB lighting with multiple headers for custom lighting setups.
The Consultant’s verdict & warranty
The ASUS ROG STRIX B550-F GAMING WIFI II is ideal for gamers and enthusiasts building a high-performance AMD system who want PCIe 4.0 storage, advanced networking, and comprehensive cooling without stepping up to the X570 price point. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 6 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Cooling type | Active |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| ECC сompatibility | ECC |
| Storage controllers | |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I225-V |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Power | |
| Power source type | ATX |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Drivers included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 68 mm |
| Weight | 945 g |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
| Height | 68 mm |
| Weight | 945 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB19V0-M0EAY0, 7219505, 122414, W126475545, 344023, STD10077821, STD10129944, CL90MB19V0-M0EAY0 |
| Additional EANs | 4711081453321 |
