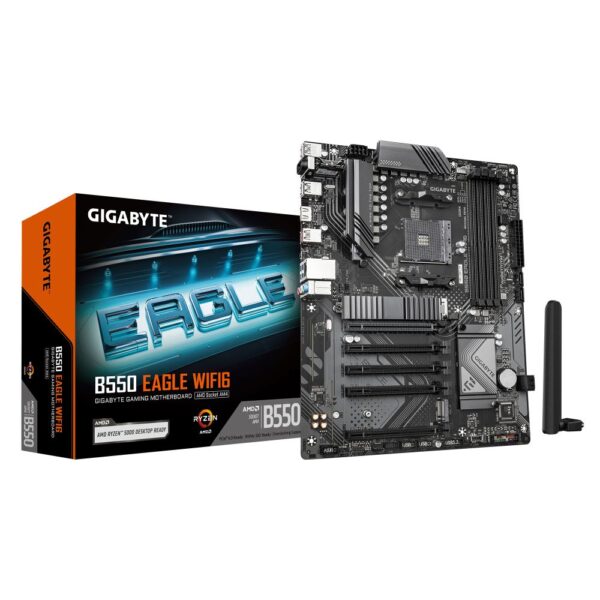

GIGABYTE B550 EAGLE WIFI6 Motherboard – AMD Ryzen 5000, 10+3+1 VRM, 3200MHz DDR4, PCIe 4.0/3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

GIGABYTE B550 EAGLE WIFI6 | AMD Ryzen 5000 Ready ATX Motherboard

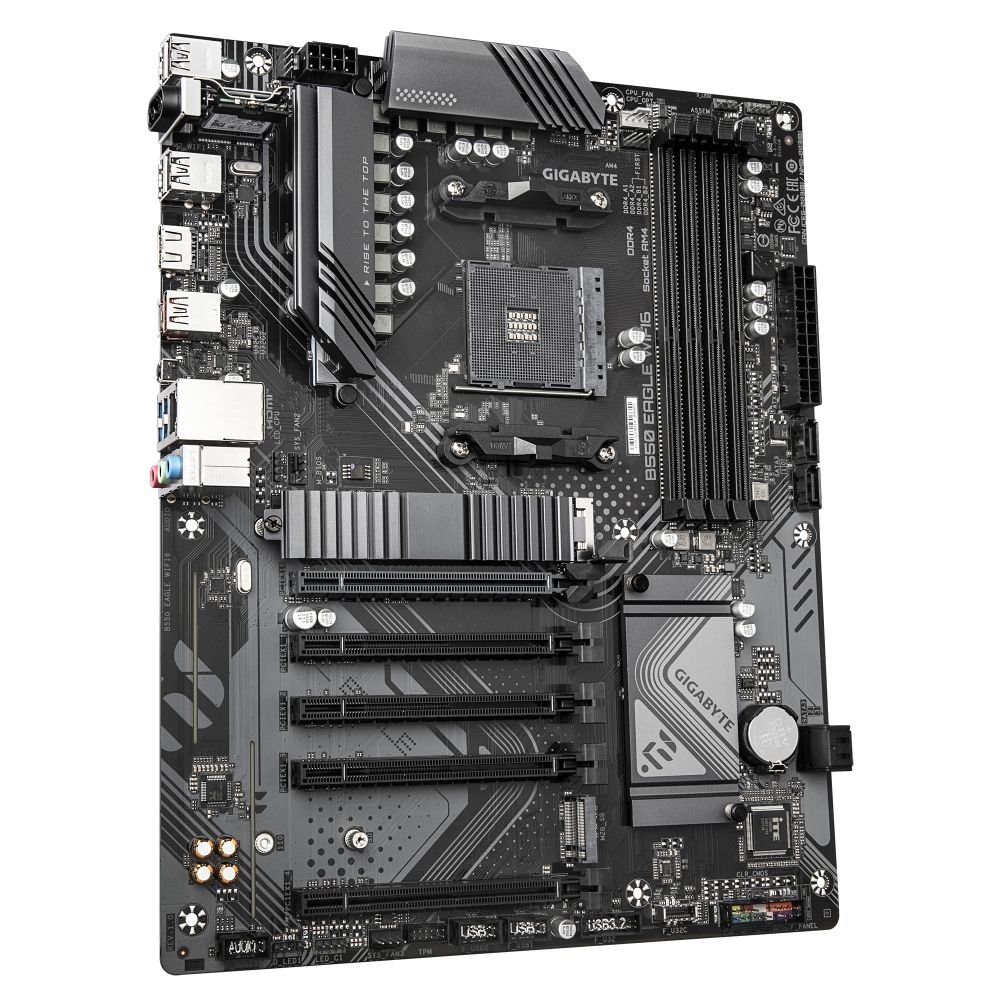

The GIGABYTE B550 EAGLE WIFI6 Motherboard delivers robust performance for AMD Ryzen 5000 G-Series CPUs with 10+3+1 phase VRM design, supporting up to 3200MHz DDR4 memory and dual M.2 slots (one PCIe 4.0, one PCIe 3.0). Built for enthusiasts and gamers, it combines Wi-Fi 6 connectivity, Gigabit Ethernet, and comprehensive storage options in a reliable ATX form factor.

Technical Specifications

10+3+1 Phase VRM for Stable Power Delivery

The 10+3+1 phase VRM design ensures consistent, clean power delivery to AMD Ryzen 5000 G-Series CPUs, even under heavy workloads. This robust power architecture prevents thermal throttling and maintains system stability during extended gaming or content creation sessions. The motherboard’s passive cooling keeps noise levels minimal while effectively dissipating heat from critical components.

Dual M.2 Slots with PCIe 4.0 Support

Featuring one PCIe 4.0 M.2 slot and one PCIe 3.0 M.2 slot, this motherboard supports the latest high-speed NVMe SSDs. The PCIe 4.0 slot delivers read/write speeds up to 7000MB/s, perfect for ultra-fast game loading and large file transfers. Both slots support M.2 2280/22110 drives, giving you flexibility for storage expansion without sacrificing performance.

Comprehensive Connectivity Options

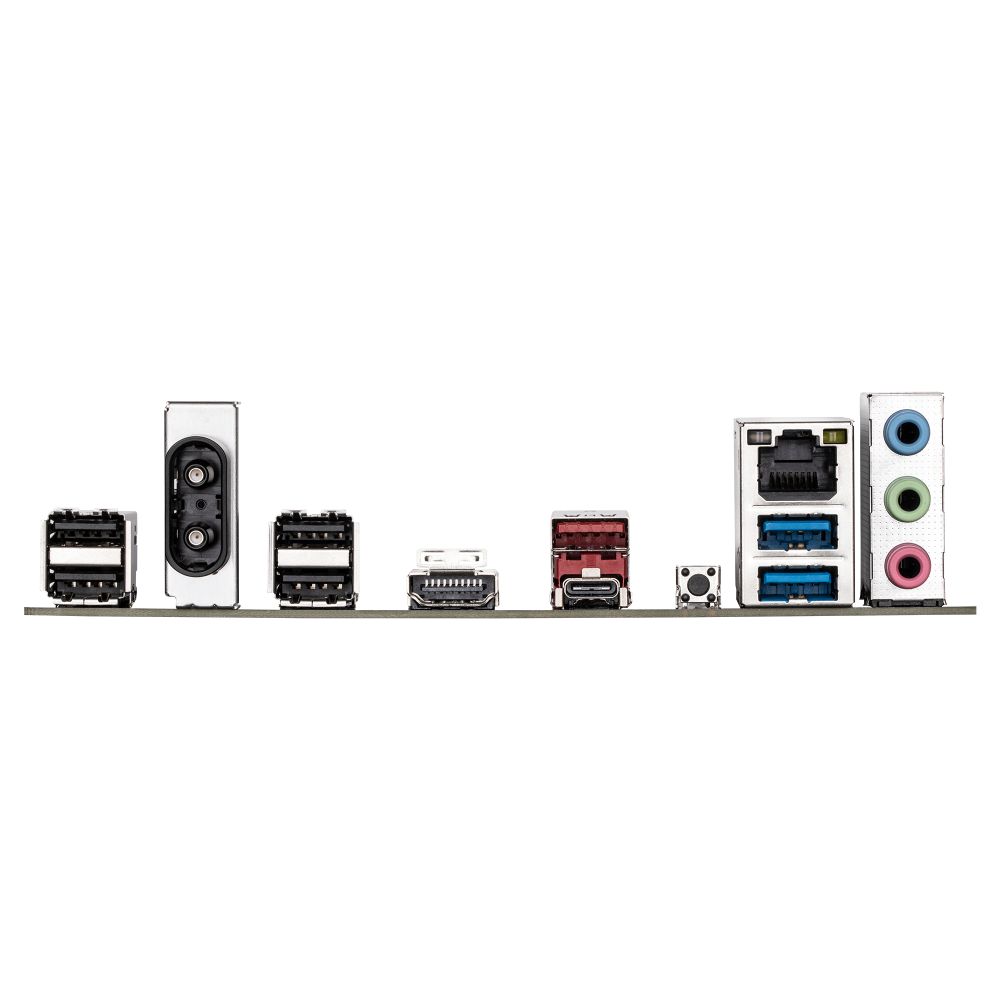

With 1GbE LAN, Wi-Fi 6, and Bluetooth 5.3, you’ll enjoy reliable wired and wireless connections. Wi-Fi 6 provides faster speeds and better performance in crowded networks, while Bluetooth 5.3 offers improved range and stability for peripherals. The motherboard includes multiple USB ports (including USB 3.2 Gen 2 Type-C), HDMI 2.1 output, and 7.1 channel HD audio for complete connectivity.

Enhanced Cooling and Fan Control

Three chassis fan headers, two CPU fan headers, and one water pump header give you complete control over system cooling. The motherboard monitors fan speeds, temperatures, and voltages to maintain optimal performance. Whether you’re running air cooling or a custom water loop, the comprehensive fan control ensures your system stays cool under pressure.

What Is in the Box

• GIGABYTE B550 EAGLE WIFI6 Motherboard
• I/O Shield
• User Manual
• Driver & Utility Disc
• SATA Data Cables (quantity not specified)
• M.2 screws (quantity not specified)
• Wi-Fi antennas (quantity not specified)

Before you order

• Confirm your AMD Ryzen CPU is compatible with Socket AM4 (check manufacturer’s CPU support list)
• Verify your case supports ATX motherboard dimensions (305mm x 244mm)
• Ensure you have adequate cooling solution for your CPU and VRM thermal requirements
• Check that your power supply provides sufficient PCIe and CPU power connectors

Buyer FAQs

Q: Does this motherboard support Ryzen 7000 series CPUs?

A: No, this B550 motherboard only supports AM4 socket CPUs including Ryzen 3000, 4000, and 5000 series. Ryzen 7000 requires AM5 motherboards.

Q: What is the maximum RAM speed supported?

A: The motherboard supports DDR4 memory up to 3200MHz when using Ryzen 5000 G-Series CPUs, with overclocking potential depending on your specific CPU.

Q: Can I use both M.2 slots simultaneously?

A: Yes, you can use both M.2 slots at the same time – one PCIe 4.0 and one PCIe 3.0 – for dual NVMe SSD storage.

Q: Does it have built-in Wi-Fi and Bluetooth?

A: Yes, it features Wi-Fi 6 (802.11ax) and Bluetooth 5.3 connectivity with included antennas for wireless networking.

Our verdict & warranty

The GIGABYTE B550 EAGLE WIFI6 offers excellent value for AMD Ryzen 5000 users seeking reliable performance with modern connectivity features. Its robust VRM design, dual M.2 support, and comprehensive cooling options make it ideal for gaming builds and content creation workstations. Covered by the applicable manufacturer warranty.
