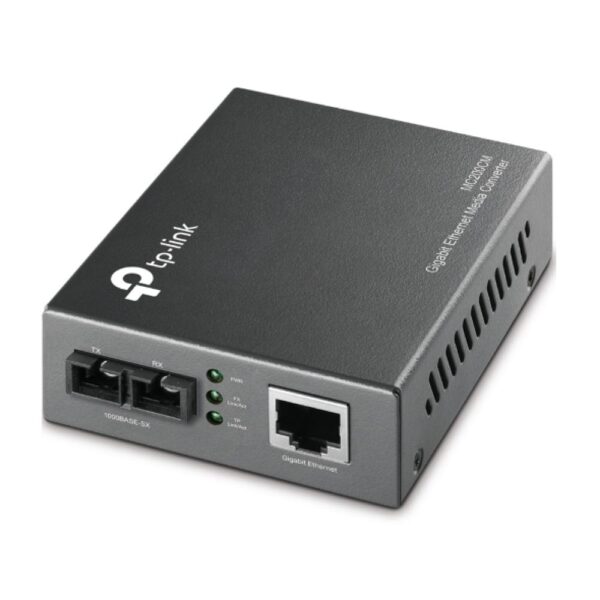

TP-Link MC200CM Media Converter 1000 Mbit/s

TP-Link MC200CM Media Converter | Gigabit Fiber to Ethernet Bridge

The TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black is a compact, industrial-grade device that bridges 1000BASE-SX fiber optic networks with standard Gigabit Ethernet copper connections. Designed for enterprise and professional environments, it supports full-duplex operation and auto-negotiation for seamless integration into existing network infrastructures.

Key Specifications

Plug-and-Play Fiber to Ethernet Conversion

The MC200CM eliminates complex network reconfiguration by automatically detecting and converting between fiber and copper media. With built-in Auto MDI/MDI-X on the Ethernet port, it adapts to straight-through or crossover cables without manual intervention. The device supports IEEE 802.3ab and IEEE 802.3z standards, ensuring compatibility with modern Gigabit Ethernet equipment while maintaining full wire-speed forwarding for uninterrupted data flow.

Extended Multi-Mode Fiber Support

Operating at 850nm wavelength, this converter works with standard multi-mode fiber cables up to 550 meters – ideal for connecting network segments across office buildings or campus environments. It supports both 50/125µm and 62.5/125µm fiber cores, making it compatible with most existing multi-mode installations. The SC-Type connector provides reliable, snap-in connections that maintain signal integrity over extended distances.

Compact Design with Front Panel Status Indicators

Measuring just 95 x 73 x 27mm, the MC200CM fits easily into network cabinets or on desks without taking up valuable space. Front-panel LED indicators provide instant visual confirmation of power status, link activity, and connection health, allowing for quick troubleshooting without network management software. The robust metal housing protects internal components in demanding environments while maintaining consistent performance across operating temperatures from 0°C to 40°C.

Box Contents

• TP-Link MC200CM Media Converter
• Power adapter (UK plug verification required)
• Quick installation guide

Check Before You Buy

• Confirm your fiber cable type matches 50/125µm or 62.5/125µm multi-mode specifications
• Verify your network equipment supports Gigabit Ethernet (1000BASE-T)
• Check that your existing fiber infrastructure uses SC-Type connectors
• Ensure operating environment stays within 0°C to 40°C temperature range

Frequently Asked Questions

Q: Can this convert from copper to fiber or only fiber to copper?

A: The MC200CM works bidirectionally, converting between 1000BASE-SX fiber and 1000BASE-T copper in either direction.

Q: What type of fiber cable do I need?

A: You need multi-mode fiber cable with SC-Type connectors, supporting either 50/125µm or 62.5/125µm core/cladding diameters.

Q: Does this device require configuration or software setup?

A: No configuration is needed – the MC200CM operates as a plug-and-play device with automatic MDI/MDI-X detection.

Q: What is the maximum distance for fiber connections?

A: The device supports multi-mode fiber distances up to 550 meters (1,800 feet) at 850nm wavelength.

Q: Is this suitable for outdoor installation?

A: The operating temperature range is 0°C to 40°C, making it suitable for indoor use or climate-controlled outdoor enclosures.

The Consultant’s Verdict & Warranty

The TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black delivers reliable, standards-compliant fiber to Ethernet conversion for network professionals who need proven performance without complexity. Its combination of extended multi-mode reach, automatic operation, and compact form factor makes it ideal for extending Gigabit networks across buildings or integrating legacy fiber infrastructure with modern copper-based equipment. Covered by the standard Manufacturer Warranty.
