TP-Link Omada BE9300 Tri-Band Wi-Fi 7 AP
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Tri-band Wi-Fi 7 access point with 9300 Mbps combined speeds
- Supports 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously
- Handles up to 380 concurrent users with MU-MIMO technology
- 1× 2.5G Ethernet port with VLAN and QoS support
- Ultra-thin 220×220×32.5 mm design for ceiling or wall mounting
- Advanced security including WPA3 and 24 SSID support
- Web-based management with SNMP and RADIUS authentication
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link EAP772 | Ceiling-Mounted Wi-Fi 7 Enterprise AP
The TP-Link EAP772 delivers enterprise-grade Wi-Fi 7 connectivity in a discreet ceiling-mounted form factor, ideal for UK businesses needing high-density wireless coverage and centralised management. With tri-band support and speeds up to 9,300 Mbps, it supports up to 380 concurrent users while maintaining low latency and robust security.
Slim Specs Table
| Metric | Spec |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Max Speed | 9,300 Mbps |
| Ethernet Port | 1x 2.5G RJ45 |
| Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Users Supported | 380 |
| Antenna Type | Internal |
Tri-Band Wi-Fi 7 Performance for Dense Environments
Operating across 2.4 GHz, 5 GHz, and 6 GHz bands, the EAP772 distributes client load intelligently to prevent congestion. The 2.4 GHz band delivers 574 Mbps, 5 GHz reaches 2,880 Mbps, and 6 GHz peaks at 5,760 Mbps. Multi-Link Operation (MLO) combines these bands for faster, more reliable connections—critical for offices, schools, and retail spaces with many simultaneous users.

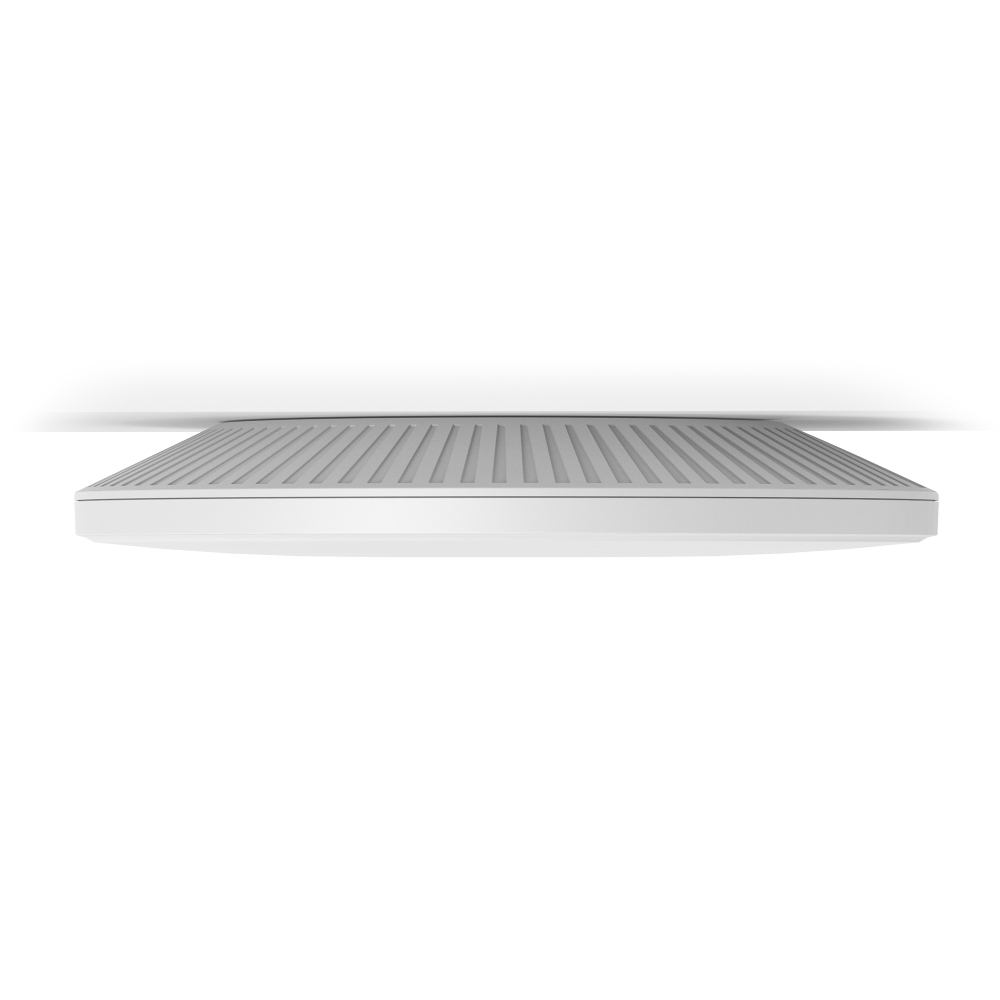

Ultra-Thin Ceiling Design with Flexible Deployment

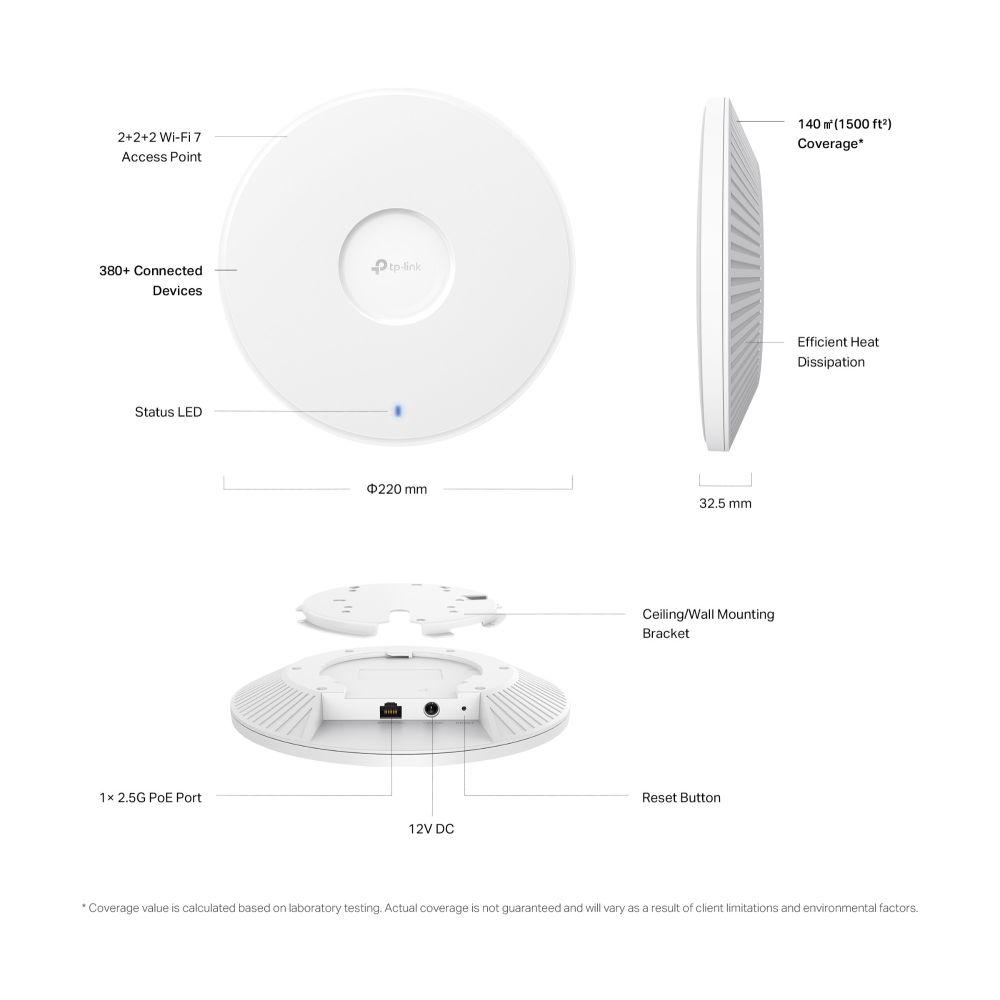

Measuring just 32. 5 mm in height and 220 mm in diameter, the EAP772’s circular arc design fits flush against ceilings or walls. Its internal heat-dissipating layout maintains performance without bulky external antennas. The included mounting kit enables quick installation in suspended ceilings, plasterboard, or concrete—perfect for maintaining clean aesthetics in professional environments.
Enterprise Security & Centralised Cloud Management
Security features include WPA3 encryption, MAC address filtering, Access Control Lists (ACL), and Rogue AP detection to identify unauthorised networks. Up to 24 SSIDs can be configured for guest networks, with optional SMS login for temporary access. Web-based and cloud management via Omada provides centralised control across multiple APs, with SNMP v1/v2c/v3 support for network monitoring.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection

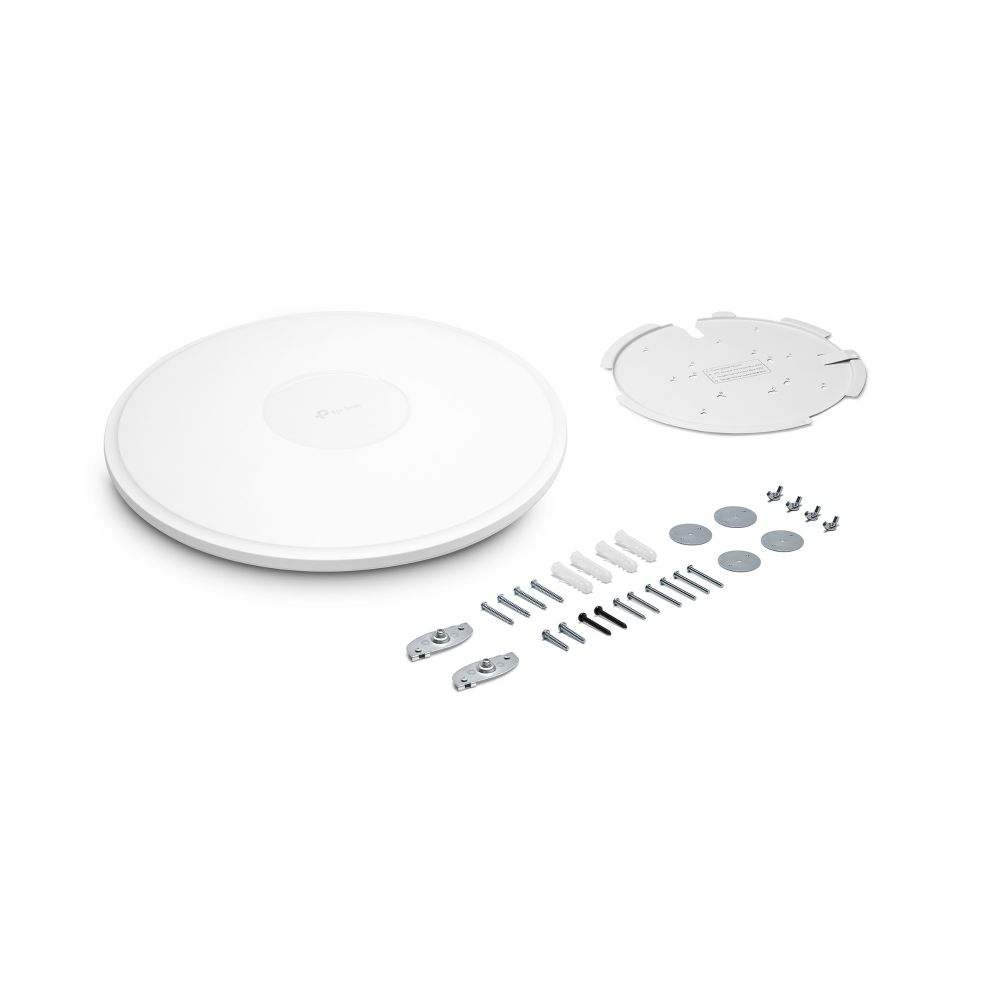

Box contents
- TP-Link EAP772 Ceiling Mount Wi-Fi 7 Access Point
- Mounting kit
- Quick installation guide
Check before you buy
- Confirm your network switch supports PoE or passive PoE injector
- Verify ceiling/wall mounting surface compatibility
- Check existing Omada Controller compatibility for centralised management
- Confirm 6 GHz band support on client devices for full Wi-Fi 7 speeds
Frequently Asked Questions
Q: Does this access point require a separate power adapter?
A: No, it uses PoE (Power over Ethernet) and does not include an AC adapter.
Q: Can I manage multiple EAP772 units together?
A: Yes, it supports centralised cloud and on-premises management via the Omada Controller.
Q: What is the maximum number of concurrent users?
A: The EAP772 supports up to 380 simultaneous users.
Q: Is the 6 GHz band supported on this access point?
A: Yes, it operates on 2.4 GHz, 5 GHz, and 6 GHz bands for tri-band performance.
The Consultant’s verdict & warranty
The TP-Link EAP772 represents a solid investment for UK businesses requiring high-density, secure wireless coverage with future-proof Wi-Fi 7 speeds. Its ultra-thin ceiling design, robust security features, and centralised management make it particularly suited to offices, educational institutions, and retail environments. Covered by the standard Manufacturer Warranty.
| Web-based management | Yes |
|---|---|
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 380 user(s) |
| VLAN support | Yes |
| Quality of Service QoS support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 2500 Mbit/s |
| Maximum data transfer rate | 9300 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Airtime Fairness ATF | Yes |
| Maximum data transfer rate 2.4 GHz | 574 Mbit/s |
| Maximum data transfer rate 5 GHz | 2880 Mbit/s |
| Maximum data transfer rate 6 GHz | 5760 Mbit/s |
| BeamForming | Yes |
| Number of SSID supported | 24 |
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service RADIUS | Yes |
| Service Set Identifier SSID features | Multiple SSIDs |
| Ethernet LAN RJ-45 ports | 1 |
| Placement | Ceiling, Wall |
| Product colour | White |
| Antenna type | Internal |
| Certification | CE, FCC, RoHS, IC |
| LED indicators | Yes |
| Access Control List ACL | Yes |
| Width | 220 mm |
| Depth | 220 mm |
| Height | 32.5 mm |
| Mounting kit | Yes |
| AC adapter included | No |
| Operating relative humidity H-H | 10 – 90% |
| Operating temperature T-T | 0 – 40 °C |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 90% |
| Quantity per pack | 1 pc(s) |
