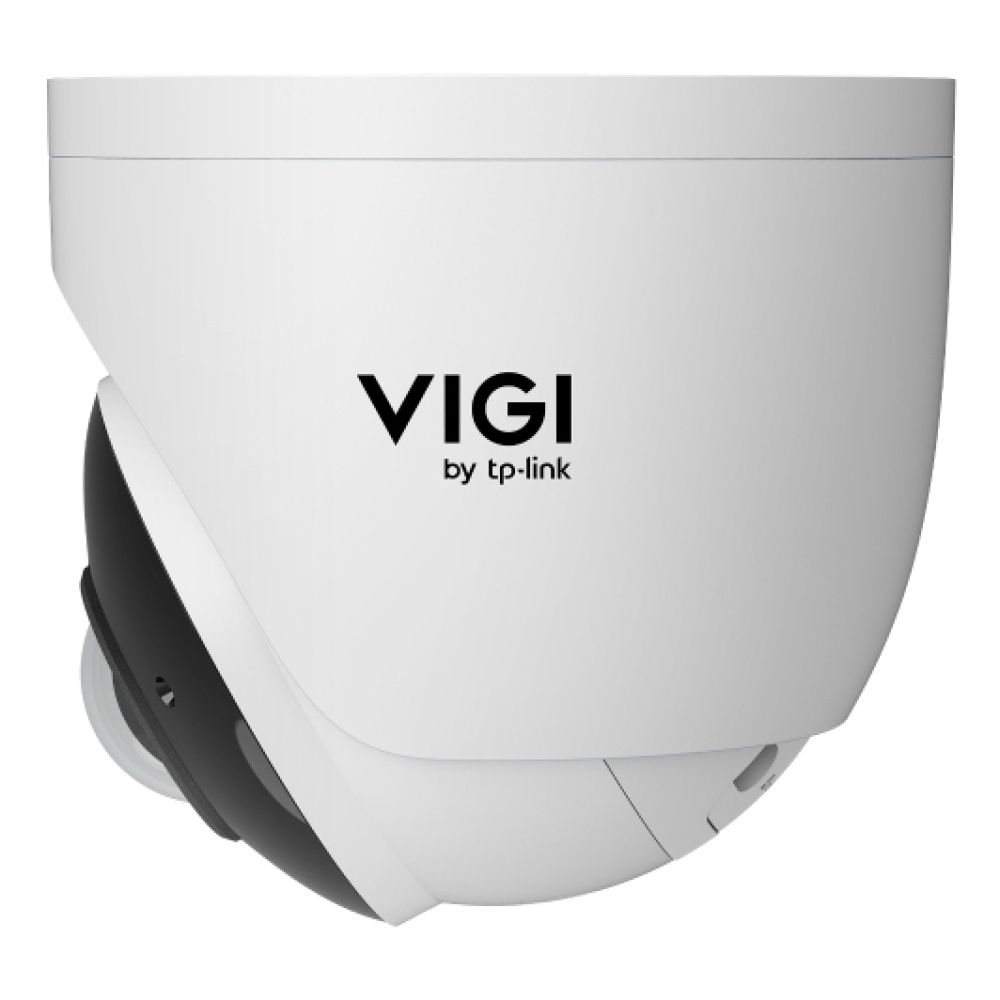

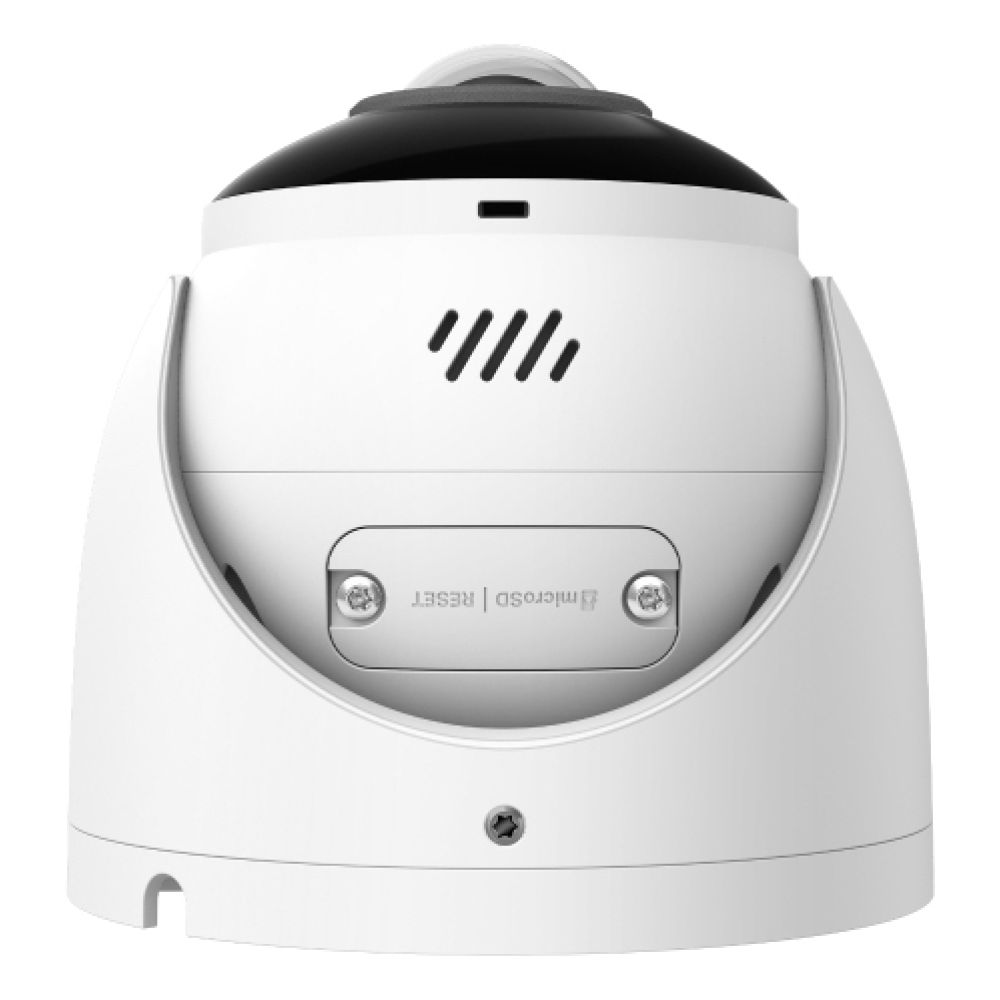

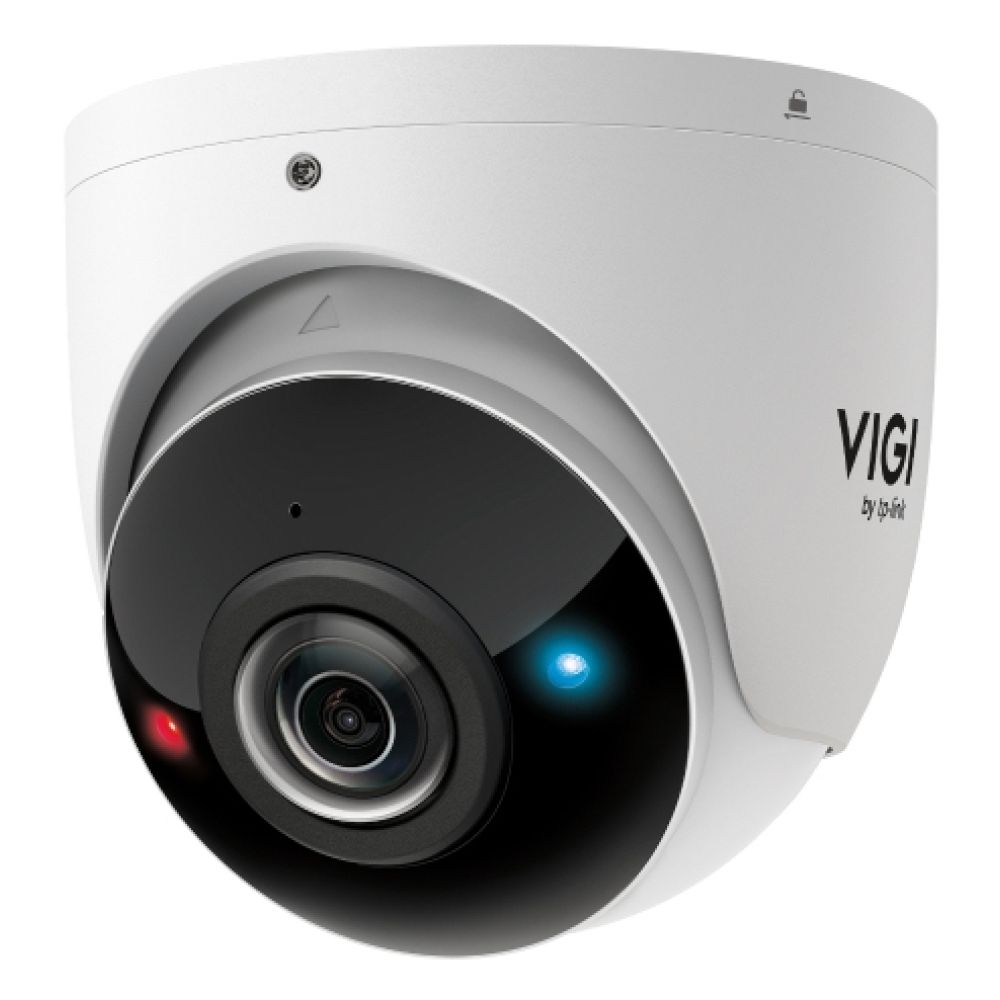

TP-Link InSight S485PI Turret IP Camera
£323.81 inc VAT
4 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 180° panoramic view with 8MP 4K resolution
- IP67 weatherproof metal turret housing for outdoor use
- Night vision up to 44m with IR/White LED illumination
- Smart AI detection for humans and vehicles
- Active defence with red-blue warning lights and siren
- PoE and DC power options with 21W max consumption
- 2-way audio with built-in microphone and speaker
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link InSight S485PI | 8MP Outdoor Panoramic IP Security Camera
The TP-Link InSight S485PI Turret IP security camera Outdoor 3840 x 2160 pixels Wall delivers 180° panoramic coverage with 4K resolution, ideal for monitoring large outdoor areas without multiple cameras. Its weatherproof metal housing and active defence features make it suitable for commercial and residential security.
Key Specifications
| Metric | Spec |
|---|---|
| Resolution | 3840 x 2160 pixels (8MP) |
| Viewing Angle | 180° horizontal, 86° vertical |
| Weather Rating | IP67 |
| Night Vision | IR/White LED up to 44m |
| Storage | MicroSD up to 512GB |
180° Panoramic Coverage Reduces Installation Costs
Monitor entire spaces like hotel lobbies, warehouses, or car parks with a single camera instead of multiple units. The 8MP sensor captures ultra-HD detail across 180° horizontal viewing angle, eliminating blind spots while lowering deployment and maintenance costs.
Active Defence with Red-Blue Warning Lights
Built-in active defence deters intruders using flashing red-blue lights paired with loud audio alarms. You can also upload custom voice messages for specific scenarios. This feature works alongside AI-powered human and vehicle detection to provide real-time alerts when suspicious activity occurs.
Weatherproof Metal Construction for Outdoor Durability
The IP67-rated metal housing protects against dust, rain, and extreme temperatures from -30°C to +60°C. Suitable for continuous outdoor operation in harsh conditions, the camera maintains reliable performance where plastic alternatives might fail.
Flexible Audio and Alarm Integration
Connect external alarms, access control systems, or speakers using the Audio In/Out and Alarm In/Out ports. This allows integration with existing security infrastructure and enables two-way audio communication through the built-in microphone and speaker.
Smart Video Enhancement for Clear Footage
True WDR balances bright and dark areas in high-contrast scenes, while Smart IR prevents overexposure in night vision mode. 3D DNR reduces noise without losing detail, and White Balance ensures natural colours under different lighting conditions.
H.265+ Compression Saves Storage Space
Advanced H.265+ encoding reduces bandwidth and storage requirements by up to 57.5% compared to H.264, while maintaining excellent image quality. This efficiency means longer recording times without requiring additional storage investment.
Box Contents
- TP-Link InSight S485PI Turret IP Camera
- Mounting kit with screws
- Drilling template
- User manual
Check Before You Buy
- Confirm your network supports PoE or DC power supply (12V)
- Verify your NVR or VMS is compatible with H.265/H.265+ formats
- Check available MicroSD card capacity meets your recording needs
- Ensure mounting surface can support 760g weight
Frequently Asked Questions
Q: Does this camera work with Wi-Fi?
A: No, this model uses wired Ethernet connection only and does not support Wi-Fi connectivity.
Q: What is the maximum storage capacity?
A: The camera supports MicroSD cards up to 512GB for local video storage.
Q: Can I integrate this with my existing alarm system?
A: Yes, the camera has Alarm In/Out ports for connecting external alarm or access control devices.
Q: How far can the camera detect motion?
A: Motion detection works up to 120 metres, with person/vehicle classification for accurate alerts.
The Consultant’s Verdict & Warranty
The TP-Link InSight S485PI Turret IP security camera Outdoor 3840 x 2160 pixels Wall suits users needing comprehensive outdoor coverage with minimal cameras. Its panoramic 180° view, active defence features, and weatherproof construction make it ideal for commercial properties, large residential areas, and high-traffic public spaces. Covered by the standard Manufacturer Warranty.
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Maximum operating distance | 44 m |
| Dynamic range | 120 dB |
| Design | |
| Weatherproof | Yes |
| Form factor | Turret |
| Product colour | White |
| Mounting type | Wall |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| Housing material | Metal |
| Camera | |
| Minimum illumination | 0 lx |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 86° |
| Lens viewing angle, diagonal | 180° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Lens system | |
| Maximum aperture number | 2 |
| Detect distance | 44 m |
| Observe distance | 18.33 m |
| Recognize distance | 8.8 m |
| Identify distance | 4.4 m |
| Fixed focus | Yes |
| Fixed focal length | 1.65 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR/White |
| Video | |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620, 3840 x 2160 |
| Total megapixels | 8 MP |
| Video recording | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in speaker(s) | Yes |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Audio formats supported | G.711 A-law |
| Bit rate range | 0 - 64 Kbit/s |
| Number of microphones | 1 |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| SIM card slot | Yes |
| Live view | Yes |
| SIM card type | MicroSIM |
| Storage | |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Detection distance | 120 m |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Built-in siren | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Management features | |
| Web browser | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 18 W |
| Power consumption (Power over Ethernet (PoE)) | 21 W |
| DC-in jack | Yes |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 112.3 mm |
| Depth | 112.3 mm |
| Height | 110.2 mm |
| Weight | 760 g |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Drilling template included | Yes |
| Other features | |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Identifiers | |
| Distributor SKUs | 91548, 3860676, INSIGHTS485PI, NS91548, CLINSIGHTS485PI, 20774709000 |
| Additional EANs | 1210002612753 |
