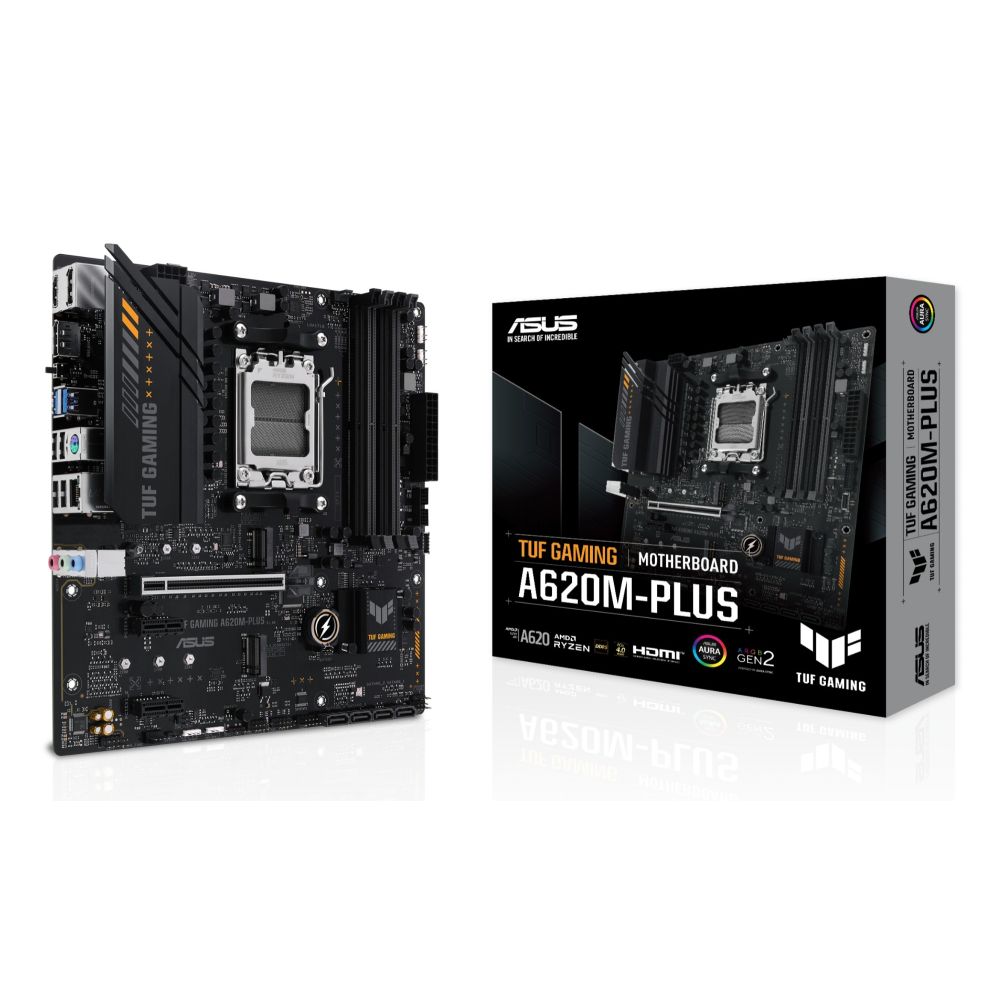

ASUS TUF GAMING A620M-PLUS Motherboard
£98.90 inc VAT
6 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Micro ATX motherboard with AMD A620 chipset and Socket AM5 for AMD Ryzen 7000 Series CPUs
- Supports DDR5 memory up to 128 GB with dual-channel architecture and speeds up to 6400 MHz
- Features 2 M.2 slots with PCIe 4.0 support and 4 SATA III connectors for versatile storage options
- Equipped with 2.5 Gb Ethernet, HDMI 2.1, DisplayPort 1.4, and comprehensive USB connectivity
- Passive cooling design with military-grade components for enhanced durability and reliability
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS TUF GAMING A620M-PLUS | AMD AM5 Micro ATX Motherboard

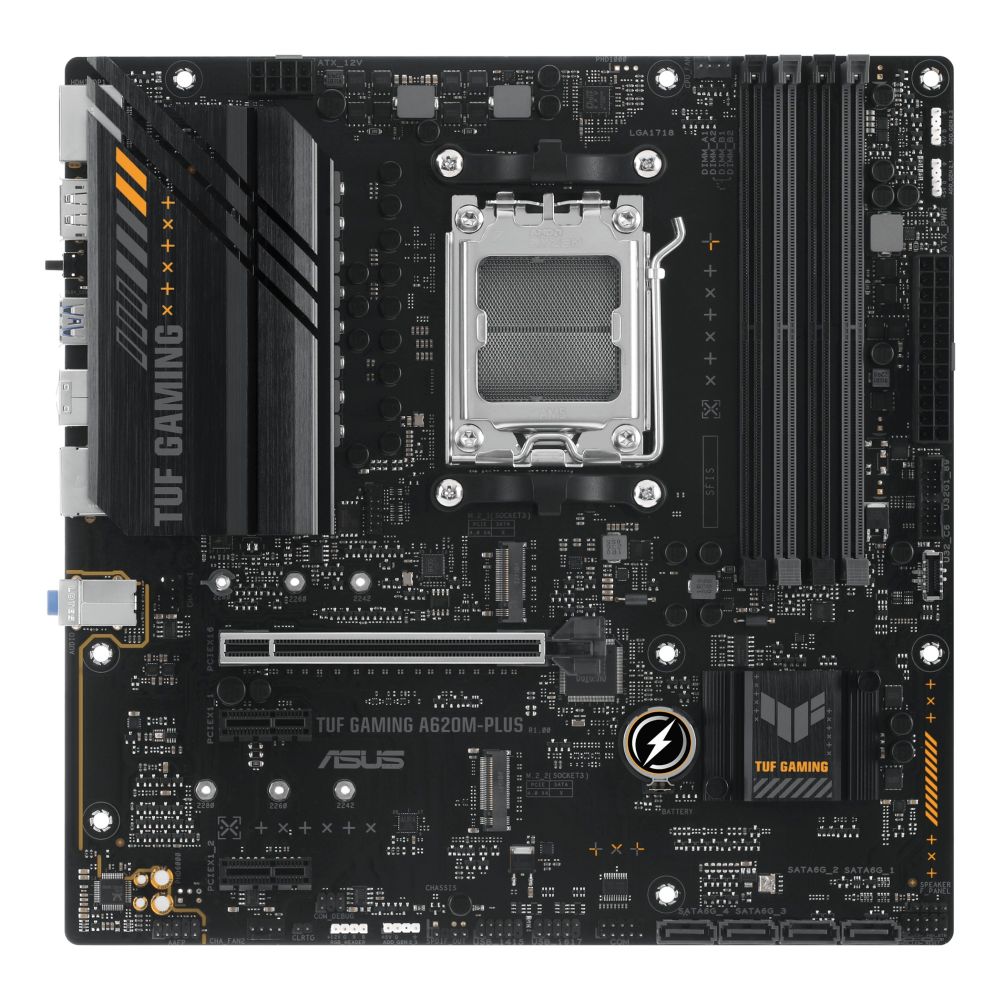

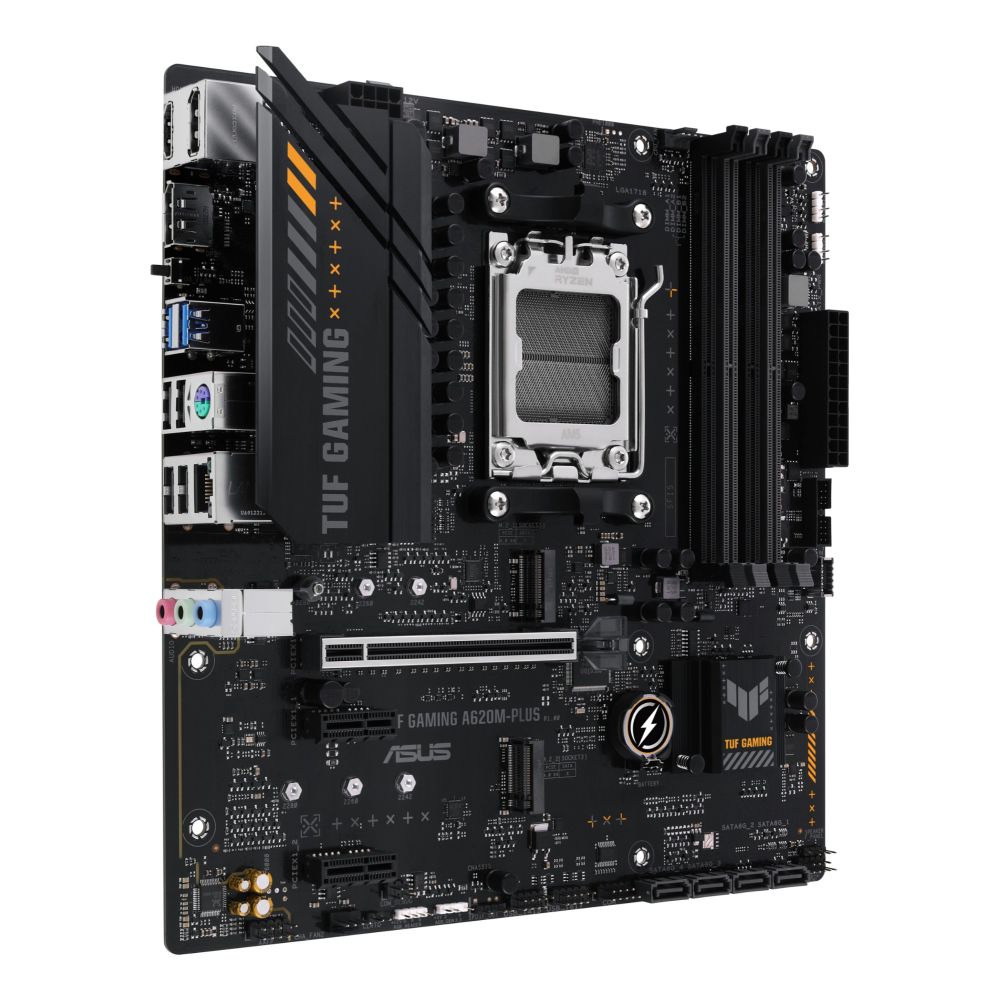

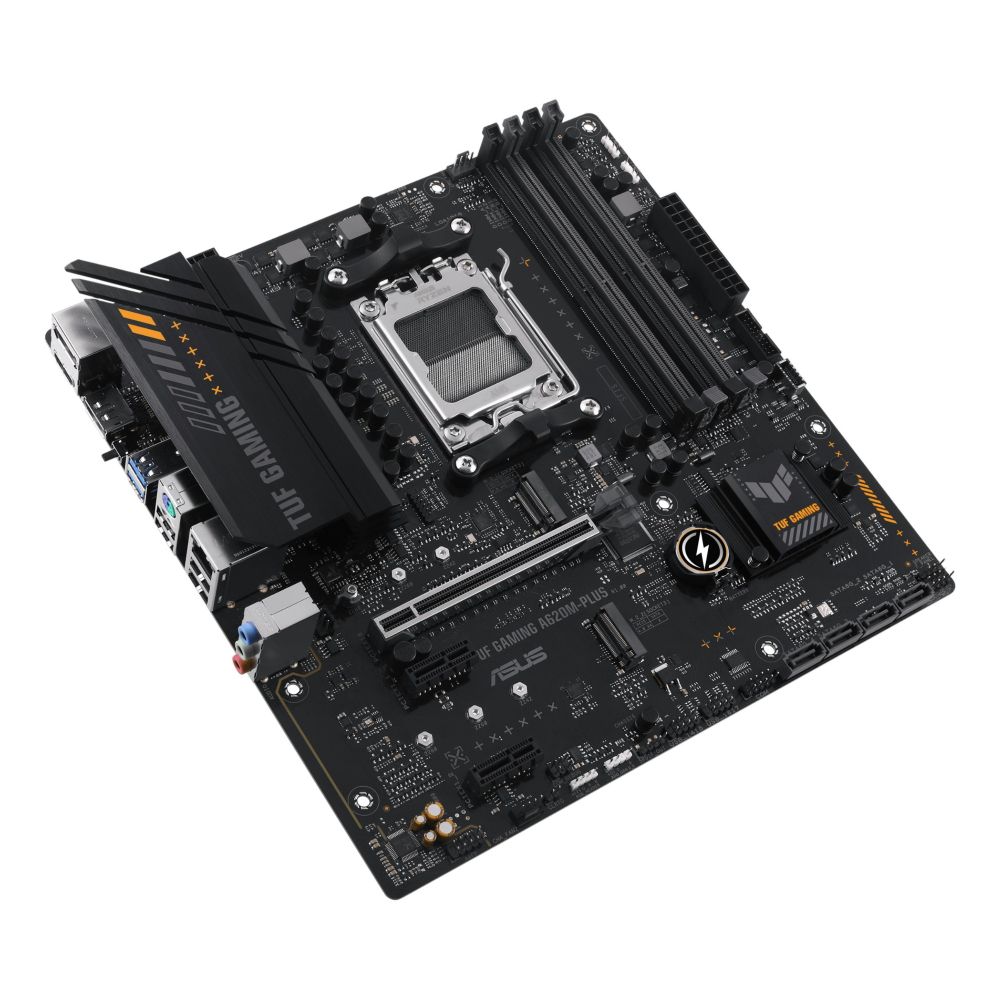

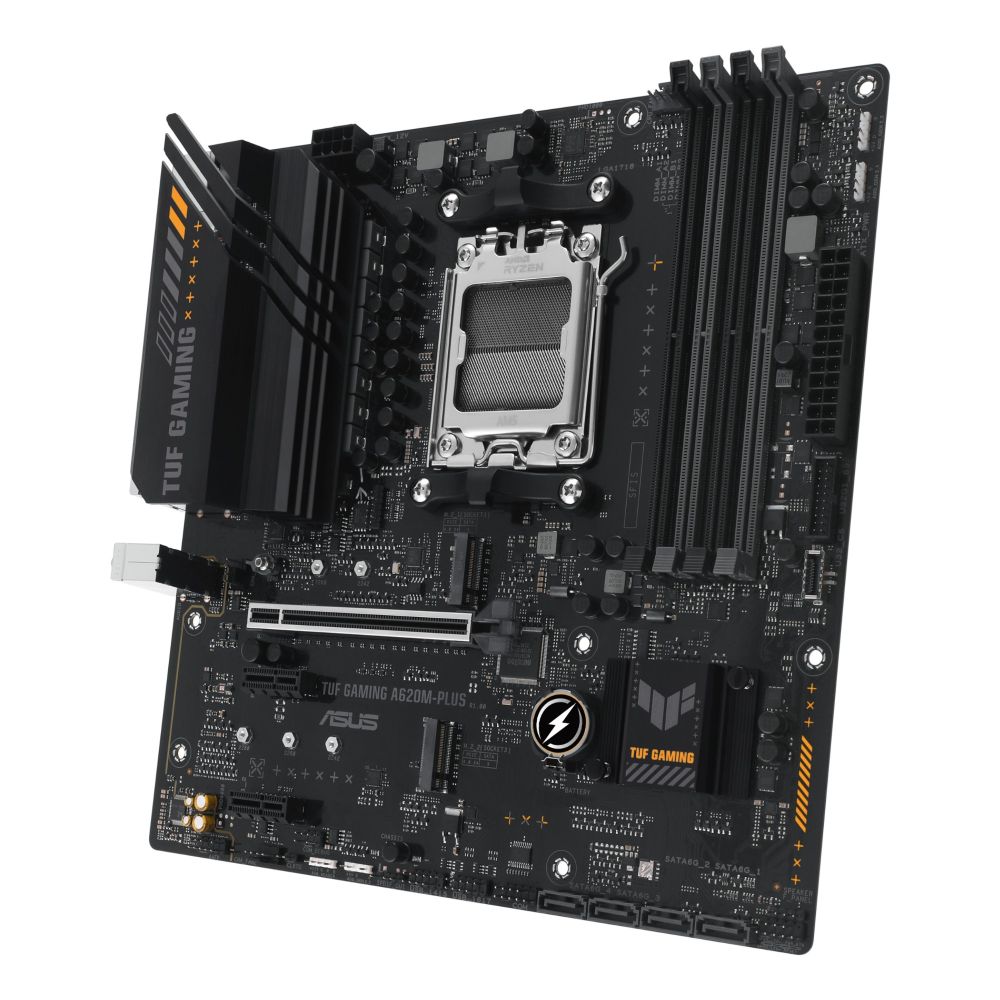

The ASUS TUF GAMING A620M-PLUS is a micro ATX motherboard built for AMD Ryzen 7000-series processors on the AM5 socket. Engineered with military-grade durability and rock-solid stability, it delivers dependable performance for gaming and everyday computing without unnecessary complexity.
Key Specifications
| Metric | Spec. |
|---|---|
| CPU Socket | AM5 |
| Memory Support | DDR5 up to 6400 MHz |
| Form Factor | Micro ATX |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| M.2 Slots | 2 x NVMe PCIe 4.0 |
| LAN | 2.5 Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound |
Engineered for Durability & Stability
The TUF GAMING A620M-PLUS is built around ASUS’s military-grade TUF components, including TUF chokes and capacitors rated for extreme temperatures and extended lifespans. The six-layer PCB design optimises heat management, while the Digi+ VRM delivers ultra-clean power to the CPU for stable operation under load. These features ensure marathon gaming sessions and heavy workloads run without unexpected crashes or throttling.
Memory Performance & Expansion Flexibility
With four DIMM slots supporting dual-channel DDR5 up to 6400 MHz, this motherboard unlocks the full potential of high-speed memory kits. Whether you’re using an entry-level set or an extreme-speed kit, the comprehensive memory tuning options in the UEFI BIOS allow precise control over timings and voltages. Two M.2 slots with PCIe 4.0 support enable NVMe SSD RAID configurations for blistering storage speeds, while six total SATA III ports offer ample space for additional drives.
Cooling & Thermal Management
Effective cooling is essential for sustained performance, and the A620M-PLUS delivers with an enlarged VRM heatsink that covers VRMs and chokes for improved heat dissipation. Comprehensive fan controls via Fan Xpert 2+ in Armoury Crate or the UEFI BIOS allow you to fine-tune chassis and CPU fan speeds based on temperature sensors. This ensures optimal airflow and quiet operation, even during intensive tasks.
Connectivity & I/O Options

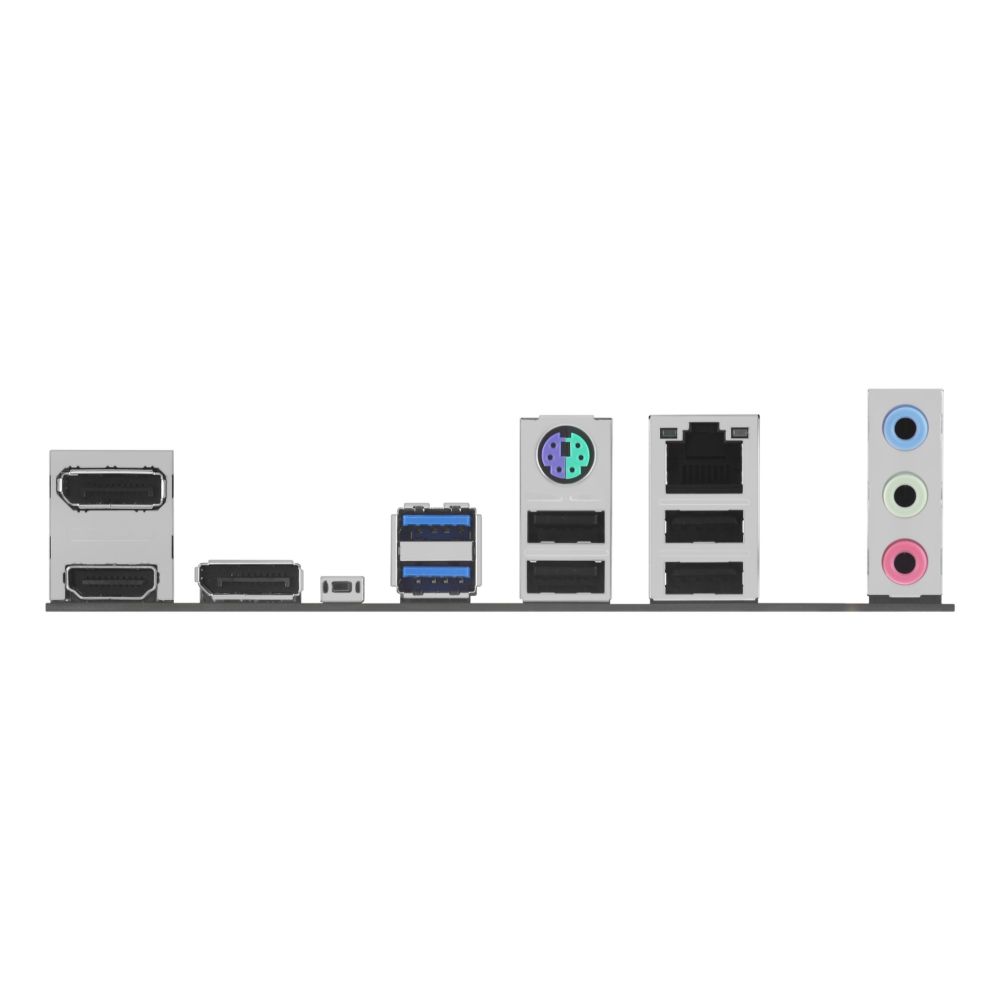

This motherboard provides a balanced mix of modern and legacy ports: two USB 3.2 Gen 1 Type-A ports, one front USB 3.2 Gen 1 Type-C connector, and four USB 2.0 ports. Dual DisplayPort 1.4 and one HDMI 2.1 port support multiple monitor setups. The 2.5 Gb Ethernet port offers up to 2.5x faster LAN speeds than standard Gigabit, perfect for lag-free online gaming and fast file transfers. Wi-Fi is not included, so a separate adapter is needed for wireless networking.
Easy Installation & DIY Features

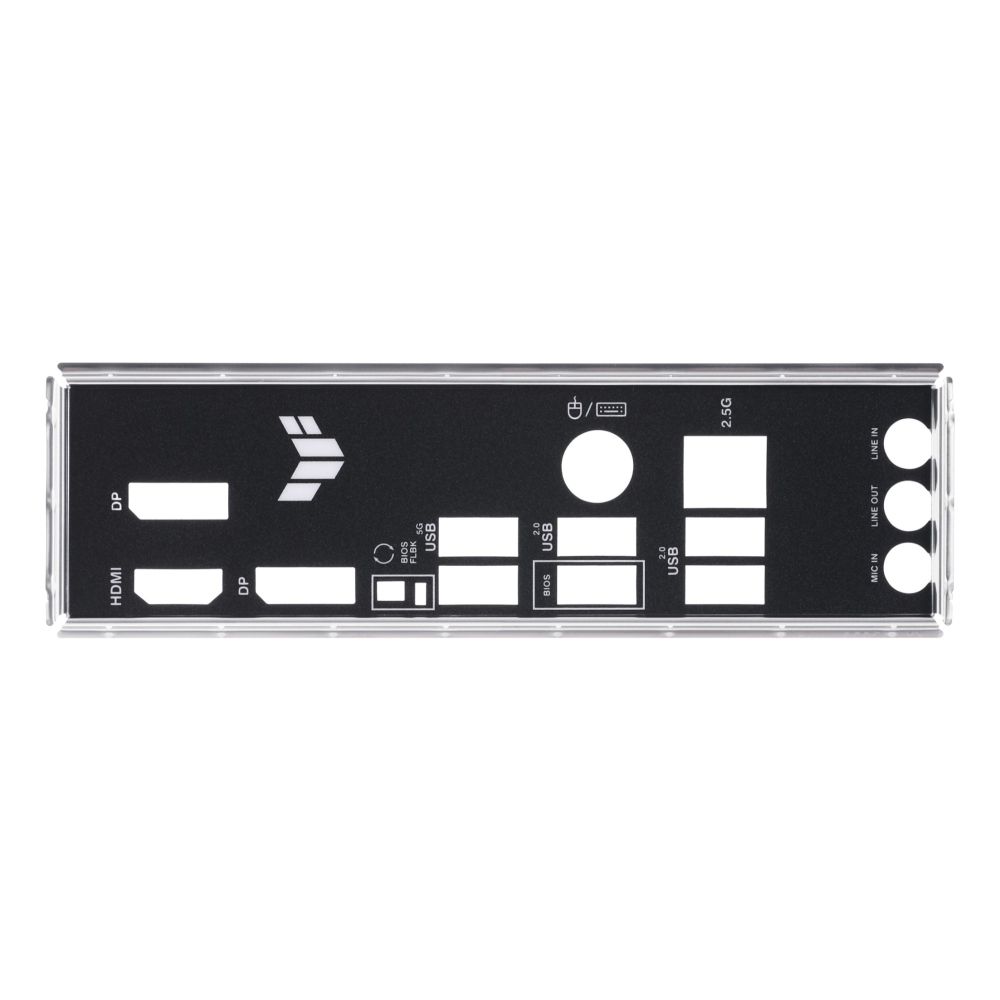

TUF GAMING motherboards are designed with builders in mind. SafeSlot Core+ fortifies the PCIe x16 slot with a stainless-steel brace to protect heavy graphics cards. ESD Guards prevent damage from static discharge, while the corrosion-resistant stainless steel back I/O panel enhances durability. BIOS FlashBack™ allows BIOS updates without a CPU or memory installed, and the Q-Latch simplifies M.2 SSD installation without screws.

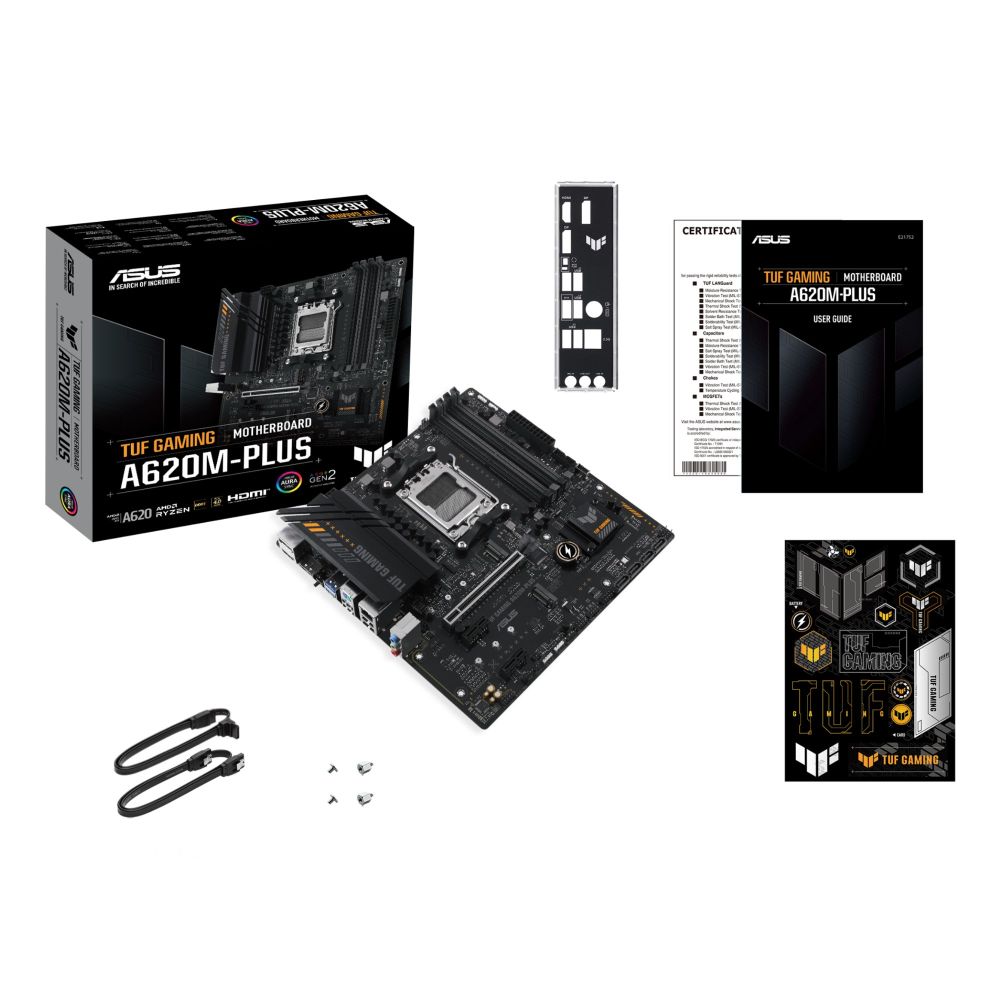

Box Contents
- ASUS TUF GAMING A620M-PLUS motherboard
- SATA cables (quantity not specified)
- User guide
- Warranty documentation
Check Before You Buy
- Confirm your AMD Ryzen 7000-series CPU is AM5 socket compatible.
- Verify your case supports micro ATX form factor (244 x 244 mm).
- Ensure you have a 2.5 Gb Ethernet cable or plan for a separate Wi-Fi adapter.
- Check that your power supply provides sufficient PCIe and CPU power connectors.
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5 memory modules.
Q: Is Wi-Fi included on this board?
A: No, Wi-Fi is not built-in; you’ll need a separate Wi-Fi adapter.
Q: Can I use this with an older Ryzen CPU?
A: No, it only supports AMD Ryzen 7000-series processors on the AM5 socket.
Q: How many M.2 SSDs can I install?
A: Two M.2 slots are available, both supporting PCIe 4.0 NVMe drives.
Q: What is the maximum memory capacity?
A: Up to 128 GB across four DIMM slots.
Q: Does it support RGB lighting control?
A: Yes, with three addressable Gen 2 RGB headers and Aura Sync compatibility.
The Consultant’s Verdict & Warranty
The ASUS TUF GAMING A620M-PLUS is an excellent choice for users seeking a durable, stable micro ATX motherboard for AMD Ryzen 7000 CPUs. Its military-grade components, robust cooling, and flexible expansion make it ideal for gamers and content creators who value reliability over flashy extras. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Back-to-BIOS button | Yes |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 6400 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Back-to-BIOS button | Yes |
| Power | |
| Power source type | ATX |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 850 g |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 850 g |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Other features | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 850 g |
| Back-to-BIOS button | Yes |
| Identifiers | |
| Distributor SKUs | MBD-90MB1EZ0-M0EAY0, 8324406, 465646, STD10215765, CL90MB1EZ0-M0EAY0 |
