GIGABYTE A620I AX Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0, Wi-Fi 6E
£117.40 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD A620 chipset mini ITX motherboard for Ryzen 7000 Series
- Supports up to 96 GB DDR5 memory at 6400 MHz
- 1x M.2 slot plus 2x SATA III for flexible storage
- Wi-Fi 6E, 2.5 GbE LAN, and Bluetooth 5.3 connectivity
- 7.1-channel audio with HDMI 2.1 and DisplayPort 1.4
Payment Methods:
You may also like
GIGABYTE A620M S2H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2, GbE LAN
In stock

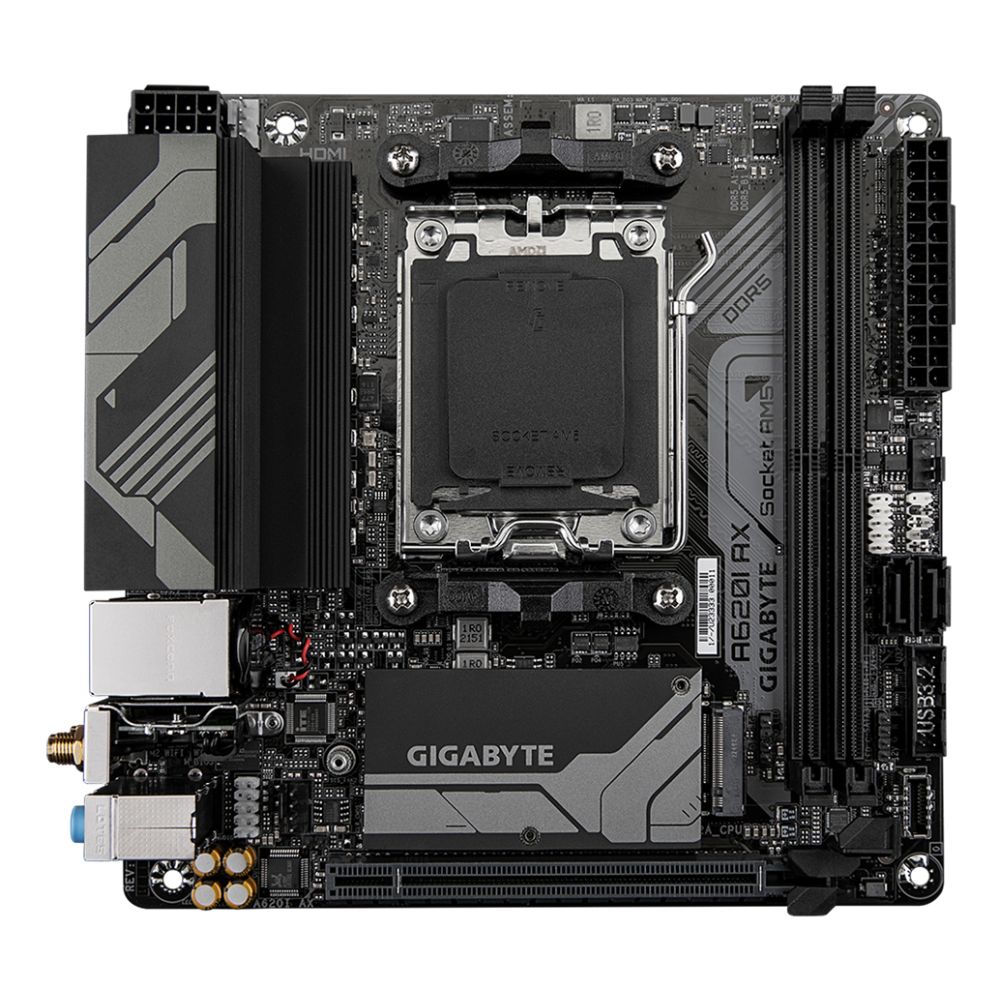

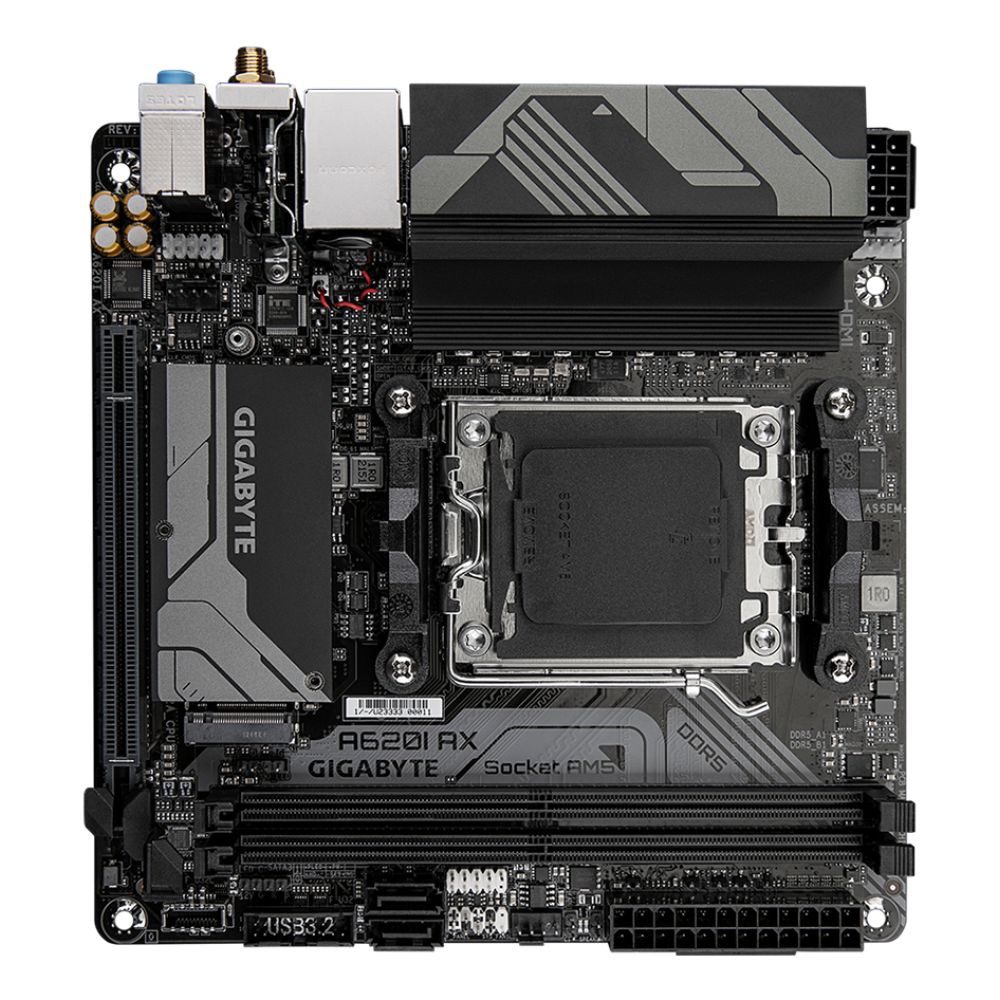

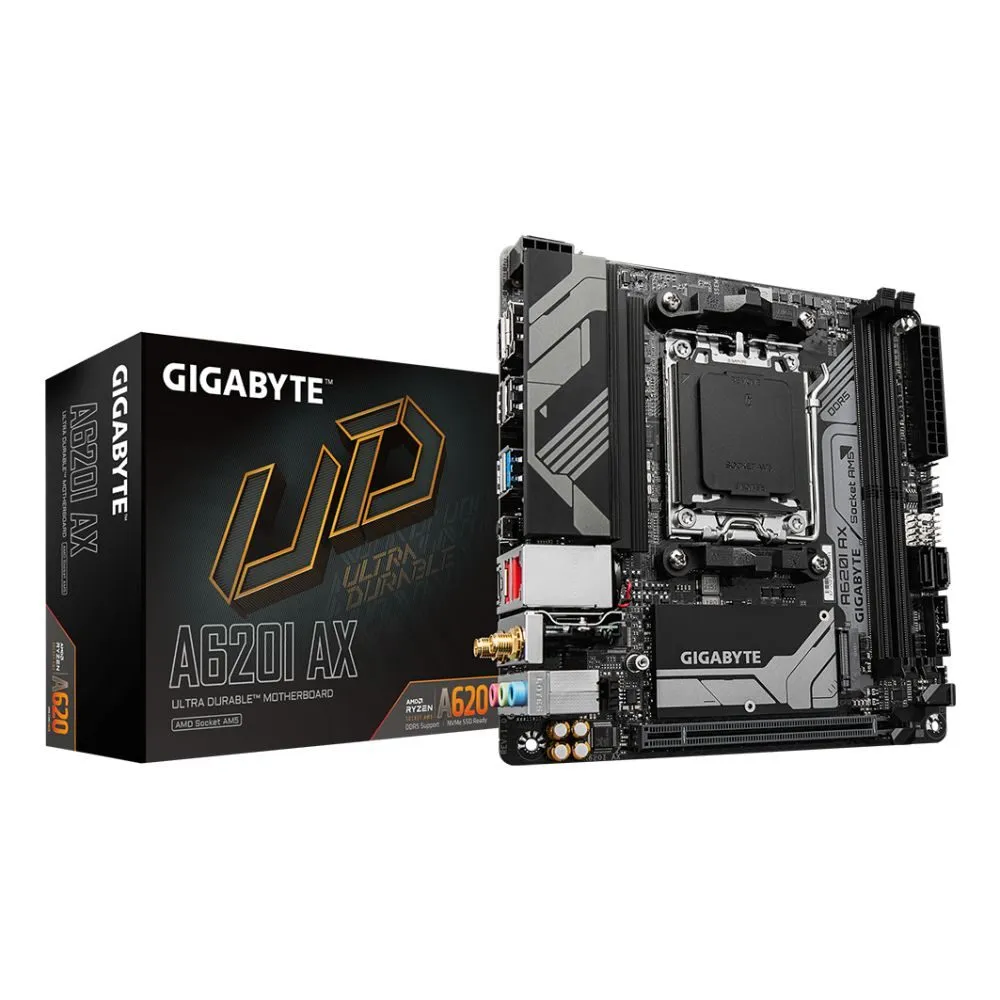

GIGABYTE A620I AX | AMD Ryzen 8000 Ready Mini-ITX
The GIGABYTE A620I AX Motherboard – Supports AMD Ryzen 8000 CPUs, 5+2+1 Phases Digital VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2 delivers compact performance for small-form-factor builds. Designed for AMD’s AM5 platform, this mini-ITX board combines modern connectivity with efficient power delivery in a space-saving footprint.
| Metric | Spec |
|---|---|
| Form Factor | Mini-ITX |
| Memory Support | DDR5, up to 6400MHz (OC) |
| Storage | 1x M.2 PCIe 4.0, 2x SATA III |
| Network | Wi-Fi 6E, 2.5GbE LAN |
| Processor Support | AMD Ryzen 7000/8000 Series |
Compact power for Ryzen 8000 builds
The 5+2+1 phase digital VRM design provides stable power delivery for AMD Ryzen 7000 and 8000 series processors. Combined with dual-channel DDR5 memory support up to 6400MHz, this board delivers responsive performance in a small package. The PCIe 4.0 M.2 slot ensures fast NVMe storage, while the 2.5GbE LAN and Wi-Fi 6E keep you connected at high speeds.
Built for small spaces without compromise
Mini-ITX form factor doesn’t mean cutting corners. The A620I AX includes comprehensive I/O with USB 3.2 Gen 2 ports, HDMI 2.1, and DisplayPort 1.4 for flexible display options. The Realtek RTL8852CE Wi-Fi 6E controller provides next-generation wireless connectivity, and the onboard audio with 7.1 channels delivers immersive sound quality for gaming and media.
Efficient cooling in a compact design
PC health monitoring tracks fan speeds, temperatures, and voltages to maintain optimal operating conditions. The board supports both air and water cooling solutions, making it suitable for various build styles. The mini-ITX layout requires careful component selection, but the A620I AX provides all essential headers including CPU fan, front panel, and RGB LED connections.
Future-ready connectivity options
With support for Windows 10 and 11, this motherboard offers broad compatibility. The PCIe 4.0 M.2 slot supports the latest high-speed storage, while SATA III ports accommodate additional drives. RAID 0 and 1 configurations are supported for data management. Bluetooth 5.3 provides reliable wireless peripheral connectivity, and the comprehensive USB port selection covers all modern device needs.
What is in the box
- GIGABYTE A620I AX Motherboard
- I/O shield
- SATA cables
- User manual
- Warranty documentation
- Norton Internet Security (bundled software)
Check before you buy
- Confirm your CPU is compatible with Socket AM5 (AMD Ryzen 7000/8000 Series)
- Verify your case supports mini-ITX motherboards (170mm x 170mm)
- Check if your GPU will fit alongside other components in a compact case
- Confirm your power supply has the required 24-pin ATX and 8-pin EPS connectors
Questions and answers
Does this motherboard support DDR4 memory?
Can I use this with older Ryzen processors?
How many M.2 drives can I install?
Is Wi-Fi 6E included?
What is the maximum memory capacity?
Summary & warranty
The GIGABYTE A620I AX offers an excellent foundation for compact Ryzen 8000 systems where space efficiency matters. Its combination of modern connectivity, robust power delivery, and mini-ITX footprint makes it ideal for small-form-factor enthusiasts and space-conscious builders. Covered by the applicable manufacturer warranty.
| Weight | 0.6 kg |
|---|---|
| Bundled software | Norton Internet Security |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 2 |
| Warranty period | 3 year(s) |
| Audio connector | Yes |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 96 GB |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 6400 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1 |
| Number of storage drives supported | 3 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 3 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | Brown |
| Number of M.2 M slots | 1 |
| PCI Express x16 slots | 1 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 170 mm |
| Depth | 170 mm |
| Cables included | SATA |
| Batteries included | Yes |
| Height | 35 mm |
| Package width | 222 mm |
| Package depth | 180 mm |
| Package height | 65 mm |
| Package weight | 860 g |
