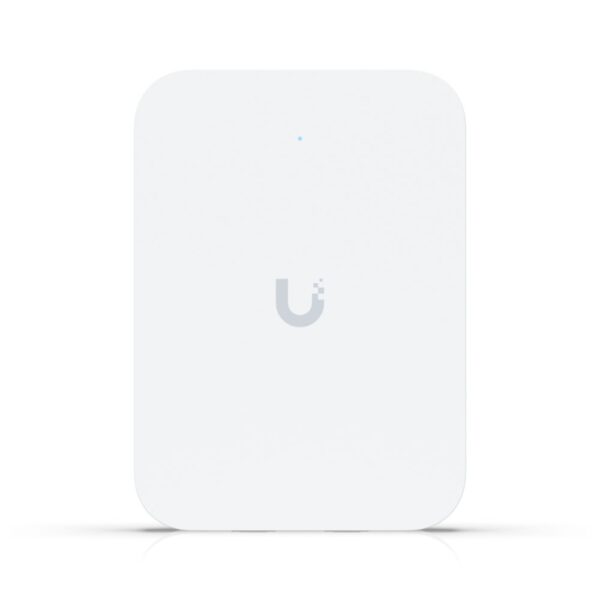

Ubiquiti U7 In-Wall PoE White

Ubiquiti U7 In-Wall | WiFi 7 Access Point for Hospitality

The Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE) delivers enterprise-grade WiFi 7 coverage with 4 spatial streams and an integrated 2.5 GbE PoE switch, purpose-built for high-density hospitality environments.

Slim Specs Table

Built for high-density hospitality environments

Designed for hotels, conference centres, and serviced apartments, the U7 In-Wall supports up to 200 simultaneous users with fast roaming and band steering, ensuring seamless connectivity across large public areas. Its 115 m² coverage and 4×4 MIMO architecture provide reliable, high-speed wireless access where multiple guests connect at once.

WiFi 7 performance with 4 spatial streams

Leveraging IEEE 802.11ax/be standards, the U7 delivers 4300 Mbit/s over 5 GHz and 688 Mbit/s over 2.4 GHz, enabling ultra-fast streaming, conferencing, and IoT device support. Four internal antennas with 8 dBi gain ensure strong signal penetration through walls and floors typical in multi-room properties.

Integrated 2.5 GbE PoE switch

The built-in 2.5 GbE PoE switch powers the unit and connects up to three wired devices, reducing cabling complexity. With 13 W maximum power draw and 42.5–57 V DC input, installation is straightforward using standard PoE+ injectors or switches.

Enterprise security and management

Security features include PPSK authentication for individual guest credentials and VLAN support for network segmentation. Wi-Fi scheduling and fast roaming keep connections stable as users move between access points, while Hotspot 2.0 capability supports seamless public Wi-Fi onboarding.

Box contents

• Ubiquiti U7 In-Wall AP
• Wall mounting kit
• Quick start guide

Check before you buy

• Confirm your PoE switch supports 802.3at/af or 42.5–57 V passive PoE
• Verify wall cavity dimensions accommodate 98.7 x 137 x 30.2 mm
• Check your network controller supports UniFi OS or UniFi Network application
• Ensure your environment requires 2.4/5 GHz bands (no 6 GHz support)

Frequently Asked Questions

Q: Can the U7 In-Wall operate without a UniFi controller?

A: No, it requires a UniFi Network application or UniFi OS console for initial setup and management.

Q: What is the maximum number of devices this AP can handle?

A: It supports up to 200 concurrent users.

Q: Does it support WiFi 6 client devices?

A: Yes, it is backward compatible with WiFi 5 (802.11ac/n) devices.

Q: Can I mount it in a ceiling instead of a wall?

A: It is designed for in-wall installation only; ceiling mounting is not supported.

Q: What security protocols are available?

A: It supports WPA2-Enterprise, WPA3, and PPSK for guest networks.

The Consultant’s verdict & warranty

The Ubiquiti U7 In-Wall is the ideal WiFi 7 access point for hospitality and multi-dwelling environments demanding high user density, fast roaming, and simplified wired/wireless integration. Covered by the standard Manufacturer Warranty.
