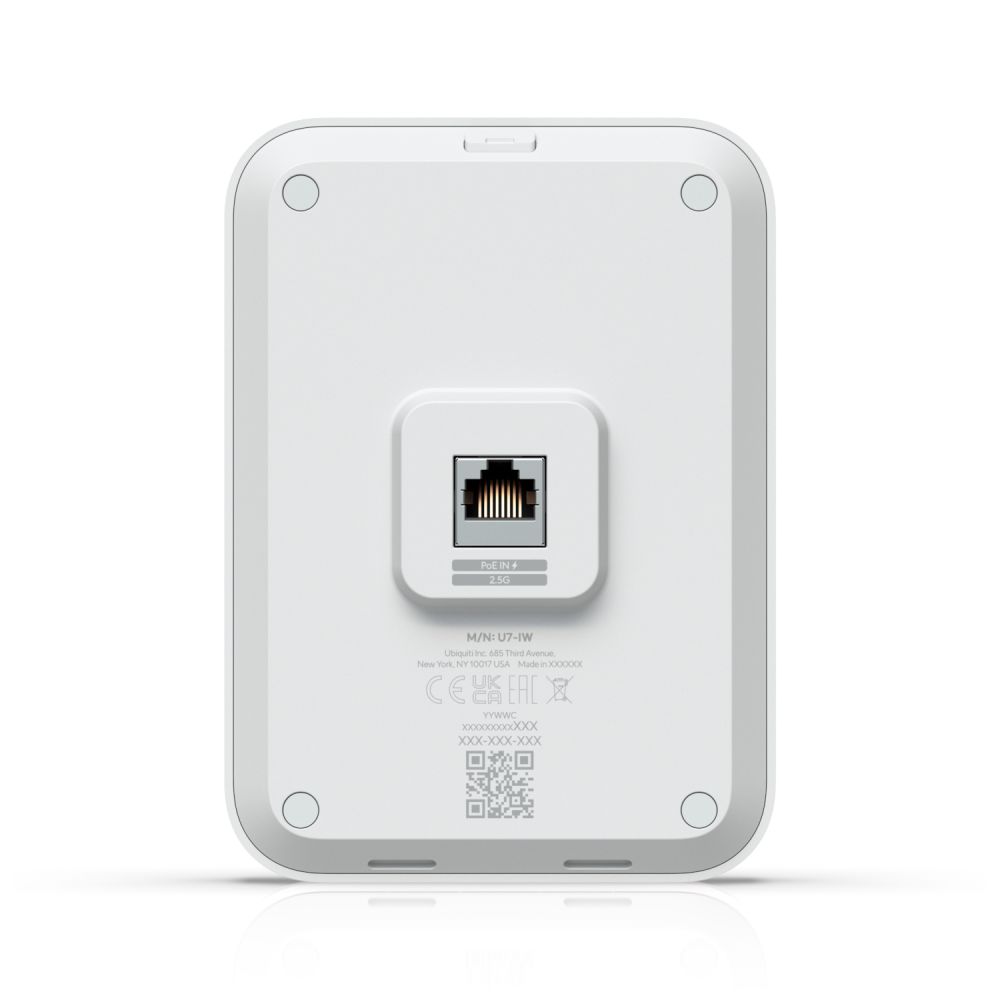

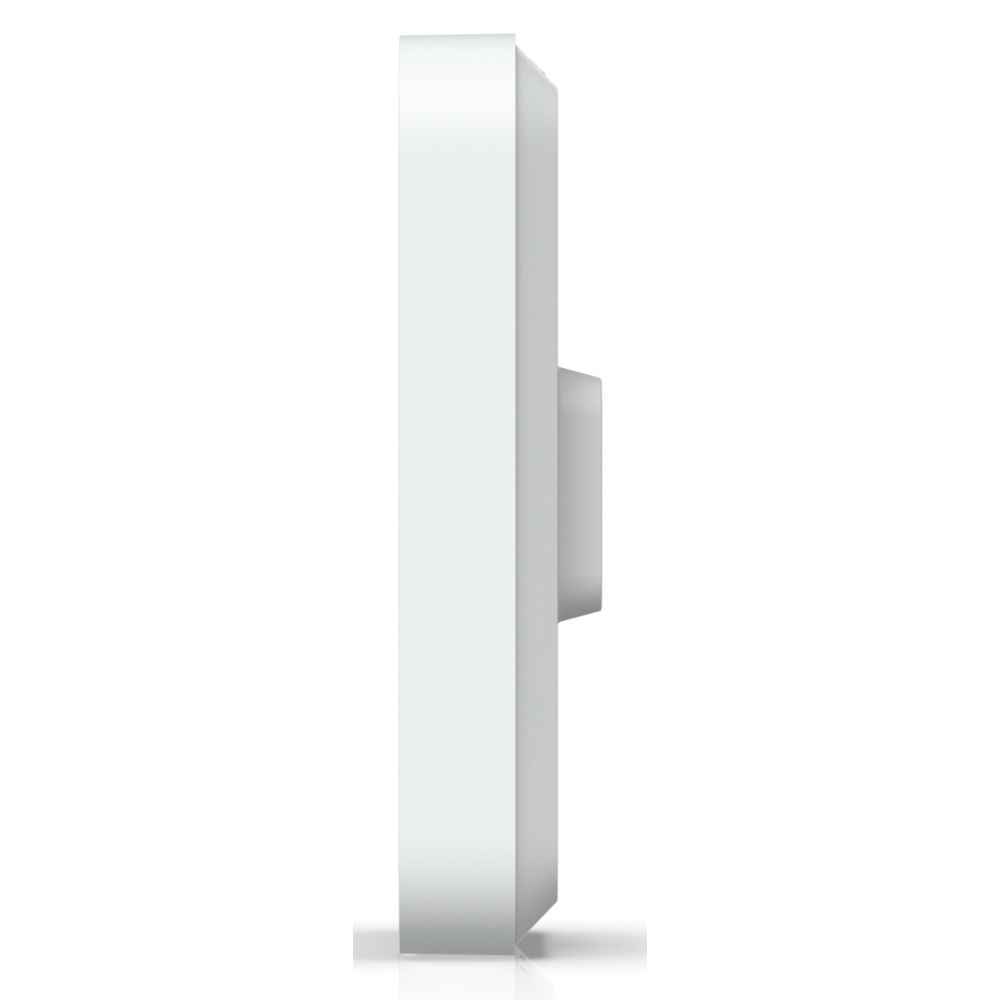

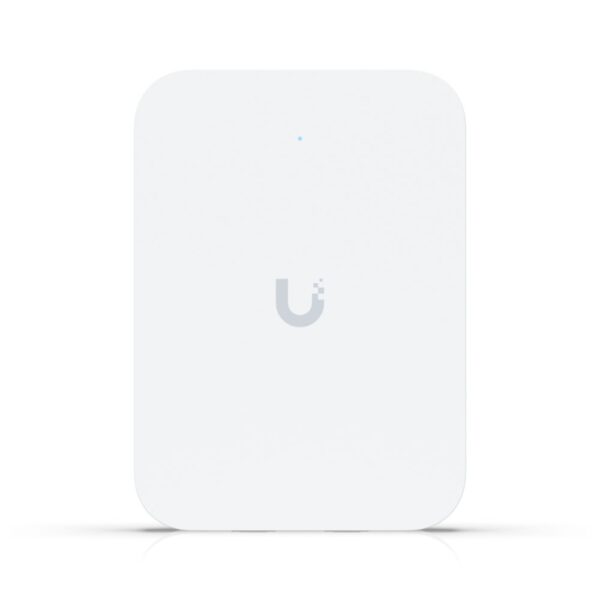

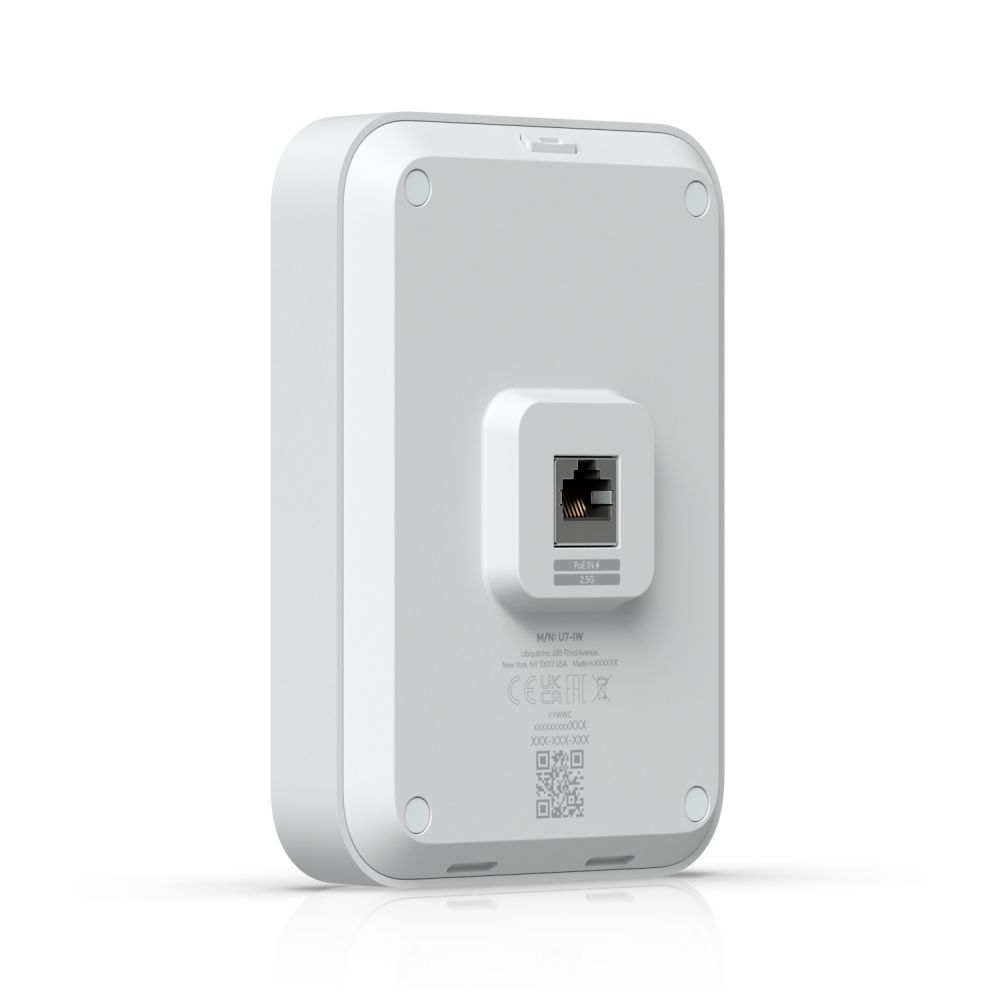

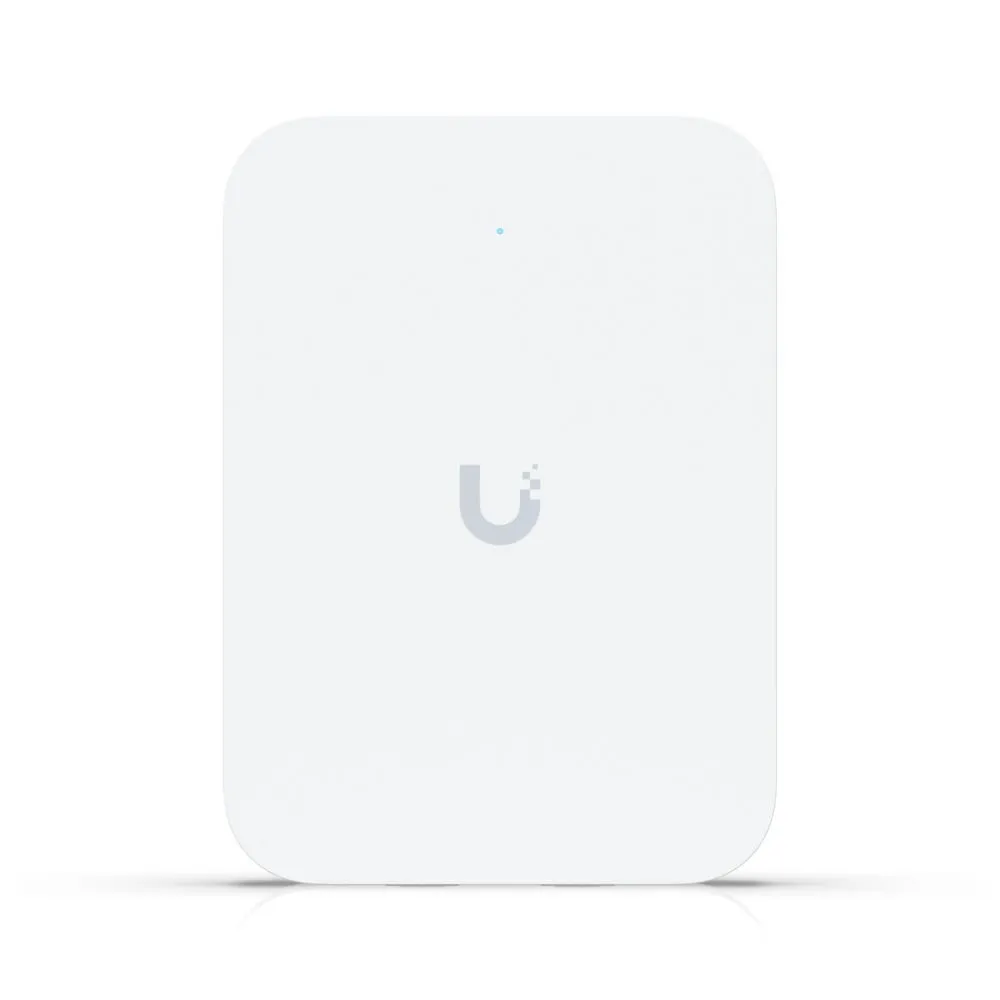

Ubiquiti U7 In-Wall PoE White
£170.47
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- WiFi 7 access point with 4 spatial streams
- Integrated 2.5 GbE PoE switch
- Supports IEEE 802.11ac, 802.11ax, 802.11be standards
- Maximum data transfer rate of 4300 Mbit/s
- Wall-mounted design with internal antennas
- Covers up to 115 m² with wireless meshing capability
- Powered via PoE with 13W maximum consumption
Available alternatives

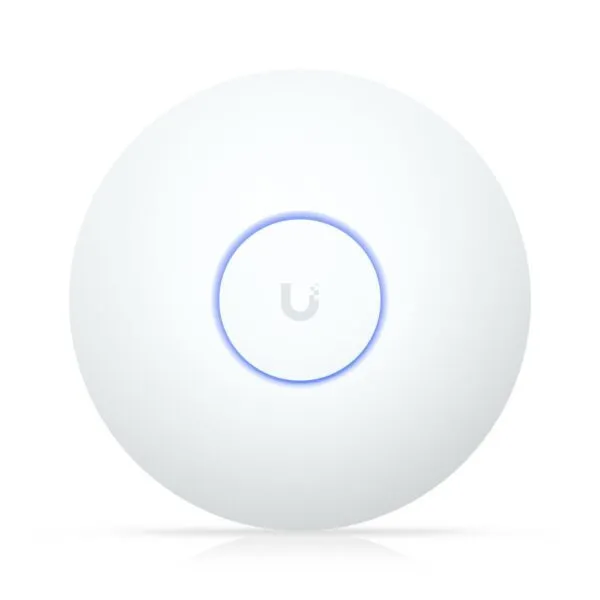

Ubiquiti U7 Long-Range 7300 Mbps PoE
In stock

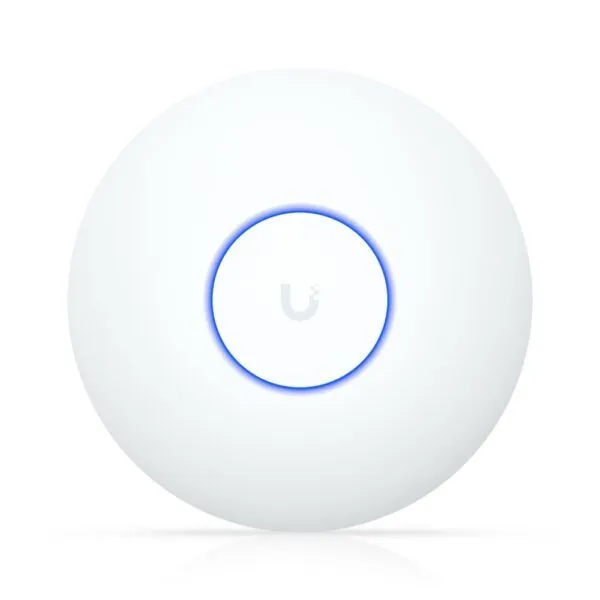

Ubiquiti U7 Lite 4300 Mbps PoE White
In stock
You may also like
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
TP-Link Wi-Fi 7 Ceiling Access Point
In stock
TP-Link AX3000 Ceiling WiFi 6 Access Point
In stock
Ubiquiti U7 Lite 4300 Mbps PoE White
In stock
Ubiquiti NanoStation 5AC Loco 1000 Mbps White
In stock
Ubiquiti airCube 867 Mbps PoE Black
In stock
TP-Link AX5400 Ceiling WiFi 6 AP
In stock
TP-Link Omada EAP225 1350Mbps PoE Access Point
In stock
DrayTek VigorAP 805 Mesh AX3000 Access Point
In stock
Ubiquiti U7 In-Wall | WiFi 7 Access Point for Hospitality
The Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE) delivers enterprise-grade WiFi 7 coverage with 4 spatial streams and an integrated 2.5 GbE PoE switch, purpose-built for high-density hospitality environments.
Specification Overview
| Metric | Spec. |
|---|---|
| Max Data Rate | 4300 Mbit/s |
| Ethernet Ports | 3 x 2.5 GbE PoE |
| Coverage | 115 m² |
| MIMO Streams | 4 |
| Antenna Type | Internal (4) |
Built for high-density hospitality environments
Designed for hotels, conference centres, and serviced apartments, the U7 In-Wall supports up to 200 simultaneous users with fast roaming and band steering, ensuring seamless connectivity across large public areas. Its 115 m² coverage and 4×4 MIMO architecture provide reliable, high-speed wireless access where multiple guests connect at once.
WiFi 7 performance with 4 spatial streams
Leveraging IEEE 802.11ax/be standards, the U7 delivers 4300 Mbit/s over 5 GHz and 688 Mbit/s over 2.4 GHz, enabling ultra-fast streaming, conferencing, and IoT device support. Four internal antennas with 8 dBi gain ensure strong signal penetration through walls and floors typical in multi-room properties.
Integrated 2.5 GbE PoE switch
The built-in 2.5 GbE PoE switch powers the unit and connects up to three wired devices, reducing cabling complexity. With 13 W maximum power draw and 42.5–57 V DC input, installation is straightforward using standard PoE+ injectors or switches.
Enterprise security and management
Security features include PPSK authentication for individual guest credentials and VLAN support for network segmentation. Wi-Fi scheduling and fast roaming keep connections stable as users move between access points, while Hotspot 2.0 capability supports seamless public Wi-Fi onboarding.
Package contents
- Ubiquiti U7 In-Wall AP
- Wall mounting kit
- Quick start guide
Things to check first
- Confirm your PoE switch supports 802.3at/af or 42.5–57 V passive PoE
- Verify wall cavity dimensions accommodate 98.7 x 137 x 30.2 mm
- Check your network controller supports UniFi OS or UniFi Network application
- Ensure your environment requires 2.4/5 GHz bands (no 6 GHz support)
Frequently Asked Questions
Can the U7 In-Wall operate without a UniFi controller?
What is the maximum number of devices this AP can handle?
Does it support WiFi 6 client devices?
Can I mount it in a ceiling instead of a wall?
What security protocols are available?
Our verdict
The Ubiquiti U7 In-Wall is the ideal WiFi 7 access point for hospitality and multi-dwelling environments demanding high user density, fast roaming, and simplified wired/wireless integration. Covered by the applicable manufacturer warranty.
| Weight | 0.55 kg |
|---|---|
| Access point management | Wi-Fi schedule |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4 – 5 GHz |
| Number of users | 200 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 2500 Mbit/s |
| Maximum data transfer rate | 4300 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate 2.4 GHz | 688 Mbit/s |
| Maximum data transfer rate 5 GHz | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Spatial streams | 4 |
| Coverage area | 115 m² |
| Wireless meshing | Yes |
| Maximum Tx power 2.4 GHz | 23 dBmW |
| Maximum Tx power 5 GHz | 24 dBmW |
| Security algorithms | PPSK |
| Ethernet LAN RJ-45 ports | 3 |
| Power consumption max | 13 W |
| DC voltage range | 42.5 – 57 V |
| Housing material | Aluminium, Polycarbonate (PC) |
| Placement | Wall |
| Product colour | White |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level max | 8 dBi |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| LED indicators | Status |
| Fast roaming | Yes |
| Width | 98.7 mm |
| Depth | 30.2 mm |
| Weight | 400 g |
| Height | 137 mm |
| Mounting kit | Yes |
| Operating relative humidity H-H | 5 – 95% |
| Operating temperature T-T | -30 – 40 °C |
| Quantity per pack | 1 pc(s) |
