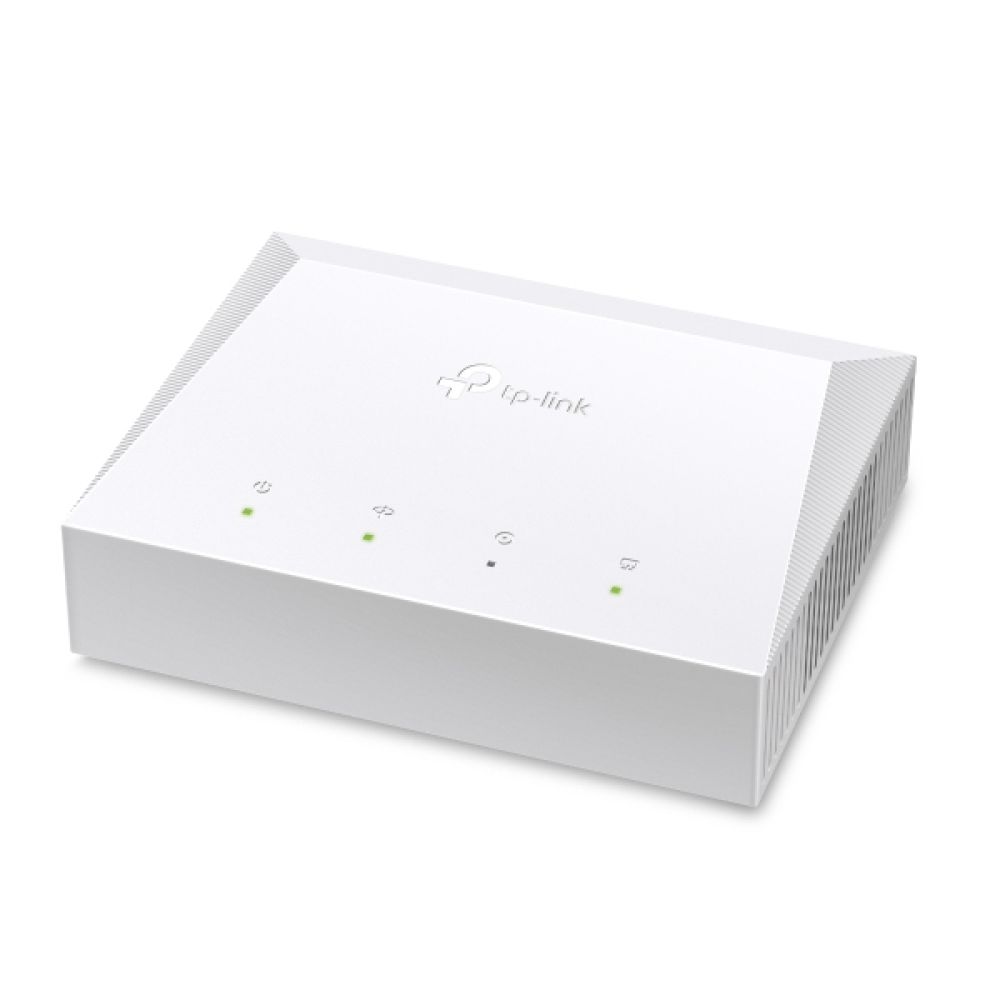

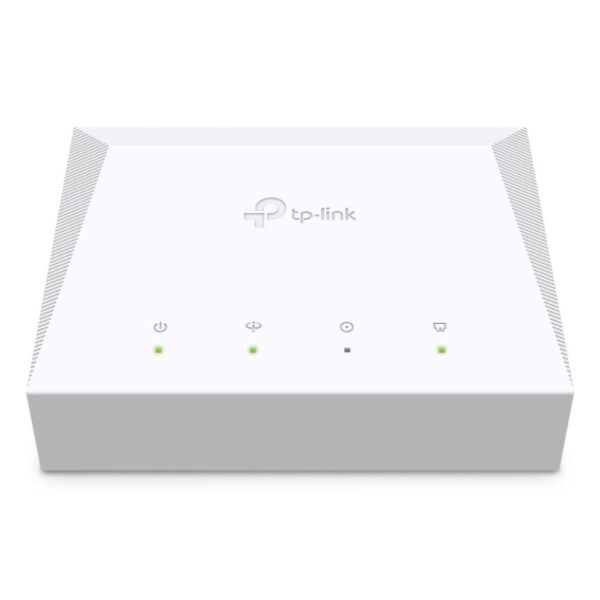

TP-Link XZ000-G6 Optical ONT
£12.70 inc VAT
50 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Optical network terminal (ONT) with dual-mode GPON + EPON capability
- 1250 Mbps upstream/downstream speeds with 20 km transmission range

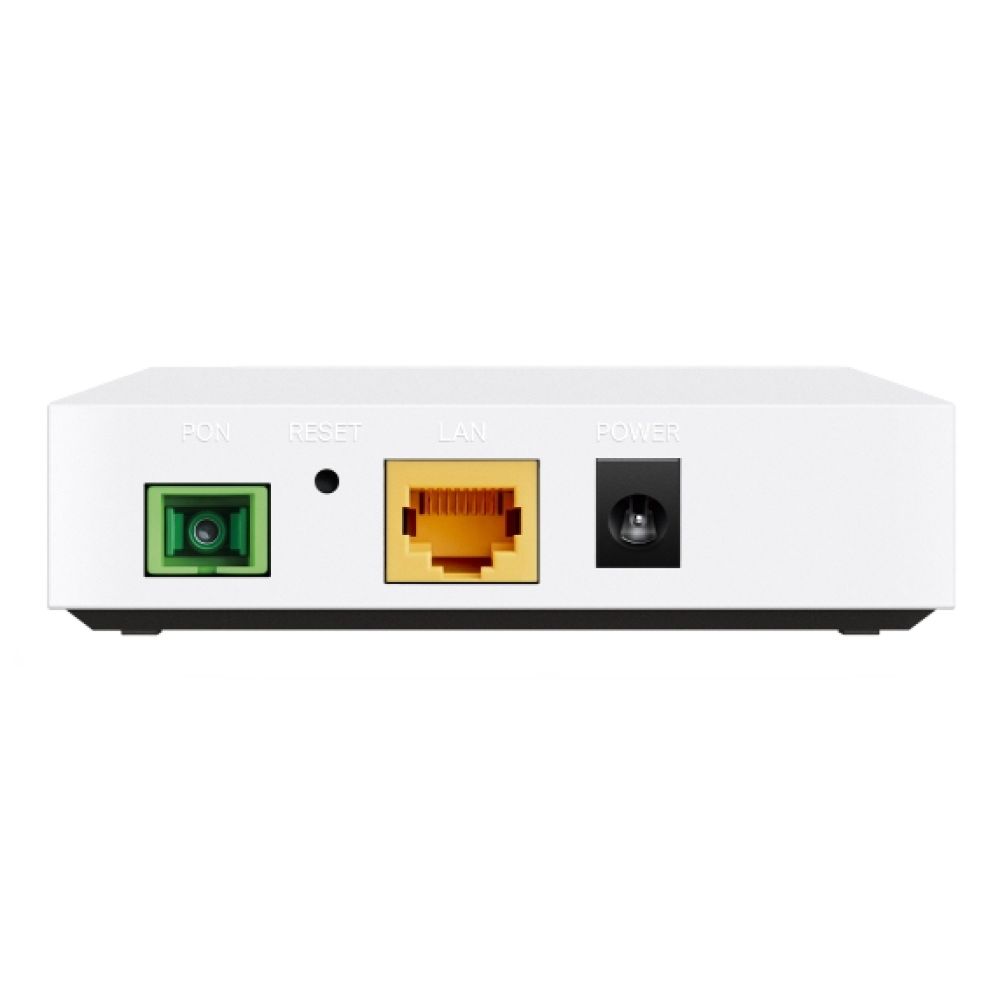

- Gigabit Ethernet LAN port for wired XPON connectivity
- Compact white design: 95 x 75 x 29.3 mm
- CE and RoHS certified for safe operation
- Centralized remote management via OMCI protocol
- Supports IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u standards
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link XZ000-G6 | GPON/EPON Dual-Mode ONT
The TP-Link XZ000-G6 network terminal/unit Optical network terminal (ONT) delivers up to 2.5 Gbps fibre broadband speeds via GPON or EPON modes, making it ideal for UK FTTH installations requiring flexible, high-performance connectivity.
Key Specs at a Glance
| Metric | Spec |
|---|---|
| Data Rate | 1250 Mbps (both directions) |
| Ports | 1x Fibre, 1x Gigabit Ethernet |
| Standards | IEEE 802.1Q, IEEE 802.3, G.984, G.988 |
| Dimensions | 95 x 75 x 29.3 mm |
| Operating Temp | 0–40 °C |
GPON + EPON Dual-Mode Flexibility
The XZ000-G6 automatically switches between GPON and EPON standards, ensuring compatibility with a wide range of UK service providers. This dual-mode capability future-proofs your installation and removes the need for separate hardware if network technology changes.
Gigabit Wired Connectivity for FTTH
With a single gigabit Ethernet LAN port, the XZ000-G6 delivers stable, low-latency connections for streaming, gaming, and work. The XPON technology ensures consistent throughput up to 1 Gbps, ideal for homes with multiple high-bandwidth users.
Remote Management for Service Providers
Using the OMCI protocol, providers can configure and monitor the ONT remotely. This centralised management reduces on-site visits, speeds up troubleshooting, and improves overall service reliability for end users.
Compact Design for Easy Installation
Measuring just 95 mm wide and 29.3 mm high, the XZ000-G6 fits neatly beside your router or in a network cabinet. Its white finish blends into most home or office environments without drawing attention.
Box contents
- TP-Link XZ000-G6 ONT unit
- Power adapter
- Quick installation guide
Check before you buy
- Confirm your provider uses GPON or EPON (or both) for FTTH services.
- Verify the Ethernet port matches your router’s WAN speed requirements.
- Check that your fibre termination point is within 20 km of the ONT.
- Ensure CE compliance for UK installation standards.
Frequently Asked Questions
Q: Does the XZ000-G6 support Wi-Fi?
A: No, it is a wired-only ONT with no built-in wireless capabilities.
Q: Can I use this with any UK ISP?
A: Only if your ISP’s FTTH network uses GPON or EPON standards. Confirm with your provider first.
Q: What is the maximum fibre distance supported?
A: Up to 20 km from the provider’s OLT equipment.
Q: Is the device fanless?
A: Yes, it operates silently with passive cooling.
The Consultant’s verdict & warranty
The TP-Link XZ000-G6 network terminal/unit Optical network terminal (ONT) is a robust, dual-mode fibre solution for UK homes and businesses needing reliable gigabit speeds. Its compact size, remote management features, and dual-mode flexibility make it a smart choice for FTTH deployments. Covered by the standard Manufacturer Warranty.
| Design | |
|---|---|
| Product type | Optical network terminal (ONT) |
| Product colour | White |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u |
| ITU standards | G.984.2, G.984.3, G.984.4, G.988 |
| Upstream data rate | 1250 Mbit/s |
| Downstream data rate | 1250 Mbit/s |
| Transmission distance (max) | 20 km |
| Wireless LAN features | |
| Wi-Fi | No |
| Management features | |
| Reset button | Yes |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 75 mm |
| Height | 29.3 mm |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Identifiers | |
| Distributor SKUs | 93417, 11916657, NS93417 |
| Additional EANs | 0840460602921 |
