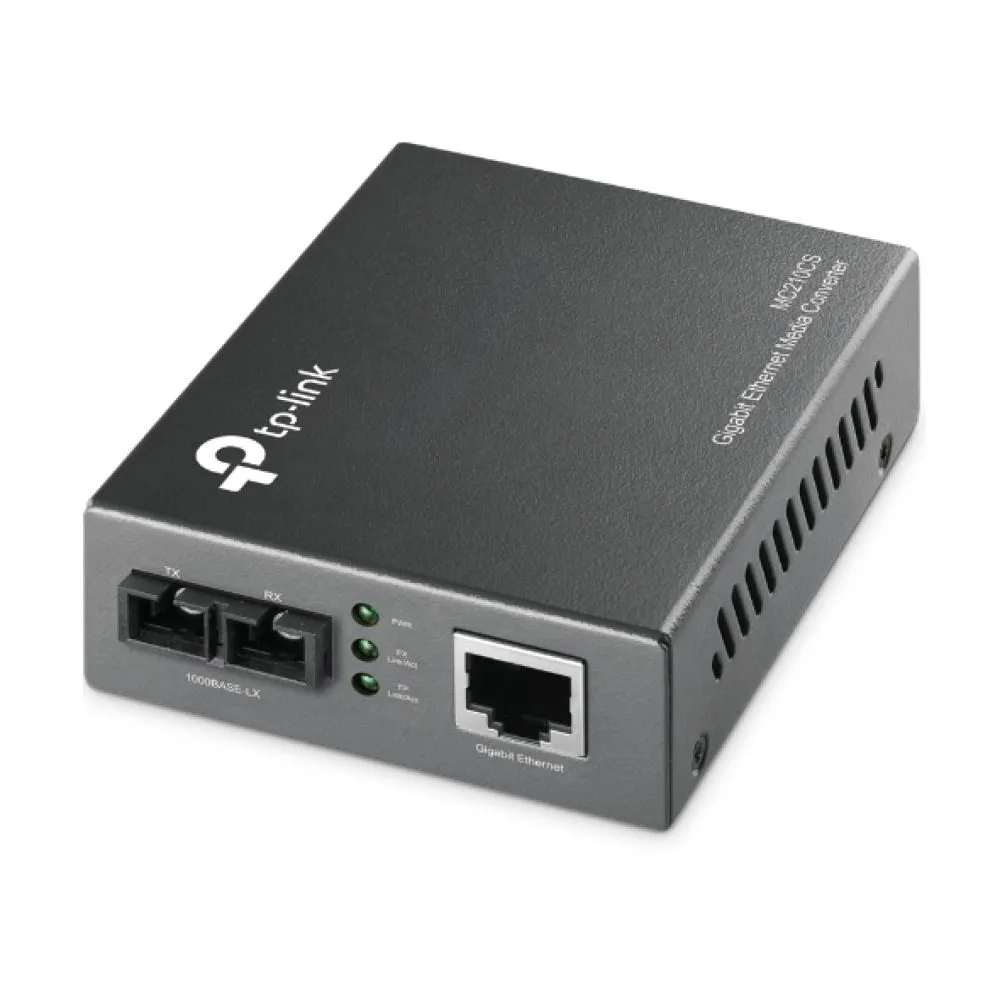

TP-Link MC210CS Media Converter 1000 Mbit/s
£34.15
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Converts 1000BASE-LX fibre to 1000BASE-T copper or vice versa
- Supports IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
- Single-mode fibre operation at 1310nm wavelength
- Up to 15km transmission distance over single-mode fibre
- Auto MDI/MDI-X for TX port and front panel status LEDs
- Compact black chassis, 95mm x 73mm x 27mm, wall-mountable
You may also like
TP-Link Omada 10G SFP Media Converter
In stock
StarTech.com Cisco GLC-SX-MMD Compatible SFP Module 1GbE Multimode LC 550m 850nm DDM
In stock
StarTech.com HPE J9151E Compatible SFP+ Transceiver Module 10GbE 10km LC 1310nm DDM Silver
In stock
StarTech.com Multi-Mode LC Fibre Media Converter 10/100/1000 Networks 550m Black
In stock
TP-Link MC210CS | Single-Mode Fibre to Gigabit Ethernet Converter
The TP-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black is designed to bridge Gigabit Ethernet copper networks with long-distance single-mode fibre infrastructure. Built to IEEE802.3ab and IEEE802.3z standards, it enables reliable 1000BASE-LX to 1000BASE-T conversion for enterprise, campus, and industrial installations.
Key Specifications
| Metric | Spec. |
|---|---|
| Data Rate | 1000 Mbit/s |
| Fibre Connector | SC-Type |
| Wavelength | 1310 nm |
| Max Transfer Distance | 15 km (9.3 miles) |
| Auto MDI/MDI-X | Yes |
Extend Gigabit Networks Over Ultra-Long Distances
The MC210CS supports single-mode fibre up to 15 km, making it ideal for connecting buildings, remote sites, or campus facilities where standard copper Ethernet would be impractical. The 1310 nm wavelength ensures low attenuation over extended runs, preserving signal integrity across the entire distance.
Plug-and-Play Installation with Auto Negotiation
Auto MDI/MDI-X on the Gigabit Ethernet port removes the need for crossover cables, simplifying deployment. Front-panel LEDs provide instant status feedback for power, link, and activity, allowing quick troubleshooting without specialised tools.
Compact, Low-Power Design for 24/7 Operation
Measuring just 95 x 73 x 27 mm and consuming a maximum of 1.8 W, the MC210CS fits easily into tight rack or desktop spaces while minimising energy costs. Its fanless, solid-state construction ensures silent, reliable operation in environments from 0 °C to 40 °C.
Box Contents
- TP-Link MC210CS media converter
- Power adapter (region-specific)
- Quick installation guide
Check Before You Buy
- Confirm your existing network uses 1000BASE-LX single-mode fibre with SC connectors.
- Verify the copper side supports Gigabit Ethernet (1000BASE-T).
- Check that your operating environment stays within 0-40 °C.
- Ensure you have a free power outlet for the included adapter.
Buyer FAQs
Can I connect this to a multimode fibre network?
Does it require configuration or drivers?
What is the maximum power draw?
Is the unit rack-mountable?
What operating humidity range does it support?
The short version
The TP-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black is the go-to solution for extending Gigabit Ethernet over long single-mode fibre runs without complex configuration. Its compact, low-power design and auto-negotiation make it suitable for both IT professionals and industrial users needing dependable, high-speed connectivity across campus or between buildings. Covered by the applicable manufacturer warranty.
| Network | |
|---|---|
| Cable types supported | Cat5, Cat5e |
| Copper ethernet cabling technology | 1000BASE-LX, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fibre optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 15000 m |
| Fibre mode structure | Single-mode |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fibre ports quantity | 1 |
| Fibre optic connector | SC |
| Power | |
| Power consumption (max) | 1.8 W |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 15000 m |
| Fibre mode structure | Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Additional EANs | 6935364030445 |
