Asrock B450M Pro4 R2.0 micro ATX motherboard

ASRock B450M Pro4 R2.0 | Compact AMD Ryzen Micro-ATX Motherboard

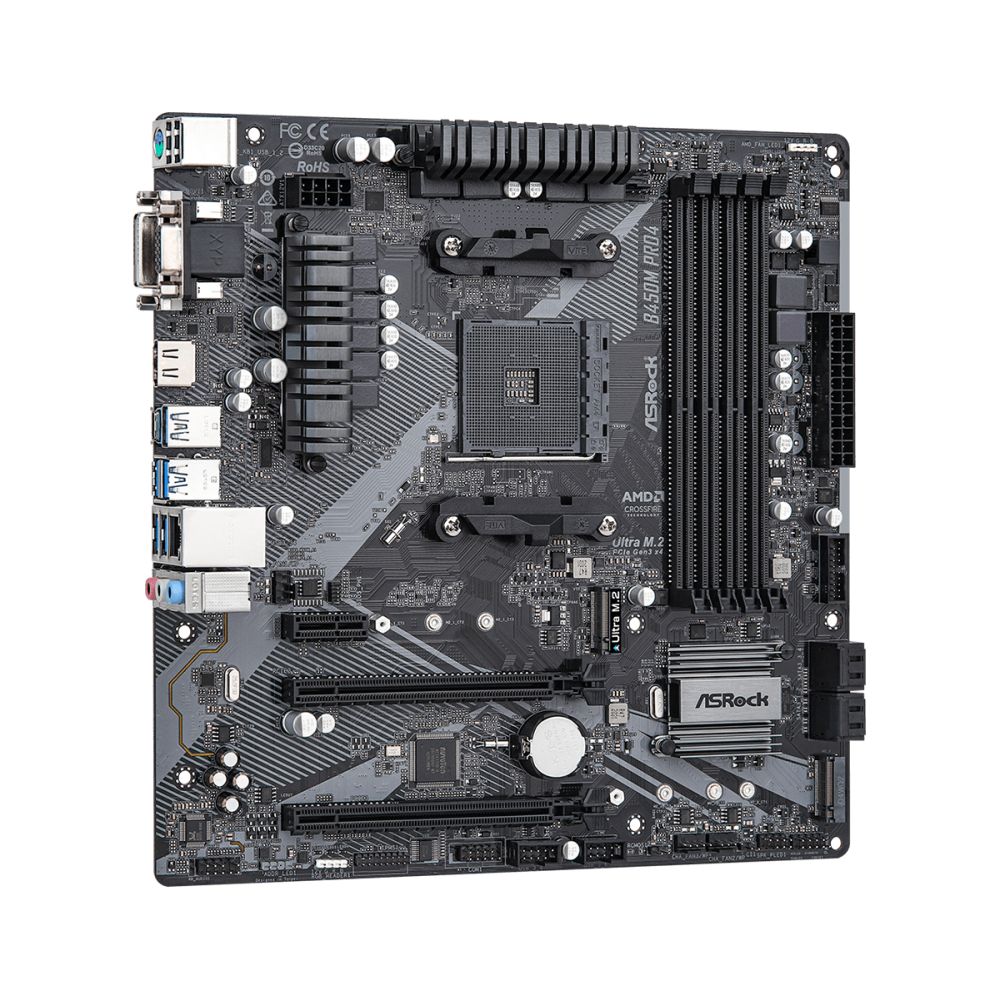

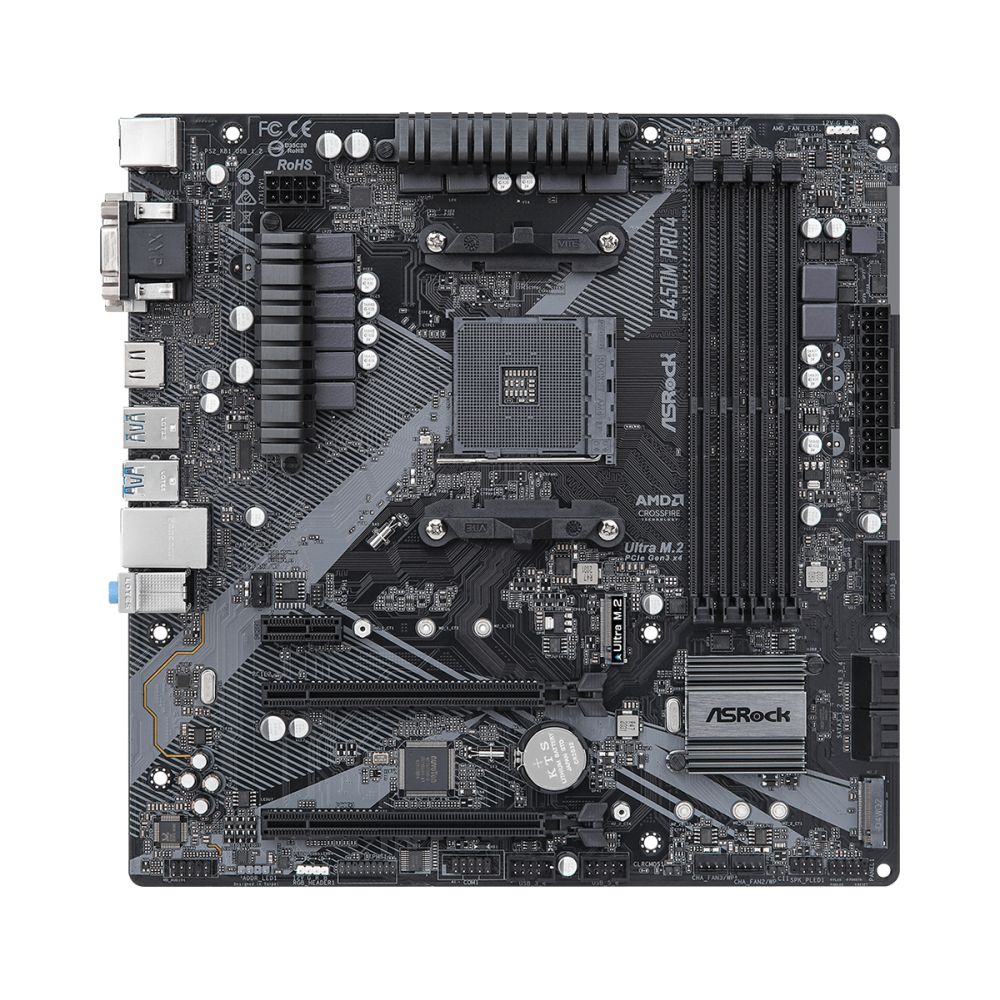

The ASRock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX motherboard delivers robust performance for AMD Ryzen processors in a space-efficient micro-ATX form factor. This board combines essential features for gaming and productivity systems with reliable power delivery and expandability options suitable for both first-time builders and experienced enthusiasts.

Slim Specs Table

Reliable Power Delivery for Ryzen Processors

The 10-phase power design ensures stable voltage delivery to AMD Ryzen CPUs, supporting smooth operation under load. With premium 42A power chokes and Digi Power technology, this motherboard maintains clean power delivery even during demanding tasks or overclocking sessions. The solid capacitor design enhances long-term reliability compared to standard electrolytic capacitors.

Versatile Storage and Memory Configuration

Supporting up to 128GB of DDR4 memory across four DIMM slots, this board accommodates everything from basic office setups to memory-intensive applications. The dual-channel architecture maximizes memory bandwidth for improved system responsiveness. Storage options include one ultra-fast M.2 slot for NVMe SSDs alongside four SATA III ports for traditional drives, with RAID 0, 1, and 10 support for data protection or performance configurations.

Comprehensive Connectivity Options

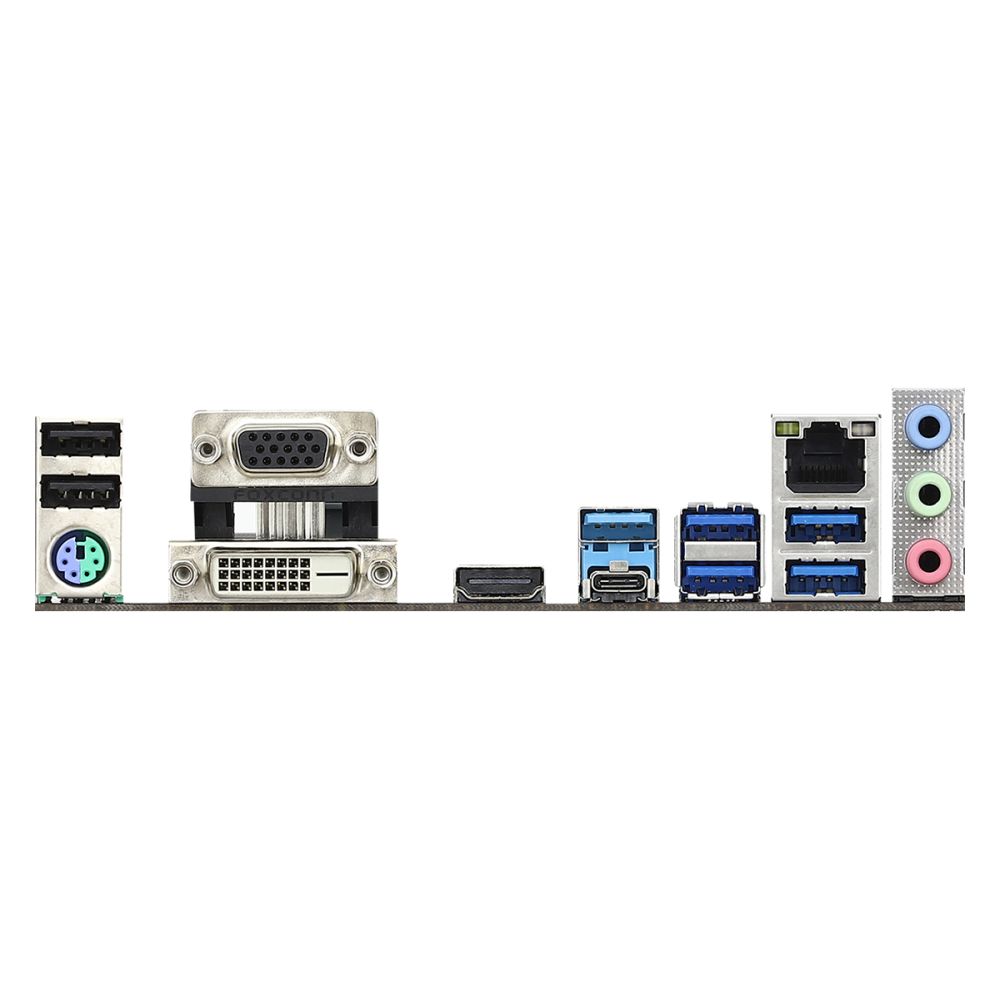

Despite its compact size, the B450M Pro4 R2.0 offers extensive connectivity. Four USB 3.2 Gen 1 ports handle high-speed peripherals, while a USB 3.2 Gen 2 Type-A and Type-C port provide cutting-edge transfer speeds up to 10Gbps. The rear I/O includes VGA, DVI-D, and HDMI outputs supporting triple monitor setups with 4K resolution capability. Gigabit Ethernet ensures reliable wired networking, while 7.1 channel HD audio delivers immersive sound quality.

Smart Cooling and System Monitoring

Three chassis fan headers plus a dedicated CPU fan connector provide comprehensive cooling control. The motherboard monitors fan speeds, temperatures, and voltages through its hardware monitoring system, allowing users to maintain optimal operating conditions. This monitoring capability helps prevent overheating and ensures system stability during extended use or heavy workloads.

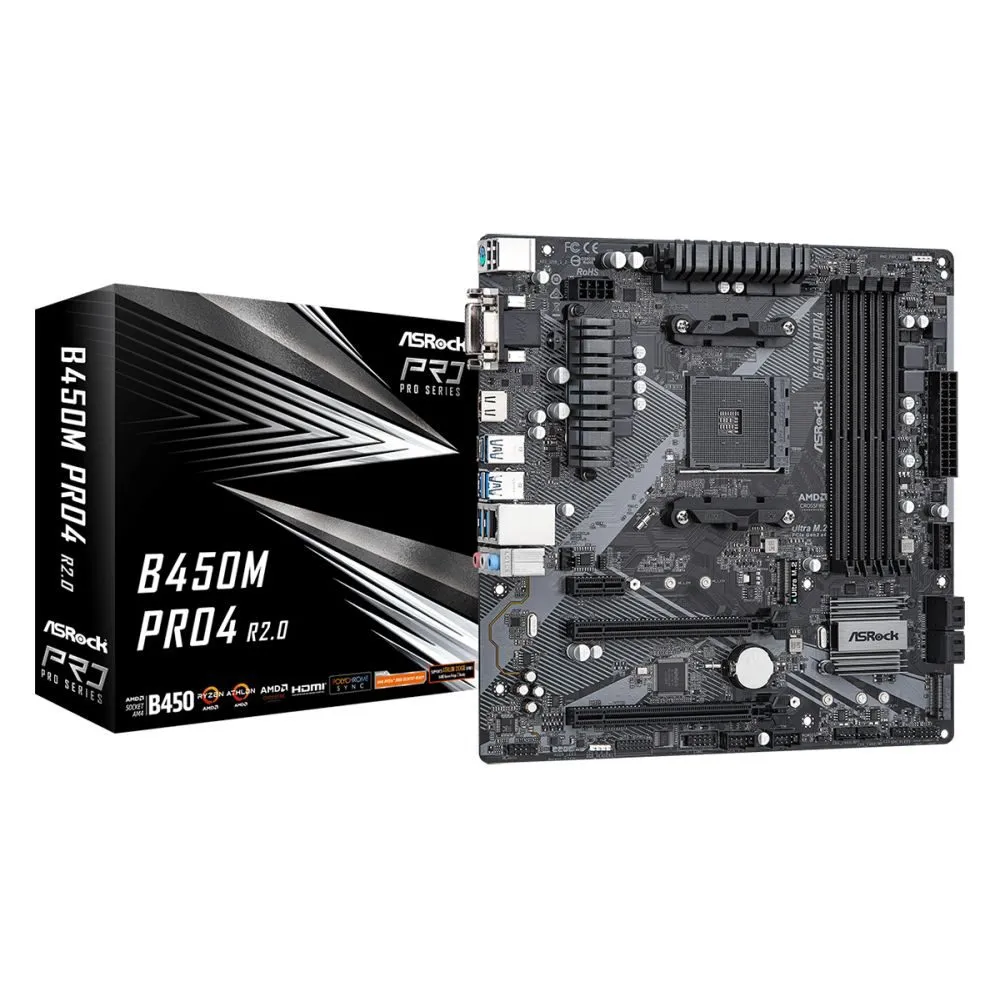

Box contents

• ASRock B450M Pro4 R2.0 motherboard
• I/O shield
• SATA cables
• User manual
• Driver/software disc

Check before you buy

• Confirm your AMD Ryzen processor is compatible with Socket AM4
• Verify your case supports micro ATX motherboards (244mm x 244mm)
• Check that your power supply has a 24-pin ATX and 8-pin EPS connector
• Confirm your RAM meets the DDR4 specification and maximum 3200MHz speed

Frequently Asked Questions

Q: Does this motherboard support Ryzen 5000 series processors?

A: The B450M Pro4 R2.0 may require a BIOS update to support Ryzen 5000 series processors. Check ASRock’s website for the latest BIOS version.

Q: Can I use this motherboard without a dedicated graphics card?

A: Yes, the motherboard has onboard graphics support through the AMD chipset, allowing use with integrated graphics on compatible Ryzen APU processors.

Q: How many M.2 SSDs can I install?

A: This motherboard supports one M.2 SSD. One M.2 slot is provided, which supports both PCIe and SATA M.2 drives.

Q: Is Wi-Fi included on this motherboard?

A: No, this motherboard does not include built-in Wi-Fi. You would need to use the Gigabit Ethernet connection or add a Wi-Fi adapter.

Q: What is the maximum memory speed supported?

A: The motherboard supports DDR4 memory up to 3200MHz, though actual speeds may depend on your specific CPU and memory kit.

The Consultant’s verdict & warranty

The ASRock B450M Pro4 R2.0 offers excellent value for users building AMD Ryzen systems in compact micro-ATX cases. Its robust power delivery, comprehensive connectivity options, and support for high-speed memory make it suitable for gaming, content creation, and everyday computing. Covered by the standard Manufacturer Warranty.
