Asrock B850M-X WiFi R2.0 AM5 micro ATX
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B850 chipset micro ATX motherboard with AM5 socket for Ryzen 7000/8000/9000 series
- Dual-channel DDR5 memory support up to 128GB at 8200MHz with ECC compatibility
- One M.2 slot with PCIe Gen5 and four SATA III ports for flexible storage options
- Integrated Wi-Fi 6E, 2.5Gb Ethernet, and Bluetooth 5.2 for advanced connectivity
- 7.1-channel Realtek ALC897 audio with Nahimic enhancement for immersive sound
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock B850M-X WiFi R2.0 | AMD B850 Micro ATX Motherboard

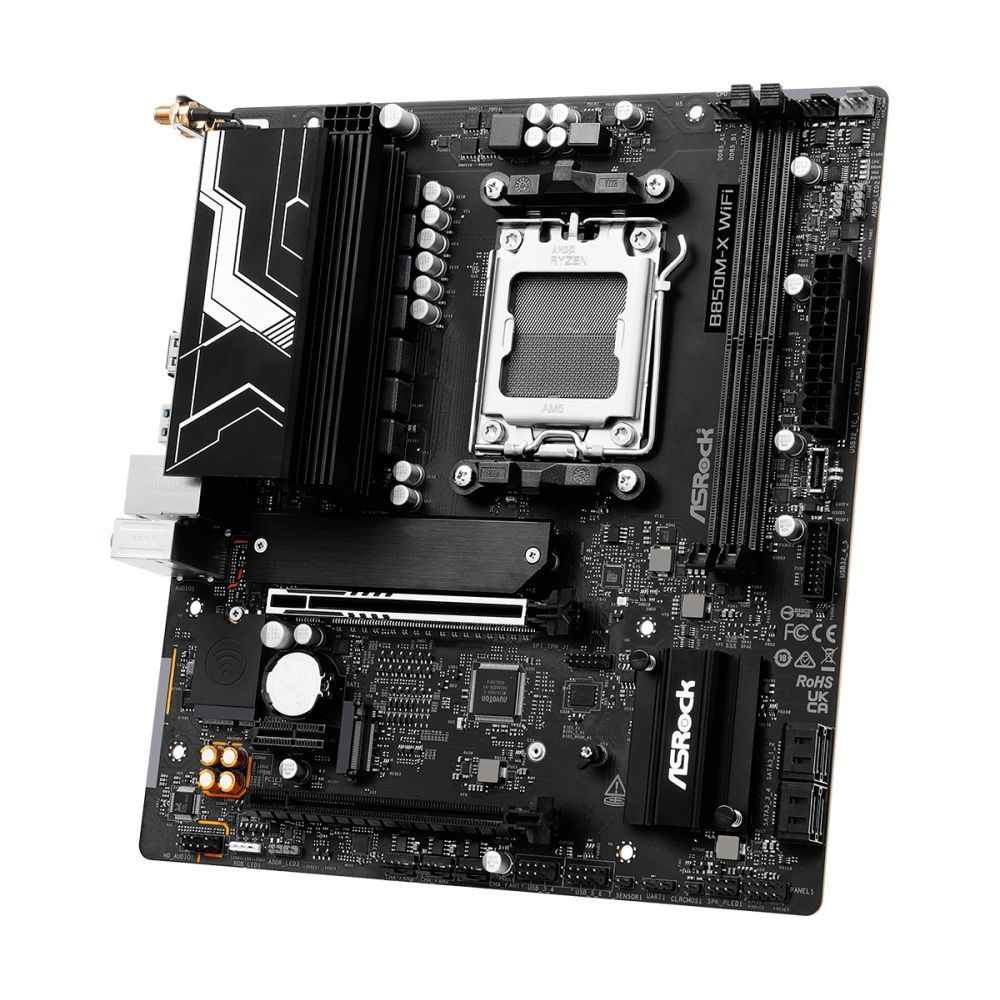

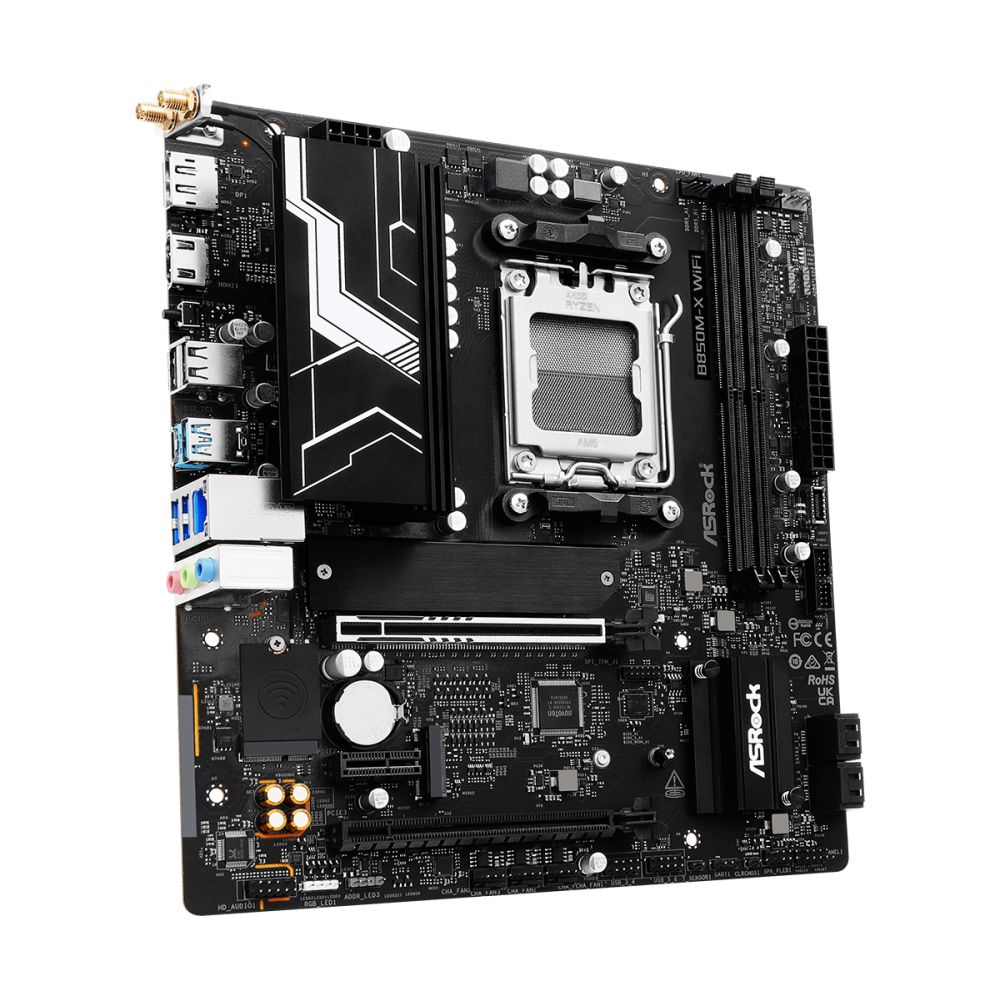

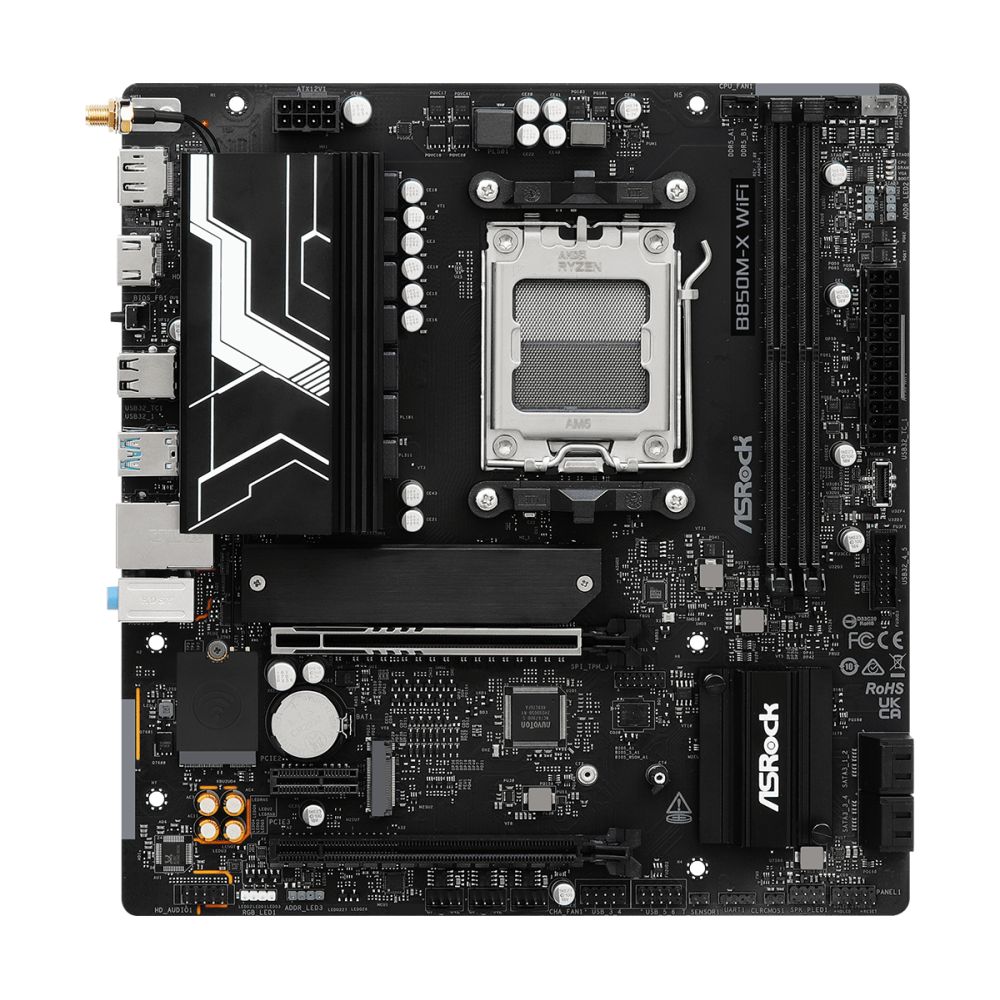

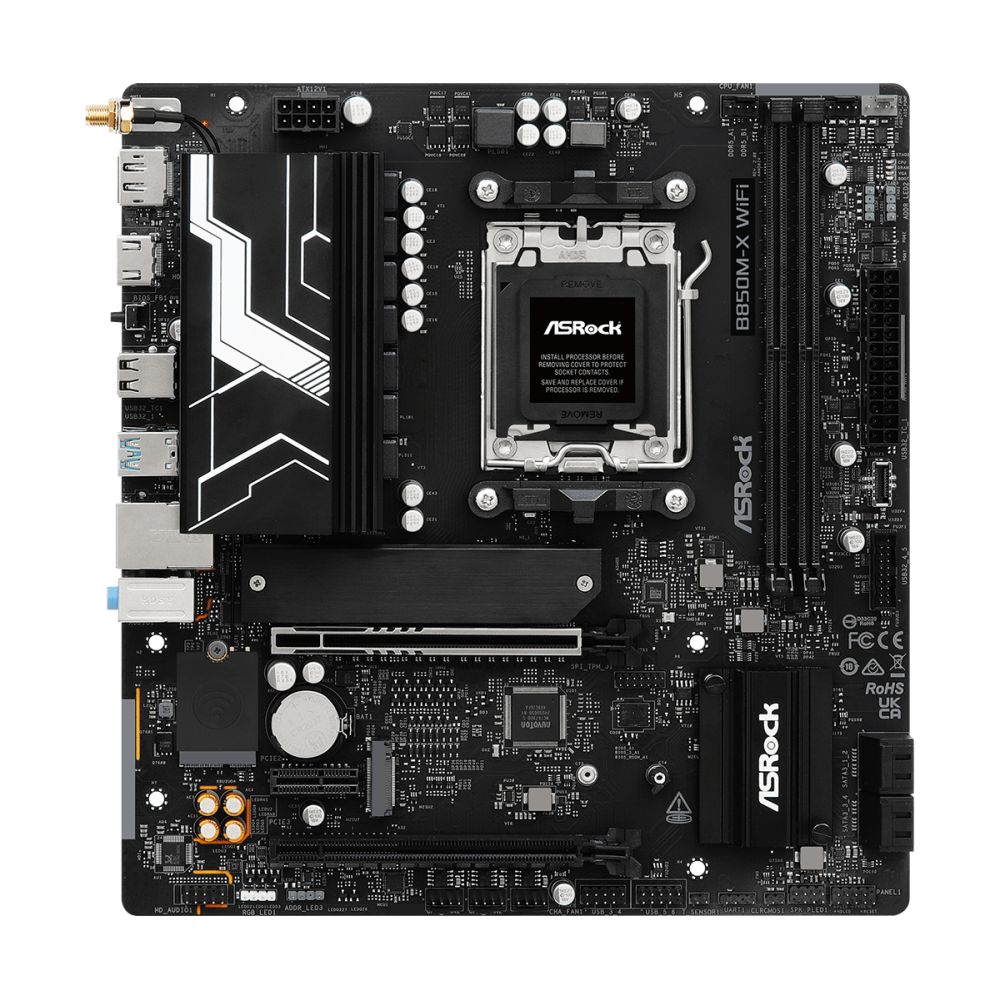

The ASRock B850M-X WiFi R2.0 AMD B850 Socket AM5 micro ATX motherboard delivers a compact yet powerful platform for AMD Ryzen 7000, 8000, and 9000 series processors. With DDR5 memory support, PCIe 5.0, and built-in Wi-Fi 6E, this micro ATX board balances performance and connectivity in a space-efficient design.
Key Specs at a Glance
| Metric | Spec |
|---|---|
| Processor Socket | AM5 |
| Memory Support | DDR5, up to 128GB |
| PCIe Slots | 1x PCIe 5.0, 1x PCIe 4.0 |
| Storage | 1x M.2 Gen5, 4x SATA III |
| Wi-Fi | Wi-Fi 6E + Bluetooth 5.2 |
| LAN | 2.5Gb Ethernet |
Power and Stability for Demanding Tasks
The 6+1+1 power phase design with Dr. MOS technology delivers clean, stable power to AMD Ryzen CPUs, supporting smooth performance during heavy workloads or light overclocking. Hi-Density power connectors handle higher currents, reducing overheating risks during extended use.
Fast Storage and Future-Proof Expansion
A PCIe 5.0 M.2 slot enables next-gen SSDs with up to 128GB/s bandwidth, while a Gen4 M.2 slot offers additional high-speed storage options. Four SATA III ports allow for multiple HDDs or SSDs, and RAID 0/1/10 support adds flexibility for data management.
Advanced Cooling for Sustained Performance
An aluminum heatsink design efficiently dissipates heat from critical components, while PWM/DC fan support and Fan-Tastic Tuning let you customise cooling curves for quiet or performance-focused operation. Three chassis fan headers and dual CPU fan connectors provide comprehensive thermal control.
Built-In Wi-Fi 6E and 2.5Gb LAN
With Wi-Fi 6E support, you get access to the 6GHz band for faster, lower-latency wireless connections—ideal for streaming, gaming, or video calls. The Dragon 2.5Gb LAN port ensures lag-free, high-speed wired networking for demanding applications.
Enhanced Audio and RGB Personalisation
Nahimic Audio delivers immersive 7.1-channel sound with noise suppression and voice stabilisation, perfect for gaming or video conferencing. POLYCHROME RGB and SignalRGB compatibility allow full lighting control and synchronisation with other RGB components.

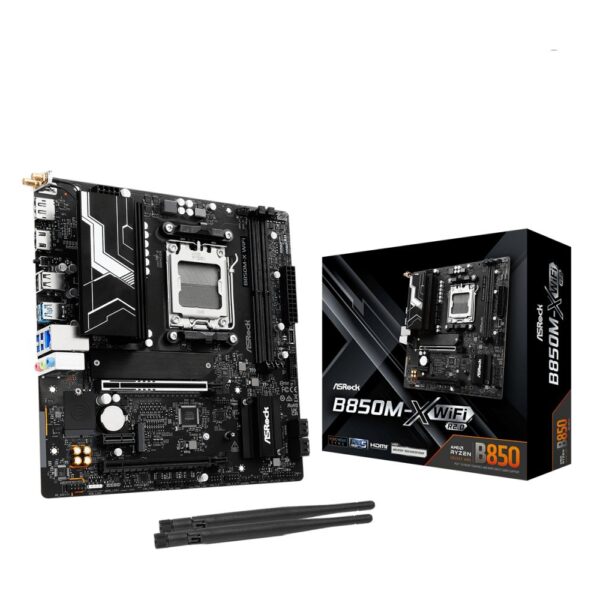

Box Contents
- ASRock B850M-X WiFi R2.0 motherboard
- SATA cables (quantity not specified)
- Wi-Fi antenna
- User manual
Check Before You Buy
- Confirm your AMD Ryzen processor is AM5 compatible
- Verify your case supports micro ATX form factor (244 x 226 mm)
- Ensure your PSU has a 24-pin ATX and 8-pin EPS connector
- Check if your RAM is DDR5 and supports XMP/EXPO profiles
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM memory modules.
Q: How many M.2 slots are available?
A: There is one M.2 Gen5 slot and one M.2 Gen4 slot.
Q: Is Wi-Fi 6E included?
A: Yes, it includes Wi-Fi 6E with Bluetooth 5.2.
Q: Can I overclock my CPU with this board?
A: Yes, the VRM design and BIOS support overclocking for compatible CPUs.
Q: What size is this motherboard?
A: It is a micro ATX board measuring 244 x 226 mm.
The Consultant’s Verdict & Warranty
The ASRock B850M-X WiFi R2.0 is an excellent choice for users building a compact, high-performance AMD system with modern connectivity and storage options. Its combination of PCIe 5.0, Wi-Fi 6E, and robust power delivery makes it suitable for gaming, content creation, and everyday use. Covered by the standard Manufacturer Warranty.
| Weight | 1.2 kg |
|---|---|
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 1 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |

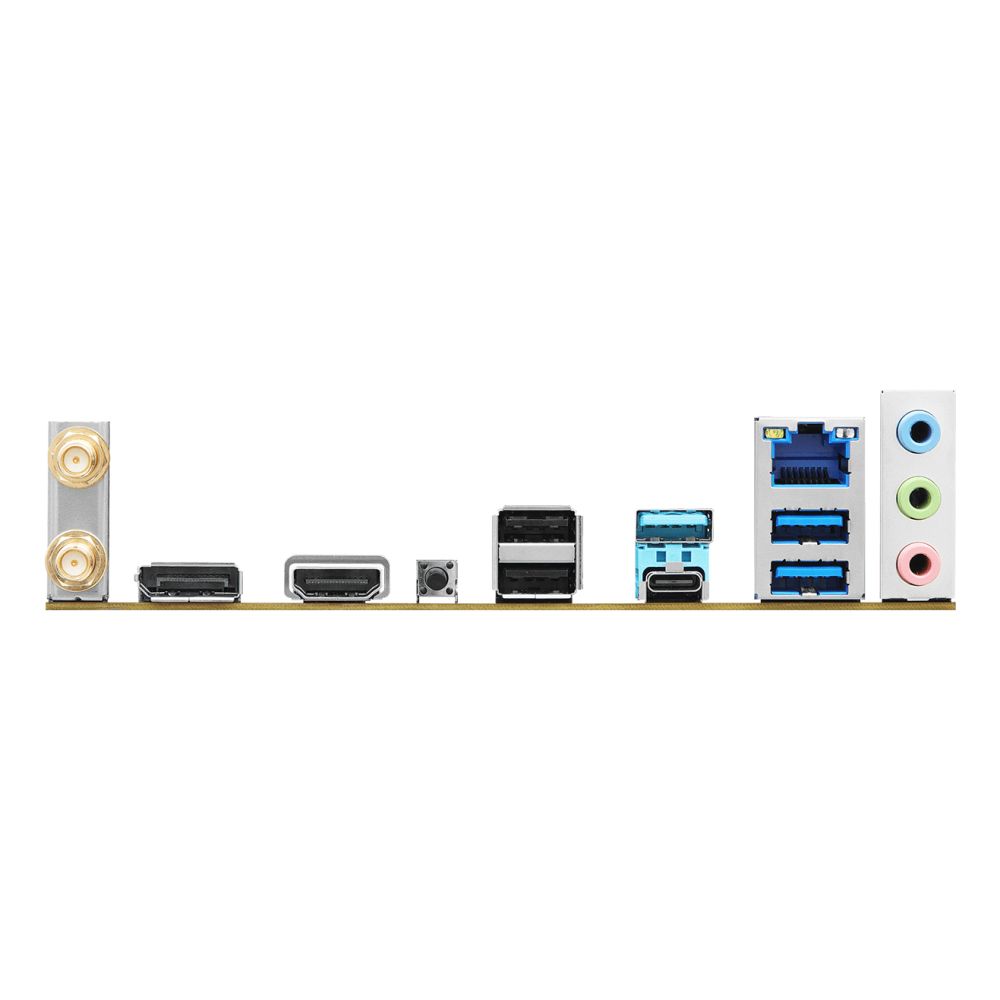

| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 3 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Number of M.2 M slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| HDCP | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 244 mm |
| Depth | 226 mm |
| Cables included | SATA |
| Antenna included | Yes |
| PCI Express x1 Gen 4.x slots | 1 |
